DHARA AGENCY Kothariya Road, Rajkot, Gujarat

product details: brand fine dimensions 660x180x850 mm model no tv-50 hardness value of reading hv measuring unit hv scale hv testing force 1 ,5, 10, 30, 50 kgf hardness scale hv weight (kg) 180 kg power (kw) 0.1 kva, 1 phase ac, 220v, 50 hz condition new display type optical model number tv-50 warranty 1 year salient features : table top sturdy model front projection screen with micrometer with optical system list count of 0.0005 mm motorised loading & unloading of loads load selection by indexible load selection knob very wide testing range from very soft metals to very hard metals models with minimum 1 kg load are available the illumination light goes off during the application of load which reduces the operator's fatigue due to continuous light illumination as well as increases bulb life state of art load damping system for a very smooth & jerk free loading & unloading of applied load machine confirms to is: 1754-2002 for vickers & is: 2281-2005 / bs240 for brinell. four model are available : tv-50 with loads 5 to 50 kgf tv-250 with loads 5 to 250 kgf tv-50 (spl.) with loads 1 to 50 kgf tv250 (spl.) with loads 1 to 250 kgf additional information: port of dispatch: rajkot delivery time: ex stock .

Brand Name : FINE

product details: minimum order quantity 1 piece brand time model tt100 measuring range 0.75 to 200mm offering portable ultrasonic thickness gauges time tt-100. features:- portable size and easy operation suitable for any metallic and non-metallic materials ultrasonic can go through self-compensating of nonlinearity function is supplied for correction of pickup nonlineasity 10 measuring values can be recorded for tt100,tt110,tt130;100 measuring values can be recorded for tt140 optional 2.5mhz, 5mhz and 7mhz transducers are available clear 4-digit lcd display with backlight 5 pre-set sound velocities for repeating applications mm / inch selectable tt100,tt130 and tt140 are suitable for thickness testing of various materials with sound speed range 1000-9999m/s tt110 and tt120 are easy-operation models with only two keys suitable for thickness testing of steel tt120: high-temperature model tt140:with backlight display and the memory reach up to 99 tt100 .

Brand Name : TIME

product details: condition new depth of throat (millimeter) 132mm display type dial hardness scale hra, hrb, hrc loading capacity (kilogram) 60, 100, 150 kgf weight (kilogram) 65 kg model number trs steel ball indenter (millimeter) 1/16" additional test force 187.5, 250, 15, 30, 45 kgf preliminary test force 10 kgf is it portable non portable accuracy (%) 1 hrc test force (kg) 60, 100, 150 kgf warranty 1 year hardness testing machines model trs, trb, trb-250, tsm are manually operated. All these models are suitable for testing hardness of metals and alloys of all kinds of hard or soft, whether flat, round or irregular shape. These tester are simple in design and easy to operate, to sensitive and accurate. additional information: pay mode terms: t/t (bank transfer) port of dispatch: rajkot delivery time: ready stock

Brand Name : FINE

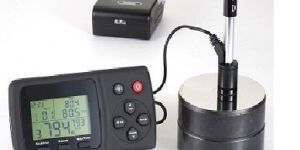

Model Number EPX7400     Is It Portable Portable Hardness Scale HL,HRC,BHN,HRB,HV,HLD Features : It is a small, light and portable tester. It is most suitable for testing of heavy, big or outdoor mental parts. Conforms to the Standard ASTM A956-02 Technical Parameters : Accuracy +- 6 HL Scales HRC, HRB, HB, HV, HSD, MPA Display 170*950 bright and clear LCD display with back light Testing direction All direction Printer Wireless Operating voltage 4.5V (3 AAA batteries) Operating environment Temperature 0+40, Humidity: 20% 85% Storage environment Temperature -30+80, Humidity:5% 95% Dimensions 150mm*80mm*30mm Weight Approx.200g Accessories Display Unit, Impact Device D, Test Block, Mini-printer, Charger, Little Support Ring, Cleaning Brush , Printer Cable

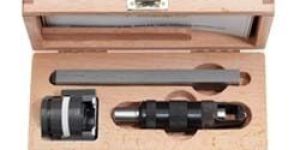

The hammer type Poldi Hardness Tester is suitable for measuring the Brinell Hardness of Steel, Cast iron, Brass Aluminum, Copper etc. This Poldi Hardness Tester is used to test parts where bench type model is not useful. This type of machine is most ideal and simple for foundries, Workshops, Engineering Colleges, Technical Institutions etc. Principle: The load is applied by a hammer blow on the specimen and a standard test bar in a linear direction through a hardened steel ball of 10 mm dia. The impact load on both is the same. The extent of indentation on the specimen and the test bar depends on their hardness. The two diameters of indentations on test bar and specimen are measured by a magnifier supplied along with the tester. The hardness of the specimen can be determined, by referring got the chart supplied with the machine.

We are offering inverted metallurgical microscope

we do service and calibration for all types of hardness tester with nabl approved certification..

hardness test blocks we have a wide range of all types of hardness test blocks.type range approx sizehrc 20-30, 35-55, 59-65 50 mm dia.hrb 80-100 50 mm dia.hrb 40-70 50 mm sq.hra as applicable 50 mm dia.brinell test blocks hb 2.5/187.5kgf 200-400, 50mm dia.hb 5/750 kgf 180-600 105mm dia.hb 10/3000kgf  vickers-hv-5 & above 100-150, 180-220, 40mm dia.200-800,low load vickers hv - 3, 100-150, 200-400, 40mm dia.hv- 2 400-600, 600-800hv-2.5 hv - 1 100-150, 200-800, 40mm dia.hv - 200 gm hv - 300 gm 100-150, 200-800 40mm dia.hv - 500 gm superficial scale 15n, 30n, 45n 50 mm dia. 15t, 30t, 45t 50 mm dia.test blocks hardness range sizehb 10/1000 90-120 hb 100 mm dia. Hb 10/500 90-120 hb 100 mm dia. hb 5/500 90-120 hb 100 mm dia. hb 5/250 90-120 hb 100 mm dia. hb 2.5/62.5 90-120 hb 50 mm dia. hb 5/62.5 90-120 hb 100 mm dia.hb 2.5/31.25 90-120 hb 50 mm dia. hb 2.5/ 15.625 90-120 hb 50 mm dia.

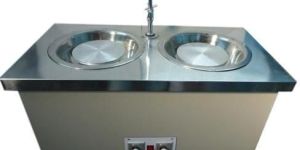

We are offering Double Disc Polishing Machine

product details: brand fine machine height 1145 mm test scale hbw machine designed with a hydraulic power pack and control circuit for effortless loading/unloading operation. A dial gauge in front measure depth of ball penentration. This facilitates production testing within tolerance limit by comparision method.  additional information: port of dispatch: rajkot delivery time: ex stock

designed for initial rough grinding. Also the grinder provided has rigid construction and completely enclosed body which help in easy operations. These also have full cover mask in their base and dynamically well balanced rollers. specifications :   working on 220 v in single phase operation.   manual belt - 100 / 915 mm endless belt pulleys balanced pulleys polishing motor power ½ h.p single / single phase application areas : metallurgical laboratory forging industry fasteners industry casting industry iron & steel industry auto parts ancillaries

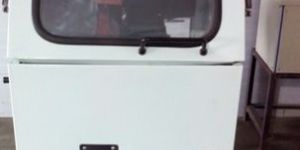

Product Details: Coolant Motor 1/10 H.P. Cutting Capacity 50mm(solid) upto100mm(hollow) Cut off Wheel Size Max 300mm OD x 1.5 mm thick x 32 mm ID Rated Power 3 H.P. 1400rpm 3 Phase, 415 Volts, 50 Hz Dimension 650 mm W x 800 mm D x 1450 mm H Guaranty 1 year Product Dimensions 650 mm W x 800 mm D x 1450 mm H Usage/Application Manually by moving motor to the sample. Also sample can be moved by lead screw TECHNICAL DATA: RCO-series Abrasive cutter is rugged,sturdy and designed to cut metallurgical samples to optimal quality consistently and safely. Cutting wheel spindle is connected with motor shaft bypulley and belt mehanism. The movement of cutting wheel towards the specimen is applied by handle fixed with motor base pivot spindle and the cutter unit is balanced by springs forsmooth downward movement. Features: Large corrosion resistant coated bed fixed with lead screw attachment accommodates a variety of vices and clamps for holding samples of all shapes, both large and small. Large viewing window to monitor the cutting operation. Inside chamber is illuminated and the see-through hood is provided for monitoring the cutting operation. Coolant circulation is provided with suitable filtering arrangement. Additional Information: Port of Dispatch: rajkot Delivery Time: 1 week
