Dowel Machinery Pvt. Ltd. Atika Industrial Area, Rajkot, Gujarat

Capacity In Tonnes Chamber Size Bale Size Bale Weight in Kg. Stroke Motor H.P. 15 500x400x900 500x400x450 20 to 35 450 3 25 525x500x1000 525x500x450 35 to 50 550 3 40 550x500x1100 550x500x500 50 to 70 600 3 60 600x500x1200 600x500x500 70 to 100 700 5 75 700x550x1200 700x550x500 80 to 110 700 5 100 750x600x1400 750x600x600 100 to 150 800 5 OVERALL DIMENSIONS ARE IN mm, APPROXIMATE & MAY BE CHANGED WITHOUT PRIOR NOTICE.

Capacity5/15/25/40/60/75/100/150/200/250/300 & More TonnesFeatures Single power pack unit to save electric energy. Separate pressure setting , stroke setting, speed setting, foot switch etc. Pillars are from EN-8 material & hard chrome plated Pressure,speed, stroke etc. Adjustable Accurate frame structure Useful in assembly work, die works, production work etc. Precision work Both machine will work at a time The machine will be built up per customer specification Bronze bushes provided in moving plate

Capacity5/15/25/40/60/75/100/150/200 & More TonnesFeatures Single power pack unit to save electric energy. Separate pressure setting , Stroke setting, speed setting, foot switch etc. Pressure,speed, stroke etc. Adjustable Rigid Frame Structure Useful in assembly work, die work, production work Both machine will work at a time The machine will be built up per customer specification

We are offering power operated hydraulic press.

Features PLC, HMI, LVDT, Propotional etc. Precision components are Imported. Stroke setting upto 0.25 micron Pressure setting upto 0.25 Ton Touch screen Useful for precision & Production Work Rigid & Robust frame structare.

Single power pack unit to save electric energy. Separate pressure setting , stroke setting, speed setting, foot switch etc. Pillars are from EN-8 material & hard chrome plated Pressure,speed, stroke etc. Adjustable Accurate frame structure Useful in assembly work, die works, production work etc. Precision work Both machine will work at a time The machine will be built up per customer specification Bronze bushes provided in moving plate

Capacity In Tonnes Distance Between Column Distance Between Ram To Bed Stroke Motor H.P. 60 425x1010 175x900 200 5 75 450x1125 175x900 200 5 100 500x1200 175x900 200 5 150 600x1300 200x1000 225 7.5 200 700x1400 400x1200 225 10 250 800x1500 400x1200 250 15 300 900x1600 400x1200 250 20 OVERALL DIMENSIONS ARE IN mm, APPROXIMATE & MAY BE CHANGED WITHOUT PRIOR NOTICE.

With a vision to not only just manufacture but also to supply steel fabricated machinery and hydraulic press leveraging the best of quality Main Ram Capacity In Ton : 100, 200, 300 Blank Holder Capacity In Ton : 40, 100, 120 Main Ram Stroke In mm : 450, 750

Capacity5/15/25/40/60/75/100/150/200/250/300 & More TonnesFeatures Pressure, Speed, Stroke etc. Adjustable Rigid Frame Structure The machine will be built up as per Customer Specification

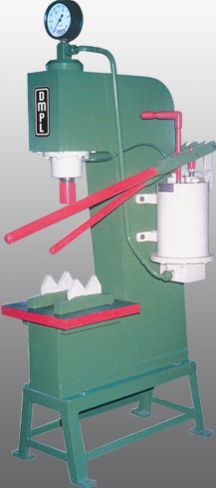

We are offering hand operated hydraulic press.

Capacity60/75/100/150/200/250/300/400/500/ & More TonnesFeatures Pressure, Speed, Stroke etc. Adjustable Rigid Frame Structure Wide bed size provided for adequate work space for sheet metal parts or componets Uniform pressure by both cylinders. The machine will be built up as per customer specification OVERALL DIMENSIONS ARE IN mm, APPROXIMATE & MAY BE CHANGED WITHOUT PRIOR NOTICE

We are offering close frame hydraulic press.

CapacityIn Tonnes Bed Size Throat Day-Light Stroke Motor H.P. 5 235x235 115 210 100 2 15 300x300 150 225 150 3 25 375x375 200 300 175 3 40 450x450 250 350 175 3 60 525x525 300 400 200 5 75 600x600 325 450 200 5 100 675x675 350 500 200 5 150 750x750 375 550 225 7.5 200 750x800 400 600 225 10 OVERALL DIMENSIONS ARE IN mm, APPROXIMATE & MAY BE CHANGED WITHOUT PRIOR NOTICE.
