Eltec Cabls and Instruments Bhaktinagar, Rajkot, Gujarat

We specialized in manufacturing of diverse range of thermocouple cables used for manufacturing of thermocouple assemblies & also as extension cables for thermocouples. these are available in various grades, specifications, sizes and insulations. The insulation and sheathing are available as per the requirements of our clients. following are the details of the types of thermocouple cables we offer clients: • j, k, t, e, n, r, s type of extension & compensating grade cables the different types of insulation and sheathing available for thermocouple cables are given below: • pvc insulated & jacketed - pvc pvc • ptfe insulated & jacketed - ptpt • fiber glass insulated & jacketed - fgfg • neoprene rubber insulated & jacketed - nrnr • silicone rubber insulated & jacketed - srsr • ptfe insulated & jacketed with outside ss metal braided • fiber glass insulated & jacketed with outside ss metal braided - fgfgss • teflon insulated & fiber glass jacketed with outside ss metal braided - tef fg ss.

Brand Name : ELTEC

We are offering rtd cables. eltec ptfe insulated rtd cables are generally used to transmit signal from rtd sensor to control unit. multi stranded spc conductors are used and are available in 2 core 3 core, 4 core, 6 core, 8 core or even more as per requirement. they are further spc shielded or outside ss metal braided as per requirement.

We are offering ptfe thermocouple cables. Thermocouple cables are used to transmit signal from thermocouple sensor to control unit. K r s j t e b etc. Type of compensating & extension grade. They are available in flat & twisted pair construction. They can be further shielded or outside ss metal braided as per requirement.

Brand Name : ELTEC

We are offering ptfe shielded cables. Ptfe instrumentation cable products are used for signal and energy transmission with minimum interference, and the they are sunlight, heat, and moisture resistant means they can survive in some of the toughest conditions. Ptfe shielded cables are shielded with silver plated or tin plated copper to minimise the surrounding interference to the lowest level.

Application : SIGNAL & ENERGY TRANSMISSION

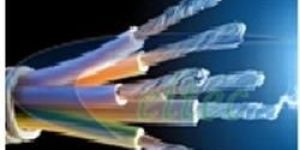

We are offering ptfe power cables. ptfe cables have outstanding mechanical & electrical properties. They are heat resistant and have its application for temperature range from -65 â°c to 260 â°c. in most adverse industrial conditions, where chemical fumes & other liquids make all other types of cables are vulnerable, ptfe polymer becomes an excellent solution as it is chemically inert to most of industrial chemicals. Its outstanding di electric properties even at high elevated temperatures make it suitable for harsh industrial applications. the ptfe equipment wire are as per us military mil w 16878d and indian defense specifications jss 51034.92. As per these standards, ptfe wires are classified in three main working voltage grades. 250 v ac rms (et) grade 600 v ac rms (e) grade 1000 v ac rms (ee) grade eltec ptfe insulated power cables are used where there is surrounding high temperature near boilers in processing plants and used for wirings in ovens, furnaces, heaters. Ptfe wires normally come with silver plated copper wire conductors (190â°c) or nickel plated copper wire conductors (260â°c on request).

Application : HIGH TEMPERATURE CABLES

Brand Name : ELTEC

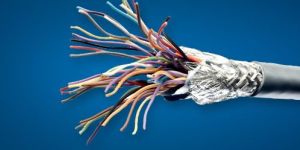

We are offering ptfe multicore cables. Eltec ptfe insulated multicore shielded cables are specially designed for its application in electronics & communication equipments, various equipments for satellite, defense, radar & space applications.

We are offering ptfe hook up wire. ptfe cables have outstanding mechanical & electrical properties. They are heat resistant and have its application for temperature range from -65 â°c to 260 â°c. in most adverse industrial conditions, where chemical fumes & other liquids make all other types of cables are vulnerable, ptfe polymer which is a known by teflon, a dupont regd. Trademark becomes an excellent solution as it is chemically inert to most of industrial chemicals. Its outstanding di electric properties even at high elevated temperatures make it suitable for harsh industrial applications. the ptfe equipment wire are as per us military mil â�� w â�� 16878d and indian defense specifications jss 51034.92. As per these standards, ptfe wires are classified in three main working voltage grades. 250 v ac rms (et) grade 600 v ac rms (e) grade 1000 v ac rms (ee) grade eltec ptfe insulated hook- up wires are used extensively for both electrical and electronic equipments. Hook- up wires are required to perform in increasingly critical environments. Cost effective production methods necessitate uniform wire handling characteristics, such as strip ability, strand uniformity, precise dimension and permanent colors.

Brand Name : ELTEC

We are offering fiber glass insulated thermocouple wire. Fiber glass insulated thermocouple wire is commonly used to link the thermocouple to control instrumentation. It may also be used to build the sensing point and can be used as thermocouple sensor or used in manufacturing thermocouple assemblies or can used to connect to data loggers via thermocoupole connectors. fiber glass insulation is ideal for general application requiring moderate abrasion, moisture resistance & high temperature resistance. Constructional details: · calibration : all type of thermocouple j, k, r, t, s, e, n etc. Available. · conductor : solid or stranded · insulation : fiberglass · inner jacket : fiberglass · sizes: available in various stranded & solid sizes. thermocouple wire with fiberglass insulation features: · good thermal durability and tensile strength. · service temperature up to 900°f. · good dielectric and electrical characteristics. · braided fiberglass insulation for abrasion resistance. · braided fiberglass jacket for additional flexibility and abrasion resistanc

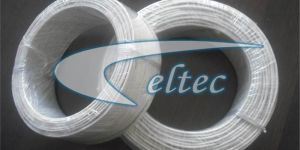

We are offering fiber glass cables. Copper tinned copper copper with ss nickel plated copper conductor is covered with fiber glass yarn & varnished. They can be recommended for continues use at 130°c to 180 °c. they are available in different sizes from 0.5 sq. Mm to 300 sq. Mm. They can be single or multi core with ss braiding asbestos ceramic yarn braiding and in different colors. They are used extensively as motor, transformers, heater, furnaces, lead wires and at places where conventional pvc wires are not suitable.

Brand Name : ELTEC
