embicon tech hub Gondal, Rajkot, Gujarat

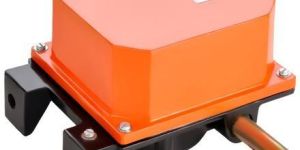

Application: The new range of limit switches has been designed and manufactured according to safety standard are suitable for use on reversing drives such as hoists, cranes, winches and rolling mills etc. Design: The driving motion is transmitted by worm gear. All gears and hubs are made of low wear thermoplastic. The rotational movements are transmitted to switches by adjustable cams. Driving cams: Each lever has a single micrometric resister screw.This screw exclusively works on its own combined lever, excluding any mechanical contact with any other next to it. The regulation is easily made by use of screwdriver on a register screw. The special friction system assures a rapid and precise adjustment. Technical Data: Body Material : Black Nylon Cover Material Yellow : Impact proof thermoplastic Protection Degree : IP-55 Mounting Position : Any Gear Ratios :1:12.5, 1:25, 1:50, 1:100, 1:200 & 1:400 Drive : Worm Drive Cable Entries : 2, 3/4" Conduit Maximum Rotation Speed :1200 rpm Contact Material : Double break silver cadmium Wire Connection : Screw terminal Rated Voltage Insulation : 500 V.A.C. Thermal Test Current : 10 Amps.

Voltage : 415 V AC

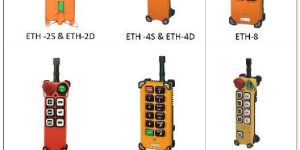

WIRELESS RADIO REMOTE CONTROLRANGE : 100 MTR2 BUTTON TO 12 BUTTONTYPE : SINGLE & DOUBLE SPEED BOTH

Voltage : 450 V

Country of Origin : India

Material : Polycarbonate

Max. Voltage : 500V

Mechanical Life : 1 Year

Current Rating : 16A

Switch Type : Flush Push Button

No Of Switch : 7

Color : YELLOW

TOUCH HMI

Country of Origin : India

Type : Hmi Touch Panel

Material : Acrylic, Glass

Application : Industrial

Color : Black, Silver, White

Condition : New

Screen Type : LCD

Warranty : 1year

Size : 3.5 TO 10 INCH

We are the leading name in the market engaged in offering a wide assortment of Dual Speed Rotary Limit Switch which is fabricated as per the industry defined standards and norms. Entire ranges of the offered dual speed rotary limit switches are manufactured under the strict assistance of the best quality controllers who make sure that the dual speed rotary limit switches have no production defect. We are offering these dual speed rotary limit switches at nominal market price. Features: Flawless performance Precise designing Sturdy construction General Characteristics: According to IEC / EN 60947-3 Self extinguishing thermoplastic housing VO UL 94 IP65 Double insulation IEC / EN 60529 Prepared with aluminium rods 6 x 300 mm with indicator position “0” n°1 Cable entry Ø 22.5 Ambient temperature : operating -25° 55° C storage -30° 70° C Eleectrical Characteristics: According to IEC / EN 60947-3, uL 508 Rated insulation voltage Ui : 690 V Rated thermal current Ithe : 16 A Frequency : 50 / 60 Hz Rated short circuit withstand current (gG 20 A-690 V) : 5 kA Rated thermal current : AC-21 A – AC-22A : 690 V-16 A AC23 A – 3 x 3 : 690 V : 230V-13 A / 4 Kw 400 V-13 A / 7,5 kW

Country of Origin : India

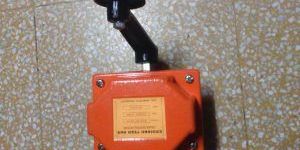

Type : Gravity Limit Switch

Brand Name : EMBICON

Material : CAST IRON

Shape : Rectengular

Color : ORANGE

Design : Standard

Condition : New

Max. Voltage : 500V

Mechanical Life : 1 Year

Switch Configuration : NC

Pole Throw : DPDT

Current Rating : 40

Phase : Double Phase

Switch Type : Lever Limit Switch

No Of Switch : 2 Switch

Switch Operation : Two Way

Certification : ISO 9001:2008 Certified

Embicon Manufacturing Crane Radio Remote, Pendant station, Anticollission device, Thruster Brake, Crane Panle, Ac Drive panel and All crane control system and Automation system.

A.C/D.C. Fail Safe Brakes are operating on A.C/D.C. Supply and used to stop motion where emergency stop is required. The Brake is normally in ON Condition ( In Braking Condition) and when D.C. Supply is given to the coil, the Armature Plate attracts towards the Brake Stator against the springs. When the supply is cut off, the brake will engage by means of spring pressure.   EM Fail Safe Brake A.C/D.C. Fail Safe Brakes are operating on A.C/D.C. Supply and used to stop motion where emergency stop is required. The Brake is normally in ON Condition ( In Braking Condition) and when D.C. Supply is given to the coil, the Armature Plate attracts towards the Brake Stator against the springs. When the supply is cut off, the brake will engage by means of spring pressure.   APPLICATIONS: · Brake Motors · Cranes , Hoists, Lifts & Material Handling Equipments. · Textile Machinery · Printing Machines · Marble / Granite Machinery · Steel, Cement & Paper Plants · Industrial Presses · Industrial Robotics · Wind Mills

Voltage : 24 / 96 / 105 / 190 / 205 VDC

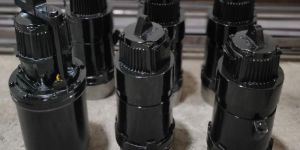

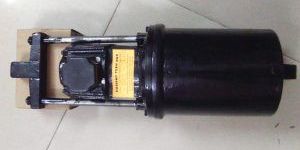

THRUSTER 18 KG TO 68 KGTHRUSTER BRAKE MDT 100X18 TO MDT 500X68 AVAILABLE

Salient features : This is a spring loaded normally ON Failsafe BrakeConsists of Electro Hydraulic Thruster, Torque Spring and Liner riveted to Brake ShoesWorks on 415 V AC, 3 Phase, 50 Hz supply.Requires Transformer Oil to be filled in the thruster cylinder.Function is to bring to stop, moving / rotating machinery like motor / gearbox.Holds / stops the load in desired place. Instant stop.Prevents jerk due to soft stop.Maintenance free, robust design. Applications : All Material Handling and Lifting Equipments Hoisting : electric wire rope Hoists and Crabs Cross travel and Long travel : EOT / Gantry / Goliath / Derrick Cranes Winches and Conveyors Lifts and Elevators Thruster brake is a device to retard the speed of moving machinery and to stop it accurately to the desired position. The braking force is applied to the brake shoe by a pre-stressed compression spring. The shoes press on the rotating brake drum retarding its speed and finally stopping it. The releasing of the brake and compressing of the spring is done by the Thruster. The thruster shoe brake has a pair of cast iron shoes which are lined up with friction pads. The shoes are hinged on the main arm and the side arm of the brake, each of them having a hinge pin fitted in the base. They are connected to each other on top by a tie rod, which is hinge in the main arm and locked to the swivel block in the side arm, by a lock nut. A crank lever is hinged on the main arm, and the other end is fixed to the top clevis of the thruster by a hinge pin. A brake spring is fixed on the main arm and is pre-locked by a lock nut on the lever. The pre tension in this spring decides the braking torque. The thruster is fitted on the base by a hinge pin. When the thruster is not energized, the brake shoes are pressed on the brake drum fitted on the drive motor shaft and hold it under the effect of braking force provided by the spring. In such a condition, the brake is applied and the drum cannot rotate. When the thruster motor is energized, the thrust provided by the thruster lifts up the crank lever which moves the arms and the shoe brakes away from the brake drum, and releasing the braking force. The spring is compressed and braking energy is stored for the next cycle. Electro Hydraulic Thruster Brake supplier and manufacturerEmbicon Tech Hub is the leading manufacturer and supplier of Electro Hydraulic thruster brake in Rajkot, Mumbai, Maharashtra, Gujarat, Delhi, Pune, Bangalore, Chennai, Ahmedabad, Kolkata, Baroda, Hyderabad, Latur, Nagpur, Udaipur, Telangana, Vijaywada, Surat, Bhopal, Coimbatore, Raipur, Ranchi, Faridabad, Noida, Ghaziabad and all over India.

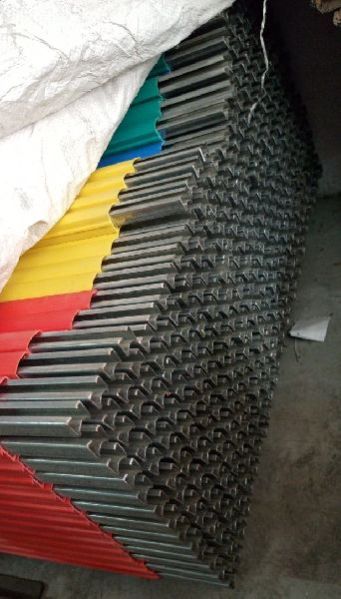

G.I, ALUMINUM & COPPER BUSBAR WITH AL ACCESSROIES FOR EOT CRANE

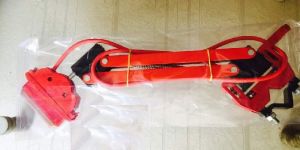

125 amp current collector for dsl busbar system

Color : Red

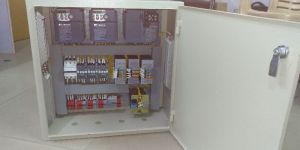

CONTACTOR PANEL VFD PANEL

Color : SIEMENS GREY

As an acclaimed entity of this domain, we are actively involved in offering a wide range of Cable Reeling Drum. The offered cable reeling drums can be used for horizontal and vertical recovery of cables, horizontal centenaries of cables, vertical pull & DC magnet reels. The offered cable reeling drums are appreciated for their optimum grade quality, enhanced service life and effective performance that offered product one step ahead of the competitors in the market. A series of quality tests is conducted on offered cable reeling drums by skilled professionals at every phase of processing. Features: Smooth operation Sturdy design Long working life

Size : 10-20inch, 20-30inch, 30-40inch

Type : Extension Reel

Material : Metal, Plastic

Diameter : 250-450

Shape : Round

Application : Cable Reeling

Weight : 10kg, 15kg, 20kg

Barrel diameter : 200-300, 300-400mm

Country of Origin : India

Brand Name : EMBICON

Color : BLACK

Feature : ELECTRICAL

Size : 100 - 450 MM

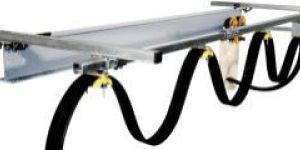

Embicon Tech Hub offers C Rail Festoon System that is used for electrical or energy transmission in EOT Cranes, Jib Cranes, Gantry cranes, Electric hoists, transfer car, transfer trolleys and various type of material handling equipment and moving machinery. The offered C rail festoon systems are manufactured using the finest quality raw material and modern technology from Giovenzana International. Moreover, we offer these C rail festoon systems to our patrons after make sure that our offered C rail festoon system is of the best in quality in the market. Special features of our Festoon system: • Precision-designed • Higher load capacity • Excellent performance • Longer service life • Supplied in ready-to-install condition • Simple to install • Suitable for Short span and long span • Suitable for medium and fast travel speed • Replaceable in place of wire rope festoon system and I-beam cable trolley system • Quick delivery. Components for Festoon system: • C-Rail bar (Galvanized steel, Load capacity: 100kg/meter) • C-Track Coupler with screws • Hanger Clamp with bolt (to weld with support bracket ‘L’ type) • End Stop (Material: PA 6) • End clamp with Stationary trolley (Material: PA 6 and galvanized steel) • Towing Trolley • Steel Cable trolley (with steel rollers and ball bearings) suitable for Round and Flat cable. On request: Plastic cable trolleys (Type of Roller: PA steel rollers).On request: Bolted type Festoon system with components is also offered.

Brake Liner for thruster Brake and EM Brake

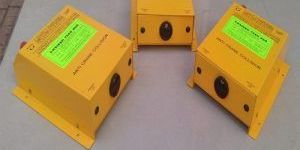

The Anti–Collision Device (ACD) is a self-acting microprocessor-based data communication device designed and developed by Embicon Tech hub for Application of Crane Anti collision system. For Laser base EOT Crane Collision avoidance system and make crane safety. Embicon is leading manufacture of Crane spare and safety Device. The Anti-collision system is a safety device to avoid to collision of two electric overhead traveling cranes working on the same rails. For one pair of cranes two sets of anti-collision systems are required. Each set consists of an Emitter/sensor module and a Reflector.The System works on the principle of retro-reflective infrared waves. It consists of an emitter and sensor module and a special reflector. The emitter emits the infrared waves in the direction of the reflector. The reflector reflects these infrared waves back to the sensor. The sensor senses the presence of these reflected infrared waves and activities an alarm signal and stops/reduces the speed of the cranes. Thus if the two cranes are away from each other then the reflected waves will not reach the sensor and the cranes operate normally. The sensing distance is adjustable between 3 to 10 meters. The anti collision system is specially designed for the crane application and is suitable for the continuous duty. Laser Alignment Tool for alignment of reflector and control unit.Terminal Strip Connections:1. P – Phase 220V AC CAUTION : Connect 110V / 220V AC2. P – Phase 110V AC at appropriate terminals.3. N – Neutral Never connect 220V AC supply4. E – Earth to 110V AC terminal No. 25. NC -OUTPUT – Normally closed contact6. C -OUTPUT – Common7. NO -OUTPUT – Normally open contact

Output : Potential free contact rated at 5 Amp @ 230V AC
