Fluid Tech Systems Kuvadva GIDC, Rajkot, Gujarat

Brand Name : Rotofluid

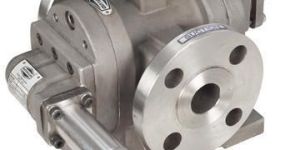

Material : SS

Brand Name : Rotofluid

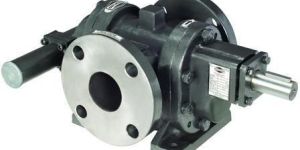

Material : MS

Frequency : 50Hz

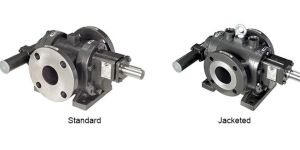

Fluid Tech Systems offer “ROTOFLUID” brand gear pump Model “FTRN/FTRB/FTRX” (Rotary Twin Gear Pump - Molasses Gear Pump - Positive Displacement Gear Pump - External Gear Pump) Which is heavy duty foot mounting type positive displacement rotary twin gear pump. Model “FTRN/FTRB/FTRX” having three piece construction it can be easily cleanable and maintainable.  These pumps having a double helical refined gear and hardened grind finished shaft, double helical gear prevent axial load & side thrust which is help to increase life and performance of pump. These pumps are having flange at the end of suction and delivery which are available in 1/2" to 6" size. These pumps can be operated up to pressure of 10 kg/cm² with 8.30 LPM to 2083.00 LPM flow capacity.  These pumps are suitable for liquid up to viscosity of 1, 00,000 SSU and maximum temperature up to 200ºc. Pump Selection @ Model FTRN/FTRB : The self lubricated needle roller bearing type Model FTRN used for clean viscous liquid having sufficient lubricating property such as clean lube oil, Gear oil, Animal oil, Fish oil, Hydraulic oil, Honey, Vegetable oil, SAE lubricating oil for continues duty, However for Intermittent duty Bush Bearing type pump Model FTRB used. @ Model FTRX : This Model independent lubricated needle roller bearing type pump is suitable for handling of Crude oil, Dirty lube oil, HSD, Kerosene, LDO, Paints, Varnish, Wood Pulp, Liquid  which  have poor lubricant value. @ Model FTRBJ : This Model should be selected for liquid which tends to solidify at room temperature such as Bitumen, Furnace oil, Asphalt, Tar, Starch, Molasses, Naptha, RFO, Silicate, Wax, Soap solution. Because This model have jacketing construction facilitate the heating the pump by steam or thermic fluid.

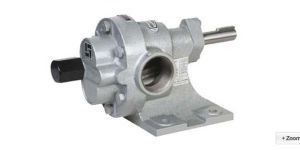

Fluid Tech Systems offer “ROTOFLUID” brand gear pump Model “FT” (Rotary Gear Pumps) which is self priming, foot mounting type positive displacement rotary gear pump. Model “FT” having simple two pieces Cast Iron construction which is single helical modified profile carton steel gear shrink fitted on alloy steel hardened and grind finished shaft as gear firmly supported 4 nos. of self lubricated sintered bronze bush bearing which ensure smooth running. These pumps can be run in either direction with change in inlet-outlet port position. The relief valve operations can be reversed by simply changing the R.V. parts on opposite side. The suction and delivery connections are available in 1/4" to 3" sizes. These pumps can be operated up to pressure of 10 kg/cm² with 5 LPM to 500 LPM flow capacity. These pumps are designed to run at 1440 RPM up to viscosity of 50,000 to 1,00,000 SSU and maximum temperature up to 200ºc. It is desirable to reduce speed for size above 1½" performance at low speed is always advantageous as it improves efficiency, reduce noise level and enhances operational life. The capacity will reduce in proportion to the speed.

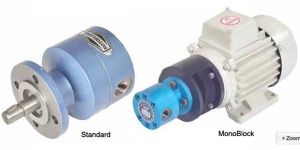

Fluid Tech Systems offers “ROTOFLUID” brand gear pump Model “FTMP” (Lubrication Oil Gear Pump, Gear Box Oil Lubrication Pump, Mini Rotary Gear Pump, Crusher Gear Oil Pump) which is compact size and flange mounting type positive displacement Trochoid gear pump. The design of the pump is geroter based. Due to accuracy of the geroters, the whole pump assembly becomes compact and absolutely free from any noise. Based on mounting, these pump are made of flange type. These pumps are widely used where minimum flow of liquid is required. As per the rate of delivery, there are eight size available. These pumps can be operated up to pressure of 10 kg/cm² with 0.5 LPM to 40 LPM flow capacity and viscosity range 10 to 1000 CST. The delivery rate is given in LPM at 1440 RPM of the shaft. These can be run in the range of 100 to 200 RPM and maximum temperature 80ºc FTMP Monoblock pump Simple and compact designs of Monoblock pumps are available in this model.Monoblock version is very easy to portable one to another place and it does not require to align every time when coupled with electric motor. Monoblock version save space and reduces down time. Compact and good finish monoblock pump assembly motor makes it a noiseless proposition.

Fluid Tech Systems offer “ROTOFLUID” brand gear pump Model “FTFX” (Bitumen Transfer Pumps, External Gear Pumps) which is most efficient and economic range of flange and foot mounting type positive displacement rotary gear pump. Model “FTFX” having Single helical shrink fitted gear pair and hardened and grind finished shaft.Ultra bronze sintered bushes ensured smooth running. It is perfectly designed and construction which increase life of pump and performance of pump.Model “FTFX” is very similar construction like Model “FTX” but the changes are at end. This pump having flange at the end of suction and delivery which is available only in ¾” size. The flange is specially designed for cleaning pump’s inside casing without open pump.

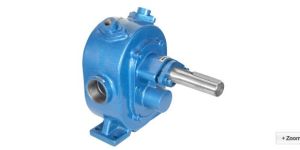

Fluid Tech Systems offers "ROTOFLUID" brand gear pump Model "FTDP" (Bitumen Jacketed Gear Pump , Bitumen Transfer Gear Pump , Jacketed Gear Pump) is a jacketed type foot mounted rotary gear pump. This model are specially designed for Bitumen. Model "FTDP" having S.G.I.N. cast jacketed construction of pump casing and gear & shaft are firmly supported 4 nos. Of self lubricated sintered bronze bush bearing which ensures smooth running. The sealing is done with "GFO" pack Teflon which can sustain high temperature up to 200°C.This model should be selected for liquid which tend to solidify at room temperature, because it have jacketing construction to facilitate the heating of the pump by steam or thermic fluid. The pumps are available in size (1 ½" & 2") with thread end connection at suction & delivery. This pump are designed to run at 100 to 500 RPM.
