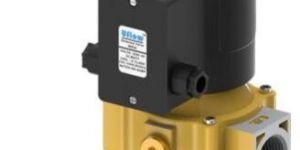

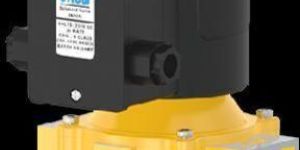

Gas Solenoid Valve Dealers in Rajkot

• End Connection: Screwed
• Body Material: Aluminum Pressure Die Cast
• Media Temp: -10° C to 60° C
• Diapharagm: Nitrile (NBR)
• Circumstance Temp: -30° C to 70° C
• Media: Air, Natural Gas, Town Gas
• Main Features: Flow adjustment, Opening time adjustment, Quick release initial flow adjustment
• Coil Features: High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require
• Note: Use of filter in the inlet port is recommended. Coils are conforming as per IEC-60335-1 with derivatives (LVD / EMC). Gas Solenoid Valve complies as per EN-161 requirement.
• Coil Housing: Epoxy square coil.

We are offering krom schorder gas solenoid valve. unitech combustion, ahmedabad offering krom schorder make products like solenoid valves, pressure switchies, pressure regulators, vps, gas burners, pilot burners, etc. see below specification for same. we have folowing series of solenoide valves aavailable -vg series dn 6-100, max 800 mbar -vgp series dn 10-25, max 200 mbar -vszg series dn 15-50, max 200 mbar fast or slow opening and closing for high/low operation robust, easy to maintain flow rate adjustable with bypass if required with position indicator if requested suitable for cycle operation internal thread: rp in acc. With iso 7-1 flange: iso 7005 (dn 65 in acc. With din 2501c), pn 16 ambient temperature: -20 °c to +60 °c protection: ip 54 acc. To iec 529 power factor of solenoid coil: cos ?? = 1 coil insulation: insulating material class f operating voltage: 220/240 v +10/-15 %; 50/60 hz 000/120 v +10/-15 %; 50/60 hz 0000/24 v +10/-15 %; d.c the prevailing a.c. Vortage is lead to the solenoid coil via a protective circuit rectifier. With 24 v- an external protective circuit must be provided duty cycle: 100 % ec. fitting position: horizontal or vertical application for high/low control of cold air to industrial burners. technical description solenoid valve with spring-loaded valve disc, closed when deenergized.

• Material: Aluminium
• Country of Origin: Made in India
• Usage/Application: Gas
• Valve Size: 1 Inches
• Model Name/Number: DAN
• Brand: Uflow
• Type Of Coil Protection: H Class
• Coil Voltage: 24 V
• Protection Class: IP67
• Switching Frequency: 50 Hz

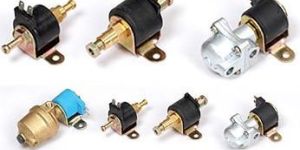

With a wide categorization of optimum quality Gas Solenoid Valve we are here for you. Gas solenoid valve is a remotely controlled service valve, operated by 12volt DC supply. It allows LPG/CNG to go to Vaporizer only when it is powered along with the Multi valve solenoid by a selecting switch in the dashboard. It also filters any contamination present in the LPG/CNG. We invite you to become the member of our ever growing family and avail the opportunity of getting excellent quality product from us.
