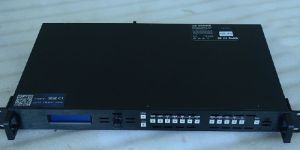

FeaturesInput:1) 1 x HDMI (Compatible HDMI1.3);2) 1 x CVBS;3) 1 x VGA (Compatible YPbPr);4) 1 x DVI (Compatible HDMI 1.3);Output:1) 2 x DVI;2) 1 x DVI LOOP;Support Function:1) User-defined resolution adjustments；2) Support EDID edit for VGA, DVI, HDMI inputs and read EDID for outputs；3) Multiple cascade synchronization split；4) Seamless switching between inputs；5) Auto input formats detect and conversion；6) Support dual pictures operation;7) Two install sending card slot；8) Max supported output resolution：1536x1536@60Hz/2560x1152@50Hz； Operations1) Local front panel operation；2) Remote USB control；Size: 480mm x 303mm x 45mm;Net Weight: 3.5kg;Work Temperature: 0℃~40℃;Relative Humidity: 10%~85%.

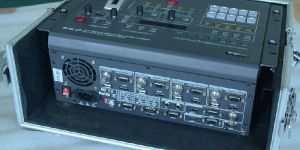

Video Input:1) 4 x CVBS;2) 4 x VGA;3) 4 x USB;4) 4 x HDMI (Only for CP 3072);5) 4 x SDI (Only for CP 3072S);Audio Input: 1 pair of balanced analog audio;PGM Output:1) 1 x HDMI;2) 1 x VGA;3) 1 x CVBS;PST Output:1) 1 x HDMI;2) 1 x VGA;PVW Output:1) 1 x HDMI;Control Port:1) 1 x LINK IN;2) 1 x LINK OUT;3) 1 x USB; Support Functions:1) 4 channels, 16 signal sources;2) Preview and Program outputs separately；3) PIP between any two inputs;4) Seamless switching between any two channels;5) Seamless switching between PIPs;6) Operation of T-BAR to realize the seamless switching of video signals;7) Support the multi-layers preview;8) Support the preview edition;9) Support DSK between any two channels;10) Support blend between any two channels;11) Max supported output resolution：1920x1080@60Hz；Operations: Local front panel operation；Size: 363mm x 276mm x 128mm;Work temperature: 0℃~40℃;Relative humidity: 10%~85%.

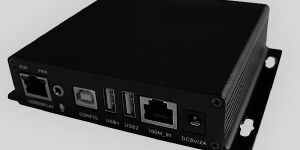

supported in width or height, perfectly suit the needs of super length or ultrahigh screen. It possesses 8GB memory and maximum support external 32GB storage. Equipped with double USB interfaces, C3 are extendable with Wi-Fi module and audio module. Features:- Big LED screen display without computer, much more convenient and cost-efficient;- Maximum loading capacity with 655360pixels;- Up to 4096 pixels in width or 1536 pixels in height for text-image;- Up to 1920 pixels in width or 1080 pixels in height for video; - 8G memory, maximum support external 32GB storage. - Perfect in handling details with amazing visual effect and experience. - Extendable with WiFi and audio module through USB interface. - Built-in with LINUX embedded operation system, immune from virus attacks. - Made from industrial components, quality assured. - Watchdog reset. - U disc plug-and-play.- Support high speed configuration through USB cable. - Support management on the smart terminals like PC, Android and iPhone, etc. - To edit contents through LEDVISION, user-friendly software. - Multiple play windows and file windows, of which size and location can be freely set. - Multiple content formats such as video, image, text, clock etc.
