Jaw Crusher Dealers in Rajkot

• Country of Origin: India
• Type: Jaw Crusher
• Brand Name: Misri
• Material: MS
• Number Of Wheels: 2 Wheels
• Operating Type: Automatic
• Warranty: 1 Year
• Condition: New
• Usage: Stone Crusher

A crusher is a machine designed to reduce large rocks into smaller rocks, gravel, sand or rock dust. Crushers may be used to reduce the size, or change the form, of waste materials so they can be more easily disposed of or recycled, or to reduce the size of a solid mix of raw materials, so that pieces of different composition can be differentiated. This includes rock quarries, sand and gravel, construction aggregates, metallurgy, and chemical industries.   When materials are poured into the machine, the jaw crusher crush stones into small pieces by the moving of the plates. One of the plates is stable, while the other is moving. The moving plate move against the stable one to crush stones, and the two plates are made of different materials which makes the two plates have different breaking point.   Jaw crusher has simple structure, reliable operation, convenient maintenance, and is widely used for coarse and medium crushing of hard, medium hardness rocks.   There two types of Jaw Crusher Single Toggle and Double Toggle Jaw Crusher .

• Material: Mild steel
• Frequency: 50-60 Hz
• Motor Power: 5-7.5 Hp
• Voltage: 240 V
• Capacity: 15 Ton/Hr
• Brand: Tridev
• Power Source: Electric

Jaw Crusher - pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, iron ore, coal gangue, construction waste, ferrosilicon, basalt, sandstone, rocks, ore, glass, cement clinker and some metal.

• Machine Sizes: 16" x 9" to 52" x 40" (400 x 225 mm to 1300 x 1000 mm)

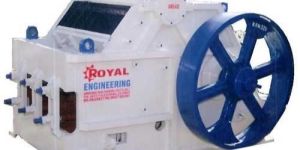

• Royal Primary Oil Crusher Size Range: 20"x12" / 24"x12" / 30"x15" / 30"x20" / 30"x24" / 36"x24" / 36"x30" / 42"x32" / 42"x36" / 52"x40"
• Royal Secondary Oil Crusher Size Range: 16"x9" / 22"x9" / 30"x9" / 36"x8" / 42"x8" / 48"x10"
• Feed Capacity: From 5 ton per hour to 300 ton per hour
• Feed Size: 1000 mm & above
• Also Available: Skid Based & Wheel / Track Mounted Mobile Arrangement

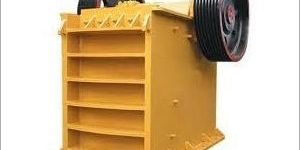

We have emerged as one of the reputed firms, offering a large collection of superior quality array of Industrial Jaw Crusher that is used for crushing different material. By utilizing top notch quality components and superior technology, our provided jaw crusher is precisely designed under the stern guidance of our highly knowledgeable professionals in tune with the set industrial norms and regulations. In addition, to make sure its flawlessness at customers’ end, this jaw crusher is severely inspected.   Features: Precision-designed Long service life Optimum work efficiency

Located in Gujarat, India, we are actively functioning as Manufacturer, Supplier and Exporter of Jaw Crusher. It is designed by our team of professionals under the strict guidance of experts. It is extensively used in varied applications such as mining, road construction, metallurgical industries, and so forth. Our Jaw Crusher delivers balanced composition of output as well as it is simple in construction with low operating costs. We provide our Jaw Crusher at nominal prices.

Laddu Crusher Machine, Peanut Shelling Machine

We offer jaw crusher. Specification: jaw crushers are used extensively throughout the aggregate and mineral processing industry. There two types of jaw crushers are available single toggle and double toggle. Single toggle jaw crushers have bearings with grease lubrication have simple construction, easy to maintain and economical. Single toggle jaw crusher give higher percentage of fines, hence usually used as primary crushing. In the other side our double toggle jaw crushers has forced oil lubrication with the oil pump and nozzles. It works with the help of two toggles, it generates fewer fines and particles then single toggle and come with sharp edges, therefore they are used mainly for making grits for road, railway track, civil construction etc. Both types of jaw crushers are available in high range of production capacity. These are supposed to be most economical with highest ratio of size reduction. Working principle: crush tech, jaw crushers are equipped with one fixed and one moveable jaw plate, both of which support crushing jaw plates in several versions. The motor drives the belt pulley and the belt pulley drives the eccentric shaft to rotate, and make the moving jaw approach and leave the fixed jaw periodically, to crush, rub and grind the materials repeatedly, thus to make the material slower and slower and gradually fall down and finally discharge from the discharge opening. Advantage: • jaw crushers are design in single toggle and double toggle • single toggle jaw crushers have bearings with grease lubrication have simple construction, easy to maintain and economical. • single toggle jaw crusher give higher percentage of fines, hence usually used as primary crushing. • double toggle jaw crushers has forced oil lubrication with the help of oil pump and nozzles. • double toggle jaw works with the help of two toggles, it generates less fines and particles come with sharp edges, • both types of jaw crushers are available in high range of production capacity. These are supposed to be most economical with highest ratio of size reduction. Application: stones, black trap, basalt, marble, quartz, granite, river gravel, coal, lime stone, mineral ore, making grits for road, railway track, civil construction etc.

Stone Jaw Crusher
