Master Alloy Dealers in Rajkot

• Color: White
• Form: Grains

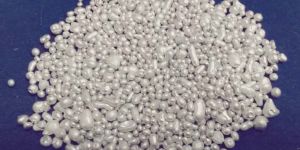

We are offering sp 154 master alloys for white gold. Composition (wt. %) : ag 20, ni 17, cu 48, zn + deoxidizers – bal. Carat : 10 - 14 colour : white melting temp of alloy : 940c application: the alloy sp 154 is a versatile product as it is usable from 10 to 14 carat and for both hand-made and investment cast jewelry. It imparts the desired softness, smooth surface finish and porosity-free finished product. An ideal composition for “invisible” diamond jewelry. recommended practice: 10k 14k application : casting casting alloying temp. : 1040c - 1060c 1050c - 1070c casting temp. : 1020c - 1040c 1030c - 1050c flask temp. [normal cast] : 630c - 660c 630c - 640c flask temp. [stone cast] : 600c - 620c 600c - 620c quenching time : 20 - 25 minutes. 20 - 25 minutes • cast tree cleaning & drying procedure: after primary removal of the investment during quenching, submerge tree in a hot (80-100oc) 50% phosphoric acid solution for 15-20 minutes. Rinse well with cool water to remove remaining investment powder and base metal oxides. Dry with compressed air. • for reusing the castings we recommend 60% fresh carat gold with 40% castings. • for cold working handmade operations it is suggested that after heating to annealing temp(650oc to 750oc) the item should be allowed to cool in air, and not recommended to quench in water.

Ferro Silicon Magnesium, Inconel Coil, silver brazing alloys

Master Alloys For Yellow Gold, Master Alloys For White Gold
