Mechanical Press Dealers in Rajkot

Ultimate and latest solution for make component like circle, blanking, embossing, bending, cutting of sized or coil sheet, We offer C & H type Presses from 50 Ton to 600 Ton with optional of Mechanical, Pneumatic Clutch. Presses are required by all industries like Automobile, Railways, Defence, House Hold appliance, Infrastructure, Power & telecommunication etc.

Mechanical power press c type 5 to 200 ton capacity capacity 50 ton crank shaft dia. 95 mm stroke adjustment 13 to 100 punch hole in ram 51 length & width of bed 650x400 dist.between bed to ram 350 fly wheel diameter 560 stroke per minute 50 h.p. Required 5 gear type ( std.model *) double weight ( approx.) 2300kg

Single Point Suspension Non-Inclinable Single Action Press having Steel Plate Fabricated Construction Duly Stress Relieved with 6 Point Gibbing of Slide, Fitted with Pneumatically Operated Combined Single Disc. Friction Clutch & Brake, Minimal Frame Gapping, Low Angular Deflection < 1.5 minutes, Hi-Torque Pneumatically Operated Single Disc Combined Clutch & Brake Unit.

We are offering mechanical power press machine. Capacity 100 ton stroke adjustment 13-127 depth of throat 320mm dist bed to ram 450mm length & width of bed 900x640 mm hole in bed 190 mm hole in ram 50mm crank shaft diameter 127mm fly wheel diameter 813mm stroke per minute 30 motor (siemens company) 10 hp weight approx in kgs. 5400

We are offering mechanical power press c-type & h-type. we manufacture brand power press as per your requirement like any modification in the body or center or tie rods or the stroke length. At we always welcome orders for any press of any capacity and as per your drawing & dimension.

• Type: C Type Power Press Machine
• Certification: ISO 9001:2008, CE Certified
• Weight: 100-1000kg
• Color: Yellow
• Voltage: 440V
• Condition: New
• Automatic Grade: Manual
• Power Source: Mechanical
• Warranty: 1 Year
• After-Sales Service Provided: 1 Year

• Power supply: 400/440 volts, 3 phase, 50 cycles

The Mechanical Press Brake Machine is of robust fabricated steel construction of rigid and interlocked design. It is strain free and supports the ram and bed against undesired deflection under permissible loading condition. Made from steel plates of suitable thickness and machined for straightness and parallelism of the working surfaces. Ram is guided and supported throughout the stroke by accurately machined guide ways. Power is transmitted through two individual gear drives for uniform load distribution throughout the length.

Rajesh brand mechanical Power Presses are coming in "C" frame versions from 3 tons to 250 tons capacity in most economical type of construction with sevral std./optional features such as manual/auto lubrication systems, knockouts electronics safety, Single/Double or Un-geared versions as also Pneumatic feeders/straightness and die-coilers for automatic Purpose. Frame: The frame is of all steel construction, fabricated from Rolled steal plates with siutable cross ribbings. Presses up to 30T will be supplied with C.I. legs. Proper alignment of the frame is ensured by machining. Clutch: The clutches of pin/rolling key-type. The clutch is rigid and and well supported. The clutch gives continuos stroke for mass production. Crank Shaft: Crank shaft is made of special alloy steel machined to closed accuracy and fitted in bronze bushes for smooth working, longer life and accuracy. Flywheel: Properly sized flywheel is made of high grade cast iron, for storing and releasing adequate energy for the pressing operation, and properly balanced for smooth running. Gears: Gears are of steel castor fabricated. Gear teeth are generated by precision hobbing machine. Table and Ram: Table and Ram are made of high grade heavy duty cast iron & properly seasoned. They are perfectly aligned, to eac other to obtain high high accuracy and precision press operation. Lubrication: An efficient shot lubrication system has been provited for lubricating the sliding surfaces and moving parts. The lubricant is applied by hand pump.     Special Feature: 1. All Dimension are in MM.2. As day to day Improvements are Contemplated for Better Performance of the machine.3. All the power presses combine durability with dependability years of experience in machineryhas enabled us to offer the highest quality machine for accuracy with precision and heavy duty machine.4. Acclaimed by actual users, our machines are gaining ever growing popularity in the field and no wonder therefore that machines are being recommanded everywhere.5. All machines undergo through Check-up by our expert engineers before dispatch to ensure their smoothand truble free operation.6. We reserve the rights to alter the specifications without prior notice.

We r manufacturer & export mechanical power press 50 ton.

Mechanical Power Press is of all steel construction, fabricated from steel plates with suitable cross ribbings. Presses upto 30 ton will be supplied with C.I. legs. Above 30 ton presses will be supplied with double C. Above 40 ton presses will come with steel legs. Proper alignment of the frame is ensured by machining of the cut steel plates before welding.

The Mechanical Squaring Press offered by us is demanded for varied applications that also include pressing braided rope in square as well as rectangle shape depending on the demand of the customer. The superb quality Mechanical Squaring Press has a high demand all across the globe and is supplied to different places without any delay. Features : Sturdy designRegulation of winding leadFour individual rollers for perfectly sharpened edgesSquare or rectangular shaped productionDie plates in different sizesHigh mechanical strengthM.S. Rollers -surface hardening Optional Availability : S.S rollersLinear position indicator used for measuring roller’s travel Meter counter Technical Specifications DescriptionMP-M25 MP-M50MP-M75MP-M100Length (L)900120013001400Depth (D)650700700800Height (H)1200140014001500Min. Processing Size (mm)03040506Min. Processing Size (mm)255075100No. Of Die Plate11151617Size of Die Plate03,04,05,06,0810,12,16,19,22,2504,05,06,08,10,12,16,1922,25,28,32,38,45,5005,06,08,10,12,16,19,2225,28,32,38,45,50,62.5,7506,08,10,12,16,19,22,25,2832,38,45,50,62,6,75,90,100Motor (Ph Kw V)3 0.75 4153 1.10 4153 1.50 4153 2.20 415OptionS.S. RollerOptionOptionOptionOptionMeter CounterOptionOptionOptionOptionLinear Position IndicatorOptionOptionOptionOptionInfinitely Variable Speed ControlOptionOptionOptionOption

400 440 volts, 3 phasa, 50 cycles, In Span of 12 Years improvement are contemplated for better performance of machine, Also we reserve the rights to alter the specifica

Our organization has gained immense recognition in the industry by providing an excellent quality range of C Type Power Press. The offered machine is extensively used to bend the metal for giving the specific shape. The provided machine is manufactured by the utilization of fine grade components and modern technologies under the stern supervision of our highly skilled professionals at our cutting-edge manufacturing unit. Furthermore, we provide the offered C Type Power Press in various specifications as per the varied requirements of our clients. Features :- Excellent performance Power efficient Low maintenance Noise free operation Further Details :- Offered wide range of Jayshakti C-Type Power Press is available in "C" frame versions that have the capacity ranging from 5 ton to 250 tons. Apart from its strong & economical construction, it is known for its several standard as well as optional features that include manual/auto lubrication systems, die-coilers and so on. Housing Structure :- For making its frame strong and durable, we have used high quality steel plates with ideal cross ribbing. Also, the press which have the capacity up to 30ton is provided with cast iron legs. In order to ensure the alignment of its frame structure, proper machining has been done. Clutch :- This rolling key type clutch is well supported as well as has rigid construction. designed to provide stroke for mass production in continuous manner. Crank Shaft :- Made out of steel alloy, crank shaft is fitted with bushes; made up of bronze, for having high precision, accuracy, smooth working operation, and longevity. Fly Wheel :- This cast iron flywheel is designed in proper radius, which helps in smooth and balanced movement of press machine. Further, it is used for storing and releasing the required energy, which is essential for the proper functioning of offered press. Gears :- These are made with the help of precision hobbing machine by utilizing high grade steel castor. Lubrication System :- Known for high efficiency, this system has been provided to lubricate the sliding surfaces and moving parts for their smooth and hassle free movement. STANDARD ACCESSORIES: Motor pulley Clutch key Clutch key spring Slide adj. spanner Fly wheel & Gear guard OPTIONAL ACCESSORIES: Tow hand operated clutch Single / continuous stroke Automatic lubrication pump Electric Motor, Starter and Vee-belts. Extra base plate Inclinable Type Knock-out system Oil cups for lubrication point

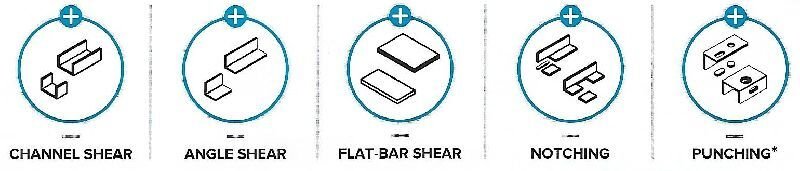

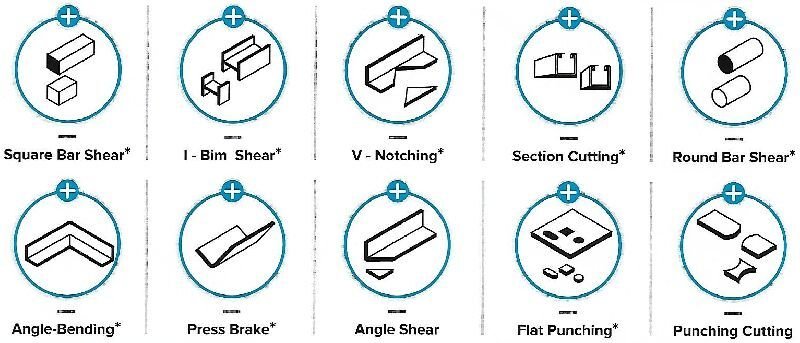

Caliodad International is Manufactures and Supplier of All type Mechanical Press and Iron Work Machine. 3 Ton   To    250 Ton Mechanical Press avalilable and We also make machine as per constomer requirment.

Mechanical power press for heavy duty work. Completely manual. Upto 2500 tonnes available. Image for reference only.

400 440 volts, 3 phasa, 50 cycles As day to day improvement are contemplated for better performance of machine, we reserve the rights to alter the specifications without prior notice. all dimensions are in mm.

Mechanical Press, Hydraulic Press Brake, Roll Plate Bending Machine

Mechanical Power Press, C Type Power Press Machine, Mechanical Press

Mechanical Power Press, Shearing Machines, Power Press, Shearing Machine

Mechanical Power Press, Air Blower, Manual Hand Blower, Cut Off Machine

Mechanical Power Press, Mechanical Shearing Machines, Mechanical Press Brakes

Mechanical Power Press 100 Ton

Mechanical Press, Power Press Machine, Hydraulic Press

Mechanical Power Presses, Industrial Products - Chaff Cutter SSS1

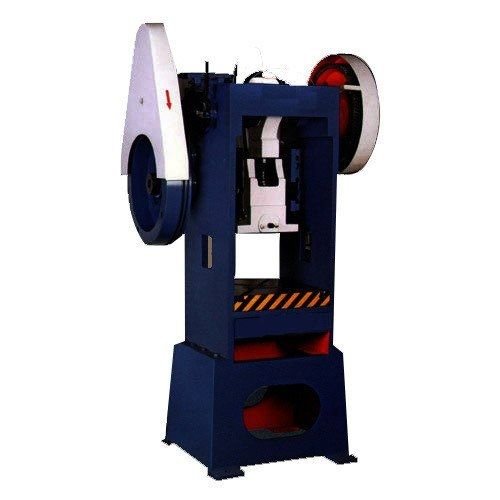

H Type Mechanical Power Press, Over Crank Shearing Machine
