Plate Bending Machine Dealers in Rajkot

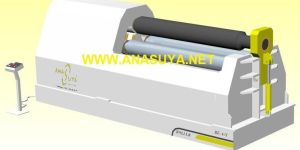

• Brand Name: ANASUYA
• WHITE: YELLOW

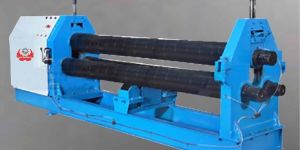

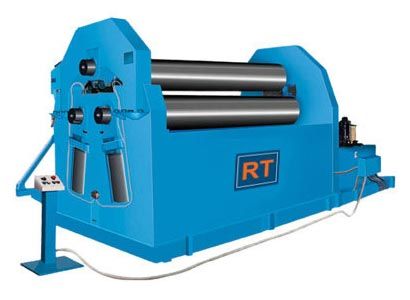

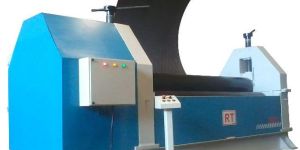

We are offering roll plate bending machine. Plate rolling machine ’anasuya’ presents to you a range of most technically advanced 3-roll plate bending machine with all latest features as per international standards. standard features/accessories: » main drive motor » frame built of laser cut high strength steel, welded, stress relieved and sand blasted. » hydraulic pressing system on top roll. » hydraulic unit by rexroth and valves by aron. » screw jeck drop-end. » mechanical rolls parallelism . » bending rolls assembled on heavy duty skf bearings. » centralized lubrication by means of a hand pump. » separate controls on control panel. » movable work station with pair of foot switch » pair of lifting links » safety devices and operating manual according to ce norms.

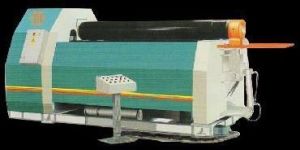

We are offering plate bending machine. Specifications: the pinch cum puramid principle the machine based on this principle combine the advantages of three roll pyramid type, three roll initial pinch type and four roll pinch type machines. Highest degree of pre-bending can be achieved and only the smallest possible width of flat remains. An error in pre pinching can be corrected even after the shell is completed. It can pre-pinch and roll the plate without removing the plate from machine after first insertion. Inclined movement of bottom rolls provides wider bending span as the plate thickness increases, and better grip in thinner plates. cone bending the machine has inherent feature for conical bending without any extra attachments. The two bottom rolls are inclined by disengaging the dog clutch by lever fitted on the machine. Even pre-pinching of cones can be done. salient features top roll drive for rolling thin plates. Highest degree of pre-bending can be achieved and only the smallest possible width of flat remains. Plate squaring(aligning) arrangement. Small dia. Top roll for small shell rolling (for reduced capacity).

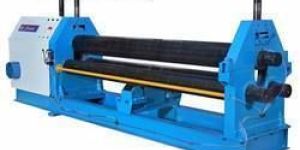

Easy to maintain and useful for various jobs.   Modern design and rigid structure.   So simple mechanism that even semi-skilled worker can do accurate job.   Very useful for g etting Cylindrical shapes and better performance. It works with 3 Rolls pyramid principal. Bottom rolls are fixed and driven by Gears and warm Reduction Gear Box. Top roll rotates in fixed position and can be adjusted up & down manually by adjustable screws, in mechanical version and by Hydraulic system & cylinder In Hydro mechanical version.   Housing are made from M. S. plate of suitable strength and mounted on heavy base frame, Rolls are made from forget steel and perfectly machined for accurate result. For correct feeding and grip axial grooves are provided on botton rolls. Screw jack/extra Hydraulic cylinder is given to keep top roll horizontal when formed shell is to take out.   Our machines are fitted with Electric Brake Motor and Movable Control Panel, so that machine can be stopped at any stage of operation, hence the shape in rolling as per requirement is most possible and due to the movable control panel machine can be operated very easily.   Machine is fitted with total 2 nos. Gear Box, Electric Brake Motor, Push Button Type Movable operating switch board and Electric control panel for easy & safe operation.   We only offer the machine with double Gear box, one is warm Gear box and another is spur reduction gear box, due to this the fatigue in operation and over load on electric motor and warm reduction Gear box is totally avoided even when machine is Working in over capacity and more over bending operation be come more easy.   Whole machine is made out of quality prime materials.   Only Top Roll Pressing (Up-Down) and opening closing of drop end are through hydraulic system & cylinders all other operations are carried out mechanically in hydro-mechanical version. In mechanical version Top Roll Pressing is manually by means of screws and opening/closing of end-dropper is manual or motorized.   Hydro- Mechanical Machine required lees man power compare to mechanical version, the same directly Effect your production rate and finish job value.   Apart from above the rates are more competitive in its range.

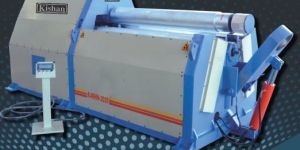

We are ranked amongst the prominent Manufacturers, Suppliers, and Exporters of Hydraulic 4 Roll Double Pinch Type Plate Bending Machine. We are based in India. Our bending machine is available in SIX different models, each of which has a different mechanism, specification, and system for the suitable applications and production rate. These models are J4RHH, J4RHM, J3RHH, J3RHM, J3RMM, and J3RML. We offer our machine in varied sizes and thickness, in accordance with the requirements of our client. Features : Jayshree plate bending machines are available in SIX different ranges, All range of machine has a different mechanism, specifications and systems for suitable applications and production rate. Type J4RHH / J4RHM/J3RHH/J3RHM/J3RMM/J3RML Model J4RHH is very suitable for medium and heavy plates or stainless steel, Model J4RHM is very suitable for light and medium plates.  Technical Specifications and Standard Accessories Pipes in full circle or varying radius can be done easily Bottom roll and side rolls move with hydraulic cylinders Overload protection Top roll and bottom rolls are drives by hydraulic motor and planetary gearbox. Hydraulic drop-end for easy removal of finished pipes Easy operation with mobile control panel Welded steel frames Forged or rolled steel rolls Manual central lubrication system Hydraulic and electrical balancing system Users manual  Optional Equipments Cone bending device Double speed working system Hydraulic lateral supports for large diameters Extended rolls Profile rollers Automatic centralized lubrication system Material feed table Digital readout display NC control system Range - To 5000mm, Thickness - 4 to 100mm

Quality packing material and advanced machines are responsible for the safe packaging of the orders from our end. Moreover, our experts keep a strict vigil on the entire procedure. Striving hard to provide the best in class range, we are a Rajkot(India) based company.

• length of: 2500mm to 5000mm

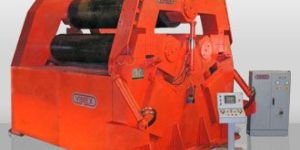

Pyramid base principle 3 & 4 Roll Hydraulic Plate Bending Machine Used for roll bending of plates with pre-pinching Product like Vessel & Tanks, Cone, Silos, Over & Under Storage Tanks, Heavy Transmission Pipe, etc.

• thickness: 200mm
• width: 4000

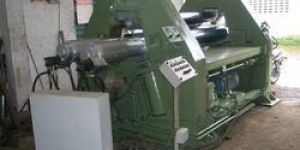

Upto 200mm thickness plate vertical bending machine of Hugh Smith make, 3600mm plate width and 4000 Ton maximum force capacity. Total machine weight 200 ton, with complete accessories and fixtures.

• Brand Name: Rajshakti
• Condition: New
• Automatic Grade: Semi Automatic, Fully Automatic, Automatic

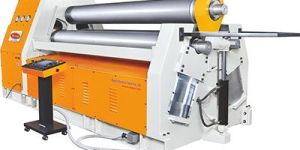

Hydraukic Plate Bending Machines Size :- 1500mm To 8000mm

The company shares glorious credentials with the leading Suppliers of Plate Bending Machine and offers the best deal. We have adopted modern work methods that aid us completely in maintaining records and give us alerts time-to-time when any products goes short in the shelf.

• Country of Origin: India
• Type: Plate Bending Machine
• Operating Type: Manual
• Reverse Rotation: Yes
• Machine Structure: Horizontal
• Is It Variable Speed: No

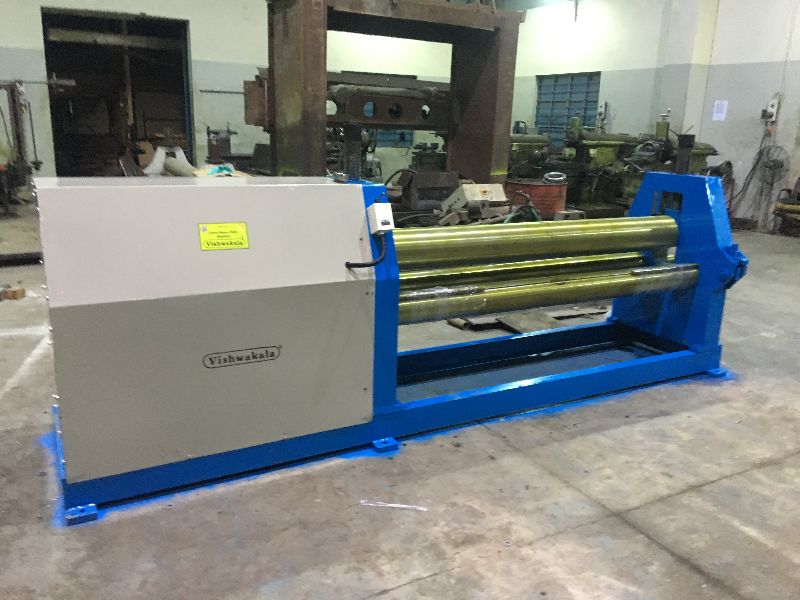

• Brand Name: Vishwakala
• Material: Mild Steel
• Voltage: 440V
• Condition: New
• Driven Type: Electric
• Warranty: 1 Year

• Usage/Application: BENDING

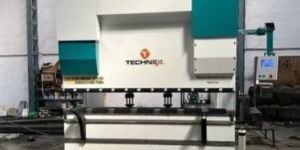

• Brand Name: TECHNEX
• Automatic Grade: Automatic
• Country of Origin: Made in India
• Model Name/Number: TM CNC BEND
• Bending Material: Mild Steel
• Material: Ms

  Features: 3 Roll Are Made From Alloy Gear Box. Bending Rolls Are made Top Roll Adjustment is manually Set By Screw Jack The Robust welded Structure is Made From Mild Steel Plates High Quality Durble Worm Gear Box. Bottom Rolls Are Power Driven Manual end Dropper Arrangement Standard Accessories: Main Motor Drive Elecric Control Panel with Movable Operation Console(Not Included In Some basic Models Ruler for Top Roll Movement & Leval Manual Centralized Lubrication System 2 Nos. Screw Drive Road Nut Spanner Operation Accessories: Automatic Lubrication System Hardended Roll hydraulic Readout System Digital Readout System Extended Roll Shafts for Profile Bending Conical Bending Arrangement Useful Links Home About Us Inquiry Contact Our Products   C & Pillar Power Press Hydraulic Press Brake Hydraulic Sharing Machine Over Crank Mechanical Sharing Machine Pyramid Type 3 Roll Plate Bending_Machine Hand Press Brake Quick Contact

• MODEL TYPE: J4RHH 20/25, J4RHH 20/40, J4RHH 20/55, J4RHH 25/20 etc.
• Working Length (mm): 2030, 2540, 4000, 3125
• Prebending Capacity (mm): 16,20, 30,4045

Pipes in full circle or varying radiuses can be done easily Bottom roll and side rolls move with hydraulic cylinders Overload protection Top roll and bottom rolls are drives by hydraulic motor and planetary gearbox. Hydraulic drop-end for easy removal of finished pipes Easy operation with mobile control panel Welded steel frames

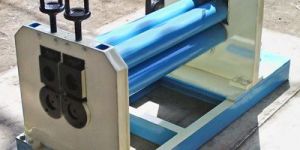

This mechanical model is designed for light to medium jobs. It is used in jobs up to 10 mm thickness materials. It is used in Aluminum Bendings, Air Conditioning channels, gas or liquid cyilinders, advertising panels, sheet metal covers.

Hydraulic Plate Rolling Machine fabricated from IS-2062 graded rolled steel plates. Frame is deeply reinforced and fines machines after stress reliving. The interlocked design put the direct support to frame and closed box type. This frame is strain free and eliminates welds at load supports. Thus the accuracy of the machine is never disturbed.

• Specialities: Sturdiness, Accurate performance, Rugged construction

Specifications:   The Pinch Cum Puramid Principle   The machine based on this principle combine the advantages of three roll pyramid type, three roll initial pinch type and four roll pinch type machines. Highest degree of pre-bending can be achieved and only the smallest possible width of flat remains. An error in pre pinching can be corrected even after the shell is completed. It can pre-pinch and roll the plate without removing the plate from machine after first insertion. Inclined movement of bottom rolls provides wider bending span as the plate thickness increases, and better grip in thinner plates.   Cone Bending   The Machine has inherent feature for conical bending without any extra attachments. The two bottom rolls are inclined by disengaging the dog clutch by lever fitted on the machine. Even pre-pinching of cones can be done.   Salient Features   Top roll drive for rolling thin plates. Highest degree of pre-bending can be achieved and only the smallest possible width of flat remains. Plate Squaring(aligning) arrangement. Small dia. Top roll for small shell rolling (for reduced capacity).

Manufacturer of milestone brand high quality hydraulic shearing machine, Press Brake, Shearing Machine and Plate Bending Machine,plate rolling machine,cutting machine,cuff & collar cutting press and all types of Workshop Machinery & Sheet Metal forming machinery with reliable prize.

• Max Bending Radius: 50-100 mm, 100-150 mm, 150-200 mm, 200-250 mm
• Power: Hydraulic
• Condition: New
• Automatic Grade: Automatic
• Diameter of Side Roller: 85 mm
• Weitht: 275 kg
• Motor Power: 5 kW

First time in India , our machine are fitted with Electric Brake Motor and Control Panel, so that Machine can be stopped at any stage of operations, hence the shape in rolling as per requirement is most possible and due to the movable control panel you can operate Machine very easily.Only Top Roll Pressing (Up-Down) and opening-closing of drop-end are through hydraulic System & cylinders all other operations are carried out mechanically in hydro-mechanical version Top Roll Pressing is manually and opening closing of end-dropper is manual or motorized.
