Powder Filling Machine Dealers in Rajkot

• Country of Origin: India
• Type: Auger Filler Machine
• Certification: CE Certified
• Application: Packing Food Items
• Condition: New
• Automatic Grade: Automatic
• Driven Type: Electric

• Material: Stainless Steel
• Brand Name: Paqee Packaging
• Weight: 200 Kg
• Voltage: 230 Volt
• Machine Type: Manual
• Filling Range: 15 gm - 1000 gm
• Motor: 0.75 HP
• Filling Method: Auger filler system
• Dimensions: 520 x 620 x 750 mm
• Usages: Packaging
• Hopper Material: Stainless steel food grade
• All Contact Parts: Stainless steel made

Our expertise lies in offering feature-packed Auger Filling Machine. We make available Auger Filling Machine that meets the highest quality standards and is unmatched in terms of performance and durability. We offer Auger Filling Machine at economical prices. Furthermore, we are a credible Manufacturer and Exporter of Auger Filling Machine. Models THPF-40A THPF-60A THPF-80D Salient Features Totally enclosed heavy steel structure body to avoid any vibration. Accurate Auger and Funnel having non-sticky Characteristic. Machine can be operated in Single Stroke � 60 to 80 fills per minute with an accuracy of 3-5% depending upon powder type and fill size. Filling dose can be adjusted electronically by adjusting time for dosing. An attachment with loose funnel for filling the Powder in Small Container. Pneumatic system can be also controlled by self make logic control. All the parts which are coming in contact with the product are made out of S.S 316 material and easily removable for mandatory autoclavingsterilization. Change over from one fill size to another and one container size to another is easy and with no wastage of time. �No Container - No Filling� system eliminates wastage of costly powders. AC Frequency drive is providing optionally to control the speed of the conveyor. Endless conveyor belt to prevent jamming of assembly due to spillage of powder. Provided FRL unit will eliminate the jamming of pneumatic accessories due to the powder. Optional Accessories Ac Frequency Drive for speed control PrePost Nitrogen Purging arrangement Aluminium Profile cabinet covering full machine

• Fill Size***: 5 Gms to 1 Kg.
• Electric Specification**: 1 HP / 415 Volts / 50 Hz

SEMI AUTOMATIC AUGER TYPE POWDER FILLING MACHINE is precision built on sturdy welded MS frame completely enclosed in stainless steel sheet and doors are provided to facilitate the servicing of machine. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body.

With a focus on the ever-evolving demands of our customers, we are engaged in manufacturing a broad array of Semi Auto Auger Filler Machine. Features: Energy efficient Sturdy construction Minimum maintenance

• Brand Name: Tulsi
• Automatic Grade: Automatic
• Material: Stainless Steel
• Power Source: Electric

Single Head Auger Powder Filling Machine is used to fill variety of product like granules, powder etc in bottle. It basically works on Auger base to fill powder in bottle.   SALIENT FEATURES: » Easy To Operate. » Trouble free construction for Long life. » Auger rotation is done by clutch brake system & the numbers of auger rotations are controlled by clock disc mechanism. » All contact Part is S.S 304 or S.S 316 on request on request. » Slate conveyor. » Filling head with hopper. » No Change Part require for change in bottle height » Ease of maintenance. » Easy availability of spares. MACHINE WORKING: » Machine Conveyor feeds the bottles from left to right. » The bottle fed in a linear motion on the conveyor then it will be sensed by sensor which gives signal to the magnetic clutch. » It will rotate the auger and required amount of powder will be filled in bottle. » Finally the bottle will be filled with powder as per the required quantity.

• Machine Name: VFFS. Collar Type Sarvo Augar Machine
• Model: 01
• Filling Capacity: 50 - 250 to 500 - 1000 gm
• Machine Speed: 1000 to 4000 Pouches / Hr
• Total Power: 2.5 KW 220v. Single Phase 50 / 60Hz
• Air Compresser: 8 CFM with 6 bar Pressure
• Weigh: 430 Kg {Approx}
• Dimension: 1250mm X 1200mm X 1800mm (D x W x H)

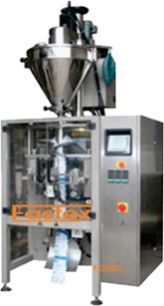

The Collar Type Auger Filler Pouch Packing Machine suits packaging of all kinds of powder, like milk powder, coffee, spices, additives, and more. Equipped with feeding and measuring devices, the packing machine accomplishes feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery, in a continuous flow. PLC control system and large touch screen make the FASTEX powder VFFS (Vertical Form Fill Seal) Collar Type Auger Filler Pouch Packing Machine user-friendly.   Main Features   FASTEX powder VFFS machine provides low cost high gain, high speed and efficiency. The powder vertical form fill seal machine comes with famous brand PLC control system and large touch screen, and thus is easy to operate.The vertical packaging machine makes use of film drawing down system and horizontal sealing controlled by servo motor.The powder VFFS machine minimizes the loss, by use of auto alarm design.Equipped with feeding and measuring devices, the packing machine accomplishes feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery, in a continuous flow.As to the way of bag making, the vertical form fill seal machine can make pillow type bags and standup bags as per customer need.

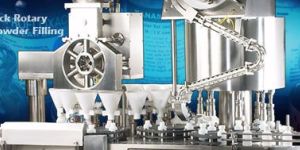

MODELS INJECTABLE POWDER FILLING MACHINES DRYFILL-120i Injectable Powder Filling with Rubber Stoppering Machine DRYFILL-250i High Speed Powder Filling Machine with Rubber Stoppering Machine DRYFILL-120i.Twin Double Head Injectable Powder Filling with Rubber Stoppering Machine DRYFILL-250i.Twin Double Head Powder Filling Machine with Rubber Stoppering Machine DRYFILL-120R Automatic 16 Head Rotary Dry Syrup Powder Filling Machine DRYFILL-120RC Automatic High Speed Rotary Dry Syrup 16x8 Powder Filling & Capping Machine

We are Offering Automatic Auger Filling Machine.the Automatic Auger Filler Machine is Used for Filling Various Powders with Easy Flow or Poor Mobility as Well as Small Particle Products. for Example, the Fastex Automatic Auger Filler Machine is Ideal for Milk Powder, Protein Powder, Cocoa Powder, Coffee Powder, Additives, Small Granular Medicines, Veterinary Drugs, Glucose, Spices, Solid Beverage, Toner, Toilet Powder, Pesticides, and Others. It Provides High Precision and Long-lasting Service.

• Model: PAPF-2
• Output / Hour*: 2400 to 3600 (UP to 25 gms. Filling Size) 1200 to 2400 (Above 25 gms. Filling Size)
• No. of Cleaning Nozzles: 4
• Direction of Movement: Left to Right
• Number of Filling Head: 2 Head

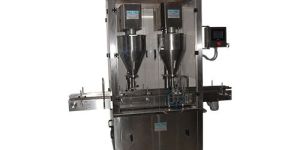

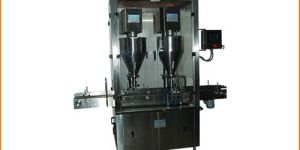

Automatic Powder Filling Machine is a versatile machine, self-supported on steel legs with height adjustment system. The machine is precision built on sturdy welded MS frame completely cladded in stainless steel sheet and doors are provided to facilitate the servicing of machine. Machine works on augur filling principle. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body. No container No filling arrangement is a standard feature of the machine. The system consists of a conical SS hopper with servo driven augur and a low speed stirrer and SS slat 3 chain conveyor. Operation : Container moving on in feed SS Slat conveyor is positioned under the funnel with the help of settable twin pneumatic stopper. Servo driven augur rotates when the container is sensed under the funnel. With the help of augur RPM and time, speed of filling and volume can be adjusted. Continuous low speed stirrer allows uniform feeding of powder in to the augur screw. Filled container then moves for further operation.   Salient Features : ±2% Filling accuracy on single dose. All Contact Parts in SS 316. Adjustable height of Conveyor Belt. Low Noise Level, Low Power Consumptions.

Automatic Powder Filling Machine is a versatile machine, self-supported on steel legs with height adjustment system. The machine is precision built on sturdy welded MS frame completely cladded in stainless steel sheet and doors are provided to facilitate the servicing of machine. Machine works on augur filling principle. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body. No container No filling arrangement is a standard feature of the machine. The system consists of a conical SS hopper with servo driven augur and a low speed stirrer and SS slat 3 chain conveyor. Operation :Container moving on in feed SS Slat conveyor is positioned under the funnel with the help of settable twin pneumatic stopper. Servo driven augur rotates when the container is sensed under the funnel. With the help of augur RPM and time, speed of filling and volume can be adjusted. Continuous low speed stirrer allows uniform feeding of powder in to the augur screw. Filled container then moves for further operation.   Salient Features : ±2% Filling accuracy on single dose. All Contact Parts in SS 316. Adjustable height of Conveyor Belt. Low Noise Level, Low Power Consumptions.

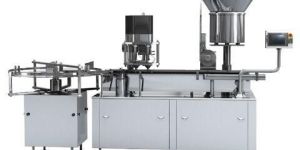

The vials coming from sterilizing tunnel will be sent to conveying belt through the turntable, sent to the transition star-wheel through conveying belt and sent to filling star-wheel through transition star-wheel for positioning filling, filling star-wheel locate vials at filling nozzle, filling auger begins to work, fill powder directly into vials. After filling, vials are sent to stoppering station. During stoppering station, the vials are sent to the rotary stoppering plate, the stoppers are sucked by the vacuum, and move with the stoppering plates, the vials moves up and then they are plugged with stoppers one by one. After stoppering, the vials will be sent out to the collecting tray through the star-wheel. Up to now, then whole filling and stoppering process are completed. Basic Parameter  Filling head 2 Stoppering head 12 Key Words: Pharmaceutical Machinery, Pharmaceutical Engineering, Pharmaceutical Equipment,  Packaging Machinery, GMP Machinery, Pharmaceutical Industry, Pharmaceutical Technology cGMP Service, cGMP Solutions, cGMP Validation
