Power Electronics Laxmi Nagar, Rajkot, Gujarat

We are well known transformer manufacturer since 1980. All transformer products are made with high grade silicon lamination and f class enameled copper wire. We have up to 10kva in stock, other customized solution is possible up to 12kva. features - guaranteed rated capacity - all solutions are possible up to 12kva - high grade silicon laminations - f-class enameled copper wire - f-class insulation grade - low power losses - direct copper wire termination - spring clamp terminals - optional screw type terminals

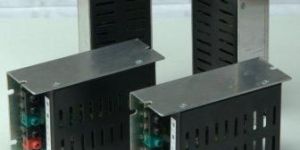

With vast experience in industrial applications since 1980, we have introduced a switch power supply product range for industrial control panel application. It includes 24vdc power supply and dc 2 dc converter for customized application. All products are design carefully for industrial environment, its ruggedness, precise output with addition protections than other in class products. key features - guaranteed rated capacity - 1-phase wide-range input 90 to 270 vac - different positions possible via screw mounting - optional din mounting clamp - adjustable output voltage - high grade aluminum enclosure - high shock and vibration resistance for harsh environmental conditions - cooling through natural convection - input surge protection - output short circuit protection - output overload protection - low output ripple - input noise filters for emi - > 2.5 kv input-output isolation

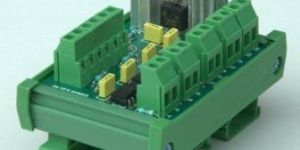

We are offering opto isolator. Opto-isolator card generally used to interface 5v linear scale or 5v encoder with plc or other 24v system. It converts 5v pulse to 24v pulse through 4 optically isolated channels and onboard power supply. Features - 4 optically isolated channels - on-board dc to dc converter � no need for 5v smps - up to 1mhz pulse rate - line driver to npn conversion - din � 35 mounting - small in size

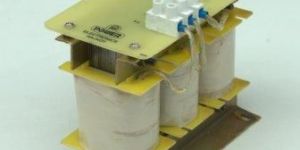

A line choke is used to provide better protection against over voltages on the line supply and to reduce the harmonic distortion of the current produced by the inverter based drive. It is a cost-effective solution to reduce harmonic distortion. It has no visible benefits but is makes effect on reliability and life span of vfd and pfc capacitor. Features - easy to add to an existing vfd based system. - reduce power supply harmonic currents. - reduce the overall input current to the drive. - provide additional protection against mains voltage spikes. - improve the true input power factor. - reduce cross-talk between drives. - protects capacitors from harmonic resonance. - prevent circuit breakers from tripping due to high current spikes. - minimizing nuisance over-voltage trips due to line transients.

We are offering dc 2 dc converter. Our innovative dc to dc converter product line let you freedom to generate any dc output from any dc input up to 3 amp current capacities. It is direct replacement of multi output smps. Features - maximum input up to 40vdc - any dc output – 24v,12v,10v,9v,5v - replace multi output smps - short circuit protection - over temperature protection - high efficiency - less output ripple - cost effective - din 35 mounting product line dc to dc 1amp dc 2 dc 3amp

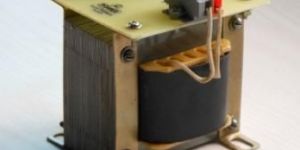

We are well known transformer manufacturer since 1980. All transformer products are made with high grade silicon lamination and f class enameled copper wire. We have more than 100 varieties of transformers in-stock, while other customized varieties are also possible. features - guaranteed rated capacity - high grade silicon laminations - f-class enameled copper wire - f-class insulation grade - low power losses - direct copper wire termination - spring clamp terminals - optional screw type terminals

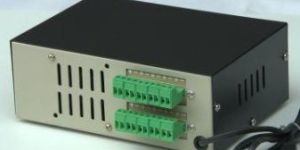

We are well-known power supply manufacturer in industry since 2009. As with an experience of industrial faults, peoples’ work habits and customers’ requirements we have designed right power solution to energies and protect your system with saving lot of time and problems. Key features -> benefits - guaranteed rated capacity – > minimum per camera costing & save money - detachable output connectors -> ease of installation - universal input voltage range – 90v to 270v -> no worry for line voltage fluctuation - input surge protection - > input protection – long life - low output ripple -> for better video performance - noise filters -> clean and noise less recording - output short circuit protection -> more reliability - output overload protection - > self protection - on off switch control -> ease of control - > 2.5 kv isolation - > protect your camera - long service life - high efficiency -> low power consumption – power saving product line: 12v – 1amp 12v – 2.5amp 12v – 5amp 12v – 10amp 24vac – 3amp for ptz camera

Automatic charging products include 12v and 24v range battery chargers. Both chargers have automatic constant current charging facility. It improves charging rate as well improves battery life. It prevents overcharging and battery bulging. It is most suitable charger for generator set and mobile towers backup system. Feature: - smps based design - automatic 6 amp charging rate - best suited for generator set - universal input voltage range 90v to 270v - constant current charging - auto shutdown on charging - overcharging protection - over current protection - reverse polarity protection - high efficiency charging
