Press Brakes Dealers in Gondal, Rajkot

• Weight: 2000-3000kg
• Color: Watch
• Voltage: 220V
• Condition: New
• Automatic Grade: Semi Automatic
• Raw Material: Hydraulic Press Brakes
• Rated Power: 3-6kw
• Driven Type: Hydraulic
• Warranty: 1year
• Country of Origin: India
• Brand Name: Priyal
• Automatic Grade: Aoto
• Machine Type: Hydraulic press

• DIMENSION MM (LXWHX): 1400 x 1050 x 1900
• SPEED: 35-9-60

Ram travel repeatable within ±0.03mm for consistent bends for interchangeable output. Ram travels is referenced from bed to avoid side frame deflections affecting stroke accuracy.   Rugged structure from ultra tested Is 2062plates, rigidity conforming to international standards. Hydraulic, electricals of internationally reputed brands for consistent performance and reliable operation. Front operated manually back gauge front sheet supports with scale Most hydraulic parts rated for 310 bar but working pressure only 160 bar for long life, reliable operation. Ram guides of 4-piece design with replaceable liners. Pivots with permanently lubricated bearings or hardened parts lubricated by central hand pump Cylinders of ultra-tested seamless honed tubes, hard chrome-plated pistons, dual seals )Telfon ring plus set of chevron packings) for extra reliability. 3-speed bending cycles for faster output yet slow smooth bending with minimal shock loads. Movable control station with majority controls, emergency stop, up-down foot-switch controls, Inch cycle mode for set-up and one-off jobs. Single cycle modes for repeat cycles, production runs.   Main cylinders seals can be easily replaced without requiring crane of dismantling the ram. Hydraulic powder gives silent working, better safety against overload, instant stoppage-reversal of ram One set of unhanded standard punch, multi-V die Block Lifting chains system and rotation of die block when using multi-vee die block.

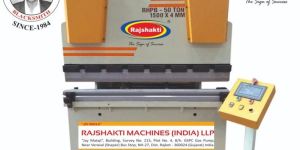

• Brand Name: Rajshakti
• Raw Material: Hydraulic Press Brakes
• Driven Type: Hydraulic
• Condition: New
• Automatic Grade: Automatic, Fully Automatic, Semi Automatic
• Type: Hydraulic Press Brakes
• Warranty: 1year
• Country of Origin: India

We are listed at the apex in the list of the well-reputed Hydraulic Power Press Brake Exporters from India. Customers from various regions of the world are placing bulk orders for the Hydraulic Press Brake due to the unmatched quality and unsurpassable performance. The total capacity of the Industrial Hydraulic Press Brake offered by us ranges from 20 to 400 Ton. Structure Hydraulic Press Brake consists of 2 cylinders mounted at back side of press brake for synchronizing parallelism between ram & table, using the mechanical links connected with cylinder. The heavy duty steel construction frame is so designed to absorb heavy shocks of overload welding edges are properly machined for weld joints. The electric control panel is fixed on side wall at convenient place for easy reach of operator. It Includes push button pendant and foot switch. Standard "V" block & "V" Punch and manually operated back gauge system which is front operated are supplied as standard accessories. Hydraulic Components are of reputed make like Videkers, Rexroth, Dowty, Yiken Polyhydron etc. Standard Accessories Electric Motor, Control Panel with selection of INCH -ONCE-AUTO Mode of operation. foot switch fine stroke Adjustment rod with limit Switches, Manual Lubrication, Instruction Manual. Optional Accessories Goose NECK Punch & Other tooling (Drawing required). Electronic Stroke Counter, NC Operated Back Gauge, Automatic Lubrication System. Capacity : 20 To 400 Ton Click here for Technical Specifications

• Weight: 4000-5000kg
• Voltage: 9-12kw
• Condition: New
• Automatic Grade: Semi Automatic
• Driven Type: Electric

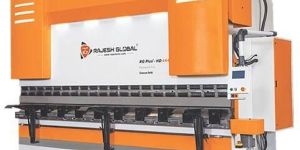

RG Plus+ – HD   Industrial control Cybelec DNC 60 Yl, Y2 independent hydraulic cylinders, proportional valve technology Extra welded-steel side frames Strong and stable construction Efficient, low-noise and accurate hydraulic system BOSCH REXROTH Beam movement on two double roller bearings on each side Single-axis back gauge system X

• Country of Origin: India
• Type: Hydraulic Press Brakes
• Application: For Pressing Metal Sheets
• Weight: 1800-10000
• Color: gey & Blue
• Condition: New
• Automatic Grade: Automatic, Fully Automatic, Semi Automatic
• Raw Material: Hydraulic Press Brakes
• Rated Power: 2-15kw
• Driven Type: Hydraulic
• Warranty: 1year
• Brand Name: JCP

We are offering hydraulic press brake. Press brake machine capacity 80 ton bending capacity. (length x thick 2540 x 4 mm dist. Between housing 1700 stroke length 75 stroke per minute 30 ram adjustment 75 shut height ram stroke down 220 table height 800 depth of throat 300 main moter hp 10 ram adjustment moter hp 1.5 die-space (length x width) 2540 x 200 machine diamensions (l x w x h) 2900 x 1500 x 2850 approx weight kg 5500

• Driven Type: Hydraulic
• Capacity: 50 ton to 300 ton
• Working Length: 2030 mm to 4500 mm

Frame is made of steel fabricated construction of interlock robust design. Machines are constructed with safe guard against undesired deflections and breakage.Upper and lower double roller bearing for accurate, rigid and fast beam movement. Complete range of standard in special tool to cover every application. Strong alliance with European top class tool manufacturer. he compact Blocks eliminate the leakage chances and also reduces the hydraulic pipes. This low Noise hydraulic system is placed on the rear side of machine, on top between two side plates.The electric control panel is located on the right hand side of the machine. It is assembled from the internationally reputed parts for consistent performance, reliability and availability, if needed to be replaced.

STANDARD EQUIPMENT Front Cylinder Mounted Design Powered Depth Y-axis & Back gauge X-axis Servo motor controlled back gauge HIWIN Ball screws & Polished rod with 0.01 mm accuracy Plate Support Arms Germany Bosch-Rexroth Hydraulic Germany EMB Tubing connector Germany Siemens Main Motor Telemecanique/Schneider Electrics Hydraulic & Electrical overload protection Top and Bottom Tooling(86°, R0.6mm) Electronic Foot Switch   SAFETY EQUIPMENT Front Cylinder Mounted Design Powered Depth Y-axis & Back gauge X-axis Servo motor controlled back gauge HIWIN Ball screws & Polished rod with 0.01 mm accuracy Plate Support Arms Germany Bosch-Rexroth Hydraulic Germany EMB Tubing connector Germany Siemens Main Motor Telemecanique/Schneider Electrics Hydraulic & Electrical overload protection Top and Bottom Tooling(86°, R0.6mm) Electronic Foot Switch

RT Power Press Hydraulic Press Brakes are designed and developed through years of experience in sheet metal working machinaries. RT Power Press Hydraulic Press Brakes are developed by keeping latest technology in mind. Both cylinders are mounted at back side of Press Brake are synchronized for parallesm between ram & table, by providing mechanical links connected with cylinder. The heavy duty steel construction frame is so designed to absorb heavy shocks of overload. All welding edges are properly machined for best weld joints. The electric control panel is fixed on side wall at conventional place for easy reach of operator. It includes push botton pendant and foot switch. Standard “V” block & “V” Punch and manually operated back guage system which is front operated are supplied as a standard accessories. Hydraulic components are of reputed make like Videkers, Rexroth, Dowty, Yuken, Polyhydron etc. Capacities rated for M.S. (U.T.S. 45kg/mm2). Bending capacities stated are only representative and not binding. Allow extra capacity for material inconsistencies, bending conditions. Right to change specification, features without notice reserved. Compliance with safety requirements as per local regulations is responsibility of the user.   Standard Features:   Electric motor, Control Panel with selection of INCH-ONCE-AUTO Mode of operation. Foot switch. Fine stroke adjustment rod with limit switches, Manual Lubrication, Manual Back Guage, Standard V Block Punch, Insruction Manual.   Options:   Goose Neck Punch & other tooling (drawing required), Electronic Stroke Counter, NC Operated Back Guage, Automatic Lubrication System.   All Dimensions are in mm. Power supply 400/440 volts, 3 Phase, 50 Cycle. As day to day Improvements are contemplated for better performance of the machine. We reserve the rights to alter the specifications without prior notice. All the machines undergo a through check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation. Electricals are not under warranty.

E Series Models are designed to be flexible and reliable offering more standard features than other brands in their price class,extra value is achieved by addition of CNC Crowning System withthreebeam Design,Extra backgaugedepth,extra heavysteelframeandweightofmachineanglecorrection date base,touchscreencolourDisplay with highstepandbendmemory,Toollibrary.   E SeriesCNC Pressbrake models arebasedonY1-Y2CylindersSynchronised for parallelism of,ram and throughelectronic controller.Steelframe is rigidlywelded monoblock andconstrutionis designed to absorb under load.Steelframeis machinedon8metre lenght floor floor boring havingdro.Machiningis done in sucha wayinreferenceto both cylnder plateand tablein90 degree at cylinder,slide tableandfacing.drilling work in onesetup,whice bensured long time cylinder lifeandd machine accuracy. Cylinders are madeorf highqualityforgedsteelprecisely machinedinerne.VMC,and honned.Ram travelthrough rollimg bearingwitheccentric settingtominimize slide playout to achieve smooth traveland tobeam tilt.Fully Electronicsymnchronsation withclose loopservo valve.Technology ofbosehrexrothandhoreibigor (bothGermany) Assures continuous at correctio of Y1-Y2 Parallism though CNC Control.Y1-Y2 measurement feedback and stroke depth measurement though improted electronic linear scles up to 5 micron resoution.Onesidebendingis possiblewithoutanydamagetoroller bearingguidingsystem.CNC 5ervohydraulic criwningsystemwiththreelower beam design having twoor moreHydrulic Cylinders.CNCxaxis backgaugetravelon two ballscrewand Linear motion gudeway inaluminiumextrusionsectionframe.CNC X AxisBackgauge Driven byA.C. Servomotor (Importedmake) withencoder withloseloopcontrol.
