RAJESH MACHINES INDIA LLP Rajkot, Gujarat

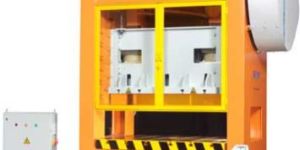

 Single point Suspension Non-Inclinable Double Action Power Press, having Steel Plate Fabricated Construction Duly Stress Relieved with 8 point Gibbing of Slide, Fitted with Pneumatically Operated Combined Single Disc. Friction Clutch and Brake.  With Standard Accessories:   Electrical, Control Panel & Production Counter. Hydraulic Overloaded Safety. Motorized Side with brake Motor & Die Height Indicator. ‘SMC/ FESTO’ make FRL & Pneumatic Fittings. Motorized Grease Lubrication. Slide Knockout Device, 4 way Cam Limit Switches, Anti Repeat Safety Device. PLC Control System. Misfeed Detector  Socket. ROSS/ Toyoki Japan Make Solenoid valve.

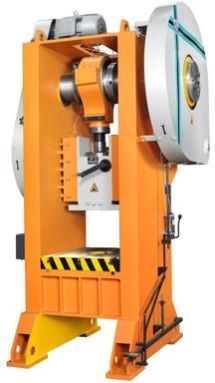

  Rajesh brand mechanical Power Presses are coming in “H” frame versions from 10 tons to 250 tons capacity in most economical type of construction with several std./optional features such as manual/auto lubrication systems, knockouts electronics hand safety, Single/Double or Un-geared versions as also Pneumatic feeders/ straightness and de-coilers for automation Purpose.   Frame :The frame is of all steel construction, fabricated from Rolled steel plates with suitable cross ribbings. Presses Clutch:The clutches of pin/rolling key-type. The clutch is rigid and well supported. The clutch gives continuous strokes for mass production.Crank Shaft :Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.Gears :Gears are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine. Flywheel :Properly sized flywheel is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.Lubrication :An efficient shot lubrication system has been provided for lubricating the sliding surfaces and moving parts. The lubricant is applied by hand pump.Table & Ram :Table and Ram are made of high grade heavy duty cast iron & properly seasoned. They are perfectly aligned, to each other to obtain high accuracy & precision press operation.     Standard Accessories: 1. Motor pulley 2. Clutch key 3. Clutch key springs4. Slide adj. spanner 5. Fly wheel & Gear guard 6. Oil cups for lubrication point 7. Knock-out system Optional Accessories: 1. Tow hand operated clutch 2. Single / continuous stroke 3. Automatic lubrication pump 4. Electrical Motor, Starter & Vee-belts. 5. Extra base plate     »  All Dimensions are in MM.»  As day to day Improvements are Contemplated for Better Performance of the machine.»  All the power presses combine durability with dependability years of experience in machinery has enabled us to offer the highest quality machine for Accuracy     with precision and heavy duty performance.»  Acclaimed by actual users, our machines are gaining ever growing popularity in the field and no wonder therefore that machines are being Recommended     everywhere.»  All the machines undergo through Check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation.»  We reserve the rights to alter the specifications without prior notice.»  Note: In Ungeard machine 960 RPM and in Single Geared / Double Geared 1440 RPM motor to use.

Rajesh brand mechanical Power Presses are coming in "C" frame versions from 3 tons to 250 tons capacity in most economical type of construction with sevral std./optional features such as manual/auto lubrication systems, knockouts electronics safety, Single/Double or Un-geared versions as also Pneumatic feeders/straightness and die-coilers for automatic Purpose. Frame: The frame is of all steel construction, fabricated from Rolled steal plates with siutable cross ribbings. Presses up to 30T will be supplied with C.I. legs. Proper alignment of the frame is ensured by machining. Clutch: The clutches of pin/rolling key-type. The clutch is rigid and and well supported. The clutch gives continuos stroke for mass production. Crank Shaft: Crank shaft is made of special alloy steel machined to closed accuracy and fitted in bronze bushes for smooth working, longer life and accuracy. Flywheel: Properly sized flywheel is made of high grade cast iron, for storing and releasing adequate energy for the pressing operation, and properly balanced for smooth running. Gears: Gears are of steel castor fabricated. Gear teeth are generated by precision hobbing machine. Table and Ram: Table and Ram are made of high grade heavy duty cast iron & properly seasoned. They are perfectly aligned, to eac other to obtain high high accuracy and precision press operation. Lubrication: An efficient shot lubrication system has been provited for lubricating the sliding surfaces and moving parts. The lubricant is applied by hand pump.     Special Feature: 1. All Dimension are in MM.2. As day to day Improvements are Contemplated for Better Performance of the machine.3. All the power presses combine durability with dependability years of experience in machineryhas enabled us to offer the highest quality machine for accuracy with precision and heavy duty machine.4. Acclaimed by actual users, our machines are gaining ever growing popularity in the field and no wonder therefore that machines are being recommanded everywhere.5. All machines undergo through Check-up by our expert engineers before dispatch to ensure their smoothand truble free operation.6. We reserve the rights to alter the specifications without prior notice.

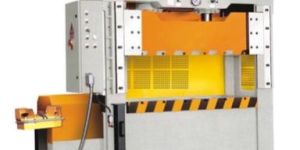

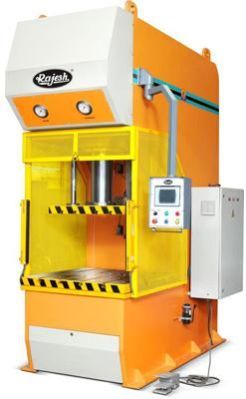

Although Advanced Machine Design has a wide variety of hydraulic presses for many different applications; our hydraulic press designs can be broken down into basic categories to include: two post presses, four post Presses, C-frame presses, vertical presses and horizontal hydraulic presses. The most common press design is the four post hydraulic press. This design is the most versatile as a result of having no size limits, and can be adapted to nearly any process. The four post press design can be configured in a vertical or horizontal position as the process and space available dictate. Precise control Technologies ensures that the four post presses are precise and efficient. Operator access is allowed from all four sides of the hydraulic press so it is very well suited for many different applications. The C-frame press derives its name from the shape of the frame. The primary advantages to the C-frame design are an open work area and increased accessibility. The C-frame press features become even more advantageous when multiple presses are used for progressive operations with automated material handling moving parts from press to press. The C-Frame hydraulic presses, however, are generally limited in maximum tonnage due to the design.The two post hydraulic press is basically a hybrid of the previous two designs. It has good accessibility of the work are for the operator and maintenance personnel while generally allowing for higher tonnage ratings than the C-frame press. Advanced Machine Design Company utilizes over 26 years of engineering knowledge and experience to design and manufacture heavy duty state of the art hydraulic presses. Our presses are available in standard designs or can be customized to individual specifications. Advanced Machine Design Company Hydraulic Presses can be supplied with entry and exit automated material handling with the value added of purchasing an entire turnkey system from one vendor. Standard Press Features: Optional Accessories: 1.  PLC Control with digital operator interface2.  Meets or exceeds OSHA regulations for safety3.  Heavy duty industrial design with 4 to 1 safety factor4.  Guarding to individual specifications with E-Stop circuits5.  Minimal deflection design6.  Overload protection7.  NEMA rated panels8.  Oil cooler9.  JIC/NFPA standard components10. IEC rated electric components11. Full tonnage throughout stroke or cycle 1. Light curtains2. Pressure strips3. Remote system monitoring4. Remote diagnostics5. Die tables6. Die loaders7. Die clamping8. Die storage9. Local or centralized controls Special Feature:  These presses offer maximum access to tool area for tool changing & component feeding Applications Slide guidance can be either twin pillars or face slide. Hydraulic power pack is inbuilt & all valves are manifold mounted for easy & quick maintenance & a pressure relief valve protects against overloading of the press.   Applications: Cold & warm forging Blanking & Punching Riveting Stamping & Pressing Powder Compacting Other Applications i.e. FRP, SMC, DMC Rubber & Plastics etc.

Although Advanced Machine Design has a wide variety of hydraulic presses for many different applications; our hydraulic press designs can be broken down into basic categories to include: two post presses, four post Presses, C-frame presses, vertical presses and horizontal hydraulic presses. The most common press design is the four post hydraulic press. This design is the most versatile as a result of having no size limits, and can be adapted to nearly any process. The four post press design can be configured in a vertical or horizontal position as the process and space available dictate. Precise control Technologies ensures that the four post presses are precise and efficient. Operator access is allowed from all four sides of the hydraulic press so it is very well suited for many different applications. The C-frame press derives its name from the shape of the frame. The primary advantages to the C-frame design are an open work area and increased accessibility. The C-frame press features become even more advantageous when multiple presses are used for progressive operations with automated material handling moving parts from press to press. The C-Frame hydraulic presses, however, are generally limited in maximum tonnage due to the design.The two post hydraulic press is basically a hybrid of the previous two designs. It has good accessibility of the work are for the operator and maintenance personnel while generally allowing for higher tonnage ratings than the C-frame press. Advanced Machine Design Company utilizes over 26 years of engineering knowledge and experience to design and manufacture heavy duty state of the art hydraulic presses. Our presses are available in standard designs or can be customized to individual specifications. Advanced Machine Design Company Hydraulic Presses can be supplied with entry and exit automated material handling with the value added of purchasing an entire turnkey system from one vendor. Special Feature:  These presses offer maximum access to tool area for tool changing & component feeding Applications Slide guidance can be either twin pillars or face slide. Hydraulic power pack is inbuilt & all valves are manifold mounted for easy & quick maintenance & a pressure relief valve protects against overloading of the press   Applications: Cold & warm forging Blanking & Punching Riveting Stamping & Pressing Powder Compacting Other Applications i.e. FRP, SMC, DMC Rubber & Plastics etc.

Single point Suspension Non-Inclinable Single Action Press, having Fully Steel Fabricated Construction Duly Stress Relieved with 8 point Gibbing of Slide, Fitted with Pneumatically Operated Combined Single Disc. Friction Clutch and Brake.

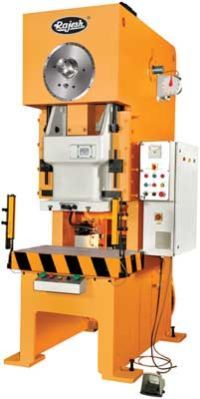

Keeping ourselves abreast of sophisticated process technology, we manufacture high standard cross shaft presses, that are popular amidst our clients for uncompromising quality and high functionality. These presses are available in a rigid steel configuration, which keeps the stress & deflection within the permissible limits and ensures the maximum strength even unber the highest load. Shaft of these presses is ground finished on bearing surfaces. These presses undergo testing prior to dispatch to our clients. We also entertain the clients’ queries to customize our range as per their specifications. Features :The salient features of our cross shaft presses are mentioned below:    High  Performance  Resistant to corrosion  Low power consumption  High tensile strength Easy maintenance Cross Shaft Power Presses :We manufacture engineered pressing machines, cross shaft machine with following features. Features :Fully enclosed drive Front stroke adjustment Large slide face & bed area Hhr Gears operating in oil bath Compact & rigid construction Widely spaced long gibs hold slide in accurate alignment
