Raviraj Engineering Products Kotharia, Rajkot, Gujarat

  Adjustable telescopic steel prop.Steel tubes used for inner and outer of props tasted tubes. Outer : 60 mm O.D. Inner : 48 mm O.D. Prop. : Closed Extended 1. 6.5 Feet 11.00 Feet 2. 10.5 Feet 16.00 Feet

  Capacity : 2 Hoppers of 250 Kgs Capacity each to receive sand and metals. Road Wheels : M. S. Wheels

  Type : 900/16 Capacity : Approx. 4500 to 5000 Ltrs.

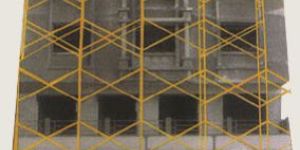

  Tubular Scaffolding for easy and safety farm work. Size of each section 0.9 meter wide and 2.00 meters Height, and width of Two Section 2.15 Meters for farm work.

Power : 7.5 HP Air Cooled engine or electric motor up to 15.00 meters, Over 15.00 meter, power 10/14 HP engi

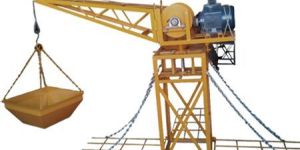

Capacity : Lifting capacity is one batch of mixed concrete of 107 CFT mixer or 650 Kgs gross. Height : The tower is available as per your required height. It is made from 50 x 50 x 6 mm angled section. Wire Rope : Diameter 12 mm tested rope as per specifications. Road Wheels : 10" C.I. 3.50 x 8 Size pneumatic or 500 x 19 size. Power : 7.5 HP Air Cooled engine or electric motor up to 15.00 meters, Over 15.00 meter, power 1014 HP engine or electric motor. Scaffolding : The Scaffolding is available for eraction of our hoist size 1.5 x 1.5 meter square area and height of each section are 2.00 meters.

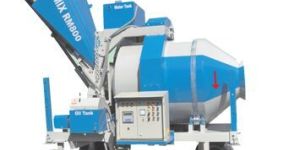

Chassis : Heavy duty, robost steel chassis from 125x65 mm channel. Hopper : 800 Ltr (Unmixed) batch capacity. Capacity : 600 Ltr (Mixed) machine output Hr 10 Cu MHr Power : 10 HP Electric Motor 1 nos. 1 HP 3 phase pump 2 nos. Mixing Drum : Main drum cell made from 6mm M.S. plate with extra guide roller - 2 nos. Water Tank Capacity : 120 Ltr Weighing System : Lood cell based weighing system with digital batch controller. Hy. Oil TankPipe : 20 Ltr. capacityR2 quality hose pipe. Gear Ring & Roller : Accurately Machines with gear cutting operation supported by heavy duty twin roller guide. (Made from EN-8 material) Wheels : Pneumatic wheel (6A fac "16) 4 nos. Jock Leveling : Pin type 4 nos. Optional Feature : Single, Two or Three bin hopper. (As per received) Atlas : Mini concrete batching plant Mini concrete mixers.

Weight : 1375 kg (Approx)

hassis : Heavy duty, robost steel chassis from 125x65 mm channel. Hopper : 800 Ltr (Unmixed) batch capacity. Capacity : 600 Ltr (Mixed) machine output Hr 10 Cu MHr Power : 10 HP Electric Motor 1 nos. 1 HP 3 phase pump 2 nos. Mixing Drum : Main drum cell made from 6mm M.S. plate with extra guide roller - 2 nos. Water Tank Capacity : 120 Ltr Weighing System : Lood cell based weighing system with digital batch controller. Hy. Oil TankPipe : 20 Ltr. capacityR2 quality hose pipe. Gear Ring & Roller : Accurately Machines with gear cutting operation supported by heavy duty twin roller guide. (Made from EN-8 material) Wheels : Pneumatic wheel (6A fac "16) 4 nos. Jock Leveling : Pin type 4 nos. Optional Feature : Single, Two or Three bin hopper. (As per received) Atlas : Mini concrete batching plant Mini concrete mixers.

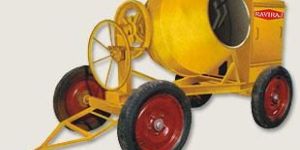

Type : Tilting type without hopper

Capacity : 10/7, 7/5 or 5/3 CFT/280/200, 200/140 or 140/85 Ltrs.

Power : 6.5HP Air Cooled Diesel Engine or Electric Motor.
