RT Power Press Vavdi, Rajkot, Gujarat

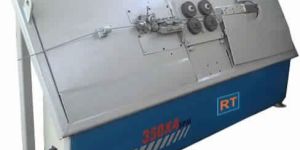

We specialize in manufacturing and supplying a qualitative range of Wire & Strip Forming Machines. The Wire & Strip Forming Machine ensures maximum production of wires and strips. These machines have a touch screen software to enhance productivity both in terms of quality and quantity. Our Wire & Strip Forming Machines are fully automatic and suitable for the production of all types of strips. These precisely designed and engineered machines save both power and energy and, therefore, highly demanded by clients across the nation. We offer this machine at a highly competitive price in the market.   Salient Features   Safety Detection for Material Disconnection & Jam Continuous Feeding Machine is fully automatic Easy to load strip Ideal for strip Precise & Stable Touch Screen Software Automatic Lubrication Fast production Rate

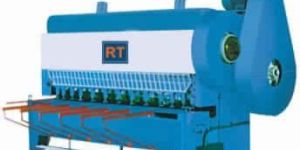

rt power press shearing machines have been designed and developed through structural analysis for continuous production, accuracy and repeatability. frame: rigid steel frame of shubham shears are optimally designed to avoid weak sections at load supports and is of interlocked design. The ram is guided throughout its length by accurate machined guide ways ensuring proper clearance and clean cut.     hold – down system: spring loaded mechanical hold down pads hold the sheet security, to avoid slipping and bowing resulting in clean square cuts. Hold down units are provided with oversize pads to avoid impressions on sheet metal on request.     knives: shubham shears are provided with high quality single segment (hchcr) knives for longer tool life. Ease in assembling of knife reduces down-time. The knife blades are four edged.     lubrication: all bearing parts and guide surfaces are lubricated through hand-operated lubrication system.     mechanical back guage: this is a standard equipment provided on all shubham shears. Scale on the back guage gives instantaneous reading of distance between shear and back guage. Thus avoiding errors and maintenance encountered in electronic equipment.     finger guard: fitted in front of hold-down for operator protection without obstructing viewing.

RT Power Press Shearing Machines have been designed and developed through structural analysis technique for continuous production, accuracy and repeatability. Standard Features:   Foot Pedal. Fly Wheel & Gear Guard. Self Lubrication System Motor Pully A Pair of Four Edge Sher Blade Standard Front Guage Back Guage (Manual Operated)   Options:   Motorised Back Guage. Automatic Lubrication System. Vee-Belts. Electric Motor & Starter / Control Panal Board. Squaring Guage System. Stroke Counter. Extension Squaring Arm. Hydraulic Holddown Pads (Cam-Pump). All Dimensions are in mm. Power Supply 400/440 volts, 3 Phase, 50 Cycle. As day to day improvements are contemplated for better performance of the machine. We reserve the rights to alter the specifications without prior notice. All the machines undergo a through check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation.       Home  |  About Us  |  Products  |  Inquiry  |  Contact Us Copyright @ 2013 RT Power Press. All rights reserved

rt power press brakes are designed and developed through years of experience in sheet metal working machines. rt power press brakes are widely accepted in industries for continuous production runs, and in areas requiring accuracy and repeatability coupled with high production. standard features:   foot pedal and die block lifting link. fly wheel & gear guard. self lubrication system. motor pully. stroke counter. standard “v” block and punch. motor mounting bracket.   options:   motorised back guage. automatic lubrication system ee-belts. electric motor & starter / control panal board. squaring guage system. various type of die & punch. foundation bolts. all dimensions are in mm. power supply 400/440 volts, 3 phase, 50 cycle. as day to day improvements are contemplated for better performance of the machine. We reserve the rights to alter the specifications without prior notice. all the machines undergo a through check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation.

Specifications:   The Pinch Cum Puramid Principle   The machine based on this principle combine the advantages of three roll pyramid type, three roll initial pinch type and four roll pinch type machines. Highest degree of pre-bending can be achieved and only the smallest possible width of flat remains. An error in pre pinching can be corrected even after the shell is completed. It can pre-pinch and roll the plate without removing the plate from machine after first insertion. Inclined movement of bottom rolls provides wider bending span as the plate thickness increases, and better grip in thinner plates.   Cone Bending   The Machine has inherent feature for conical bending without any extra attachments. The two bottom rolls are inclined by disengaging the dog clutch by lever fitted on the machine. Even pre-pinching of cones can be done.   Salient Features   Top roll drive for rolling thin plates. Highest degree of pre-bending can be achieved and only the smallest possible width of flat remains. Plate Squaring(aligning) arrangement. Small dia. Top roll for small shell rolling (for reduced capacity).

Standard Features:   Moving beam synchronized by differential cylinders. Hardened rollers guide beam for constant blade gap. Rank angle adjustable to suit thickness and material. Blade gap adjustable with levers for clean cuts. Sheets clamped hydraulically before cut starts. Shearing-clampin forces adjustable to suit job. Both blades premium HCHCr, four usable edges. Cutting length and position adjustable for shorter job. Beam returns on releasing foot switch for smaller cuts. Cutting area illuminated for clear view of blades. first two hold-downs spaced closer at both ends. Squaring arm 1000mm at left with hardened lines. Squaring arm 600mm at right helps distribute wear. Front gauging with stops, scale on squaring arm. Hardened rods, recessed table for easy sheet feeding. Sheet supports 1000mm long help support long plates. Ramp on rear slides out cut sheets outside shear area. Back gauge moves away trapping of cut sheets. Foot switch movable for operation from safe position. Finger Safety guard with clear view of lighted cutting area. Dependable global of hydraulics, electrical. Efficient compact power pack with minimal piping. Electrical neatly wired-labelled for trouble shooting.   Optional Accessories:   Sheet front feeding system. NC back gauge with ball screw. Hydraulic rear sheet support. Automatic control shearing. Sheet rear stacking system.

Standard Features:   Moving beam synchronized by differential cylinders. Hardened rollers guide beam for constant blade gap. Rank angle adjustable to suit thickness and material. Blade gap adjustable with levers for clean cuts. Sheets clamped hydraulically before cut starts. Shearing-clampin forces adjustable to suit job. Both blades premium HCHCr, four usable edges. Cutting length and position adjustable for shorter job. Beam returns on releasing foot switch for smaller cuts. Cutting area illuminated for clear view of blades. first two hold-downs spaced closer at both ends. Squaring arm 1000mm at left with hardened lines. Squaring arm 600mm at right helps distribute wear. Front gauging with stops, scale on squaring arm. Hardened rods, recessed table for easy sheet feeding. Sheet supports 1000mm long help support long plates. Ramp on rear slides out cut sheets outside shear area. Back gauge moves away trapping of cut sheets. Foot switch movable for operation from safe position. Finger Safety guard with clear view of lighted cutting area. Dependable global of hydraulics, electrical. Efficient compact power pack with minimal piping. Electrical neatly wired-labelled for trouble shooting.   Optional Accessories:   Sheet front feeding system. NC back gauge with ball screw. Hydraulic rear sheet support. Automatic control shearing. Sheet rear stacking system.

RT Power Press Hydraulic Press Brakes are designed and developed through years of experience in sheet metal working machinaries. RT Power Press Hydraulic Press Brakes are developed by keeping latest technology in mind. Both cylinders are mounted at back side of Press Brake are synchronized for parallesm between ram & table, by providing mechanical links connected with cylinder. The heavy duty steel construction frame is so designed to absorb heavy shocks of overload. All welding edges are properly machined for best weld joints. The electric control panel is fixed on side wall at conventional place for easy reach of operator. It includes push botton pendant and foot switch. Standard “V” block & “V” Punch and manually operated back guage system which is front operated are supplied as a standard accessories. Hydraulic components are of reputed make like Videkers, Rexroth, Dowty, Yuken, Polyhydron etc. Capacities rated for M.S. (U.T.S. 45kg/mm2). Bending capacities stated are only representative and not binding. Allow extra capacity for material inconsistencies, bending conditions. Right to change specification, features without notice reserved. Compliance with safety requirements as per local regulations is responsibility of the user.   Standard Features:   Electric motor, Control Panel with selection of INCH-ONCE-AUTO Mode of operation. Foot switch. Fine stroke adjustment rod with limit switches, Manual Lubrication, Manual Back Guage, Standard V Block Punch, Insruction Manual.   Options:   Goose Neck Punch & other tooling (drawing required), Electronic Stroke Counter, NC Operated Back Guage, Automatic Lubrication System.   All Dimensions are in mm. Power supply 400/440 volts, 3 Phase, 50 Cycle. As day to day Improvements are contemplated for better performance of the machine. We reserve the rights to alter the specifications without prior notice. All the machines undergo a through check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation. Electricals are not under warranty.

Specifications:   The Pinch Cum Puramid Principle   The machine based on this principle combine the advantages of three roll pyramid type, three roll initial pinch type and four roll pinch type machines. Highest degree of pre-bending can be achieved and only the smallest possible width of flat remains. An error in pre pinching can be corrected even after the shell is completed. It can pre-pinch and roll the plate without removing the plate from machine after first insertion. Inclined movement of bottom rolls provides wider bending span as the plate thickness increases, and better grip in thinner plates.   Cone Bending   The Machine has inherent feature for conical bending without any extra attachments. The two bottom rolls are inclined by disengaging the dog clutch by lever fitted on the machine. Even pre-pinching of cones can be done.   Salient Features   Top roll drive for rolling thin plates. Highest degree of pre-bending can be achieved and only the smallest possible width of flat remains. Plate Squaring(aligning) arrangement. Small dia. Top roll for small shell rolling (for reduced capacity).

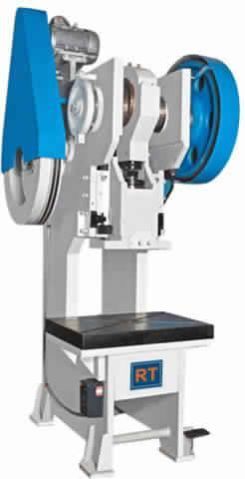

RT Power Press are designed and developed through years of experience in sheet metal working machines. RT Power Press are widely accepted in industries for continuous production runs, and in areas requiring accuracy and repeatability coupled with high production. Available Model:   Available Model: ‘C’ Frame Fixed type ‘C’ Frame Inclinable type ‘H’ Frame Piller type Cross Shaft Press.   Options:   Geared drive Ungeared drive Pneumatic drive Stoke length change Dist. Bed to Ram change Dist. Centre to gap change Knock out system Auto lubrication system All Dimensions are in mm. Power supply 400/440 volts, 3 Phase, 50 Cycle. Geared Machine : 1440 RPM/Ungeared Machine : 960 RPM As day to day Improvements are contemplated for better performance of the machine. We reserve the rights to alter the specifications without prior notice. All the machines undergo a through check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation. & also available tailor made Power Press

RT Power Press are designed and developed through years of experience in sheet metal working machines. RT Power Press are widely accepted in industries for continuous production runs, and in areas requiring accuracy and repeatability coupled with high production. Available Model:   Available Model: ‘C’ Frame Fixed type ‘C’ Frame Inclinable type ‘H’ Frame Piller type Cross Shaft Press.   Options:   Geared drive Ungeared drive Pneumatic drive Stoke length change Dist. Bed to Ram change Dist. Centre to gap change Knock out system Auto lubrication system All Dimensions are in mm. Power supply 400/440 volts, 3 Phase, 50 Cycle. Geared Machine : 1440 RPM/Ungeared Machine : 960 RPM As day to day Improvements are contemplated for better performance of the machine. We reserve the rights to alter the specifications without prior notice. All the machines undergo a through check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation. & also available tailor made Power Press
