Screw Capping Machine Dealers in Rajkot

• Electrical Supply: Three Phase + Neutral + Earthing
• Electrical Load: 1.5 KW
• Air Pressure: Minimum : 6 Bar, 0.5 CFM.

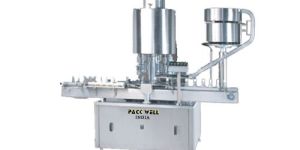

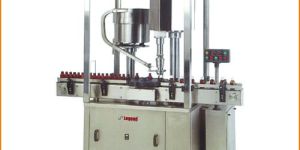

Automatic Screw Capping Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine. Operation : The feed container moving on conveyor belt are feed into an in-feed star wheel, bringing the container below the sealing head in the subsequent indexing part, mean while the rotating head pickup a cap from the cap star wheel which is receiving from delivery chute of cap filling bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of sealing, rotating head is design to seal container according to pre-set torque.   Salient Features : No container no cap arrangement. Single motor synchronizes conveyor, star wheel & platform turret. Adjustable height of conveyor belt. Pick & Place arrangement. Torque adjustable. Low noise level, low power consumptions. No cap, No container arrangement. Motorized Height Adjustments. Acrylic cabinet. Safety Guard for Operation and Protection. Specially designed hopper is to increase storage capacity of bowl.

• Bottle Diameter :: 28mm to 70mm*
• Bottle Height :: 50mm to 200mm*
• Cap Size :: 18mm to 55mm ROPP or Plastic Screw Cap
• Fill Range :: 15ml to 120ml or 30ml to 250ml*
• Accuracy :: +/- 1ml Depending on Liquid with Single Dose
• Electrical :: 440VAC 3 Phase / 220 VAC Single Phase Power Supply (50 Hz)
• Power :: 3.0 H.P.
• Speed : :: Max. 150 Bottles per minute depending on Fill Volume and type of Liquid
• Syringe Fill Range :: 15ml to 120ml,30ml to 250ml or 250ml to 500ml on Special Ver.
• Conveyor Height :: 800-850 mm.
• Overall Dimensions :: 4000 mm (L) x 1700 mm (W) x 2300 mm(H)

Automatic Screw Capping Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine. Operation : The feed container moving on conveyor belt are feed into an in-feed star wheel, bringing the container below the sealing head in the subsequent indexing part, mean while the rotating head pickup a cap from the cap star wheel which is receiving from delivery chute of cap filling bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of sealing, rotating head is design to seal container according to pre-set torque.     Salient Features :     No container no cap arrangement. Single motor synchronizes conveyor, star wheel & platform turret. Adjustable height of conveyor belt. All contact parts are made out of stainless steel. Pick & Place arrangement. Torque adjustable. Low noise level, low power consumptions. No cap, No container arrangement. Motorized Height Adjustments. Acrylic cabinet. Safety Guard for Operation and Protection. Specially designed hopper is to increase storage capacity of bowl.

• Net Weight: 350 Kg Approx.
• Model: HMPL-RBS
• Product Size: 10 ml to 500 ml Bottles
• Cap Size): 22 & 25 mm / 25 & 28 mm
• Cap Feeding System: Vibratory Bowl with chute Suitable Cap
• Capping Head Type: ROPP / SCREW Cap
• Output Speed: 30 to 120 Bottles/Minute
• Direction of Movement: Left to Right
• No. of Sealing Head: 1 / 4 / 6 / 8 Nos.
• Power Supply: Three Phase / 440 V AC / 50 Hz
• Height of Conveyor: 850±50 mm Adjustable
• Dimensions: 2440 mm (L) x 850 mm (W) x 1900 mm (H) Approx.
• Change Parts Required: (A) Bottle: Star Wheel, Center guide.

Screw Capping Machine, automatic bottle liquid filling machine
