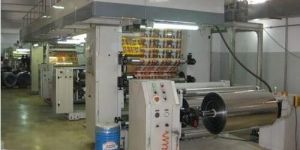

Solventless Lamination Machine
Get Price Quote
THE MACHINE Created to cover the glowing needs of solventless tamination on flexible packaging marker, Enhanced perfomances, on one hand, and the easy operating features on the other, are the main reasons to select this machine, joined with its ability to handle a wide range of laminating jobs. The machine has been specially designed, focusing on short and medium runs on solvent less applications over plastic films. The machine is made to deliver optimum performance and productivity. ADHESIVE METERING SYSTEM R1: First feeding roller, heated and manually rotated both side. R2 : Feeding roller is heated and independent motorized from R1, allowing the floating system created to facilitate the cleaning process. R3 : Matering roller rubber coated ; easily Interchange-able for different web widths. R4 : Heated and motorized roller allows a perfect delivery or adhesive over the substrate coordinating speed with R3. REMOVAL OF THE METERING CYLINDER Quick and simple removing of the metering cylinder, which is achieved through unlocking the driving system on this cylinder. SHAFT-LESS UNWINDERS & REWINDER Shaft- less unwinders web tension control by using pneumatics brakes & rewind wed tension control by usinglatest generation AC notor and AC drive the system maintains the set tension precisely through out the reel run, the system mainly composed of AC motor and AC drive. FRAME STRUCTURE Distintively designed and precisely machined strong and sturdy, steel frame structure, with stiffening tie-rods; maintains accuracy over long dependable life and ensures less vibration even with optimum line speed. The structure enhances illumination of the working area. The mechanical construction of each component, which undergoes extensive tests ensures optimum performance and longer equipment life. LAMINATOR UNIT The Laminator unit comprises a heated chrome - plated, ground steel roll, with double walls and an internal coil to cnsure the perfecpt and uniform heating on its whole width, and a reder roll coated with hard rubber and driven by pneumatic pistons which can be adjusted at both ends. R5 Lay on roller provided the complement to get a smooth and homogeneous adhesive layer. Backup roll at laminating unit is provided ensures uniformity and smoothness in impression of air bubbles etc. ,at either substrates. CONTROL SYSTEM AC. Drive based closed loop controller tor web handling by using latest generation of electronics Entire machine operation is controlled and supervised by high perfomance motion controller having its own intelligent sortware. Master operator control panel consists of touch screen operating interface facilitates ease in operation. Safety of operator, machine and electronic modules are achieved with the help of necessary hardware protection and intelligent software routines.
