Textile Machinery Mfg. Co. (mhe Div.) GIDC, Rajkot, Gujarat

We are offering two post hydraulic lift. The broad range of two post hydraulic lifts catered by us is of premium quality and is available at optimum prices. With the assistance of our experts and engineers, we are able to custom design the range of two post hydraulic lifts as per the specifications of the clients. Features: very low minimum height-only only lift with built in anti crush asymmetric design and angle-set posts allows car doors to be open freely

We are offering self propelled access scissor work platform. Hydraulic power pack compact system consists of dc motor, gear pump (dowty), solenoid dc valve (yukenatos) pressure control valve (polyhydron) pilot operated check valve (polyhydron), suction strainer, breather filler, oil level indicator with sight glass and oil tank. The power pack is controlled by push button. Hydraulic cylinder-ground and hard chrome plated piston rod fitted with seamless honed tubes. Seals=polyurethane with back ring. Main structure-the base and structure are made from rolled pressed. Scissors are made of tubular rectangular pipes of suitable section for tortional rigidity yet light in weight section with self lubricating bushes. The complete structure is consist of maximum horizontal and longitudinal stability and minimum deflection. Drive unit-3.5 hp dc series wound traction motor of suitable speed in each direction. Steering-spring assisted control handle steering lock on 80o each side, control head with butterfly knob speed control switch with lock and collision switch. Brakes mechanical shoe type, coupled to brake drum to control drive speed. It brakes automatically when handle is released. Functionoperation-the platform is raisedlowered, forward reverse & steering arrangement by two numbers hydraulic cylinders operated by a power pack system from top platform. Push button is used to lower, raise, forward, reverse, left-right turn and stop the platform at any height. Bearings-life time self lubricating bearings at scissors assembly, pivot points and two nos. Sealed ball bearings provided in rollers.

We are offering scissors lift platform. Truckman offers powered, hydraulic lifting platforms (model no.tl-17m) designed to meet the growing demand for low-prices lifting tables with high quality. These tables are available in lifting capacity from 250 kg to 5000 kg having table sizes up to 3000 mm in length. The table can lift 800 mm to 3000 mm with the help of multiple scissors. The scissors are used to elevate the table by applying force through a hydraulic cylinder operated by a motorized pump unit or a hand pump. Two limit switches (optional) are provided for limiting the raised height as well as the lowered height. Applications include lifting and transporting of heavy dies or heavy materials. The tables enable an operator to lift, lower and move loads and transfer heavy loads from floor to floor, vehicle to vehicle and machine to machine speedily, says the firm. They are used in engineering industries, water houses and transport companies, and for placing dies on power presses. These tables also find applications in automatic feeding of tin sheets in cutting, printing and maintenance work. Special accessories (optional) include railing to cover the three sides of the table, loading ramp or tilting table, turntable on top of the table to change direction of the movement of the load, roll off guards, runover flap (for vehicle loading), safety stand, safety skirt and emergency stop bar.

We are offering scissor pallet trucks. Truckman offers the high lift pallet truck model no. Tp-45 is a newly designed , lightweight, easily maneuverable besides having all the advantages of a conventional hand pallet truck and can be conveniently used as a lifting table. the high lift pallet truck can be used whenever there is a problem of working heights or to overcome different levels. Working at a convenient height reduces time loss & increases output but without any fatigue. high lift pallet truck is offered in standard capacity of 800 kg and fork length 1100mm & width 535mm. It can reach a max. Height of 800mm. Forks are raised by a hand operated hydraulic pump. The light weight, 3 control position control handle with spring back action facilitates easy pumping and steering. The tolerance , the piston is polished and hardchromed and the unit has high pressure polyurethane seals. Hydraulic unit has few moving parts, and thus easy maintenance and long life. Parts are inter chargeable and available off the shelf. the high lift pallet truck is a versatile work truck, which can be used in all types of work place where efficient materials handling is desired. * our range of products have the following features : - highly durable and reliable - better efficient - new and innovative designs using the latest cad and cam facilities - available in various specifications - ensures trouble free performance - made up of quality materials - requires less maintenance - can handle loads from 100 kilograms to 10000 kilograms - cost effective. * customization: deliver customized products. * application areas: diverse industries like textiles, paper, cement, petrochemical and pharmaceutical etc. * packaging: durable and safe packaging as per the requirements of the clients.

We offers powered, hydraulic lifting platforms designed to meet the growing demand for low-prices lifting tables with high quality. These tables are available in lifting capacity from 1000 kg to 10000 kg having table sizes up to 5000 mm in length. The table can lift 800 mm to 2500 mm with the help of multiple scissors. The scissors are used to elevate the table by applying force through a hydraulic cylinder operated by a motorized pump unit or a hand pump. Two limit switches (optional) are provided for limiting the raised height as well as the lowered height. Applications include lifting and transporting of heavy dies or heavy materials. The tables enable an operator to lift, lower and move loads and transfer heavy loads from floor to floor, vehicle to vehicle and machine to machine speedily, says the firm. They are used in engineering industries, water houses and transport companies, and for placing dies on power presses. These tables also find applications in automatic feeding of tin sheets in cutting, printing and maintenance work. Special accessories (optional) include railing to cover the three sides of the table, loading ramp or tilting table, turntable on top of the table to change direction of the movement of the load, roll off guards, run over flap (for vehicle loading), safety stand, safety skirt and emergency stop bar.

We are offering an exclusive range of pit mounted scissor lift tables which are designed as per the specifications of the clients. These pit mounted scissor lift tables are fabricated using high grade of raw material using most advanced technology. Apart from this, our range finds its application in different sectors. Features: multi utility highly durable lifting height up to desired height .

We are offering mini lift tables which are designed as per the international trend of the market. These mini lift tables are fabricated with free top and bottom frame having heavy steel profile scissor blade assembly. Dimensions: • clear lift: 600 mm • min. Closed height: 400 mm • max. Lifted height: 1000 mm • platform size: 600 mm l x 450 mm w • load capacity: 500 kgs. Up to 2000 kgs

We are offering jib crane. Truckman manufacturing material handling equipments & specialized in the manufacturing of jib cranes from the concept till commissioning. The design is simple, portable, manually operated and capacities range from 250 kg to 5000 kg. Jib cranes are wall mounted , pillar mounted with swivel facility of 90, 180, 270, 360 degree. The crane span length varies from 1 metre to 5 metre depending upon the load requirements of clients according to the applications. For lifting and lowering either pulley blocks or electric hoists are used and similarly cross travelling can be operated either by manually or electrically from the floor. it is being used in coal sector to large industries, workshops, railways, airport authorities, power plants & steel plants. truckman cranes are backed by excellent after sales service and the spare parts are readily available at all times.

We are offering hydraulic stacker. Truckman has a wide range of material handling equipments. Offers hyd. Stacker model no. Sk-15 is suitable for loading, unloading, carrying & stacking of materials in a factory. The truckman brand hydraulic stackers are available in 250 kg to 1500 kg capacities & with lift height 1000mm to 4000mm. stackers is fabricated of pressed formed rolled steel sections. Designed for smooth maintenance free easy operation long life. Hyd. Stackers are available in both fork type or platform type designed cylinder is coupled to the hydraulic hand pump. The forks or the platform is lifted up by few of the hand pump till it reaches its full height. Lowering is effected by opening the release valve.lift per stroke is approx 20mm. Mono mast & telescopic mast models are available. These stackers are fitted with two roller fixed to front legs & two swivel wheels at the rear end. truckman also offered electro hydraulic stackers & battery operated stackers

We are offering hydraulic pallet truck. Truckman having a wide range of material handling equipments, offer hydraulic hand operated pallet truck model no. Tp-40mm which is easy to operate, silent in operation, need low pulling power and offers maximum maneuverability. it is made from m.s. Pressed steel sectional structure. The load is raised by pumping through the handle and lowered with a simple foot operated control highest quality is maintained with hard chrome polished pistons and leak proof double sealed packing. The available range is in capacities of 1000 kgs to 5000 kgs & with fork length of 1100mm to 3000 mm . These pallet trucks are fitted with two m.s. Rollers to the front legs & two polymer swivel wheels at the rear end. Option is given for cast iron, nylon or polyurethane wheels. battery operated pallet truck is also available.

We are offering hydraulic floor crane. We are catering qualitative range of hydraulic floor crane which are fabricated using high grade raw material with advanced technology. These hydraulic floor crane are ideal for low cost alternative and are easy to handle. features: hassle free services enamel paint finish controlled steering for easy turning sensitive release valve allowing full control at all times all the four wheels are provided with ball bearings in steering wheels fully streamlined base for easy and safe maneuverability. All welded construction helps in handling the toughest lifting jobs three position-telescopic jib, tapered beam design, built for rugged duty heavy duty double acting hydraulic pump. Separate long life piston and cylinder is provided hydraulic system hydraulic pump : high pressure hand pump with release valve for smooth lowering. Hydraulic cylinder : thick walled honed tube cylinder. Piston : en-98 ground and hard chrome plated piston. Seals : polyurethane with back ring. Wheels : four numbers 8" x 2" face polymer wheels with two sealed ball bearing for less attractive effort.

We are offering battery operated platform truck. Truckman has introduced a versatile battery operated platform truck model no.- pt-18 . Chasis is robust construction made out of pressed rolled steel channel and plate with a strong rubber bumper at front & rear. Salient features : drive motor - a unique differential arrangement gives drive to rear wheel through double reduction with strong roller chain and sprocket attached with drive motor. Electronic control - for smooth acceleration and power saving an electronic transistor mosfet chopper control is provided. There is no energy loss like traditional resistance control and increase battery working hours. Moreover it prevents electrical and mechanical components from damages. Electrical system - all controls like forward - reverse-horn-light-emergency cut off and key switch are provided below steering handle on dash board & hyd. Brake is also provided. truckman battery operated platform truck available in different models & ideal for transporting non-standard nonpalletised loads. The truck is light, quite, compact, safe, easy to handle and needs minimum maintenance. truckman also offered four wheeler battery operated platform truck, tow truck and tugger.

We are offering battery operated pallet trucks. Truckman battery operated pallet trucks ( model -tp 12 b ) are for use within the shop floor for moving loaded pallets with material. These are made in 1 ton , 2 tons capacities. The lowered height of the fork of 1 ton & 2 tons varied from 90mm to 100mm as standard. The lifted height of fork for capacity 1 ton and 2 tons can be 200mm as standard. This truck is suitable for lifting of heavy materials on shop floors. The battery is of adequate capacity for use for one shift, nonstop. Optional higher ampere hour capacity battery can be offered for longer hours. For the capacity of 1 ton and 2 tons , the truck has one single drive wheel with steering. The lift of forks is motorized and an optional hand pump, can also be provided for use in case the motor pump is under repair or maintenance. For 1 ton and 2 tons the steering is directly controlled by a handle.

We are offering aerial maintenance platfrom. This is an aerial maintenance platform? suitable for attending the maintenance works of lighting, overhead cranes, window cleaning etc., at high levels in workshops, ware houses or any where on good pucca floors. This platform can be used for maintenance of lights and attend to jobs even up to 13.5 mtr. Height. This is a completely safe machine. It has got four outriggers for purposes of stability. Two load wheels each with two ball bearings and two steering wheels with two ball bearings each are provided. There are several vertical aluminum mast which open while moving up and close while going down. All the controls are in the hands of the operator. The wheels are wide faced for easy pulling & pushing on good pucca floors. The net weight is very low comparing to the work done at so much height.

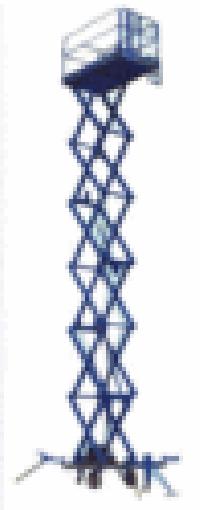

We are offering access & work platform model no. “tl-28”. Models, which are available with capacity up to 500 kg. These models are available with single, double scissors up to five numbers to reach up to the height of 10 meters. The maximum platform height is restricted with the length of scissors. The scissors mechanism provides the maximum stability in the maximum height of platform. The lifting operation can be provided with various options viz. Acdc hydraulic power pack. The standard version is having two fixed wheels and two-swivel wheels coupled with screw type parking arrangement. The unit can be moved by manual, differential drive or dc drive. Application for overhead lighting, crane maintenance, rack storage systems, heavy machine building, building maintenance, mobile flood lighting, overhead piping & aircraft maintenance, etc.
