Tridev Industries GIDC, Rajkot, Gujarat

Material : Mild Steel

Automation Grade : Semi-Automatic

Capacity : 300-100 Kg/Hr

Application : Wood

Brand Name : Tridev

Material : Carbon Steel

Voltage : 440V

Color : Blue

Country of Origin : Made in India

Voltage : 440 V

Brand Name : Tridev

Material : Mild Steel

Power : 5 Hp

Brand Name : Tridev,Tridev

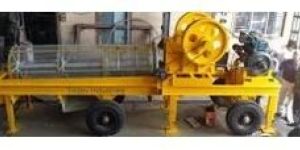

Type Of Crushing Machines : Jaw Crusher

Capacity : 20-200 Ton/Hr

Material : Mild Steel

Voltage : 440 V

Frequency : 50-60 Hz

Material : Mild Steel

Power : 10 Kw

Brand Name : Tridev

Phase : Three Face

Surface : Polished

Frequency : 60 Hz

Voltage : 380 V

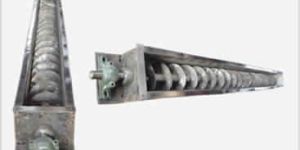

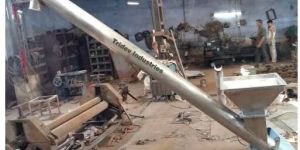

 screw conveyor is mechanical rigid spiral type. Mechanical screw conveyor is to convey solid material horizontal, vertical and incline axis in bulk from one place to other. Material is fed or received at one end (inlet) and positively conveyed toward other end (outlet). Design construction of Tridev SCREW CONVEYORScrew outer shell is made from round solid Pipe OR U-trough. Inner Screw flights welded on heavy-duty pipe. Both end is connected to screw pipe, rotates on bearings fixed in bearing housing. Material leakage is prevented by stuffing box. Screw is rotated through suitable size gearbox, motor, coupling and sprockets. Hanger bearing is placed in between at adequate distance for smooth rotation of longer screw.Tridev SCREW CONVEYOR / FEEDER is forTridev Screw conveyor is to save energy. It convey or feed various dry solid material, powder, small ice cube, seeds, minerals, sand, cement, ceramics, fertilizers, spices, plastic granules/powder etc.Example of SCREW utilizationPrime purpose of screw feeder is to maintain product condition, productivity, reduce time, maximum utilization of machine, minimize wastage and nullify dusting.1. Screw is to lift or forward material into inlet of any machine working as batch type operation. 2. It is used to load or discharge bin/silo at horizontal or vertical axis. 3. Set below outlet of any machine to inlet of other machine for atomization purpose.

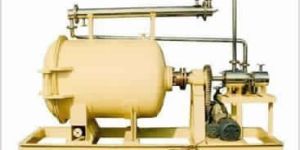

Wet feed is charged as a batch and is subjected to indirect heating while undergoing agitation due to the action of paddle mixing. The operation is normally carried out in vacuum. Recovery of solvent is possible by condensing the vapors generated during the drying operation. Rotary vacuum dryer is available in different sizes. Size of dryer can also customized depending upon customer requirement.Motor HP and Production is totally depends on property of material and require mesh size.All the data given are nominal only. It may vary widely from case to case depending upon many factors. Available Features are 1. SS material, 2. Outer jacketed for heating,3. Mounting suitability as per customer layout.4. Customization as per plant requirement.5. Rotor design Paddle, plow and ribbon type.

Frequency : 40-50 Hz

Capacity : 100-200 Kg/hr

Color : Blue

Voltage : 220 V

Power : 0.75 To 10 Kw

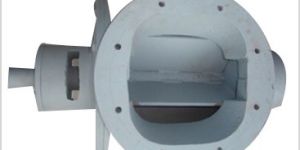

Rotary Air Lock Valve easy for adopt in any machine with round or square flange. It is having round or square flange mounting type housing, rotor and rotor shaft. Rotor is fitted inside housing and rotates in bush bearings. Stuffing box and gland packing are available at both end cover to prevent material leakage. Rotor is driven by geared motor and chain sprocket. Working Principle of ROTARY AIR LOCK VALVEMaterial is received from top in Rotary Air Lock Valve. Material received in volume between rotor vanes and discharge at bottom side. Material is discharged at bottom when rotor starts rotating. Material is discharge without air leakage. It can be mount directly on bottom flange of Blender, cyclone, silo, dust collector and any machine outlet spout. It is designed to place between equal of different pressure system.Use of ROTARY AIR LOCK VALVETridev Rotary Air Lock Valve for discharge material uniformly at required flow rate. It is to control flow of dry Powder, solids and Granules. It is also useful to feed material into pneumatic system with minimum air leakage. Available Options 1. Different design.2. SS material

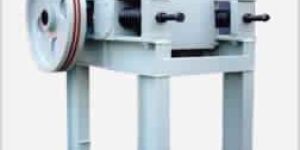

Roller Crusher crushes material by passing through two rollers and collected at bottom tray. Nipped material pieces pass between two rollers without slippage. Desire material size and output rate can be achieved by adjusting gap between two rollers. Size reduction ratio is 1-4 per pass. Production rate and energy consumption is affected by changing reduction ratio and differential roller speed. Roll design like smooth, grooved or water cool (for hot material) are offer to suit various requirement. The angle of nip varies for different operation.  Two roller of same diameter with shaft are fixed on heavy-duty bearing. Both are rotated towards each other at same or different speeds. Distance between two rollers is adjustable. Adjustment is done by adjustable roller. Set clearance is maintain by Powerful spring which holds adjustable roller. The tension spring exerts the necessary pressure to crush the nipped material pieces. Tridev Roller Crusher is for crushing medium hard product. It is a positive coarse crushing machine for material like ferroalloys, aluminum oxide, calsine, boxide, and fire bricks.

Material : Mild Steel

Belt Material : Rubber

Belt Width : 10-20 inch

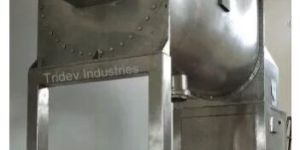

Ribbon Blender is one kind of mixer to mix different powders. Horizontal mixer is precisely designed to maintain combination of three major dimensions is Diameter, Ribbon width and Pitch. It is for effective distribution of very small amount of additive added is getting effected and assures homogeneity of final output. Powder is got Rotary as well as horizontal motion in positive direction to get effective blending which is happen by design perfect sizing of inner and outer ribbons.Advantages of our BLENDER DESIGNWe designed machine to help our customer to get very good productivity. Easy dismantle for cleaning and quick reassemble is possible by Fabricated U-trough, bolted ribbons and arms, Shaft on heavy duty bearing and housing, bolted End plates, bolted stuffing boX.BLENDER is for Blender is used to blend powder product like Pharmaceutical, Chemicals, Dyes, Pigments, Organics, Agricultures products, Minerals, Pesticides & Food products.

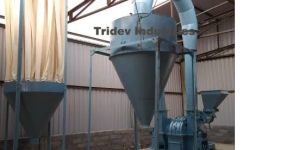

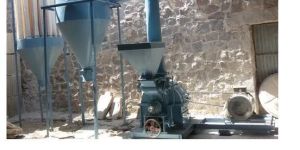

Pulverizer is for: Tridev Iimpex Pulverizer is to reduce particle size. It is to convert lump or big particles of different material into fine powder of below mention material. Industrial segment can be serve by Impex pulverizer Product Materials can be grind Chemical Dyes, Pigments, Intermediates, organic, etc Agriculture Spices, Guar gum, Flour, Black Gram, Sandalwood, Herbal, Turmeric, Snuff etc Minerals POP, Marble, Coal, Bauxite, Calcite, Lime Stone, Soap Stone, China Clay, Dolomite, Bentonite, Gypsum etc Metal Copper Ore, C.I. Powder, Ferro Alloys, Zinc Dross, Brass Dross, etc Other Fertilizers, Pesticides, Precipitated Silica, Carbon Black etc.

Pulse jet dust collector is automatic dust air cleaner by continuously cleaning its Filter bags. Positive or negative pressurized Dust-laden air enters in Tridev Pulse Jet Dust. Velocity if air get reduce after expansion inside conical hopper. Due to low velocity bigger dust particle got settle by gravity in hopper. Absorb velocity impact if diffuser is provided at nearer inlet. Fine particle move upward (in beg housing section) which are remains in air. Clean air passes through filter bags move towards clean airside where fine particle retain on outer surface of fabric. Both side pressure difference got increase whenever dust increase on fabric. Filter begs are necessary to clean for minimize pressure difference. Tridev Pulse jet Dust Collector will clean Filter bag by automated momentary air jet which is generated through system.  Normally closed solenoid valve actuated by signal from remote sequence timer. Pressure got decrease in the tube between solenoid and right angle diaphragm valve after solenoid valve open. It causes diaphragm valve to open permits a momentary air jet from air supply. High velocity air through pipe comes out from nozzles inserted inside the venture. Pressurized and high velocity airflow inside the filter begs causes controlled inflation of bag. So, that Accumulated dust is dislodge and collected in the conical hopper.  Clean air comes outside from bags towards plenum. Sequential timer can operates on time sequence or by measuring pressure difference. Separate line of blow tubes and valves continuously clean each raw of bag by automatic operation. Filtration efficiency depends on type of filter bag, efficiency, frequency of intensive cleaning. Filtration cycle should select practically, so that most of filtration area is available clean most off time. Design of PULSE JET DUST COLLECTORTridev Pulse Jet Dust Collector is having many filter bags. Filter bags and other assembly enclosed in a metal housing. It consist plenum at top, beg housing at middle and material collection at bottom section. Plenum section is holding air pipes/orifice nozzle and supports air receiver tank, blow tubes and solenoid valve. Beg housing is separated from plenum by tube sheet. Beg assembly stays inside beg housing which are clamped with ventures, beg retainer, filter begs and clamps on tubes sheet. Material collection hopper at bottom is with inlet, diffuses and outlet. Sequential timer, air pressure gauge, and blower fitted on frame. Rotary air lock valve need s mount at outlet of PJDC to discharge powder and prevent air leakage.Advantages of Tridev PULSE JET DUST COLLECTOR1. Improve product quality getting deteriorate due to system air temperature.2. It clean dusty air generated/used inside system and Improve exhaust air quality.3. Collect valuable material which is getting escaped with air.4. Control system air pressure and improve machine efficiency & energy consumption.5. Control system temperature which is getting increased due to filter bag blockage.6. Eliminates manual cleaning of filter bags.7. Eliminates human intervention and error.8. Improve workshop atmosphere by collecting dusty air at inlet/outlet of machines.

Material : Mild Steel

Voltage : 380 V

Motor Power : 15-20 Hp

Country of Origin : Made in India

Model Number : trb2000

Capacity : 1000 kg

Application : Pharma

Material : ss

Brand Name : Tridev

Application : Stone

Brand Name : Tridev

Material : Mild Steel

Capacity : 0.5-16 Ton/hr

Material : Mild Steel And Stainless Steel

Voltage : 440 V

Application : Industrial

Type : Impact Pulverizer

Power : 45 Kw

Automatic Grade : Fully Automatic

Phase : Three Phase

Brand Name : Tridev

Material : Mild Steel

Phase : Three Phase

Country of Origin : Made in India

Application : Industrial

Color : Blue

Application : Mixing

Material : Mild Steel

Color : Blue

Condition : New

Brand Name : Tridev

Material : Mild Steel

Power : 7.5-10 Kw

Capacity : 2000-4000 Kg/Hr

Frequency : 60 Hz

Brand Name : Tridev

Brand Name : Tridev

Voltage : 220-240 V
