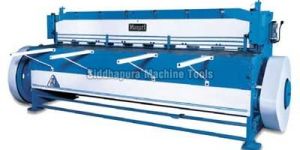

Under Crank Shearing Machine Dealers in Rajkot

Owing to our speedy distribution network, we are capable to render quickly and hassle free deliveries. We have a team of quality inspectors who check the entire lot of raw material on several counts, prior to procurement. Thus, quality of the finished products is never fortified.

• Certification: CE Certified
• Weight: 100-1000kg
• Voltage: 400/440 volts
• Warranty: 1year
• Power: 3 phase

We are one of the leading Under Crank Shearing Machine which is a statement in itself, these are designed through structural analysis technique which ensures scratch free production, high accuracy and repeatability. Interlock Shearing Machine which we manufacture are the most trusted and reliable machines in the market. Being one of the prime Shearing Machine Supplier in India we know that quality assurance and customer satisfaction is a key to success for any business to grow and succeed. Features Foot pedal Fly wheel and gear guard Self lubrication system Motor pulley Details All dimensions are in mm Power supply 400/440 volts, 3 phase, 50 cycles We reserve the rights to alter specifications without notice Undergo stringent quality checks for easy and smooth operation Options Motorized black gauge Automatic lubrication system V belts

• Country of Origin: India
• Type: Under Crank Shearing Machine
• Brand Name: Vishwakala

Vishwakala Mechanical Under Crank Shearing Machine Ranging from 300 mm to 3125 mm Sheet Width Cutting Capacity 0.5 mm to 2 mm Steel Body, Steel Geared, HCHCR Blade, Manual Back Gauge, Spring Loaded Pressure Plate

• Country of Origin: India
• Type: Under Crank Shearing Machine
• Weight: 1000-2000kg
• Condition: New
• Automatic Grade: Semi Automatic
• Driven Type: Elecric
• Color: Grey
• Brand Name: JCP
• Warranty: 1 YEAR

  The Frame is fabricated from steel plates of is 226 Grade. The frame is designed to take heavy loads. The interlocked design put the direct support to frame. Thus frame is strain free and eliminates welds at load supports. Thus the Accuracy of The Machine is never disturbed. Table Steel fabricated, box type table is heavily ribbed for strength and is stress relieved its machined seat provides true and firm support to the bottom blade. It is adjustably for setting the blade clearance. The top surface of the table is provided with T slots for adjusting the front gurge. Upper Beam Upper beam is fabricated with thick M.S. Plate. It is Heavily ribbed from behind and is stress relived. The top blade is fitted at its accurately machined seat. Its sliding surface are machined and hand scrapped for smooth travel and sustained accurately. Guide Ways Accurately machined guide ways keep the beam in its bearing throughout the stroke. A taper wedge is provide to compensate for the wear and to facilitate quick setting of the blade clearance.   he spring loaded mechanical hold down pads hold the sheet securely, to avoid slipping and bowing resulting in clean square cuts. Hold down units are provided with oversize pads to avoid impressions on sheet metal on request. Drive, Clutch And Brake Drive DRIVE : Motor, mounted on an adjustable platform, drives the large, cast iron fly wheel through v-belts. The power is Further transmitted to the fly wheel shaft through steel pinion and main gear box and than transmitted to main gear. Gun-Metal bushes are provided all the rotating parts . CLUTCH : Rollin key clutch is linked with the main gear and engages every time when the foot switch is pressed. BRAKE : Spring tensioned braked fitted at the end of the crank shift to damp inertia. Front And Rear Gauges FRON GAUGE : T-Slotted fron gauge fabricated from mild steel is detachable. REAR GAUGE : Rack and Pinion type rear gauge provides accuracy and is easily adjustable to parallel and taper strips efficiently. Blade Everest shears are provided with high quality single or segment HCHCR blade, with four edged. Lubrication All bearing parts and guide surfaces are lubricated through connected oil cups and operated lubrication pump. Standard Equipment's Rear gauge, Side squaring and Front gauge, Foot pedal, Switch Motor pulley, Gear & Fly wheel guards and standard. Interaction manual, and Spanner. Standard Accessories Electric Motor, Starter, V-belts, Manual Lubrication pump, Front gauge, Rare gauge with Scale and Stroke counter, Electric and lubricating pipe Fittings and waiting. Power Supply 400/440 Volts, 3 Phase, 50 Cycles. Note:- Electric items & blades are not under warranty. Machines will be supplied without electrical & V-belts.

• Application: Structural Analysis
• Weight: 100-1000kg
• Voltage: 220V
• Automatic Grade: Automatic
• Power: 3-6kw
• Warranty: 1year

foreman machine tools pvt. Ltd. Brand steel body geared & ungeared power operated shearing machine are designed and parallel sheet cutting. The machine is applicable to m. S., s. S., copper, brass, aluminum, crc, cr ngo, p. S. B. Etc. cutting industries. It is also applicable to manufacturers of electric stamping, automobiles. Tin drum barrel, control panels and boards, steel furniture, tube light potties, fabricators & kitchenware items etc   side frames: are of steel plates designed for maximum rigidity to eliminate deflection and to with stand continuous high speed performance atfull capacity ram (upper beam): is of solid steel plate and additional ribs on back side the ram adds to is strength, carrying the upper knife. Its maximum weight ensure lesser load on the bearing. The ram moves in accurate machined guide-woys to avoid deflection. For smooth running and maintains the proper strength of the upper knife. table: is of closed box type steel fabricated, which forms a rigid backbone for the shear and a solid backing for the lower knife. Additional ribs, under the table adds to its strength. crank shaft & flywheel shaft: is of best steel, accurately machined and runs in gun metal bearing and all other installed in gun metal bearings. hold down: is of steel fabricated spring loaded ensures uniform pressure through out the cutting length without any slipping irrespecti ve to the sheet. rolling key clutch: made of en-24 steel for positive engagements and continuous operation having three key way. Single rolling key system is incorporated in the machine ensuring easy and efficient working of the machine. drive: is through "b" belts on the fly wheel and other chain of job cut gears for smooth running and longer life. brake: constant spring loaded adjustable brake is provided. back gauge: in ksml 5, 6, 7 &ksmh 4 to 7 are screw drive where as in ksug 1 to 4 &ksmh 1 to 3 am of rack pinion type designed to accuracy and easily. standard equip: side, back, front gauges and table extension, fly wheel and gear guards, foot pedal, mount and motor pulley, hold down divide, set of 4 edge hc hcr blade and manual oil pump for lubrication. lubrication: for sufficient lubrication oil cups and oil points are provided. blade: is four edged hc hcr provided for longer tool life.

• Power supply: 400/440 volts, 3 phase, 50 cycles

we are one of the leading under crank shearing machine which is a statement in itself, these are designed through structural analysis technique which ensures scratch free production, high accuracy and repeatability. Interlock shearing machine which we manufacture are the most trusted and reliable machines in the market. Being one of the prime shearing machine supplier in india we know that quality assurance and customer satisfaction is a key to success for any business to grow and succeed.

We are counted amongst the predominant Manufacturers, Suppliers, and Exporters of Under Crank Shearing Machine. We are based in India. We use the top quality of components and sophisticated machines in manufacturing our machines. We offer it in various models like JSML  1, JSML  2, JSML  3, JSML  4, JSML  5, JSML  6, and many more.  Our offered Machine is designed by the diligent engineers with a high level of precision. We manufacture it in various dimensions which range from 685 x 1mm to 4000 x 4mm.

• Type: Under Crank Shearing Machine
• Certification: ISO 9001:2008
• Weight: 4000-6000kg
• Color: Brown
• Voltage: 440V
• Condition: New
• Rated Power: 3-6kw
• Automatic Grade: Automatic
• Driven Type: Elecric
• Warranty: 1year
• Country of Origin: India
• Brand Name: Tirupati
• After-Sales Service Provided: Yes
• Thickness 25 mm: White colour

• Type: Under Crank Shearing Machine
• Weight: 100-1000kg
• Voltage: 380V, 220V
• Automatic Grade: Fully Automatic, Automatic
• Driven Type: Elecric
• Warranty: 1year

Our zeal to achieve excellence enables us to design and develop efficient Under Crank Shearing Machine. Our Under Crank Shearing Machine is quality tested and promises remarkable workability at low operational cost. Configured with advanced technology, Under Crank Shearing Machine boosts productivity of shearing in any heavy metal industry. Highlights Robust construction Smooth working Efficient design Longer service life Details Frame : Rigid steel frame of Shubham Shears are optimally designed to avoid weak sections at load supports and is of interlocked design. The ram is guided throughout its length by accurate machined guide ways ensuring proper clearance and clean cut. Hold � Down System : Spring loaded mechanical hold down pads hold the sheet security, to avoid slipping and bowing resulting in clean square cuts. Hold down units are provided with oversize pads to avoid impressions on sheet metal on request. Knives : Shubham Shears are provided with high quality single segment (HcHcr) Knives for longer tool life. Ease in assembling of knife reduces down-time. The knife blades are four edged. Lubrication : All bearing parts and guide surfaces are lubricated through hand-operated lubrication system. Mechanical Back Guage : This is a standard equipment provided on all Shubham Shears. Scale on the back guage gives instantaneous reading of distance between shear and back guage. Thus avoiding errors and maintenance encountered in electronic equipment. Finger Guard : Fitted in front of hold-down for operator protection without obstructing viewing. Features Foot Pedal. Fly Wheel & Gear Guard. Self Lubrication System Motor Pully A Pair of Four Edge Sher Blade Standard Front Guage Back Guage (Manual Operated) Options Motorised Back Guage. Automatic Lubrication System. Vee-Belts. Electric Motor & Starter / Control Panal Board. Squaring Guage System. Stroke Counter. Extension Squaring Arm. Hydraulic Holddown Pads (Cam-Pump). All Dimensions are in mm. Power Supply 400/440 volts, 3 Phase, 50 Cycle. As day to day improvements are contemplated for better performance of the machine. We reserve the rights to alter the specifications without prior notice. All the machines undergo a through check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation

• Machine( L x W x H ): 1170x915x1150

The spring loaded mechanical hold down pads hold the sheet securely, to avoid slipping and bowing resulting in clean square cuts. Hold down units are provided with oversize pads to avoid impressions on sheet metal on request.DRIVE : Motor, mounted on an adjustable platform, drives the large, cast iron fly wheel through v-belts. The power is Further transmitted to the fly wheel shaft through steel pinion and main gear box and than transmitted to main gear. Gun-Metal bushes are provided all the rotating parts .CLUTCH : Rollin key clutch is linked with the main gear and engages every time when the foot switch is pressed.BRAKE :Spring tensioned braked fitted at the end of the crank shift to damp inertia.

• Size: 1525 to 4000 mm
• Thickness: upto 4 mm (ms)

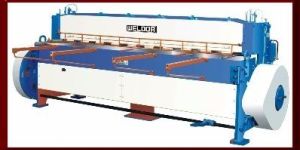

WELDOR Shearing Machines have been designed & developed through structural analysis technique of continuous production accuracy and repeatability.1. Frame: Rigid steel frame of Weldor Shears are optimally designed to avoid weak sections at load supports an is of interlocked design. The ram is guided throughout its length by accurate machined guideways ensuring proper clearance and clean cut.2. Hold-down system: Spring loaded mechanical Hold down pads hold the sheet securely, to avoid slipping and bowing resulting in clean square cuts. Hold down units are provided with oversize pads to avoid impressions on sheet metal on request.3. Knives: Weldor Shears are provided with high quality single segment (HcHcr) knives for longer tool life. ease in assembling of knife reduces down - time. the knife blades are four edged.4. Lubrication: All bearing parts and guide surfaces are lubricated through hand-operated lubrication system.

Frame : We have designed rigid steel frame of shears are to avoid weak sections at load supports and is of interlocked design. The ram is guided throughout its length by hardened and ground guide ways which ensures proper clearance and clean cut.Hold-Down System : To Secure and avoid slipping & bowing, spring loaded mechanical hold-down pads, which holds the sheets securely. result in clean square cut. Hold down units are provided with oversize pads avoids impression on sheet metal.Blades : Our shearing Machines are Equipped with Four Edge, single & segmentally High Carbon, Chromium Steel Blades suitable for M.S. &.S.S. Cutting and Extra long life. Lubrication : All bearing parts and guide surfaces are lubricated Through centralize hand-operated lubrication system.Mechanical Back Gauge : This is a standard equipment provided on all POWER Shears. Scale on the back gauge gives instantaneous reading of distance between shear and back gauge, thus avoiding errors and maintenance encountered in electronic equipment.Finger Guard : Fitted in front of hold-down for operator safety without obstructing viewing. Standard Equipment : Electrical System consisting of motor & Control Panel of Starter, Gear and wheel guard, V-Belts, Hand operated back gauge, Manual Lubrication System, T-slot front gauge, Front scale gauge, instruction ManualOptional Equipment : Hydraulic hold-down system, Automatic lubrication system, Ball roller or Ball Transfer, Foundation bolts, Extension squaring arm.Note : Electrical and Blades are not under Warranty.

Cutting Capacity 1270 x 2 mm Stroke per Minute 45 Table Height 800mm Table Width350 mm Front Gauge 750 mm Rear Gauge 500 mm Motor HP 2 HP

Under Crank Shearing Machine is suited for cutting to size general purpose unalloyed steel. Structural steel sheets up to 4mm thickness with high productivity. Each machine, designed to the most accurate of efficiency, offers outstanding operational performance dimensional accuracy telling on high output and dependability. Frame Construction:Guillotine shearing fabricated from Is-226 Grade. Rolled steel plates. Table cutting Beam are deeply reinforced and fines machine after stress reliving. The interlocked design put the direct support to frame. Thus frames are strain free and eliminate welds at load supports. Thus the accuracy of the machine is never disturbed. BED: Super strong bed of closed box type construction. Stress relieved in a furnace. Forms a rigid backbone for the shear and a solid backing for the lower knife. Dovetail slots in front of the bed are provided for front gauge. Slots on top of bed are also provided for machined pad across the bed for convenient setting of front gauge brackets at any desired spacing. Depressions in the top of the bed provide ample clearance for fingers in handling sheets narrower than the bed. Upper Beam: Ram is also of solid steel plate, carrying the upper Knife. Their minimum weights ensure lesser load on the bearings. The upper beam moves in flat heat treated steel guide plates to avoid deflection, for smooth running and maintain the accurate straightness of the upper knife. Hold-Down Mechanism: Solid clamping by powerful spring loaded hold down is one of the reasons for accuracy in our shears. Heavy uniform pressure is applied along the full length of the work piece, preventing slippage regardless of variations in thickness. Hold down pressure is easily adjustable for clamping soft material. Different thickness of material can be cut without further adjustment with consistently accurate and burr free results. Rolling Key Clutch: Made of alloy steel for positive engagement and continuous operation having three key ways. Single rolling key system rolling key system is incorporated in the machine ensuring easy and efficient working of the machine. Shear Knives: Knives are manufactured strictly as per standard material of HCHCr/OHNS. Every step from designing metallurgical specification, heat treatment, Grinding and inspection is carefully controlled. The blades are standardized and are easily replaced. Accurate Gauging: The rigid and accurate construction of the back gauge provided with the machine allows consistency in the width of sheets being cut. Lubrication: Single shot lubricator provides oil to all the lubrication points, where necessary. Drive: Drive is through V-Belts on flywheel and a reduction gears are made of steel, hob cut for smooth and longer life.

For the diverse requirements of our clients we are involved in offering a wide assortment of Shearing Machine. We offer them to our esteemed patrons after checking them on several parameters under the vigilance of our quality controllers. These products are widely used for cutting to size and cater diverse requirements of the clients.

• Weight: Approx Weight
• Brand Name: JCP
• Automatic Grade: Semi-Automatic, Manual
• Place of Origin: RAJKOT
• water green: off white
• Automation Grade: Manual
• Cutting Material: Iron
• Max Shear Thickness: 1-2 mm, 2-3 mm, 3-4 mm
• Max Shear Width: 0-500 mm, 2000-3000 mm, 500-1000 mm
• Strokes per min: >12

Mechanical Under Crank Shearing Machine fabricated from IS-2062 graded rolled steel plates table and cutting beam are deeply reinforced and fines machines after stress reliving. The interlocked design put the direct support to frame. This frame is strain free and eliminates welds at load supports. Thus the accuracy of the machine is never disturbed.Pneumatic Clutch With Photo Safety Curtains,Electrical Motor, Starter & V-Belt,Four Edge Interchangeable Shear Blade Operation & Maintenance Manual Book

• Packaging Details: Packed in Wooden Boxes after ensuring the weather proof primpary packing with the plastic.
• Supply Ability: 25 Piece/Pieces per Month
• Place of Origin: Gujarat, India
• Port: Mumbai, Mundra, Kandala
• Lead Time: 15 days after reciept of order

We offer Under Crank Shearing Machine. WELDOR Guillotine Shearing Machines have been designed & developed through structural analysis technique for continuous production, accuracy and repeatability. FRAME : Rigid steel frame of Weldor Shears are optimally designed to avoid weak sections at load supports and is of interlocked design. The ram is guided throughout its length by accurate machined guideways ensuring proper clearance and clean cut. HOLD - DOWN SYSTEM : Spring loaded mechanical Hold down pads hold the sheet securely, to avoid slipping and bowing resulting in clean square cuts. Holddown units are provided with oversize pads to avoid impressions on sheet metal on request. BLADES : Weldor Shears are provided with high quality single segment (HcHcr) Blades for longer tool life. Ease in assembling of knife reduces down - time. The shear blades are four edged. LUBRICATION : All bearing parts and guide surfaces are lubricated through hand-operated lubrication system.

SHAILESH shearing machines have been designed and developed through structural analysis technique for continuous production, accuracy and repeatability.Rigid steel frame of SHAILESH shears are optimally designed to avid weak sections at load supports and is of interlocked design. The ram is guided throughout its length by hardened and ground guide ways ensuring proper clearance and clean cut.

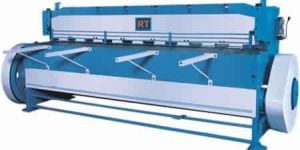

rt power press shearing machines have been designed and developed through structural analysis for continuous production, accuracy and repeatability. frame: rigid steel frame of shubham shears are optimally designed to avoid weak sections at load supports and is of interlocked design. The ram is guided throughout its length by accurate machined guide ways ensuring proper clearance and clean cut.     hold – down system: spring loaded mechanical hold down pads hold the sheet security, to avoid slipping and bowing resulting in clean square cuts. Hold down units are provided with oversize pads to avoid impressions on sheet metal on request.     knives: shubham shears are provided with high quality single segment (hchcr) knives for longer tool life. Ease in assembling of knife reduces down-time. The knife blades are four edged.     lubrication: all bearing parts and guide surfaces are lubricated through hand-operated lubrication system.     mechanical back guage: this is a standard equipment provided on all shubham shears. Scale on the back guage gives instantaneous reading of distance between shear and back guage. Thus avoiding errors and maintenance encountered in electronic equipment.     finger guard: fitted in front of hold-down for operator protection without obstructing viewing.
