Universal Milling Machine Dealers in Rajkot

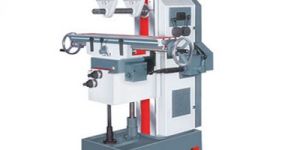

Universal Gear Head Milling Machine is used for the purpose of machining parts to accurate size and shape. We offer premium quality Universal Gear Head Milling Machine that is famous in the industry for its accuracy, strength and longevity. We are Rajkot; Gujarat based Manufacturer and Supplier of Universal Gear Head Milling Machine. Customers can purchase Universal Gear Head Milling Machine from our organization at reasonable rates.

• Country of Origin: India
• Type: Metal Milling
• Brand Name: TURBO
• Reverse Rotation: Yes
• Material: Cast Iron
• Warranty: 1 Year
• Certification: ISO 9001:2008 Certified
• Shape: Square
• Phase: Three Phase
• Machine Structure: Horizontal
• Color: Light Blue
• Driven Type: Electric
• Voltage: 220V
• Condition: New
• Operating Mode: Semi Automatic
• Power: 1-3kw
• Finishing: Polished
• Packaging Type: Carton Box
• Pressure: High Pressure
• Usage: Automotive Industry, Cutting Tools Industry, Steel Industry
• Specialities: High Performance
• Dimension (LxWxH): 1150X1520X1150
• Machine Weight: 100-1000kg
• Boring Range: NA
• Rated Current: NA
• Accuracy: 30
• Compressed Air Required: NA
• After-Sales Service Provided: YES
• Frequency: NA
• Thickness: NA
• Drilling Capacity: NA
• Spindle Speed: 3
• Spindle Torque: NA
• Name: MACPOWER INDUSTRIES
• Name: TURBO

• Finishing: Polished
• Machine Weight: 100-1000kg, 1000-2000kg
• Power: 1-3kw, 3-6kw, 6-9kw
• Packaging Type: Carton Box, Wooden Box, Metal Sheet Box
• Specialities: Rust Proof, Long Life, High Performance, Easy To Operate
• Dimension (LxWxH): 375x290x275mm, 480x350x295mm
• Certification: ISO 9001:2008 Certified

We provide our consumers universal milling machine that renders customer satisfaction along with its durability and high performance. The material used in their manufacturing is of high quality that helps them to work smoothly throughout their long life span. Featuresavailable with different shapes and sizes of cuttershigh efficiencysmooth working characteristicsused in various milling operationsdurablereasonable prices technical specifications modelno.2 (k-2h) milling machine without elect 1 feetableworking surface 1050*250 mmno. Of t. Slots & size3 & 16 mmdist. Bet. T-slots 63 mmtable swiveling side to side25 degreerangelongitudinal feed by hand250 mm 450 mmafter mounting vertical attachment, vertical move. 650 mm & 300 mmmax. Safe weight on table150 kg.spindlespindle arbour 25.4 mmno. Of spindle speeds 6range of spindle rpm65 to 635 rpmspindle nose taper iso-40size hole through spindle22 mm.dist. From base of over arm to spindle center140 mmspindle bearing front32214spindle bearing rear 32211feedno. Of feeds3cross feed mm./rev-vertical feed mm./ rev -longitudinal feed mm./ rev.23,46,79 mm./re.no.drivespindle motor 1440 rpm 1.5 kw., 2 hppump motor 1/10 hp.packing detailsfloor space 650*1020 mm.height1600 mmweight1250 kgs (approximately)

• Color: AD Grade Gray & Nikal Grade White
• Model Type: Universal Gear Head Milling Machine – MM 2
• Category: Workshop Machine
• Table Size: 1050X 250 mm
• Spindle Bore: ISO 40
• Electricals: 2 HP – 1440 RPM – 3 PHASE
• Weight: 1200 kg
•  :
•  :

UNIVERSAL GEAR HEAD MILLING MACHINE – DIE WORK – TEETH CUTTING – KEY WAY – SLOTTING – RACK CUTTING – MASS PRODUCTION – MODEL M2

• SPECIFICATIONS: Working Surface mm
• 1050 x 250: Number of T-Slots
• 3: Width of T-Slots
• 15 mm: Pitch of T-Slots
• 62 mm: Maximum Distance from Spindle Centre to Underside of Over Support
• 125 mm: MOVEMENTS
• Longitudinal Movement of the Table by Lever / Screw: 600 mm
• Cross Movement of the Table by Screw: 230 mm
• Vertical Movement of the Table by Screw: 450 mm
• MILLING SPINDLE: Spindle Bore
• 17 mm: Inside Taper
• ISO - 40: Arbor
• 25.4 mm: REVOLUTION OF MILLING SPINDLE
• Number of Spindle Speed: 6
• Range of Spindle Speed: 50, 85, 110, 240, 350,525 RPM
• Number of Feeds: 3 Feeds (0.9, 1.4, 2.25 Per Minute )
• ELECTRICAL: Main Drive Electric Motor
• 2 HP, 1440 RPM, 440 V. 3 Phase: Coolant Motor
• 0.11 KW, 2700 RPM: OTHER DIMENSIONS
• Floor Space: 550 x 925 mm
• Height: 1500 mm
• Coolant Tank Capacity: 20 Ltr.

SPECIFICATION:   Sunrise Industries has come out with horizontal and universal type milling machine for precise and quick production of small and large components.   The machine has Twelve spindles speeds and 12 feeds. The machine have automatic feeding arrangement in longitudinal. Table in both directions. The vertical and cross table movements are also automatic.   The machine is constructed with Grade 1 Casting, Spindles, Shafts, arbor, Screws, Gears and Spacers are made from Alloy Steel. Spindle Gear Box is oil bath lubricated.   Working Surface : 1200 × 300 mm Number of T-Slots : 3-16 mm Maximum Distance from Spindle Centre to Underside of Over Support : 125 mm   MOVEMENTS:   Longitudinal Movement of the Table by Lever / Screw : 650 mm Cross Movement of the Table by Screw : 250 mm Vertical Movement : 400 mm Longitudinal & Cross Feed : 16-400 mm/min Vertical Feed Swivel of Table : 45°   MILLING SPINDLE:   Spindle Bore Taper : ISO - 40 Arbor : 25.4 mm   REVOLUTION OF SPINDLE:   No. of Spindle Speed : 12 Range of Spindle Speed : 50-800 RPM Number of Feeds : 12   ELECTRICALS :   Main Drive Motor : 4 KW 1440 RPM Feed Motor : 0.75 KW
