Tinned copper clad aluminium is made by covering a coating of tin on the surface of copper clad aluminium wire, which is made up by using pure aluminium wire as core. It adopts the advanced coating and welding technology in the world. Plating copper concentrically on the concentric line of aluminium, realizes metallurgy combination between copper coating and aluminium. There will be no flaking off during the heat treatment or mechanical workout. The TCCA is a best new clad metal wire instead of pure copper wire.  Special tinned copper clad aluminum magnesium alloy. Contains 15% copper by volume.  Excellent solution when high tensile strength and low weight are needed More pliable than pure copper, without the insulating oxide and breakage susceptibility of pure aluminum The weight is approximately 0.4 than regular tinned copper braid  Very good resistance to corrosion, even in marine applications.  Moderate- to high-strength, non-heat-treatable alloy Favorable conductivity-to-weight ratio  Braided according to mil-spec AA-595/ QQB- 575 construction.  Tubular braid made with individual ends of wire conforms to the ASTM- B566-04a specification. Formed to maintain coverage of 90% shielding over the nominal diameters specified.  Supply also as multi ends wires on bobbins for braiding machine.  Tinned Copper Braid  in Completely Round Configuration as Shown in the table above.   Product Features: shiny & uniformity tin layer, excellent electrical conductivity, bear bending, good tensile strength, excellent welding and corrosion, with the great light specific gravity, and savings resources of copper. MAIN APPLICATION: Used As Both Shielding and Protective Covering.  Shielding is 95% Or More When Placed Over Equivalent Diameter Mandrel To The Inside Diameter of Tubular Braid. Flexible coaxial cable, a variety of audio and video cable, vehicle signal cable, network cable, data transmission cables and so on. Can be used in the above cables: Cable conductor, braiding and shielding, the single wire conductor and other conductors. APPLICATION FOR TUBULAR BRAID: Tubular braids are used for covering and shielding. They protect the cables and electrical conductors against interferences and to realise a safe data transfer. Cable Construction: Surface: Plain copper or Tinned. Technical Data Material: Annealed electrolytic grade copper wire. Wire Diameter – 0.16 to 0.3 mm. Packing: In rings or spools or wooden drums. Cable Design Parameters Kindly complete the part numbers by adding the suffix (in place of ‘c’) for the conductor type required: 0 = Plain/Bare Copper, 1 = Tinned Copper.

Material : Copper

Conductor Material : Tinned Copper Clad Aluminium

Shape : Round

Color : Silver

Application : Heating, Electric Conductor, Cable Wire

Wire Diameter : 0.16 To 0.3 Mm.

Country of Origin : India

Tin Coated Copper Wire Tin Coated Copper wire is made by going through 3 process. Ist process is this that the wire is drawn in a specific size with Electrolyte (C.C. Rod ) Copper and after doing the drawing process of the same then it goes to IInd process in which Annealing is done and after that the IIIrd process comes in which Tin Platting is being treated in this drawn Electrolyte Annealed Copper Wire which is done in 2 ways normally:- Hot Dip Process In this process the Tin is being melted in Electric Pot and the Electrolytic Copper Wire is made dip through this melted Tin which results in Tin Coated Copper wire Electroplating Process In this process the wire is gone through a Chemical Tray and with the help of rectifier and Electric Current to DC Current is passed which results in electroplating, this process is used for House Wiring, Control Panel Cable & Other Electric & Electronical Wire as well as Cable too. Tin Coated Copper wire is complex shape wire and cable. Tin coated copper wire in use as overhead power source for subways, light and heavy transit systems, electrically powered mine trains, buses, and industrial cranes. Tin coated copper wire likely also touches conduit, and other similar things etc. Tin Coated Copper wire is complex shape wire and cable. Tin coated copper wire in use as overhead power source for subways, light and heavy transit systems, electrically powered mine trains, buses, and industrial cranes. Tin coated copper wire likely also touches conduit, and other similar things etc. Tin is a chemical element with symbol Sn (for Latin: stannum) and atomic number 50. It is a main group metal in group 14 of the periodic table. Tin shows chemical similarity to both neighboring group-14 elements, germanium and lead and has two possible oxidation states, +2 and the slightly more stable +4. Tin is the 49th most abundant element and has, with 10 stable isotopes, the largest number of stable isotopes in the periodic table. Tin is obtained chiefly from the mineral cassiterite, where it occurs as tin dioxide, SnO2. This silvery, malleable post-transition metal is not easily oxidized in air and is used to coat other metals to prevent corrosion. The first alloy, used in large scale since 3000 BC, was bronze, an alloy of tin and copper. After 600 BC pure metallic tin was produced. Pewter, which is an alloy of 85–90% tin with the remainder commonly consisting of copper, antimony and lead, was used for flatware from the Bronze Age until the 20th century. In modern times tin is used in many alloys, most notably tin/lead soft solders, typically containing 60% or more of tin. Tin is a chemical element with symbol Sn (for Latin: stannum) and atomic number 50. It is a main group metal in group 14 of the periodic table. Tin shows chemical similarity to both neighboring group-14 elements, germanium and lead and has two possible oxidation states, +2 and the slightly more stable +4. Tin is the 49th most abundant element and has, with 10 stable isotopes, the largest number of stable isotopes in the periodic table. Tin is obtained chiefly from the mineral cassiterite, where it occurs as tin dioxide, SnO2. This silvery, malleable post-transition metal is not easily oxidized in air and is used to coat other metals to prevent corrosion. The first alloy, used in large scale since 3000 BC, was bronze, an alloy of tin and copper. After 600 BC pure metallic tin was produced. Pewter, which is an alloy of 85–90% tin with the remainder commonly consisting of copper, antimony and lead, was used for flatware from the Bronze Age until the 20th century. In modern times tin is used in many alloys, most notably tin/lead soft solders, typically containing 60% or more of tin. Tin Coated Copper Wire The popularity and use of copper wire in the electrical and Manufacturing industry is well known to all. Due to copper´s high electric conductivity and thermal conductivity, wires created from copper are widely used in various industries. Once the wires of various dimensions are drawn from copper, it may be further processed using tin, which creates tin coated copper wires. There are two ways to create tin copper wire –hot dipping and electroplating. In the first method called hot-dipping, strands of copper are dipped into hot tin, which produces the required tin copper wire. In the second method, rectifier and electrical charge are used to tin the copper wires. Advantages of Tin Copper Wire There are several inherent advantages of tin copper wire as compared to non-tinned copper wire such as longevity and anti-corrosion properties. It has been observed that tin copper wire lasts longer and produces amazing results even after years of deployment. On the other hand, non-tinned copper wires are not able to last as much longer. Additionally, tinned copper wire reflects anti-corrosion properties which make them effective in marine usage as well as in those areas which have high moisture and humidity. Lastly, tin copper wire has more electrical conductivity as compared to non-tinned copper wire. Such wires are extremely useful for industries such as electrical power industry, electrically powered trains, trams, trolleys, marine industry etc. Tin coated copper wires are also extensively used in industrial cranes and automobiles such as cars, buses and trucks.

Color : Copper Color

Type : Copper Coated Wires

Country of Origin : India

Corrosion Resistance : Yes

Diameter : 0.02 - 1 mm

Wire Gauge : 5-10

Material : Copper

SS Knitted Wire Mesh is made from single or double wire off stainless steel that has been woven to form a flexible wire mesh that contains interweaved knots or loops for a fine structure that is similar to stockings or sweater.  This particular interlocking of wires imparts a high tensile strength to the mesh and provides the required flexibility. The loops can move in a relative motion to each other without impairing the structure of mesh and giving it a two-way stretch. It can be used in a multitude of applications in several industries, majorly construction.  The stainless steel used for the fabrication of SS Knitted Wire Mesh imparts excellent corrosion resistance, alkali and acid resistance along with heat resistance. Main Features:   Flexible, Removable and Reusable metallic mesh Can withstand extreme temperatures or corrosive environments Serves as a filter for dust in heating and ventilation systems Long Service life and temperature resistant This type is custom manufactured with an austenitic 18/8 steel, which is stabilized by titanium and offers similar resistance to general corrosion as SS T-304.

Material : Stainless Steel

Color : Silver

Application : Agricultural, Domestic, Industrial

Grade : S.S.201, 202, 301, 302, 304, 316, 316L

Weave Style : Knitted

Wire Diameter : 0.10 mm- 0.50 mm

Type : Stainless Steel Wire Mesh

Country of Origin : India

Lightweight braided: A lightweight braided metallic shielding is applied to wiring harnesses to protect against lightning strikes and electromagnetic interference (EMI). The braided shielding has an open braid construction which may be as much as 40% lighter in weight and which provides better electromagnetic shielding than conventional braided shielding. The decrease in weight is achieved by utilizing a braid carrier application angle, as measured from the axis of the wire harness, which is as small as about eighteen degrees, so as to produce a braided shield that has as few as four picks per inch. The ensuing braided shield is very flexible and results in a degree of wire harness coverage which may be as low as about 60 %, but which exhibits low electrical resistance which contributes significantly to lightning protection and EMI shielding.   LIGHTWEIGHT BRAIDED SHIELDING FOR WIRING HARNESSES TECHNICAL FIELD This invention relates to braided shielding for a wire harness, which braided shielding is flexible and lightweight. More particularly this invention relates to a braided wire harness shield which has an open weave configuration and provides protection against electrical transients resulting from lightning strikes, and provides protection against electromagnetic interference (EMI). The braid exhibits lower (better) surface transfer impedance than conventional braided shielding for frequencies below 50 MHz. Surface transfer is an intrinsic parameter of a shield that corresponds directly to shielding effectiveness and lightning protection capability. Tubular braids construction and flat braids  constructions is as follows:

Material : Stainless Steel

Country of Origin : India

Is It Flexible : Yes

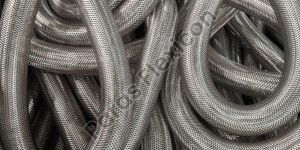

We are leading manufacturer, exporter and supplier of Composite and Stainless Steel Hollow braids. It manufactures all sizes of Spring hose Supports and all designs. The marketing team of hose Supports serves the demand from all over the world. Our Hollow assemblies offer end connections developed and manufactured in-house using the latest Computer Aided Design systems and most modern Knitted machine equipment available. Our range is procured from the certified dealers in the market who use the best quality materials for manufacturing our range. We manufacture these products under the own brand name PARAS WIRE PRIVATE LIMITED.   We are a leading entity, occupied in presenting a wide range of Stainless Steel Braided Hose . Braided hoses are more commonly used in high pressure applications, and spiral hoses are typically used in very and extremely high pressure and high impulse applications. The braid construction allows for more flexibility and a tighter minimum bend radius. There are five other benefits of using braided hoses.: 1.They’re More Flexible Than Other Hoses. 2. They’re More Durable. 3. They’re Available in a Wide Range of Sizes. 4. They Can Handle Higher Pressures. 5. They Have a Wide Variety of Uses.

Material : Stainless Steel

Finishing : Polished

Shape : Round

Color : Silver

Usage : Pipe Fitting

Standard Grade : SS321

Hose Length (mm) : 6 Mtr.

Hose Dimension (mm) : 5MM To 100MM

Country of Origin : India

We are leading manufacturer, exporter and supplier of Composite and Stainless Steel Hollow braids. It manufactures all sizes of Spring hose Supports and all designs. The marketing team of hose Supports serves the demand from all over the world. Our Hollow assemblies offer end connections developed and manufactured in-house using the latest Computer Aided Design systems and most modern Knitted machine equipment available. Our range is procured from the certified dealers in the market who use the best quality materials for manufacturing our range. We manufacture these products under the own brand name PARAS WIRE PRIVATE LIMITED.   We are a leading entity, occupied in presenting a wide range of Stainless Steel Braided Hose . Braided hoses are more commonly used in high pressure applications, and spiral hoses are typically used in very and extremely high pressure and high impulse applications. The braid construction allows for more flexibility and a tighter minimum bend radius. There are five other benefits of using braided hoses.: 1.They’re More Flexible Than Other Hoses. 2. They’re More Durable. 3. They’re Available in a Wide Range of Sizes. 4. They Can Handle Higher Pressures. 5. They Have a Wide Variety of Uses.

Material : Stainless Steel

Shape : Round

Color : Silver

Usage : Pipe Fitting

Standard Grade : SS316

Hose Length (mm) : 6 Mtr.

Hose Dimension (mm) : 5MM To 100MM

Country of Origin : India

We are leading manufacturer, exporter and supplier of Composite and Stainless Steel Hollow braids. It manufactures all sizes of Spring hose Supports and all designs. The marketing team of hose Supports serves the demand from all over the world. Our Hollow assemblies offer end connections developed and manufactured in-house using the latest Computer Aided Design systems and most modern Knitted machine equipment available. Our range is procured from the certified dealers in the market who use the best quality materials for manufacturing our range. We manufacture these products under the own brand name PARAS WIRE PRIVATE LIMITED.   We are a leading entity, occupied in presenting a wide range of Stainless Steel Braided Hose . Braided hoses are more commonly used in high pressure applications, and spiral hoses are typically used in very and extremely high pressure and high impulse applications. The braid construction allows for more flexibility and a tighter minimum bend radius. There are five other benefits of using braided hoses.: 1.They’re More Flexible Than Other Hoses. 2. They’re More Durable. 3. They’re Available in a Wide Range of Sizes. 4. They Can Handle Higher Pressures.   5. They Have a Wide Variety of Uses.

Material : Stainless Steel

Shape : Round

Color : Silver

Usage : Pipe Fitting

Standard Grade : SS304

Hose Length (mm) : 6 Mtr.

Hose Dimension (mm) : 5MM To 100MM

Country of Origin : India

Corrosion Resistance : Yes

Silver Plated Copper Wires are composed by providing concentric silver plating over bare copper conductor. This material enhances the conductivity of copper with the bright & shiny surface of the silver. In addition, the silver coating also show excellent corrosion resistance characteristics. Silver has the highest electrical and thermal conductivity of all metals as well as the highest optical reflectivity. Silver-plated wire offers excellent high-temperature lubricity making it a preferred coating for high friction applications on surfaces exposed to temperatures up to 650◦C. From the above excellent characteristics, this conductor is a favorable choice for wires used in nuclear, aerospace, defense, military, and many more Industrial applications. MATPLAT manufactures silver-plated copper wires complying international standard ASTM B298 & also customized wires are available on special request.

Conductor Material : Copper

Packaging Type : Rolls And Bundles

Country of Origin : India

Brand Name : Raychem

Color : Standard

Type : Heat Shrink Sleeve

Material : Copper

Conductor Material : Copper

Surface Finishing : Polished

Shape : Round

Color : Grey

Packaging Type : Roll

Technique : Welded Mesh

Conductor Type : Solid

Country of Origin : India

Material : PE and PP

Application : Agricultural, Domestic, Industrial

Mesh Size : 2*4mm, 4*5mm, 12*6mm

Weave Style : Knitted

Wire Diameter : 0.12 - 0.5mm

Type : Plastic Wire Mesh

Country of Origin : India

Nickel Plated Copper Wires are composed by providing concentric nickel plating over bare copper conductor. This material enhances the thermal & heat-resisting properties of copper with the bright & shiny surface of the nickel. In addition, the nickel coating also shows excellent corrosion resistance characteristics. Magnetic nickel plating over copper reduces high-frequency loss in HF application. MATPLAT does not use any brighteners (organic or metallic) to ensure the highest purity deposit available. From the above excellent characteristics this conductor is a favorable choice for wires used in high-temperature wires & cables. We are manufacturing Nickel-plated copper wires with complying international standard ASTM B355 & also, customized wires are available on special request.

Material : ETP Grade Copper, Vale Inco Nickel

Conductor Type : Stranded

Wire Gauge : 5-10

Application : Electrical Appliance

Feature : Excellent Corrosive Resistance,Superb Thermal Resistance,Shiny & Bright Surface

Material : Monel

Application : Agricultural, Domestic, Industrial

Weave Style : Knitted

Wire Diameter : 0.12 - 0.5mm

Type : Monel Wire Mesh

Country of Origin : India

Material : Iron, Stainless Steel

Application : Construction Wire Mesh

Technique : Welded Mesh

Weave Style : Welded

Type : Knitted Wire Mesh

Country of Origin : India

Material : Inconel

Color : Silver

Application : Agricultural, Domestic, Industrial

Length : 10- 200 meter

Pattern : Knitted

Width : 100mm, 150mm, 300mm, 400mm, 500mm, 520mm, 560mm

Country of Origin : India

SPECIFICATION FOR FLAT BRAID: Known for its durability, copper braid is used for the strongest possible electric connection. Supplied as a flat tinned copper braid, and available in various lengths by the meter, this copper wire is an excellent choice in many situations. All models are highly reliable and excellent quality. • Fully annealed tinned copper wire • For use in normal ambient conditions • Meets BS 4109, British specification for copper for electrical purposes APPLICATION FOR FLAT BRAID: Primarily, the use of a braided cable is an earthing strap for both safety and the elimination of static. Two of the biggest issues in electronics. If a sturdy and flexible braided wire is then these Marsen Energy versions will guarantee performance. Copper is the obvious choice of material for cables and wires due to the famously conductive properties it has. Speaker cables, circuit boards and various types of advanced wiring all use copper wire as their connection. With the added excellent flexibility provided by a braided cable, all applications can expect a smooth and consistent performance for the connected electronics

Material : Copper

Packaging Type : Roll

Country of Origin : India

Material : Copper

Wire Diameter : 0.51 mm to 3 mm

Material : Copper

Color : Brown

Application : Agricultural,Domestic,Industrial

Mesh Size : 2*4mm, 4*5mm, 12*6mm

Wire Diameter : 0.12 - 0.5mm

Type : Copper Wire Mesh

Country of Origin : India

Material : Brass

Application : Agricultural,Domestic,Industrial

Wire Diameter : 0.10 Mm- 0.50 Mm

Type : Brass Wire Mesh

Country of Origin : India

  Classifications Cables with twisted pairs or quads with means for reducing effects of electromagnetic or electrostatic disturbances, e.g. screens Cable with a flexible connection The utility model discloses a cable, it includes a pair of heart yearn, the cladding is a pair of simultaneously the extrusion fashioned insulating layer outside the heart yearn, the cladding the shielding layer and the cladding of insulating layer the outer quilt of shielding layer, it is a pair. Double-deck aluminium foil high-speed signal line in band Similar The utility model discloses a belting double-layer aluminum foil high-speed signal wire which comprises core wires, anti-interference layers, ground wires, shielding layers and Mylar layers which are sequentially distributed from inside to outside, wherein each core wire comprises a conductor . Multi-pair data cable with configurable core filling and pair separation An improved twisted pair telecommunications cable according to the invention includes a plurality of twisted pairs of insulated conductors, and a substantially flat configurable pair separator disposed between the plurality of twisted pairs of insulated conductors along a longitudinal length of  Data cable with cross-twist cabled core profile Cables including a plurality of twisted pairs of insulated conductors and a jacket surrounding the plurality of twisted pairs of insulated conductors, the jacket including a plurality of protrusions extending away from an inner circumferential surface of the jacket toward a center of the cable.   Cable barrier layer with shielding segments A cable that has a cable core that includes at least one conductor that is surrounded by insulation. A barrier layer substantially surrounds the conductor's insulation. The barrier layer may include a plurality of shielding segments. Each of the shielding segments extends substantially around. Eight-type wire and production process thereof The invention discloses an eight-type wire, which comprises four groups of twisted-pair wire pairs, a linear bracket, a tinned copper wire shielding layer and a sheath; a linear bracket is arranged between the four groups of twisted-pair wire pairs; two groups of twisted-pair line pairs are . Discontinuous cable shield system and method Implementations of a discontinuous cable shield system and method include a shield having a multitude of separated shield segments dispersed along a length of a cable. The separated shield segments can serve as an incomplete, patch-worked, discontinuous, ‘granulated’ or otherwise perforated shield . 2-core shielded cable and wire harness A 2-core shielded cable and a wire harness is provided. The 2-core shielded cable is equipped with two insulated electric wires, a metal film which is provided along a length of the electric wire so as to cover the two electric wires, and a sheath which is formed around the metal film in a filled . Shielding elements for use in communication cables Cables incorporating discontinuous shielding elements are described. A cable may include at least one twisted pair of individually insulated conductors, and a shield element may be positioned adjacent to the at least one twisted pair. The shield element may include a plurality of segments. Shielded pair cable and a method for producing such a cable The present invention concerns a cable for signal transmission and a method for producing such a cable. The cable comprises one or more wire pairs extending in a longitudinal direction, each of said wire pairs including two conductors each separately surrounded by a dielectric layer. At least one.   LIGHTWEIGHT BRAIDED SHIELDING FOR WIRING HARNESSES TECHNICAL FIELD This invention relates to braided shielding for a wire harness, which braided shielding is flexible and lightweight. More particularly this invention relates to a braided wire harness shield which has an open weave configuration and provides protection against electrical transients resulting from lightning strikes, and provides protection against electromagnetic interference (EMI). The braid exhibits lower (better) surface transfer impedance than conventional braided shielding for frequencies below 50 MHz. Surface transfer is an intrinsic parameter of a shield that corresponds directly to shielding effectiveness and lightning protection capability. BACKGROUND ART Wire harnesses which are used in aircraft, ships and in-ground installations are typically encased in a protective shield which is formed from multi-strand carriers which are braided onto the wire harness. The purpose of the shield is to protect the wire harness against lightning strikes and EMI. The conventional approach to providing the aforesaid protection has been to provide maximum area coverage for the wire harness with the braid, typically 85 to 95%. This approach has been taken in part because of the perceived need to provide high frequency (above 50 MHz) EMI shielding for the wire harness. The resultant braid has been conventionally formed with a relatively large angle of strand carrier application onto the wire harness, i.e., typically about 60 degrees. The weight of the shielding is a significant factor in the overall weight of the wiring components in a facility which requires such shielding. The use of the wire harness braided shielding has increased in recent years due primarily to two considerations, which are: 1) the use of electronic systems to replace mechanical devices, especially in aircraft flight controls; and 2) the use of composite materials which utilize graphite to replace metal structures in aircraft and other craft We have determined that electronic equipment can be protected against high- frequency EMI by filtering the input and output wiring using light weight components, such as pin-filter connectors, and that such filtering is sufficient to protect against frequencies greater than 50 MHz in most applications. Thus, a braided shield providing high frequency protection is unnecessary, and may only add weight and stiffness to the wiring assembly. These weight and stiffness characteristics are not desirable, especially in aircraft applications. Wire shielding is required to provide low frequency shielding for lightning protection and to preclude interference due to low frequency external electromagnetic fields. The lightning requirement stems from large transient voltages that result when lightning current flows in a resistive structure. The external field requirement arises from the fact that filter components for low frequencies are physically large and therefore impractical for applications where weight is critical, and furthermore, that such filters may interfere with proper functioning of the equipment. Therefore, wire harness shielding is needed to prevent interference from low-frequency sources. It would be desirable to provide a wire harness shielding braid which is both flexible and light-weight, and yet provides the necessary shielding protection. DISCLOSURE OF THE INVENTION This invention relates to a braided electrical shielding for an electrical wire harness, which braided shielding consists of an open braid that provides coverage for less than the entire outer surface of the wire harness, and therefore produces a lighter and more flexible braided shielding. A primary application of this invention is in lightweight lightning protection of electronic equipment installed in moderately conductive structures, such as a graphite aircraft fuselage. The invention can also be used in conjunction with non-aircraft applications which require electromagnetic protection of electronic equipment, whether installed on metallic or non-metallic structures. The percentage of wire harness coverage provided by the shielding of this invention can be as low as about 60%, and can go as high as about 70% without unduly sacrificing the desired reduction in weight and flexibility. In order to obtain the desired flexibility and weight reduction, the carrier strands of the braid are laid onto the wire harness at a relatively flat angle in the range of about eighteen degrees to about twenty four degrees, and preferably about twenty degrees, relative to the axis of the harness. The aforesaid flat braid carrier angle results in a braid which has between three and eight picks per inch, with a typical number or picks per inch being four. Present day government specs, as defined in MIL-C-27500, call for a minimum of 85% coverage of the wiring harness by the braid, and call for a braid angle in the range of eighteen to forty degrees. In practice, one cannot achieve a minimum coverage of 85% with a carrier angle in the lower end of the aforesaid range, therefore, the braid carriers are laid onto the wiring harness at angles which are at the higher end of the aforesaid range and even above the forty degree angle, up to about sixty degrees. The resultant braid will typically have about eighteen picks per inch, and is quite stiff and heavy, and does not improve low frequency performance. An unexpected result of using the open braid shielding of this invention is that shielding formed in accordance with this invention, as compared with the more dense shielding of the prior art, provides improved transfer impedance, which improvement is a function of the DC resistance of the braid. DC resistance is essentially the parallel combination of all strands in the braid. The lowest resistance is achieved by a maximum number of strands in the shielding, and equally important, minimal strand length in the braid. Minimal strand length can only be obtained by decreasing the angle of laying the braid on the harness. The ability to maintain a braid application angle that will ensure securement of the braid on the wire harness, and which also minimize strand length, so as to decrease shielding weight, is an important advantage to this invention. The necessity of achieving minimal practical coverage while meeting performance requirements in the low frequency range of DC to 50 MHz, without sacrificing adhesion of the shielding to the harness, is accomplished by utilizing a braid which has from three to eight picks per inch (a standard shield braid has eighteen picks per inch). Utilizing a braid with less than about three picks per inch results in negligible weight savings, and therefore is not seen to be particularly desirable, since a main advantage of the invention is to obtain a lessening of wire harness weight. The light weight braid of this invention does not display degraded performance at higher frequencies. The surface transfer impedance for the lightweight braid of this invention is surprisingly better than the standard heavier braid for frequencies below 50 MHz. The lightweight braid of this invention will reduce lightning-induced voltage transients by at least 25% under all conditions of use. It is therefore an object of this invention to provide an improved wire harness shielding which is lighter in weight than conventional shielding. It is another object of this invention to provide a wire harness shielding of the character described which utilizes an open braid which covers less than the entire outer surface of the wire harness. These and other objects and advantages of the invention will become more readily apparent from the following detailed description of several embodiments of the invention when taken in conjunction with the accompanying drawings in which: BRIEF DESCRIPTION OF THE DRAWINGS FIG. 1 is a plan view of a closed braid wire harness shield formed in accordance with the prior art; and FIG. 2 is a view similar to FIG. 1 but showing an open braid wire harness shield formed in accordance with this invention. DETAILED DESCRIPTION OF SPECIFIC EMBODIMENTS OF THE INVENTION Referring now to FIG. 1 , there is shown a portion of a braided shield 2 for a wire harness that is formed in accordance with the prior art. The braid employs six stranded carriers 4 that are braided onto the wire harness at an included angle d of sixty degrees. The resultant braided shield has eighteen picks per inch and covers essentially the entire outer surface of the underlying wire harness, i.e., typically about 95%. This braided wire harness is heavy, and weighs about 0.048 lb/ft when 0.0063 inch diameter carrier strands are used on a one-half inch diameter wire harness. The large angle of the braid also results in a very stiff wire harness which is difficult to manipulate and fit into tight locations, which will be found in aircraft such as helicopters and the like. The stiffness also results in problems covering wire harnesses which have different diameter portions. FIG. 2 shows a portion of a braided shield 6 which has been formed in accordance with this invention. The braid 6 employs six stranded carriers 8 which are braided onto the wire harness at an included angle β of twenty two degrees. The resultant braided shield has eight picks per inch, and includes a regular pattern of openings 10. The braided shielding 6 covers about 65% of the wire harness, and when 0.0063 inch diameter carrier strands are used, weighs about 0.025 lb/ft when braided onto a one-half inch diameter wire harness. The shielded wire harness is quite flexible and is relatively easy to manipulate into place. A weight saving of more than about 40%, as compared to the prior art braided shielding, is achieved. It will be readily appreciated that the braiding of this invention will provide substantial weight savings, and will provide the necessary lightning strike and EMI shielding for wire harnesses on which it is braided. The flexibility of the braided wire harness aids in properly placing it in tight locations which are typically found on aircraft and in other applications. Since many changes and variations of the disclosed embodiment of the invention may be made without departing from the inventive concept, it is not intended to limit the invention otherwise than as required by the appended claims.

Material : Tin-plated Copper Wire

Country of Origin : India

 NYLON BRAIDS: Nylon braided sleeve is a protective and flexible tubing made from high-quality polyester fibres.  It is designed to provide insulation, organization, and shielding for cables and wires in various applications.  The sleeve is constructed by tightly braiding polyester fibres together, creating a durable and expandable structure.  Polyester braided sleeves offer several key advantages. They provide excellent abrasion resistance, protecting cables from friction and wear during installation and use.  The sleeves also offer resistance to chemicals, oils, UV radiation, and other environmental factors, ensuring long-lasting performance in challenging conditions. Polyester braided sleeves find applications in a wide range of industries, including electronics, telecommunications, automotive, aerospace, and industrial machinery. They are used for cable management, wire harnessing, cable protection, electrical insulation, and more.

Color : Black

Packaging Type : Roll

Country of Origin : India

Material : Nylon

Color : Black

PRODUCT DESCRIPTION: We have gained recognition as an eminent enterprise, devotedly engaged in providing High Temperature Braided Hose Pipe, which is available with us in several sizes and designs. PRODUCT APPLICATION: For Handling Chemicals Acids Heat Transmission Fertilizers Oil Refining Petrochemicals Lubrication Oil Gas Food Processing Boilers Heat Exchangers conductors For Molten Steel   ADVANTAGES/ FEATURES: Temperature range- -2700C to 6000C Compensate for thermal expansion High physical strength Fire resistant Moisture resistant Longer life Resistant to abrasion, penetration and damage Flexible option for rigid piping. S.S. 316 corrugated hose have a specific application i.e. in case of high concentrated corrosive acid like sulfuric acid with oleum base. S.S. 321 inner corrugated hoses have a specific application i.e. in case of food, and light beverage and edible oils.

Shape : Round

Usage : Industrial Use

Packaging Type : Roll

Country of Origin : India

Color : Black
