Instrumentation Panel
Get Price Quote
We are engaged in the manufacturing and supplying of Instrumentation Panels for operation of Instruments like Temperature, Level, Flow, Pressure application and so on. The range of Instrumentation Panels consists of temperature application controlled feature using PID, Thyristor, SSR. The Instrumentation Panel comes with necessary wiring and Process Indicators like pH, ORP, Pressure, Temperature, Flow, etc. Our Instrumentation Panel is available at affordable price in the market. Highlights : Temperature control featureComes with suitable wiringReasonable priceHigh quality raw material
0.0
Website

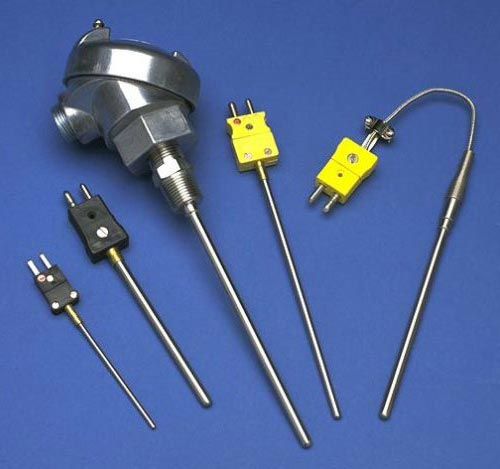

Temperature Sensors
Get Price Quote
We deal in wide range of Temperature Sensors. Right from RTD Sensors and Flexible Thermocouple Wire Sensors, we make available all types of Temperature Sensors. We have updated fabrication facility to come up with Temperature Sensors in different technical specifications. All the accessories are specifically tested for resistance to corrosion, moisture and likewise climatic conditions. Also, they comply with ANSI standards. We believe in offering the best value for money and this makes us a sought-after name as Temperature Sensors Manufacturer, Exporter and Supplier from Haryana. What are the different thermocouple types?A thermocouple is available in different combinations of metals. The four most common calibrations are J, K, T and E. There are high temperature calibrations R, S, and B. Each calibration has a different temperature range and environment, although the maximum temperature varies with the diameter of the wire used in the thermocouple. Although the thermocouple calibration dictates the temperature range, the maximum range is also limited by the diameter of the thermocouple wire. That is, a very thin thermocouple may not reach the full temperature range. How to select a thermocouple type? Because a thermocouple measures in wide temperature ranges and can be relatively rugged, thermocouples are very often used in industry. The following criteria are used in selecting a thermocouple : Temperature range Chemical resistance of the thermocouple or sheath material Installation requirements (may need to be compatible with existing equipment; existing holes may determine probe diameter) How to select a junction type? Sheathed thermocouple probes are available with one of three junction types; grounded, ungrounded or exposed. At the tip of a grounded junction probe, the thermocouple wires are physically attached to the inside of the probe wall. This results in good heat transfer from the outside, through the probe wall to the thermocouple junction. In an ungrounded probe, the thermocouple junction is detached from the probe wall. Response time is slower than the grounded style, but the ungrounded offers electrical isolation. Thermocouple in the exposed junction style protrudes out of the tip of the sheath and is exposed to the surrounding environment. This type offers the best response time, but is limited in use to dry, non-corrosive and non-pressurized applications. Types : A grounded junction is recommended for the measurement of static or flowing corrosive gas and liquid temperatures and for high-pressure applications. The junction of a grounded thermocouple is welded to the protective sheath, giving faster response than the ungrounded junction type. An ungrounded junction is recommended for measurements in corrosive environments where it is desirable to have the thermocouple electronically isolated from and shielded by the sheath. The welded wire thermocouple is physically insulated from the thermocouple sheath by MgO powder (soft). An exposed junction is recommended for the measurement of static or flowing non-corrosive gas temperatures where fast response time is required. The junction extends beyond the protective metallic sheath to give accurate fast response. The sheath insulation is sealed where the junction extends to prevent penetration of moisture or gas which could cause errors. Factors to Consider : Choosing the correct thermocouple requires that you look at a number of factors. For example, a thermocouple, which is used only periodically, may be less expensive, but it may have a shorter life span and require servicing more often. If the thermocouple is intended to be used for long periods without service, it may be necessary to use a thicker gauge of wire and it may be necessary to use a design engineered for a greater degree of protection. Below are some general guidelines to consider when choosing a thermocouple. If you need more help making a decision our knowledgeable sales staff is available to recommend a design which will best suit your application. What are the maximum and minimum temperatures the thermocouple will see? What error tolerances are necessary for your application? What is the Measuring atmosphere?(Corrosive/abrasive/vibrating etc) What is the time response required? Will the thermocouple be used continuously or periodically? Will the thermocouple see bending or flexing during it's life? What is the immersion depth? General Guidelines : Do not allow excessive bending of the thermocouples. Cold working can lower the insulation resistance at certain points causing short circuits or decreased accuracy. Use protection tubes for corrosive atmospheres Always inspect protection tubes when changing thermocouples. Things to look for include cracks, pinholes, contamination, or discoloration. Do not locate the thermocouple too close to a heating element Record the life span and cause of failure for each thermocouple to help track down potential problems. Never apply stress to platinum elements, they are fragile and will break easily at high temperatures.
Best Deals from Instrumentation Equipment

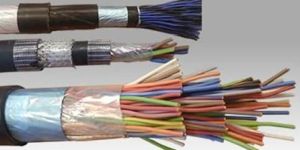

Instrumentation Cable
Get Price Quote
instrumentation cables are used in normal or hazardous areas. These come with or without flame retardant properties and are suitable in process control, a/d converters and other modern microprocessor based instrumentation circuits. These cables are designed to offer excellent resistance to noise and induction phenomena encountered in instrumentation circuits. Voltage grade 650/1100 volts (uo/u). Conforming to standard specifications like: is 5608,i,ii,iii, bs 5308 pt-1, bs 1584 pt1,2,3, iec 189-5 pt-3, bs 6360, bs 5099pt-2. configuration:- multi-core / multi-pair / multi-quad laid up concentrically or in units. conductor:- solid / stranded, tinned / bare / silver-plated annealed high conductivity ec grade copper, sizes ranging from 0.5 sq. Mm to2.5 sq. Mm. insulation:- pvc/ solid pe/ special thermoplastic materials, heat resistant pvc-85ºc/105ºc operation. Halogen free polymeric or elastomeric insulation can be provided. Core identification by color-coding or printed numeral/letter. core-wrap:- one or more plastic tape. screen:- cores/pairs/quads can be individually or overall screened or both. Screening by cu/al-mylar tape or copper braid or aluminum wire for reinforced armour types. drain wire:- drain -wire of solid/stranded, bare/tinned copper wire normally provided with both individual and overall screen. mechanical protection:- cables can be armoured with galvanized steel wires & strips or double helical steel tape. inner and outer sheath:- pvc black/grey.hr/frls pvc sheathing or halogen free polymeric/elastomeric sheathing also available. additional feature:- communication pair bicolour extrusion, band marking can be provided on request.designed to combat all the basic type of noise which affects process instrument signals viz. Static, magnetic, man made and cross-talk. reference specification for testing is:10810, astmd2863, astmd2843, iec-754(1), vde 0815, vde 0207(pt5), iee383, ss-424-14-75(f3), vde0207 (pt 4), vde0472, ieee transit no.467 and as per customerspecification requirement.
SOLAR PANELS
Get Price Quote
Jakson manufactures highly reliable & efficient solar PV modules based on polycrystalline silicon technology ranging from 10Wp-325Wp in power output for use in on-grid & off-grid solar power plants, commercial rooftop and land based solar power projects. Our PV modules are manufactured using automated production lines procured from Europe and installed at our manufacturing plant in Greater Noida, India. Jakson solar modules are sealed, weatherproof and highly durable with the ability to withstand high levels of ultraviolet radiations & moisture.Our manufacturing plant in Noida, Uttar Pradesh is spread over 2 lakh square feet and manufactures a wide range of solar modules, components and solar products. The plant was commissioned in 2016 with a total annual capacity of 70 MW. The plant is capable of producing both mono and polycrystalline modules from 10Wp – 325Wp capacity. We also have the capability of producing Mono Perc and Dual Glass Solar Modules in Noida solar module manufacturing plant. The plant is fully automated to ensure best quality. The plant is ISO 9000, ISO 14000 and OHSAS 18000 certified. Jakson plans to scale its solar module manufacturing capacity to 1 GW by 2020 and also intends to get into the manufacturing of solar cells with initial capacity of 250 MW. Jakson is recognized as one amongst the leading solar module manufacturers in India
0.0
View Profile
rtd cable
30 Per Meter
0.0
View Profile
Control Panel
7,500 - 8,000 Per Piece
0.0
View Profile
Temperature Transmitters
Get Price Quote
0.0
View Profile
rtd cable
Get Price Quote
rtd cable, Compensating Cable, heat proof cables, teflon ptfe cables
0.0
View Profile
Automation Components
Get Price Quote
Automation Components, fabrication component
0.0
View Profile
Cables for Control, Signals, and Instrumentation
Get Price Quote
Cross-linked polyethylene such as flame-retardant vinyl (PVC), which is heat-resistant up to 90℃, ensures excellent heat proofing since it is made of efficient insulation materials. These cables have a shielding feature appropriate for devices that require precision, are flame-retardant, and are environmentally friendly. What are Cables for Control, Signals, and Instrumentation? Cables are wrapped with insulation materials such as vinyl (PVC) or cross-linked polyethylene over conductors. These cables are used for signals and instrumentation that are supplied to control circuits of less than 0.6/1 kV as well as to precision devices. Uses Cables for Control Used for power supplied to the inside of buildings for housing and commercial use and to the circuits of industry control facilities Cables for Signals and Instrumentation Used to transmit control signals between devices of industrial and security facilities and inside public and private buildings as well as to prevent external noise and interference between cores. Characteristics Ensures excellent performance through self-development and reliable processing of cable materials based on the best technical competency and R D. These cables have the optimal exterior finish appropriate for the application. Prevents interference between cores, and shields external noise well. These features are required for precise, high-end control and signaling devices. Main Features Regular: Used for distribution circuits for industry and for the interior wiring of public and private buildings. Flame-retardant: Used for preventing secondary fires (F-series) Heat-proof: Used for firefighting (F-FR-3) Low Toxicity, Lead Free: Environmentally friendly products whose materials are not harmful to the environment and that prevent the occurrence of toxic gas and noxious smoke in case of fire (ZeLos) Shielding: Used to prevent interference between cores and to shield external noise (-I/CAMS) For External Use: Metal exterior for preventing insulating cores
0.0
View Profile
rtd cable
Get Price Quote
rtd cable, Thermocouple Sensors, Thermocouple Cables
0.0
View Profile
automotive steering components
Get Price Quote
automotive steering components, Steering Ball Joints, pitman arms
0.0
View Profile
automotive blow molding components
Get Price Quote
automotive blow molding components, pallet energy absorbing pad
0.0
View Profile
Tata power solar panels
Get Price Quote
Tata power solar panels, supply tata solar panels
0.0
View Profile
Motorcycle Kick Starter
Get Price Quote
Motorcycle Kick Starter, Dirt Bike, Fire Pipe Line Fittings
Automotive Components
Get Price Quote
Automotive Components, Cutting Tools, hand tools, Industrial Components
0.0
View Profile
Capacitor Panels
Get Price Quote
Capacitor Panels, power logic series control panels, Distribution Boards
0.0
View Profile
Mcc Panel
Get Price Quote
Mcc Panel, Industrial Automation Systems, Capacitor, Electrical Panel
0.0
View Profile
Electrical Cables
Get Price Quote
Electrical Cables, Nut Fastener, Electric Switches, Electric Cables, Bolts
0.0
View Profile
MCCB
Get Price Quote
MCCB, Flow Meter, Vacuum Pump, sensor, RCCB, relay contractor, Cables
0.0
View Profile
