• Payload Height: Unlimited
• Insert Pattern: 100 x 100 mm Matrix
• Shock Rate: 1-8 shocks/min
• Max Deviation of specimen from table centre: 30 mm
• Utilities required: Plant air or bottled Nitrogen 6-8 bar 410V, 3 -phase 50 Hz

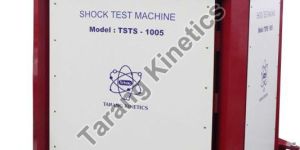

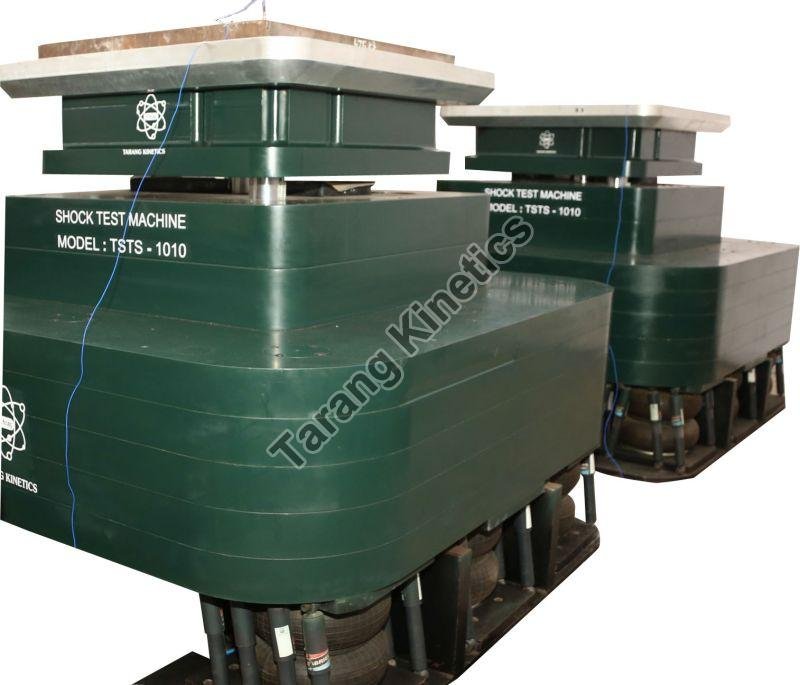

The machine is fabricated with Mild steel of a very robust design to provide necessary mechanical strength and rigidness. The machine produces the shock pulses using compressed air to force the platform to impact on the elastomer pads (Half-Sine Programmer Pads)which are placed between the platform and anvil of the impact area to produce half-sine pulses, Lead pellets are placed to generate sawtooth pulses and pneumatic cylinders are used to generate square pulses. The drop height and the air pressure are responsible to generate the desired acceleration.Shock Test Machine is a versatile test equipment to carry out shock tests in accordance with various National & International standards e.g. IS, MIL, EN, ISO, IEC, DEF & ASTM Standards.The lifting of the platform is done by pneumatic cylinders, the drop height is determined by the desired acceleration level. In a shock test due to the rebounce action secondary shocks may occur, which are totally unacceptable by most of the test standards. Fail safe brakes are used as a rebounce brake and as a quick release device to avoid secondary and tertiary shocks. The shock test machine is isolated from the ground by heavy duty shockers and shock absorbers. The Shock test machine is supported by a PC based intelligent Instrumentation system to control, monitor and analyse acquired shock test waveforms. The system has 4 channels to monitor the shock pulses generated which are expandable upto 16 channels. Advantages for you     Customizable Reliable Solutions:Key features    Heavy duty structure Adjustable drop height Standard 4-channel signal conditioner upgradable to 16-channel Adjustable Acceleration and pulse duration Use of Shock Amplifier can be made to increase the change in velocity & acceleration upto 30,000 'g' Capable to perform tests in accordance with various standards eg. IS, MIL, DIN, ISO, EN, IEC, DEF, JS55555 & ASTM etc. Efficient performance:Key features         Pneumatic operation with low maintenance requirement Fail safe brakes for no Secondary or Tertiary Shocks Shock Response Spectrum Analysis Shock tests in accordance with various international standards Shock Response Spectrum Analysis Shock tests in accordance with various international standards Highly accurate repeatability Ground is isolated from bumps generated User Friendly:Key features         PC based control, monitoring and waveform analysis Various safety interlocks for safe operation Report generation feature PC Based Instrumentation SystemShock-Test-Machine-control Tarang PC based instrumentation system provides an easy control, monitoring and waveform analysis to be done. The control of the machine is very user friendly and incorporates various safety interlocks for safe operation of the machine. The test report of any test performed can be viewed and printed easily. The Shock Analysis software is specially designed for the analysis of waveforms generated. Shock Response Spectrum Analysis can also be done with this software.
