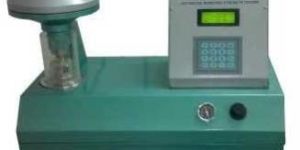

Digital Bursting Strength Tester
Get Price Quote
Bursting strength tester is a most important product use in paper and board mills for show bf (paper strength), we use high quality pressure gauge and high quality electric motor, we are manufacturere so we give very competeive price, we provide calibrated aluminum foil and diaghpram. We assure we manufacturing all types of bursting tester use in pharma industry, paper industry, and fabric industry.
Digital Bursting Strength Tester
78,500 - 86,500 Per Piece
1 Piece (MOQ)
We offer bursting strength tester is intended for measuring strength of paper / strong paper board by submitting it to an increasing a uniform hydraulic pressure. This instrument is reliable and designed to produce the result with high accuracy and repeatability by incorporating electronics automatic pressure release system and conforms to international standard. Bs 3137, iso 2759, tappi t 807 om-82. t 810 om-80 etc. Push switch operates ¼ horsepower motor, single phase 220/250 volts ac and drives the hydraulic system and produce uniform increasing pressure of a rate of 95 ml/min 5 ml/min. The test sample is clamped between two clamping parallel plate manually by tightened the screw, and pressure on the sample is transmitted through rubber diaphragm which causes the sample to expand into the upper clamping plate until it burst. After releasing the push switch pressure gets release automatically and optical sensor stops the motor, which is responsible to produce results with high accuracy and repeatability. Pressure gauge is fitted with a maximum reading drag point of sample burst, when the main pointer has return to the zero position. specifications: - • pressure increasing speed for paper 95 ml/min 5 ml/min or for board 175 ml/min 5. • standard rubber diaphragm diameter for board 76 mm2 & 2.3mm 0.2mm thick & for paper 50 mm2 & 0.85 0.1 mm thick. • range of pressure 0-7 to 0-40 kg/cm2.
Best Deals from Digital Bursting Strength Tester

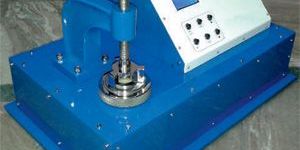

Digital Bursting Strength Tester
80,000 - 95,000 Per Piece

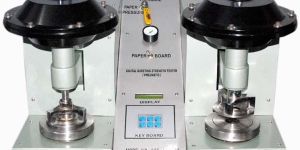

Digital Bursting Strength Tester
Get Price Quote
Our company is a chief Manufacturer and Supplier of Digital Bursting Strength Tester. Digital Bursting Strength Tester is intended for measuring strength of paper/strong paper board by submitting it to an increasing a uniform hydraulic pressure. The Digital Bursting Strength Tester is reliable and designed to produce the result with high accuracy and repeatability by incorporating Electronics Automatic Pressure release system and conforms to international standards BS 3137, ISO 2759, TAPPI T 807 Om-82, T 810 Om-80, etc. Details Digital Bursting Strength Tester (Micro-controller Based) Model : SGT-G003/A For Paper, Paper Board & Corrugated Boxes Construction & Working Push switch operates ¼ horsepower motor, single phase 220/250 volts AC and drives the hydraulic system and produce uniform increasing pressure of a rate of 95 ml/min± 5 ml/min. The test sample is clamped between two clamping parallel plate manually by tightened the screw, and pressure on the sample is transmitted through Rubber Diaphragm which causes the sample to expand into the upper clamping plate until it burst. After releasing the push switch pressure gets release automatically and optical sensor stops the motor, which is responsible to produce results with high accuracy and repeatability. Specifications Pressure increasing speed for Paper 95 ml/min ± 5 ml/min Or for Board 175 ml/min ± 5. Standard Rubber Diaphragm diameter for board 76 mm2 & 2.3mm ± 0.2mm thick & for paper 50 mm2 & 0.85 ± 0.1 mm thick. Range of pressure 0-7 to 0-40 kg/cm2.

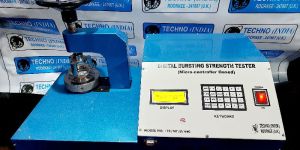

Digital Bursting Strength Tester
Get Price Quote
It is measured by giving a hydraulic pressure through a rubber diaphragm on a circular area of the specimen of CBF under test conditions. Force requires to burst or complete rupture of the board is measured through a Digital Indicator. The bursting strength value is expressed in terms of kgscm2. The bursting strength defines the materials quality compare to the others. The value of the bursting strength will give the indication that how much weight may be carried in the box.
