Digital Water Level Recorder Dealers in Roorkee

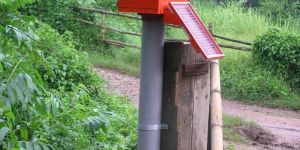

Digital Water Level Recorder consists of a weatherproof enclosure, which contains the data logger and power supply, and comes with a solar panel and a shaft encoder type water level sensor. It is workable in every major environmental condition. Measurements can automatically store in systems memory with date and time stamp, as per user selectable logging period. Digital Water Level Recorder comes with integral solar panel, which will easily keep the batteries charged throughout the year. It has a durable hard enclosure that protects the data logger from weathering. Our Digital Water Level Recorder comes with user-replaceable SMF batteries. We are named among the renowned Manufacturers and Suppliers of Digital Water Level Recorder from Roorkee, Uttarakhand.

• Type: Digital Water Level Recorder
• Color: Blue
• Voltage: 220V
• Display Type: Digital
• Automatic Grade: Automatic
• Warranty: 1year

The water level logger includes microscada data logger software, windows-based software that provides many useful features, such as real-time readout, measurement interval and engineering unit selection, station id setting, and sensor calibration. The software makes accessing stored data and setting options easy. Data downloaded from the water level logger can easily be opened in any pc spreadsheet program for analysis and graphic presentation. Global water's water level recorder software will run on a pc-type laptop or desktop computer running windows 98 or later. To communicate with the water level logger, a computer must be equipped with a usb communication port. Includes a rs232 or usb cable (for communication between the logger and your computer) water level recorders installation overview the water level logger's pressure sensor may be placed slightly below the lowest expected water level. Level ranges of 0-3, 0-15, 0-30, 0-60, 0-120, 0-250, and 0- 500 ft are available. When ordering, select the level sensor range that will cover the maximum water level change (this is not necessarily the total depth of water). Selecting the smallest water level range possible will ensure the greatest accuracy. The water level logger's data logger is housed in an enclosure that is designed to slip inside a 2-inch pipe and be completely hidden with a standard or locking well cap. For monitoring groundwater, the water level recorders can be installed in a pvc pipe with the data logger enclosure's rim resting on the pipe's edge. For monitoring surface water, the water level loggers can be installed in a protective stilling constructed of pvc pipe. For detailed water level logger installation tips, please consult team.

• Condition: New
• Power: 6-9 kw
• Voltage: 220 V
• Warranty: 1 Year
• Automatic Grade: Automatic
• Application: Industrial
• Feature: Durable

Used for measuring the water level in natural watercourse, bores & dams etc. Digitizes signals are stored in a rugged compact data logger which records & stores the data of level events in its memory with real time clock day/ month/ year/ Hr/ min/ sec. Data logger has RS 232 serial port which allows direct communication with PC on site. Water level is sensed by Shaft encoder (Float & Counter weight actuated) Sensoror Pressure Transducer type sensor. Water level recorder is supplied complete with either of the above sensor, data logger unit, solar panel, battery, water proof case, data shuttle, data cable.

We are offering digital water level recorder bubbler type ‘seba’ ps- light 2. the seba pneumatic gauge type \"ps light 2\" serves as a robust, economic and reliable measuring system for monitoring water level in surface waters. The measuring principle is the proportioning or bubbler system, based upon the other well-known seba instruments in the ps-series. \r\nan integrated, highly efficient mini compressor bubbles air through the pressure tube into the water at adjustable intervals. The resultant pressure generated in the tube corresponds exactly to the hydrostatic pressure above the mouthpiece. This tube pressure is then measured by a high-precision pressure sensor inside the ps-light 2.\r\ndata transfer options :\r\n(a). Data transfer through data shuttle.\r\n(b). Data transfer through telemetry method i.e. Gsm/gprs service based.\r\n(c). Data transfer through ethernet service i.e. Connecting dwlr to ethernet lan.

• Type: Automatic
• Certification: CE Certified
• Application: Recoord Water Level
• Power: 1-3kw
• Warranty: 1 Year
• Size: Standard

• Sensor Input: Pressure type submersible water level sensor. Available in different measurement ranges
• Measured Parameter: Date, Time, Instantaneous Water Level, Maximum Water Level (Log Rate), Minimum Water Level (Log Rate)
• Accuracy: ±5mm or 0.5% FSO, Unattended recordin g of Water Level. Virtually maintenance free

this is a micro controller based digital water level recorder (pressure type) reflect state of the art in micro controller based instrumentation design. the water level sensor can be attached with this data logger for the collection of real time data automatically. the micro controller has its internal memory along with an additional 128k eeprom, a real time clock with an lcd (16 x 2) to display the instrument status. piezo-resistive silicon strain gauge, bounded to 316 ss diaphragm and integral cable contain a vent tube for barometric pressure compensation. comes with different ranges 10, 35, 100, 200, 300 meters. data file is saved in microsoft's excel. this instrument is used for ground wells water level monitoring. this instrument also use full for open channel, dam and lake level monitoring.

Being microcontroller-based devices offering date and time stamps, the Digital Ground Water Level Recorders assist the measurement and logging of real time water levels. As a Manufacturer, Exporter, and Supplier of Digital Ground Water Level Recorder, we offer a device that can be used in groundwater, bore wells, pipes, tanks, open canals, and channels. The 2GB internal memory can store 50,000 data points and barometer pressure is compensated by the integral cables. The range of Digital Ground Water Level Recorder is 10, 20, 25, 50, 70, 100, 150, 200, and 300 meters and the user-friendly interface can be used in labs and field. Features & Specifications : Sensor Type : Vented Gauge Pressure Sensor.Processor : 16 bit Extreme Low PowerParameter Monitored : Date, Time, Instantaneous Water Level, Maximum Water Level (Log Rate), Minimum Water Level (Log Rate) Water Temperature (Optional), Battery Voltage.PC Software : GUI based software for Data download. Configuration : Modes Linear ModeReal Time Clock Internal with accuracy of +/- 2 minutes /year & leap year compensationLogging Interval 1 min to 24 hrs with facility to program log Start time within next 24 hoursMemory : 4GB Non-Volatile Flash suitable for storing more than 10,00,000 data pointsSettling time : < 15 minutes after submersionRepeatability : ± 0.05 % Full ScaleAccuracy : ±0.1% Full ScaleOverload Pressure : 2 times Full ScaleBurst Pressure : 4 times Full ScaleADC Resolution : 16+ bitsBattery Life : 10,000 data Points or 1 year whichever earlierBattery : 4 D type Cells (1.5V Each) easily replaceable in field (external battery pack)..Battery Monitoring : RecordingOperating Humidity : 0 to 100%, Operating Temp - 20 to 70 °CData Output Format : MS- ExcelData Retrieval The standard system comes with data retrieval option through USB Port.Desiccant tube : Desiccant tube is provided for preventing the condensation inside vent pipe & sensor Suitable for 1 YearProtections : IP67, ESD & Over Voltage ProtectionMaterial : Stainless steel AISI 316L, Sensor Dimension: 26 mm x 125 mm Optional Accessories : Enclosure for safety of Data loggerEnclosure Dimension LXBXH : 450 mm x 330 mm x 260mm (Used to fit above 6 inch borewell pipe) Ordering Guide : Digital Water Level Recorder : DWLR-G-P-XXX

We are engaged in offering Automatic Digital Water Level Stage Recorder to the clients. The Automatic Digital Water Level Stage Recorder is a micro controlled based Automatic Digital Water Level Stage Recorder. The Automatic Digital Water Level Stage Recorder has a weatherproof enclosure which contains the data logger, level sensor and power supply, and comes complete with a solar panel and data shuttle. Includes : Water Level sensorInternal memory Additional 128K EEpromA real time clock LCD (16 X 2) Sensor Input Combinations : Shaft Encoder type Level Sensor Pressure type Level Sensor Ultrasonic level Sensor

We are manufacturer Automatic Water Level Recorder (Radar Type) is automatic,computerized and self contained power supply,Solar panel which atteched with sealed waterproof data logger contained the SMF rechargeable battery gives supply to the Sensor. Radar Type level Sensor work on plus principle a short microwave impulse is emitted.then the sensor rests for a short time.During this time the radar receives the echopic signal refected by the water surface. The run time impluse matched the distance to acual water level.
