We are engaged in providing Water Level Indicator to the customers. The Water Level Indicator is used to measure the level of the water. Also referred as Sounder, our Water Level Indicator assures high accuracy and efficiency. Our clients have highly appreciated our Water Level Indicator due to its qualitative features. The Water Level Indicator is therefore high on demand in the market. Features : Has a brass/steel probe connected with the shielded wire having markings at every meterThe dimension of the probe is such that it can easily be inserted in a gap of 2 centimetersThe wire is winded on a reel/spool, made of aluminum having a handle to fasten the wireThe probe is lowered into the stream or well or bore well, as the tip of the probe touches the surface of the water, an in-built electronic circuit indicates contact with water by sounding a beepWater acts as an electrolyte to complete the circuitDepth is read from the attached cable and a measuring tape provided Used For : Water level measurements in streams, wells and up to 180 meters deep bore wells

Size : 4 - 6 Inch

Application : Laboratory

used for conducting survey by total station.

Country of Origin : India

Type : Prism Holders

Diameter : 50-60 Mm

Application : Laboratory Use

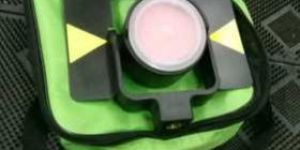

Type : Survey Prism

Color : Black, Green

Material : Iron

Country of Origin : Made in India

Material : Leather

Gender : Male

Application : Laboratory

Material : Metal

Material : Metal

Color : Red And White

Country of Origin : Made in India

Brand Name : Freemans

Size : 100m

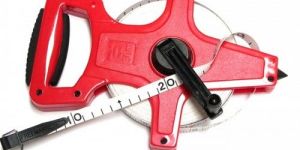

Tape length : 100 Meter

Length : 100 m

Application : Industrial

Color : Red

We are prominently engaged in providing Marshall Test Apparatus to the customers. This Marshall Test Apparatus method covers the measurement of the resistance to plastic flow of cylindrical specimens of Bituminous paying mixtures loaded on the lateral surface by means of the Marshall Apparatus. This Marshall Test Apparatus method is for used with hot mixtures containing asphalt or far and aggregate up to 25mm maximum size. Apparatus : Specimen Mould Assembly : Mould cylinders 4" (100mm) in diameter by 3 (76mm) in height, base plates, and extension collars shall confirm to the code. Three mould cylinders are recommendedSpecimen Extractor : A specimen extractor to remove the compacted specimen from the specimen moulds recommended. A suitable bar is required to transfer load from the extension collar through a circular steel plate (100mm dia x 12mm thick) supporting a steel rod of 25mm)Compaction Hammer : The compaction hammer shall have a flat, circular tamping face and a 103 B (4.5 kgs) sliding weight with a free fall of 18 inch, two compaction hammers are recommendedCompaction Pedestal : The compaction pedestal shall consists of a 8" x 8" wooden post capped with a 12" x 12" x 1" steel plate. The wooden post shall be oak, yellow pine or other wood having a dry weight of 42 to 48 LBS per cuft. The wooden post shall be secured by four angle iron brackets to a solid concrete slab. The steel cap shall be installed properly so that the post is plumb/straight and cap is levelSpecimen Holder : The specimen holder shall consists of a semi circular base and a circular ring to hold the specimen mould in place during compaction of the specimen, the top section shall be flanged to fit over the collar of the specimen mould and shall be provided in the base for mounting on the compaction pedestal. The specimen mould holder shall be mounted on the pedestal steel cap so that the center of the mould is over the postBreaking Head : The breaking head assembly shall consist of upper and lower cylindrical segment or test heads having an inside radius or curvature of 2" accurately machines. The lower segment shall be mounted on a base having two perpendicular guide rods or posts extending upward. Guide sleeves in the upper segment shall be in such a position as to direct the two segments together without appreciable binding or loss of motion on the guide rodsLoading Frame : The loading frame consists of a power operated screw jack mounted in a steel testing frame and shall produce a uniform vertical movement of 2" per minute the upward and downward movements are automatically controlled by Micro Switches. The testing (load) frame is also provided with a hand wheel (crank) for initialing adjustment or for applying loads in case of power failuresProving Ring Assembly : Own Proving Ring of 3000 kg capacity and sensitivity of 10 - 15 between and 2000 kg shall be equipped with micrometer dial. The micrometer shall be graduated in mms (0.002mm) Proving Ring attachments are required for fastening the Proving Ring to the testing frame and transmitting the load to the breaking head, suitable threads are provided in either side of the loading bosses of the Proving Ring for required fixing Miscellaneous Equipments : Oven or Hot Plate : Oven or Hot Bath should be provided for heating aggregate bituminous material specimen moulds, compaction base etc, and other equipments required or mixing and moulding temperatures. It should recommended that the required temperature with 5F controlled so as to maintain the required temperature within 51 (2.8C) suitable shields, baffle plates or sand baths shall be used on the surfaces of the hot plates so minimize localized over-heating or exposure to cool air in winterMixing Apparatus : Mechanical mixing is recommended. Any type of mechanical mixer may be used provided it can be maintained at the required mixing temperature and will produce a well coated, homogeneous mixture of the required amount in the allow-able time. A metal pan or bowl of sufficient capacity and hand mixing may also be used. Generally, specimen is prepared from the mixer of the hot plant or hot mix laid at siteWater Bath : The Water Bath shall be at least 15cm deep and shall be thermostatically controlled so as to maintain the bath at 140-188F (60oC) the tank shall have a perforated bottom or be equipped with a shelf for supporting specimen 5cm above the bottom of the bathContainers for heating bituminous material, either grill type tins, breakers pouring posts, or saucepans may be usedMixing tool-either steel trowel (Garden type) or spatula, for spreading and hand mixingThermometers of determining temperature of aggregates, bitumen and bituminous mixture. Armored glass thermometers or dial type with Metal stem are recommended. A range of 9.9 to 400/500 F (2 to 24oC) with sensitivity of 5F (2.8C) requiredThermometers for Water Bath with a range of 6F to 158F (20 to 70C) sensitive to 0.4F i.e. 0.2oCBalance 5 kg capacity, sensitive to 0.1gm for weighing molded specimensBalance 5 kg capacity, sensitive to 0.1gm for batching mixturesRubber gloves for removing specimens from water bathMarketing pencils for identifying specimensScoop flat bottom for batching aggregatesSpoon (large) for placing mixtures in specimen moulds Test Specimen : Number If Specimen : Prepare at least three specimens for each combination of aggregates and bitumen contentsPreparation Of Aggregates : Dry aggregates to constant weight at 221 to 231 F (105 to 110 C) and prepare the aggregates by dry sieving into the desired size fractions. The following size fractions are recommended 25mm- 20mm, 20mm to 12.5mm, 12.5mm to 4.75mm and passing 2.36mmDetermination Of Mixing : At compacting temperatures. The temperatures to which the asphalt must be heated to produce viscosity's of 85 to 10 sec saybolt favol and 140-15 sec saybolt farol shall be established as the mixing temperature and compaction temperature, respectively the corresponding viscosity's Farol shall be Englar specific viscosities of 25-3 for mixing and 40-5 for compactingPreparation Of Mixtures : Weight into separate pans for each test specimen, the amount to each size fraction required to produce a batch that will result in compact specimen 2.5"-3" in height (about 1200 G) place the pans on the hot plate or in the oven and that to a temperature of approximately 50 (27.8C) above the mixing bowl and with the heated aggregate and dry thoroughly, from a created in the dry blended aggregate and weight the required amount of a bituminous material into the mixture. At this point the temperature of the aggregate and bituminous material shall be within the limits of the mixing temperature established in paragraph below mix the aggregate and bituminous material rapidly until completely coatedCompaction Of Specimen : Thoroughly clean the specimen moiled assembly and the fact of the hot plate to temperature between 200 and 300 F (93.3 and 148.9C) place a piece of filter paper or paper toweling cut to size in the bottom of the mould before the mixtures is introduced. Place the entire batch in the mould space the mixture vigorously with a heated spatula or trowel to a slightly rounded shape. Temperature of the mixture immediately prior to a compaction shall be within the limits of the compacting temperature established a underPlace the collar and mould assembly on the compaction pedestal in the mould hold and unless otherwise specified, supply 50 blows with a compaction hammer with a free fall of 18 inch. Hold the axis of the compaction hammer perpendicular to the base of the mould assembly during compaction. Remove the base plate and collar and reverse the assembly of the mould. Apply the same number of compaction blows to the face of the reversed specimen. After compaction place the sample extractor plate on the end of the specimen. Place assembly with the extension collar down in the testing machine. Apply pressure by the load transfer bar and force the specimen into the extension collar. Lift the collar from the end of the specimen. Carefully transfer the specimen to smooth flat surface and allow it to stand overnight at room temperature. Weight measure and test the specimen. Table fans may be used. Mixtures that lack sufficient cohesion to result in the required cylindrical shape on removal from the mould immediately after compaction may be cooled, until rapidly cohesion has developed to result in the proper cylinder shape Procdure : Bring the specimens to the desired temperature by immersing them in Water Bath and place the lower segment of the Breaking Head and place the complete assembly in position on the testing machine. Place the dial gauge in position over the support and adjust the gauge at zero while holding in firmly against the upper segmentApply load to the specimen by means of the constant rate of movement of the load jack or testing machine head at 2 in per minute head of 2 inch indicated by the dial. Record the maximum reached load decreased as indicated by the dial. Record the maximum load sautéed on the testing machine or converted from the indicated flow. Recovery of test specimen from the Water Bath to the maximum load determination shall not exceed 30 secondsKeep the test sample in the Water Bath for 30 to 40 minutes, keep the samples in temperature at 140-188F for asphalt specimens and 100 to 118 F (37.8C) for tar specimen as in alternative the specimens may be brought to desired temperature by placing in an oven for minimum of 2 hours. Maintain the oven temperature at 140-188 F (60-70C) for asphalt specimen 100-108F (37.81C) for tar specimen. Thoroughly clean the guide rods and the inside surfaces for the test heads, proper to making the test and laborite the guide rods so that the upper test head slides freely over them. Remove the specimen from the water (for repeat test) and place in the breaking need assembly. Three samples (specimens) to be tested for each varying type mixtures Report (Result) : The report shall include the following information for each specimen tested : Weights of the test specimen. Average of three (3) to be takenMaximum load in kgs corrected when requiredFlow value in hundredth of a millimeterMixing temperatureCompacting temperature and testing temperature

Brand Name : OPTICA and HTC

Temperature Range : -50 to 500 D. C

Feature : Gun

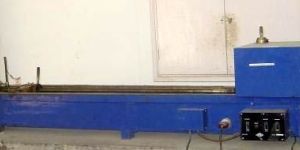

We offer Ductility Testing Machine to the customers. The Ductility Testing Machine meets the requirement of IS 1208-1958 and is used in determining the ductility of esphaltic bitumen, fluxed native, asphalt out back bitumen one blown type bitumen. The ductility of bituminous material is measured by distance in contiretras to which it will elongate before when two ends of standard briquette specimen of material are pulled apart, at a specified speed and a specified temperature. Comprises of : One wooden frameOne gear and motor box with speed selectorTwo bracketLead screw one scale fixed on the edge of motorOne scaleOne thermostat One immersion element Description : The Ductility Testing Machine consists of a Water Bath surrounded by a raised wooden frame and two brackets with pins to hold clips of three ductility moulds. Provision has been made to three briquettes at a time. One bracket is fixed to the Water Bath. The second bracket moves on a lead screw rotated by a chain drive, the speed of which is regulated by a reduction gear system coupled to a fraction horse power motor. Two rates of travel are incorporated. These are 5 cm/minute and 1 cm/minute. An index pointer fixed to the movable bracket moves over a scale marked in centimeters fixed on the edge of the Water Bath and indicates distance traveled. A clutch arrangements is provided by which the movement of the movable bracket can be arrested or restored without switching off the motor. When the clutch handle is pulled to engage position it starts the rotation of the lead screw and the clutch is pushed back to disengaged position is arrests the motion. The Water Bath is provided with thermostatically controlled heater. An inbuilt pump is fitted to circulate water in the bath for keeping the temperature uniform throughout the bath. Sometimes air gets entrapped and the pump does not work. In such case to remove the entrapped air, connect the discharge copper pipe of the pump to a rubber or any other suitable tube and such water from the other end. The machine is suitable for operation on 230 Volts 50 Cycles single phase AC supply. Specimen : Clean ductility mould and base plates. Assemble the mould on base plates. Coat the top surface of the plates and interior surfaces of the sides of moulds with mercury a mixture of equal parts of glycerin. Take enough bituminous material to be tested to fill mould. Completely melt the material to a temperature of 75oC to 100oC above the approximate softening point until it becomes thoroughly fluid. Then strain it through 300 micron IS sieves and after through stirring pour into mould. In filling such mould pour the material in a thin stream back and forth from and to end of the mould until it is more than level full. Leave the moulds to cool at room temperature for 30 to 40 minutes, then placed them in Water Bath of the Ductility Testing Machine previously set ready and maintained at 27.0 - 0.50oC ( unless testing temperature other than this is specified) for 30 minutes. For setting the Water Bath ready to procedure is as follows. Fill the Water Bath with water to the extent that it would stand about 10cm above the bitumen material briquette when fitted at a later stage on the brackets. Set the thermostate at 27oC. Put on the switches marked �STIRRER� and 'HESTER' on the switches board. In summer when room temperature of water is higher then 27oC the heater need not be put to use, control the temperature at 27oC by adding cool water when ever temperature tends to rise above 27OC. By all arrangement keep the temperature in the Water Bath uniformly at 27oC. After the lapse of 30 minutes take out the moulds from the Water Bath and cut off the excess bitumen by means of a hot straight edged putty knife or spatula so that each mould is just level full. Place back the base plate and mould with briquette specimen in the Water Bath and keep at the specified temperature for about 85 to 95 minutes. Test Procedure : At the lapse of 85 to 95 minutes remove the base plates with moulds briquette specimen from the Water Bath. Remove the briquette mould from the base plate, catch the side pieces and let the end clips remain fitted to the briquette specimens. Mount the briquette specimens on the brackets. The holes in the clips of the moulds should slide in the pens on the opposite brackets. Note the initial reading on the scale. Before starting the motor, confirm that the water in the Water Bath is at a level about 10cm above the top surface of the briquettes. If necessary add more water at about 27oC into the Water Bath to achieve this objective. The Water Bath is already set to maintain the temperature of 27oC. By all arrangement keep the temperature is the Water Bath at 27oC. See that initially the clutch is disengaged. See the speed selector to give the rate of pull of 5cm minute. Switch on the motor. Pull the clutch handle to start the rotation of the lead screw which moves the moving bracket and causes stretching of the bituminous material standard briquettes in between the clips, until the briquettes are ruptured. Take the final reading on the scale as indicated by the pointer when each briquette is ruptured. From the initial reading and the final reading calculate the distance in centimeters through which the clips of each briquette have been pulled to produce rupture. When the last briquette ruptures the movement of the movable bracket by operating the clutch to disengage position takes the average of the elongation in centimeters of the three briquettes specimen at the ductility of the sample. Maintenance : Clear the moulds from sticking on the material. Empty the water from the bath if the instrument is not likely to be used for some time. Keep the lead screw well lubricated with oil or light grease. Keep the chain drive oiled. Keep the instrument clean. Spares If Required : Mould made of brass/gun metal has two end clips, two sides with knurled screws & side support for proper assembly.

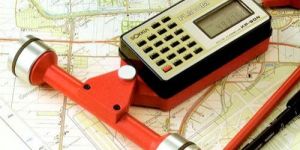

We are engaged in offering efficient Digital Planimeter to the customers. Measuring capacity of the Digital Planimeter is remarkably enlarged. Measuring by 6-digit pulse count enables Digital Planimeter to measure 100 times larger accumulative area than ordinary planimeters. A part of Drawings instruments, our Digital Planimeter facilitates easy calculations of Cumulative and Average Value Measurement. Special Features : Measurement by 6 digit pulse count : This N-Series can measure the area by pulse count of 6-digits. This method enables a larger cumulative measurement of area (Up to 1Om2)Maximum cumulative measurement value of 10m2 : With the measurement by 6-digit pulse count, the N-Series Planimeter can measure a larger area by 100 times than ordinary Planimeter. The conventional planimeter has a maximum cumulative area to measure only 0.1m2. If measurement value shows over 0.1m2 when measuring, the display is to be reset to �O�. This requires registering the numbers of how many times these resettings are occurred. With the New PLACOM N-Series, there is no need of these troublesome procedures.Easy conversion function of unit and scale : KP-90N and KP-80N can convert easily the measured area value into a new area value in a newly desired unit and with a newly desired scale value. KP-92N and KP-82N can convert the unit between in2 and cm2Hold memory function : In cumulative measurement, this Hold Memory function is effectively used. If an error occurs in measuring, press C/AC key. Then last measured value is appeared by pulse count. Since previous measured values before error are stored, there is no need for other measurements from the beginning.Automatic shifting of unit to upper unit : When the measured area value overflows the displayed figures of 8 digits, the measured area value is calculated and displayed by an upper unit. When the overflow is occurred in the uppermost unit, km2, acre, the measurement can be continued by pulse count display.Average value measurement : In order to get better result of measurement, Mean value measurement is recommended. This measurement can be easily done on this N-Series. Measurement of an area with different lateral and longitudinal Scale can be done.  Applications : Construction and civil engineeringLand developing planningMachine designingData analysis in statisticsArchitecture and interior designingForestry areaShip designingMedical researchAgriculture

We are prominently engaged in providing Compression Testing Machine to the customers. The Compression Testing Machine is a part of soil testings instruments and is widely used by the clients from all over the world. Concrete Compression Testing Machine is designed to meet the requirements for various Indian, British and American standards for testing cubes up to 15 x 15 x 15cm and cylinders up to 15 x 30cm high of concrete for the compressive strength. Specifications : Compression Testing Machine capacity 100 TON hand operatedPressure gauge 0-100 TON capacity for the above machine Description : The Hydraulic Jack of 100 tone capacity is fixed to the base. The lower platen is on the hydraulic ram and upper having a spherical seating is adjustable for initial clearance. The loading is accomplished by the upward movement of the lower platen. The lower platen and the upper platen of the machine are hardened ground and polished. Guidelines are marked on the lower jack. A dust cover is provided to prevent any dust from going into cylinder. A spacer block with a center locating pin is provided to test small specimen. The double plunger pump special type is hand operated. The load is indicated on 150mm dia dial hydraulic pressure gauge graduated 100 Tone x 500 kg division. Total division in dial 200 nos. A maximum red pointer is provided to facilitate for taking of the reading after the specimen under test fails. Setting Up : The oil is filled in the oil tank. Fix the machine on the foundation by bolts so that there is no shaking of the machine at the time of operation. Operation : Open the air release screw from the inlet of oil tank. Open the adopter of the pressure gauge. Tighten release valve and operate the hydraulic pump with the handle. When few drop of the oil will come out from the adopter of the pressure gauge, immediately open the release valve. Fix the pressure gauge, with the adopter of the pressure gauge. Tighten release valve and place the specimen on the lower platen, upper platen be brought. The lower platen is automatically upstart when you will operate the hand pumping unit with the handle. Check that the nuts are properly tight and there is no leakage. Start the machine by operating it with handle. Start giving load by operating it with handle, ram will start rising and the load with start increasing on the specimen and pressure gauge will show the load. As soon as the specimen is break the needle will indicate it and the black needle will automatically come back to zero. Release the release valve. If you are to start the machine again tighten the release valve and operate it as done earlier. Caution : The pump should never operate where there is no or little oil in the pump tank. Open the air release screw when operate. Oil is in full quantity in the oil tank filled by us and you need not require putting it in the tank. Please check the oil with the oil level. Note : The oil in the machine is TRESSO 40 from ESSO Oil Company. The equivalent of this grade of oil can also be used. Normally a change of oil in the system is advisable under normal use. But this period can be increased or decrease accordingly to the use of the machine. Maintenance : Keep the platens, greased to prevent against rust. Remove the lower platen when not in use. Remove the spacer block.

Geology Compass DQL-8 Specification : Geology Compass DQL-8 : Precision of Plate Level 20' ± 5' / 2 ( mm) Precision of Circular Level 30' ± 5' / 2 ( mm) Reading Error d0.5º Min. Graduation 1º Damping Time d15 "

Country of Origin : India

Type : Brunton Compass

Mounting Type : Wall Mounted

Certification : ISO 9001:2008

Application : Construction, Laboratary

We are engaged in offering Automatic Digital Water Level Stage Recorder to the clients. The Automatic Digital Water Level Stage Recorder is a micro controlled based Automatic Digital Water Level Stage Recorder. The Automatic Digital Water Level Stage Recorder has a weatherproof enclosure which contains the data logger, level sensor and power supply, and comes complete with a solar panel and data shuttle. Includes : Water Level sensorInternal memory Additional 128K EEpromA real time clock LCD (16 X 2) Sensor Input Combinations : Shaft Encoder type Level Sensor Pressure type Level Sensor Ultrasonic level Sensor

We offer structural lab machine.

We are engaged in offering Total Stations to our valuable clients. The Total Stations are designed using technologically advanced equipments. We employ high- grade quality components for the manufacturing of our Total Stations. Assuring high efficiency, our Total Stations are high on demand in the market. We provide the Total Stations under the brand name of �Alldays�. Range : Model Alldays Al 212 (2 Sec Accuracy)Model Alldays Al 512 (5 Sec Accuracy)

We bring forth superior quality Electronic Theodolite for the customers. The Electronic Theodolite has been designed with the help of latest machinery and equipment. The Electronic Theodolite is checked on various parameters to assure their flawlessness. The Electronic Theodolite can be availed at pocket friendly prices from us. Technical Data : TelescopeImageErectMagnificatio'n30xClear objective aperture45mmResolving power3"Field of view1o30'Shortest focusing distance1.4 MeterMultiplication Constant100Additive constant0Length157mmAngle MeasureMin. Reading1" or 5" SelectableIlluminated Panels 2-sided LCDDual LineOptical PlummetImageErectField of View5oFocusing Range0.5m-8Power SupplyBattery NB lOA Rechargeable Ni-HDC6VOperating Time10 Hrs ContinuouslyCharger 220V or 110V50HZ1 Pc per Carton10 kgs per CartonDimensions per Carton0.06CBM (=48cmx30cmx41cm)

We bring forth highly advanced Suspended Sediment Sampler. The Suspended Sediment Sampler is easy to use and therefore it is user friendly. The Suspended Sediment Sampler is a multi range indicator and is used to measure suspended solids in aqueous solutions. The Suspended Sediment Sampler is highly flexible and therefore widely appreciated by the clients. Features : Data logging and the ability to download the data directly to a computer are optional featuresUses the model V5 sensor, which operates on the principal of single gap light absorption as the means of determining the concentrations typically found in aeration basins (1000 mg/L to 5000 mg/L) and RAS streams (7000 mg/L to 20,000 mg/L) of wastewater treatment  plants. There is independent calibration point for eachA 15L low range sensor (0-1000 mg/L) is also availableUtilizes and infrared emitter to minimize color effects and compensates for emitter variations due to temperature by measuring source brightness Use : The model V5 sensor was designed to measure very low solids concentrations typically found in secondary clarifier and plant effluents Available In Models : USDH-48 or 59
