Water Level Sensors Dealers in Roorkee

• Brand Name: Sensor Mart
• Highlights: Small antenna size, easy to install; Non-contact radar, no wear, no pollution, Serious dust environment on the high level meter work has little effect
• The Output Signal: (4
• Distance Measurement: 70 meters
• Microwave Frequency: 26GHz
• Resolution: 1.6u A
• Conductor Cross Section: 1.0mm
• Model: SMKBWLRD-HA

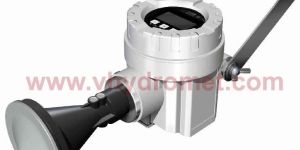

• Product Type: 26G Radar Level Meter
• Casing Window: Polycarbonate
• The Ground Terminal: Stainless Steel
• Cable Entrance / Plug: One M20xl.5 Cable Entrance
• One Blind Plug: Terminal
• Communication Protocol: HART
• Fault Signal: Constant current output; 20. 5mA 22mA 22mA 3.9mA
• The Integral Time: 0-50 sec
• Blind Area: The Ends of the Antenna
• The Maximum Distance Measurement: 70 meters
• Communication Interface: HART Communication Protocol
• The Measurement Interval: about 1 second (depending on the parameter settings)

Extremely short microwave impulse are emitted by the antenna system to the measured product, reflected by the product surface and received again by the antenna system. the time from emission to reception of the signals is proportional to the level in the vessel. A special time spreading procedure enables the reliable and precise measurement of the extremely short signal running times. The radar sensors are available in different C and K-band frequency ranges, this ensures the optimum solution for the different applications. The proven ECHOFOX signal processing analysis the refelections in the vessel based on long-standing experience and detects the level signal reliably.
