Golden Electronics Vedvyas, Rourkela, Odisha

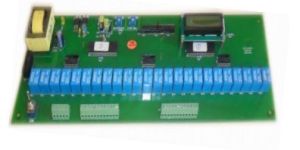

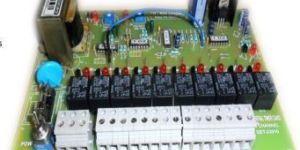

SEQUENTIAL TIMER CARD designed by v-solutions is to operate the solenoid pilot valves used on dust collector equipment. LED provide visual indication of energized pilot valve in sequence, and also “power on “ indication. The number of sequence step is adjustable from 2 through 10.   Controls are provided to adjust the length of time between valves being energized ( pulse frequency ) and the length of time that the valve is energized ( pulse duration ). Silicon semiconductor components control all timing and logic functions.   Two independent methods of starting and stopping the timer are provided.   The first method will automatically stop the sequence and reset the controller to the first valve position whenever A/C power is removed and then reconnected. The second method is by a remote contact connected to the terminals provided.

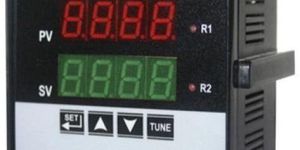

Features : 31/2 digit, 7segment LED temperature display Wide voltage range (85-270V AC / DC) Universal input (J / K / PT-100) LED indication for sensor, funtion & relay status. Sensor and function lock. Dual function (On / Off or Self tuned). Single set point with relay output. Over voltage protection. H3TX-Ua / TX7-Ua / EX9-Ua/H3TX-U-RS : Single display for both process and set value. Temperature offset calibration user settable Single set point with relay output H3TX-2U / TX7-2U / EX9-2U : Dual display for process and set value. Dimensions : Overall : H3TX Models 48 x 48 x 95.5mm, TX7 Models- 72 X 72 X 128mm; EX9 Models- 96 x 96 x 117mm (W x H X D) Cut-out : H3-TX Models – 46 x 46mm, TX7 Models - 69 x 69mm , EX9 Models – 92 x 92mm (W x H) Applications : Furnace, Heat treatment equipment, Ovens, Boilers, Plastic and Rubber machinery and many more.

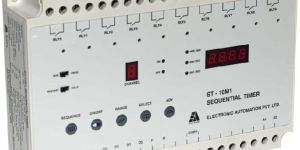

Features : Suitable for screw mounting(except ST4-M1). 7 segment display indication for channel and timing operation (except ST-4M1). User friendly programming for ON/OFF time selection independently (except ST-4M1). Hold /Restart feature is available during power failure, Over voltage protection(except ST-4M1). ST-6M1 / ST-10M2 / ST-10M1 : pulse start signal. ST-15M2 / ST-4M1 : continuous start signal. S1D-C8M3 : Comprises of 8 Relays and each relay can be programmed for maximum of 8 switchings in a cycle. Potential free (Zero volts) continuous start signal and continuous signal from differential pressure switch is mandatory for operating the timer (Only in model ST-15M2) Feedback outputs for timer healthy, timing in progress and power healthy available in model ST-6M2 Dimensions : Over-all: ST6-M1 / ST6-M2 / ST10-M2 / ST15-M2 / S1DC8-M3 – 200 x130 x 45mm ST4-M1: 110 x 86 x 68mm (W x H x D) ST10-M1 (IP) / ST10-M2 (IP) / ST6-M1 (IP) / ST6-M2 / ST15-M2 – 291 x 214 x 82mm (W x H x D) ApplicationsBag Filter systems, dust pollution systems, Air handling systems, MCC panels, conveyors, process industries, nitrogen and other gas plants, sewage water treatment plants, irrigation spraying systems and many more.

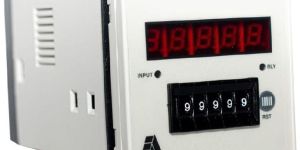

Features : Din sized enclosure for panel mounting. Wide Voltage range Front / Rear reset facility provided. Hold / Restart options (selectable) during power failure. Input signal from proximity switch ( NPN / PNP type) or Potential free (zero volt) signal from limit switch, relay o/p etc Over-voltage protection CT-5: Digital, single window 5 digit 7 segment red LED display with up counting for process value. Preset Counts can be programmed with the help of thumbwheel switch H3CT-5U : Digital, single window 5 digit 7 segment red LED display with up counting for both process value and set value Input sensitivity – programmable (1-100Hz) Internal Resettable fuse for protection of device against voltage fluctuations. Digital display will blink whenever voltage exceeds specified voltage range. Switch off the unit for sometime & then switch on when voltage returns to normal. Dimensions : Overall: CT-5 – 72 x 72 x 128mm, H3CT-5U – 48 x 48 x 115mm (W x H x D)Applications : Paper board counting, bag counting, bottle counting, relay change over counting, breaker panels, stroke counting in granite cutting m/c and many more.

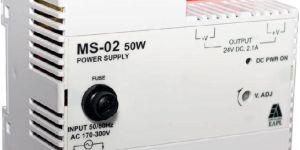

Features : Compact, light weight and SMPS design Versatile and easy snap-on mounting on Din-rail Very low ripple and noise Regulated and adjusted output Protection against over voltage, short circuit and over load. Dimensions : Overall : MS-01 - 45 x 75 x 116mm, MS-02 – 110 x 86 x 71mm MS-03 - 155 x 88 x 79mm MS-04 - 172x150x78mm MS-05 – 22.5 x 75 x 97mm (W x H x D) Applications : PLC, DC Panels, DC Solenoids, DC Relay boards, Battery Charging Panels.

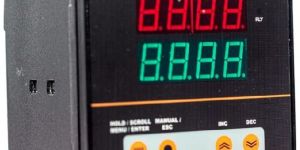

Features : Front button for resetting in manual mode External potential free (zero volt /no voltage) terminal contacts for auto mode. LED indication for relay status Window displays the type of fault that has occurred during unhealthy condition Trip delay time and limits for each parameter can be set digitally All programs can be locked by removing short link across specified terminals Unwanted parameters can be by-passed as per user's choice. Relay can be configured to have NO or NC status during healthy condition Unit will retain fault till accepted in manual mode PVMD, PVMD-G : Monitors and trips the circuit after the set trip delay time when ever power unhealthiness (phase failure, phase sequence, phase unbalance under voltage or over voltage) occurs. Displays all the 3 phase voltages in a scrolling fashion during healthy condition. PVMD – Panel / Flush mounting, PVMD-G Din Rail mounting PVIMD, PVIMD-G : Monitors and trips the circuit after the set trip delay time when ever power unhealthiness (phase failure, phase sequence, phase unbalance under voltage, over voltage, under current or over current) Displays all the 3 phase voltages and 3 phase currents in a scrolling fashion during healthy condition. User can program nominal current. Under current and over current limits can be set in percentage with reference to nominal current. User can set the in-rush time delay. Terminals to connect all the 3 phase CTs are provided. CT primary can be programmed up to 500 in steps of 5. CT secondary will be factory set for 5 PVIMD – Panel / Flush mounting. PVIMD-G - Din Rail mounting Din sized enclosure with Auto / manual Switch Dimensions : Overall : PVMD, PVIMD– 96 x 96 x 97.5mm, PVMD-G, PVIMD-G,– 76 x 78 x 115mm (W x H x D) Cut-out : PVMD, PVIMD– 92 x 92mm (W x H) Applications : Any 3 phase 4wire systems like Motors, pumps, generators, Distribution panels, MCC, air conditioners, elevators, cranes, escalators

Features : Micro-controller based design with world class Indian software. Non-contact sensing through reflected light beam on reflective sticker. LCD display Input sensing indication through LED. Memory facility to retain measured value. Portable, lightweight, strong and elegant ABS enclosure. Accuracy: 1RPM up to 5,000 RPM and 0.05% of the reading above 5,000 RPM. Resolution: 0.1RPM up to 5,999 RPM and 1RPM at and above 6,000RPM. Calibration certificate provided along with tachometer - traceable to national and international standards. Dimensions : Over-all: 72 X 170 X 38mm (W X H X D).Applications : Motors, Pumps, Generators, Engines and many more.

Material : Stainless Steel

Weight : 0-150 Gm

Finishing : Polished

Pressure : 8-12 Kg/cm2

Temperature : 0-50 Deg C

Automation Grade : Automatic

Max. Current : 10-15Amps

Packaging Type : Plastic Packet

Cable Length : 15-30mm

Output : 15-20ma

Working Pressure : 12kg/cm2

Usage : Switching USe, Laboratory

Specialities : Optimum Efficiency, Adjustable, Accuracy

Packaging Type : Corrugated Boxes

Dial Size : 8 Inch

Application : Liquid Pressure, Air Compressor

Specialties : Rust Proof, Perfect Strength, Easy To Fit

Diameter in mm : 20-40mm

Liquid Pressure in Bar : 0-500 Bar

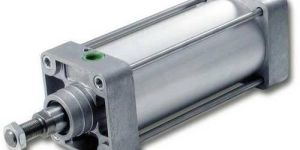

Type : Pneumatic Cylinders

Material : Silicone Rubber

Shape : Round

Thickness : 10-20mm

Feature : Fine Finish, Good Quality, Robust Construction

Country of Origin : India

Features : Designed for the control of cotton level in laminae duct in ERM cleaners. Designed for Industrial Environment High Intensity pulsed Infra Red Emitter Time Delay up to 20 Seconds. Highly immune to Ambient Light 45mm Din Rail mounting. Dimensions : Overall:45 x 75 x 116mm (W x H x D)Applications : Designed for control of cotton level in laminae duct in ERM cleaners and similar application.

Voltage : 220V

Rated Power : 1-3kw

Automatic Grade : Automatic

Driven Type : Electric

Warrenty : 2 Years

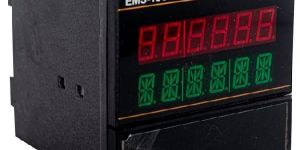

Features : Measurement of basic, power, energy and demand parameters. On-site programmable PT and CT ratios. High brightness LED display (alpha numeric for parameter, numeric for value). Automatic CT reverse correction for energy and demand. Programmable demand techniques : block / sliding window. Programmable demand parameters : Apparent / Active power. Programmable demand range : Kilo / Mega. Programmable Alarm / hysterisis settings. Program RTC time to match EB meter's clock. For EMS-15C : Max. Demand Controller = Max. demand indicator + Relay module (4 relay) (RR-4). 4 control outputs for alarm and trip settings. Dimensions : Overall : EMS 15,EMS 15C 96 x 96 x 117mm (W x H x D) RR-4 : 195x90x59mm(WxHxD) Cutout: 92 x 92mm(W x H) Applications : In-comer distribution panels

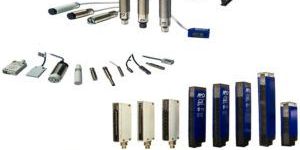

Features : This is a light switch working on direct or reflective transmission principle. It consists of high intensity emitter source and high sensitive receiver The signal received from the receiver will operate a relay with ON delay or OFF delay depending on mode selected. The time range can be 0.3 sec / 30 sec. Dimensions : EALS-4505 Dimension:45 x 75 x 116mm(WxHxD) EALSR-01:19.2 x 35.5 x 127.5mm (W x H x D) EALSE-01:19.2 x 35.5 x 127.5mm (W x H x D) Applications : Hopper Feed Control, Stop Motion Device, Light Barriers, Level Control, Intrusion Alarm.

Type : Sensors

Material : Plastic

Application : Automobile Use

Power : 15w, 20w

Warranty : 2years

Alarm Range : 2.5mtr

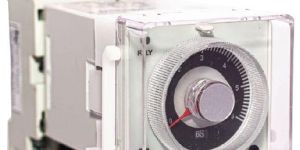

Features : LED indication for timing in progress Front protective cover for safety. Timer and base available for Track(except H3D1). Large transparent knob with lock is provided for precise time setting and protect from unintentional change of time setting. H1DA-X : Accepts any voltage from 12V AC/DC to 240V AC / 220V DC as signal between command contacts for timing initiation. H1D1-X, H3D1: Multifunction-On-Delay / Interval / Equal Cyclic-On / Equal Cyclic-Off programmable. Applications : Textile machines, Vending machines and many more.Dimensions : Over-all: 45 X 75 X 116mm (W X H X D). Cut-out: 46 X 46mm (W x H)

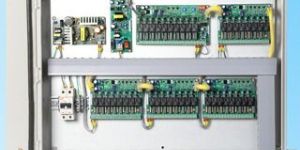

SEQUENTIAL TIMER CARD designed by v-solutions is to operate the solenoid pilot valves used on dust collector equipment. LED provide visual indication of energized pilot valve in sequence, and also “power on “ indication. The number of sequence step is adjustable from 2 through 24.   Controls are provided to adjust the length of time between valves being energized ( pulse frequency ) and the length of time that the valve is energized ( pulse duration ). Silicon semiconductor components control all timing and logic functions.   Two independent methods of starting and stopping the timer are provided.   The first method will automatically stop the sequence and reset the controller to the first valve position whenever A/C power is removed and then reconnected. The second method is by a remote contact connected to the terminals provided.

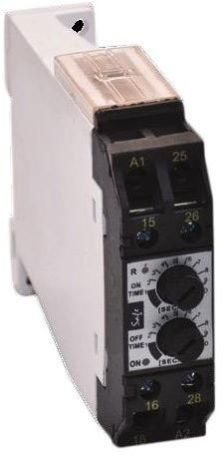

Features : Slim and Compact design Suitable for Din Rail Mounting Finger guard protection LED indication for timing in progress Dimensions : 17.5 x 89.0x 62.0mm (W x H x D)Applications : Automation Panels, HT / LT Panels, MCC Panels, C & R Panels, RTCC Panels, Transformer Panels and many more.

Features : Slim and Compact design Suitable for Din Rail Mounting Finger guard protection LED indication for timing in progress Dimensions : 17.5 x 89.0x 62.0mm (W x H x D)Applications : Automation Panels, HT / LT Panels, MCC Panels, C & R Panels, RTCC Panels, Transformer Panels and many more.

Features : Slim and Compact design Suitable for Din Rail Mounting Finger guard protection. LED indication for timing in progress Dimensions : Over-All 22.5 x 75 x 102 mm (W X H X D)Applications : Automation Panels, HT / LT Panels, MCC Panels, C & R Panels, RTCC Panels, Transformer Panels and many more.

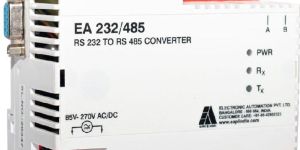

Features : Aux. supply - wide voltage and frequency range. Compactable baud rate - 2400, 4800, 9600, 19200. Max. no of nodes - 32. Max. cable length (RS-232 side) - 15mtrs typical. Max. cable length (RS-485 side) - 1000mtrs typical. Mounting - Din-rail. LED indication for power, Receiving and Transmitting signals Dimensions : Overall: 117 x 86 x 61mm (W x H x D)Applications : Converts RS485 to RS232

Features : Universal Input (J,K,PT-100) Selectable. Wide Voltage Range. ON / OFF or Self-Tuned Function Selectable. Single / double set point. Over Voltage Protection LED Indication for sensor selected, function and relay status Program enable / disable for sensor, function, hystersis, compensation features in TX7-Ua Dimensions : Overall : 48 x 48 x 95.5mm, TX7 Models- 72 X 72 X 128mm; EX9 Models- 96 x 96 x 117mm (W x H X D) Cut-out : H3-TX Models – 46 x 46mm, TX7 Models - 69 x 69mm , EX9 Models – 92 x 92mm (W x H) ApplicationsAny 3 phase 4wire systems like Motors, pumps, generators, Distribution panels, MCC, air conditioners, elevators, cranes and escalators etc.

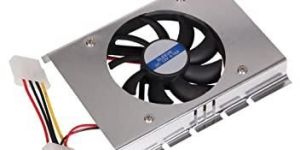

Type : Cooling Fans

Shape : Round

Application : Automobiles

Weight : 500gm

Voltage : 0-6vdc

Automatic Grade : Automatic

Power : 1-3kw
