Advancetech Instruments Mandi Samiti Road, Saharanpur, Uttar Pradesh

Brand Name : Advancetech

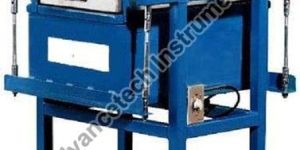

Chip Classifier is used for rapid and reproducible analysis of chip with respect to size and thickness. The unit is easy to operate and helps in segregating the chips in various classified sizes for analysis and corrective  action. Four standard size screening aluminum tray plus one for dust calculation are included. The unit is attached to guide mounted on the sliding bars, which are moved by eccentric arn in the separation of the chips into various fractions.

Brand Name : Advancetech

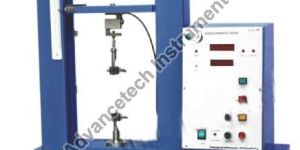

 Tensile Strength, the maximum force developed a test specimen before rupture on the tensile test carried to rupture under prescribed conditions. Tensile Strength (as used here) is the force per unit width of test specimen. Stretch, the maximum tensile strain developed in the test specimen before ruptrure in a tensile test carried to rupture under prescribed conditions. The stretch (or percentage elongation) is expressed in a percentage i.e. one hundred times the ratio of the increase in length of the test specimen to the original test span.Details : Tensile energy absorption (TEA), the work done when the specimen is stressed to rupture in tension under prescribed conditions as measured by the integral of the tensile strength over the range of tensile strain from zero to maximum strain. The TEA is expressed as energy per unit area (test sapn X width) of test specimen. Breaking Length, the calculating limiting length of strip of uniform width, beyond which, if sucha strip were suspended by one end, it would break of its own weight. Tensile Index, the tensile strength in N/m divided by grammage.

Brand Name : Advancetech

The instrument has a castled stand and having two parallel, plane circular faces between which the test piece is placed for measurement. One of the faces (the anvil).In the measuring spindle there is a stationary lower measuring area of 200 mm2. The movable measuring area is fixed on a bar, which also supports the dead weight load. The pressure between the two faces is 100 kPa + 10 kPa. The measuring indicator is located on the top of the bar is connected with optical transducer.Details : The bar is lifted and lowered by electrical motor. When you push the button on the side of the instrument, the bar with the movable measuring area is lifted with a specified speed. The speed at which the pressure foot is lowered is controlled automatically and adjusted to 4.0 mm/s + 0.2 mm/s. Make a few lifting of the upper measuring area and check the zero position. Adjust the zero. Now the instrument is ready for use. A set of thickness filler guagues, with two value for 0.150 and another 802 ± 2 micron to be used for calibration.

We Supply Taber Stiffness Tester All Across india. These Machines Are manufactured With High-quality Material. Advancetech Stiffness tester (taber type) is used to evaluate stiffness and resiliency properties of materials up to 10,000 Taber Stiffness Units. This precision instrument provides accurate test measurement to ±1.0% for specimens 0.004" to 0.219" thickness. Materials include paper products, cardboard, plastics, metals, textiles, rubber, wire, tubing, felts and other sheet materials.Incorporated in the Stiffness Tester is a bi-directional pendulum weighing system. Providing an accurate and responsive method for measuring small load increments, this system is a critical component for determining material stiffness or resiliency.

Brand Name : Advancetech

Dennison standard paper testing waxes are designed for use by paper and coated paper manufacturers, printers, lithographers, and other concerned with the development, inspection and control of paper for coating and printing purposes.The use of these waxes I described by the Technical association of the pulp & paper industry in relation to the surface strength measurement of paper products. Method T456-SU-65 published by the Association gives their latest approved method for this measurement. The use of these waxes is also described by the American society for testing and Materials in their method D2482-66T.The wax test is applicable to coated and uncoated papers and is formulated to evaluate the surface strength of paper or its resistance to picking. This test may be conducted to determine the degree of sizing in the coating in relation to the required press conditions, to estimate the ease with which a coating may be removed or “picked’ from the bodystock, and the tendency of the bodystock to split or the printing process. It is used in a similar manner for evaluating uncoated papers and other surfaces.The series of waxes have graded adhesive powers. They run from 2A, which has the least adhesive strength, and increase by small graduated amounts to 23A which has the greatest adhesive strength. Hence there is an increase in the degree of adhesion to surface fibres or coating coincidental with the increase in wax numbers.The complete series consists of 18 waxes, Nos. 2A, 3A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 11A, 12A, 13A, 14A, 16A, 18A, 20A, 23A,  and is available as a set in a cabinet, with an alcohol lamp, instructions, and accessories.

The Short Span tester is an advanced instrument which yields the national and international standard such as ISO, Tappi, and SCAN etc. The short span compression tester also reduces the factor which gives variation; Tester also reduces loading and unfavorable stress. It also avoids these factors giving result which have a material property unaffected by density and gram mage. The accuracy and repeatability of test result depends on the correct sample conditioning. The internal programming provided the rapid means of setting up the instruments. The facilities such as Peak hold at max load auto return after the completion of that test.Principle : A test specimen, 15 mm wide is clamped in pneumatically operated two clamps, 0.7 mm (0.0276 in.) apart. The clamps are forced towards each other until a compressive failure occurs. The maximum force causing failure is measured.

Frequency : 50 - 60 Hz

Brand Name : Advancetech

The machine in designed for determining the tensile  strength of  sheet  material such as paper, paper board,  plastics, metal foil, etc. The testing is made by inserting a sample between  two vertical  grips, and increasing the load until the sample  breaks. The elongation of the sample is measured simultaneously.Determination occurs by means of  a pendulum balance. When the inserted sample is subjected to a  strain,  the pendulum will make a deflection is indicated on a scale  directly in kilograms. Different load weights for the pendulum correspond to the respective graduation.The graduation 0-500 g only correspond to bare pendulum without extra load.The elongation is determined by measuring the increase in the distance between the clamps, which is indicated on the elongation scale. This scale has graduation in millimeters and in  per  cent based  on  180 mm testing length (which is a  standard  in  paper testing).  Should the elongation be wanted in per cent  based on other testing lengths, this must be calculated.Tensile Strength Tester (schopper type ) meets the requirements laid down in the testing standards as per  TAPPI standardsTechnical Specifications : Mains Supply - 220 Volts ±10%, 50 cycles (if not otherwise specified in your order and acknowledge by us) Measuring Range - Low range – 0 to 300.0 N,  high range – 0 to 600 N Accuracy    - Better than ± 1% of force reading, but not better than ± 1 . Clamps - Tightening clamps for 15 mm wide strips Strip Dimension - 15 x 180 mm Clamping length - 0-250 mm adjustable Power Requirement - Capacity 250 Watt Fuse -  5 Amp. Glass tube fuse Deformation Speed -  Selected/Variable Automatic return of platens after rapture

Brand Name : Advancetech

Two horizontally opposed and movable clamping jaws, which hold a specimen 100 mm (4 in.) long under variable tension during the folding cycle, while a slotted folding blade, sliding back and forth between four creasing rollers, folds the paper at 105-125 double folds per minute. The clamps are supported from below on rollers and, while in motion, are freely suspended between tension springs. The folding blade is 0.50± 0.0125 mm (0.020±0.0005 in.) wide, the slot extending somewhat above and below the normal position of the test specimen. Details : The vertical edges of the slot are cylindrical with radius equal to half the thickness of the blade. The four creasing rollers, each 6mm (approximately ¼ in.) diameter and 18 mm (approximately ¾ in.) long, are arranged symmetrically about the mid position of the folding slot and are provided with antifriction or jeweled bearings. 6 digit mechanical Counter, to register the number of double folds and to stop the instrument when the specimen breaks with reset knob to make it zero.

Type : Schopper

Brand Name : Advancetech

Our reliable and superfast shipping facilities will not let you wait much and will efficiently deliver the range to your doorstep. We understand how important packaging is. Therefore, we make sure our products ate packed properly, have smudge-proof labels and are aesthetic to look to lure in more customers. The advance tech Sample cutter for ring crush tester (punch & die type )with high steel high chromium as per Tappi std. size 0.5 inch x 6 inch.

Brand Name : Advancetech

Rapid Dryer is used for quick drying of wet pulp or paper samples before measuring dry weight, while determining moisture content. A wet sample of pulp or paper is placed between the upper and the lower drying plates of the dryer. The temperature of the dryer is adjustable, allowing precise control of the drying conditions.After the prescribed drying time, the samples can be weighted to determine the moisture / solids content.Features : Rectangular Drying Plates Lower Plate is lined with wire cloth to lead off vapour during drying Adjustable thermostatically controlled drying temperature over a wide range Switch provided with indicator lamp. Upper and lower drying plates are heated with flat electrical elements. Technical Specifications : Sheet Size - Max width 250 mm, Max Length 300 mm Temperature Range - up to 1800C ± 100C Power Consumption - 0.8 KW Heater - Flat Electrical Elements single phase, 220 V, 400 W each for upper and lower plates.

Brand Name : Advancetech

A pulp sample is said to be disintegrated when it has been subjected to mechanical treatment in water so that interlaced fibres, which were free in the pulp stock, are gain separated from one another without appreciably changing their structural properties.Apparatus : A disintegrator consisting of : A cylindrical container, provided with four vanes on the inside. A propeller mounted on a vertical shaft, driven by electric motor. A counter for recording the number of revolution and auto stop at set counter. Technical Specifications : Mains Supply - 415 Volts or 220volt ±10%, 50 cycles  (if not otherwise specified in your order and acknowledge by us) Revolution Range - 99999 rpm Accuracy - Better than ± 1%. Display - Seven segment  digital read out

Brand Name : Advancetech

Country of Origin : India

Material : Metal

Application : Industrial

Color : Grey, Metallic

Automatic Grade : Semi Automatic

Blade Finishing : Coated

Brand Name : Advancetech

Country of Origin : India

Application : Industrial

Color : Grey, Metallic

Automatic Grade : Semi Automatic

Blade Finishing : Coated

Brand Name : Advancetech

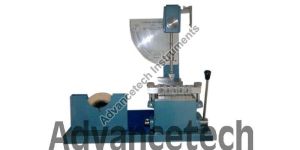

Internal Ply Bond Tester is used to measure the internal bond strength of papers. Designed originally to evaluate the de-lamination strength of barrier materials comprised of kraft paper and sisal yarns, the Internal Ply Bond Tester has found many other uses in quality control laboratories in paper industry. The unit is used to measure the average force, in thousandths of ft. lb., required to de-laminate the fibers in the paper specimen, as described by the TAPPI “Useful Methods  403”. Other test includes de-lamination of bonding strength of coated papers stocks, the fibre bonding strength of kraft stocks (“Z” axis tensile) and the ply de-lamination strength of paper board. The Internal Bond Tester mat also be used as a coating pick tester. The procedures for this test are given in the TAPPI “Useful Methods 534”.General Features : A table-mounted unit designed for ease of operation, this model does not require an electrical power source. The unit consists of a base, a sample preparation device and a dual capacity free-swinging pendulum incorporating a ball nose-striking hammer. The pendulum pivots on ball bearings and a striking hammer gives point contact on the aluminum angle of the specimen assembly. The energy of the pendulum may be changed by simple adding or removing weights. The dial has two scales, for light and heavy loads. The specimen is held between the base and the anvil of the test fixture by double-sided pressure sensitive tape. Test fixture provide a standard specimen of one inch square, with lamination assembled under calibrated pressure to assure uniform adhesion throughout the samples. Technical Specifications : Load Measuring System: Consist of a free swinging dual capacity, pendulum of 0 to 0.250 and 0.100 and 0.500 ft. lbs. Capacity, a frication pointer of transparent plastic and a calibrated dial to indicate the force expanded by the impact. The pendulum assembly is supported by a cantilevered column, pedestal mounted on a cast iron base. A dispenser for a double-sided pressure sensitive tape width 1” is also an integral part of this model and is mounted into the base of the instrument along with the sample preparation apparatus consisting of five positions, each having one base and one angle. The aluminum angles are retained in a fixture for ease of alignment and assembly. After the samples are prepared pressure is applied through a cam and a lever. The range of pressure is adjusted from 50 PSI to 200 PSI by changing the capacity washers furnished with the tester.

Brand Name : Advancetech

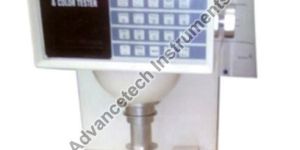

The model is having three search unit (sensor unit) determines the reflectance of the surface of the objects, as well as the colour, by measuring the light reflected from their surface and then comparing to standards. The instrument consists of a Sensor Unit and a Photometer. The Sensor Unit provides the light source and the measurement transducers (Photocells). The outputs of the Sensor Unit are fed to photometer where they are processed and converted into a digital reading, which is displayed on the front panel.Applications : A useful comprehensive list of application is given in other literature along with appropriate S.U., filters, and applicable standard methods. Below, some of these applications are put into prospective, with only the most widespread and important ones mentioned. Paper Industry - Our instrument is widely used to measure the “paper brightness” using S.U. “W”, which has a blue filter built in. gloss measurement using S.U. “P” and opacity measurement using S.U. “Y” with green tristimulus filter are also possible. For opacity the instrument is first set to read 100, with the sample placed on white plaque. Then a reading is taken with the sample on black surface this reading is % opacity.

Brand Name : Advancetech

A sample is placed between the blanket and steel roll and sample is moved between the roles under nip pressure. After selected number of sheets have been passed the fluff is transferred to blanket cylinders and a linen counter moved at the top of the machine to count the numbers of particles & fibers adhering to a given area of blanket.Technical Specifications : Nip pressure - 13.5 Kg. by dead weight roller. Blanket cylinder - 10” wide x 6” dia. Blanket material - Can be easily changed Measuring area - One square inch. Sheet feeding system    - Manual and sheets are pressed into the nip between rubber  blanket and printing plates cylinder

Brand Name : Advancetech

Country of Origin : India

Application : Commercial Applications

Packaging Type : Box

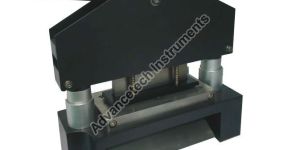

Brand Name : Advancetech

Country of Origin : India

Type : Circular Cutters

Material : Metal

Color : Grey, Metallic

Automatic Grade : Semi Automatic

Brand Name : Advancetech

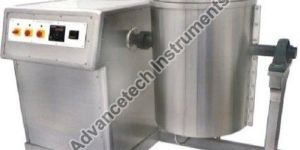

The Digester is a complete pulping unit for producing pulps by cooking wood chips in a manner similar to a commercial digester. The unit is easy to operate and features precise control of pulping variables to ensure good repeatability of results. Digital temp Indicator-cum-controller precisely control the temperature range upto-200 oC. The rotation with change in turning direction provide efficient agitation to the samples.

Brand Name : Advancetech

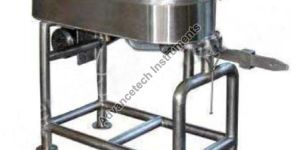

Beater of valley type is used for laboratory beating of pulp under standardized condition. The degree of betting can be varied. Beating is a preliminary step to the testing of the physical properties of pulp. In principle, this standard applies to all kinds of satisfactory results with certain extremely long fibred pulps, such as cotton lintersApparatus :The lab beater consists of a pulp chest of acid proof ground and polished internally. The pulp chest is divided in the centre and forms a circular basin in which the pulp can flow around. A hardened, portion separate the two halves of the pulp chest. The pulp between the beater roll and the beater plate. The beating pressure is controlled by means of the lever which is loaded with dead weights.A measured quantity of pulp with a specific consistency is beaten between the knives in the beater. Samples of the beaten pulp are taken at predetermined intervals during the beating.

Weight : 180 Kg

Brand Name : Advancetech

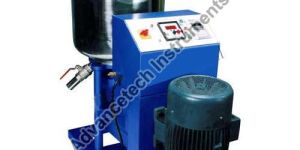

Lab Hydrapulper is a complete pulping unit used for marking pulp from secondary fiber waste paper, on lab scale. It can also be used for mechno-chemical pulping. It has 30 liters capacity and can be also made available in 10 & 20 liters capacity, if required. The tub made of stainless steel, is provided with lid to fit tightly on the tub. There is an outer cover on the tub to make an access to the heaters and their connections. Four Heaters of 500 W each are fitted in the double wall annular space of the tub with glass wool as heat insulation to provide the heating controlled through thermostat. The Helicon Turbine fitted inside the tub is driven through V-Belt by the 5 HP motor at 500 RPM, for the desired time duration to form the pulp, at around 80 0C. The pulp samples can be checked by opening the top lid at intervals to ascertain its readiness.Features : Tub made of stainless steel, fitted with top opening, lid and bottom drain valve. Available in 10, 20 & 30 Liters capacity. Helicon-Turbine fitted inside the tub which is driven by 5 HP motor at 500 RPM with 440 V 3-Phase, 50 Hz supply. Special tool made available for fixing and withdrawing of turbine. Heaters are provided in the double walled space, heat insulated with glass wool. Temperature is adjustable upto 100 0C and maintained at any value through thermostat control. Drain valve provided at bottom for emptying the tank. Complete unit with motor and control panel mounted on firm base frame. Technical Specifications : Mains Supply - 415 Volts ±10%, 50 cycles (if not otherwise specified in your order and acknowledge by us) Tub Material - Stainless Steel Tub Capacity - 30 liters (other capacity of 10 & 20 also available) Motor - 5 HP, 920 RPM Heaters - 500 W each Thermostat control  - Upto 1000C

Brand Name : Advancetech

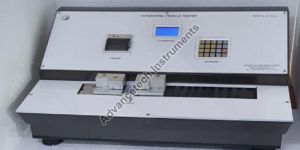

Tensile strength, the maximum tensile force developed in a test specimen before rupture on a tensile test carried to rupture under prescribed conditions. Tensile strength (as used here) is the force per unit  width of test speciman. Stretch, the maximum tensile strain developed in the test specimen before rupture in a tensile test carried to rupture under prescribed conditions. The stretch (or percentage elongation) is expressed as a percentage, i.e., one hundred times the ratio of the increase in length of the test specimen to the original test span.Tensile energy absorption (TEA) the work done when a specimen is stressed to rupture in tension under prescribed conditions as measured by the integral of the tensile strength over the range of tensile strain from zero to maximum strain. The TEA is expressed as energy per unit area (test span x width) of test specimen.Tensile stiffness, the ratio of tensile force per unit width to tensile strain with in the elastic region of the tensile strain relationship. The elastic region of the tensile strain relationship is the linear portion of the load elongation relationship up to the elastic limit. The elastic limit is the maximum tensile force above, which the load elongation relationship departs from linearity. (Tensile stiffness is numerically equivalent To E  Where E is the modulus of elasticity and is sample thickness).Breaking length, the calculated limiting length of a strip of uniform width, beyond which, if such a strip were suspended by one end, it would break of its own weight.Horizontal Tensile Strength Tester meets the requirements laid down in the testing standards as per TAPPI standardsTechnical Specifications : Mains Supply - 220 Volts ±10%, 50 cycles (if not otherwise specified in your order and acknowledge by us) Load Sensor - 50.0 kg. or depend on requirment Measuring Range - 499.9N Accuracy     - Better than ± 1% of force reading, but not better than ± 1 . Display - lcd display Clamps - Tightening clamps for 15 mm wide strips by pneumatic Strip Dimension - 15 x 180 mm Clamping length - 100 150,180 mm Instrument Air - 300 kPa Computer Output - com port to transfer the data on pc Power Requirement - Capacity 300 Watt Deformation Speed - Selected/Variable Automatic return of platens after rapture Electronic overload protection at load cell capacity.

Brand Name : Advancetech

We Are prominent Manufacturer, Dealer, Supplier & Exporter of Hollander Beater in Uttar pradesh, India. We Supply Hollander Beater All Across india. These Hollander Beater Are manufactured With High-quality Material.These Hollander Beaters are high on performance and are durable in nature. Our Hollander Beater is highly efficient due to the incorporation of high grade raw material in the production process and is used for uniform treatment of pulp under standard condition. We test our Hollander Beaters under stringent industry parameters for any type of flaws and faults.

Type : Automatic

Finishing : Polished

Packaging Type : Corrugated Boxes

Weight : 200- 1000 Gm

Feature : Easy to Hollander Beater Applications Paper Pulp Industries

Brand Name : Advancetech
