WOODEN PULP HAND SHEET FORMER SCA TYPE
The Hand Sheet Former (SCA Type). It is suitable for various industrial applications and is manufactured using optimum grade components and latest technology, this machine can withstand adverse working conditions. The offered machine is available in different technical specifications to meet the diverse needs of the clients. Offered Hand Sheet Former (SCA Type) requires low maintenance and can be operated easily. Features: Long service life Easy to install High strength Robustness
...more

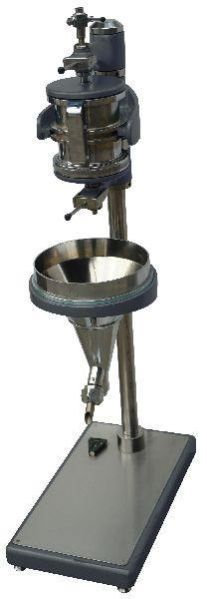

WOODEN PULP BEATING and FREENESS TESTER CANADIAN TYPE
This instrument is used for determination of freeness of wood fibre ground wood and mechanical pulp. It measures the Canadian Freeness number which is a measurement of the drainage capacity of different pulp types.
...more

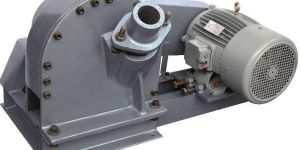

Wood Chipper
For Preparator of chip from wood, for Lab and educational purpose. Capacity max 500 Kg/H.Chipping Disk 350 mm diameter speed 700 rpm. Input Tube Diameter 80 mm Set an angle of about 50 Degree.
...more
WET STRENGHT TESTER
The Universal’s wet strength tester is used for measuring the initial wet strength & elongation. This instrument is used for measuring the maximum tensile force per unit width that a wet test piece, made from a pulp under specified conditions, will stand before breaking in a tensile test. It measures the initial wet web strength and elongation of newsprint strip or pulp. Digital display with automatic return after rupture.
...more

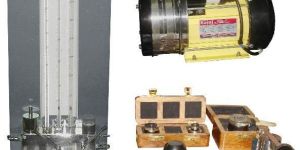

Smoothness and Porosity Tester
The Roughness of paper or similar material is defined as the volume of air that is forced by a specified pressure difference escapes in unit time by passing between the surface of the specimen and flat metal ring resting on a specimen. The values indicates the surface smoothness of graded paper suitable for good print quality. A sample is placed on a perfect plane glass plate, measuring head on the test piece and a controlled and low air pressure pass through a flat metal ring and the specimen. The pressure difference read off/on selected rota meter tube. Measuring range: 5-150 ml/min. 50-500 ml/min., 300-3000 ml/min.
...more

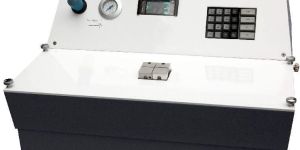

SHORT SPAN COMPRESSOR PAPER AND CRAFT TESTER
The compressive index of a material the failure load per width/basis weight) increase with sheet density in much the same way as the tensile index. Hence fibre characteristics that contribute to density and flexural modulus of the sheet and the resilience of the fibres themselves are likely contributing factors. Fully microprocessor controlled menu driven software allows easy selection and setting of test parameters with precise pneumatic clamping hold the specimen accurately and sample test to minimize the human error during test to provide rapid and efficient determination of compression strength of fluting media or test liner suitable for paper and paperboard GSM range 100-400 with in-built printer.
...more
Scuff Tester
To measure rub proofness of printed paper, carton package & board by applied contact pressure. Two contact disc rotate in contact at a same angular speed, giving constant relative velocity between all points of the disc. With interchangeable dead weight and Electrically driven system.
...more
Rapid Sheet Dryer
This instrument is used for shortening the drying time of wet pulp or paper samples before determining the dry weight or moisture content. It is provided with flat heating elements. Stainless steel sheet fabrications with insulating material ensure long service life. Suitable for Sheet Size: Max. width 250 mm, Max length 300 mm. Temperature: Adjustable over a wide range up to maximum of 180o ± 10o C.
...more
Rag Chopper
The Rag Chopper is suitable to chop the Different Raw Material i.e, cotton Lintel, Jute, Gunny Bags, hosiery waste in small pieces to feed the digester / Beater.
...more
QUADRENT SCALE
This instrument is intended for measuring the Basis Weight (GSM) of paper and other sheet materials by weighing a small test sample with given dimensions. Scales are calibrated to precision dead weights. This accuracy is maintained as long as the pendulum returns to its original form and is kept free from corrosion, distortion, or other causes, which may affect its weight and balance
...more

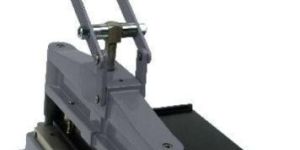

PUNCH AND DIE STRIP PAPER/CRAFT CUTTER
The Precision Test Strip Punch and Die paper/craft Cutters are intended for accurate and rapid preparation of test pieces for use in tensile strength tests, ring crush tests, folding endurance test, water absorbency test and other similar tests without any deformation and damage. It is suitable for cutting a very wide range of sheet material such as plastics, textiles, paper and paperboard. Multi test samples cutting is simultaneously feasible. Cut size: 15 x 300, 25 x 300, 50 x 300, 12.7 x 152 mm and also available at customer requirement. 15 x 300 mm for sample preparation of Tensile, Short Span, Folding (Kholer Molin) & Water absorption Test
...more

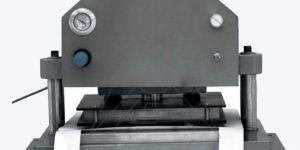

PUNCH AND DIE CUTTER PNEUMATIC CLAMPING
The Paper Guillotine has a sheet metal base and incorporates a guide for the material to be cut. Both top and bottom cutting blades are made from special knife steel and can be re sharpened.
...more

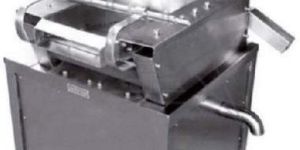

PULP FIBER FRACTIONATOR
This instrument is used for determining the shieve content in ground wood pulp. Contains the slotted screen of width 0.15 mm slots. A motor driven eccentric diaphragm actuation. Provided the suction for fractionation on the surface of the screen filled of the water. Designed in accordance with second report of the Pulp Evaluation Committee to the Technical Section of Paper Makers Association.
...more

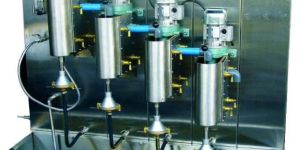

PULP FIBER CLASSIFIER
We manufacture and export highly efficient Bauer Mcnett Fibre Classifier that can be installed easily and requires low maintenance. It is used for determining the fibre length and is highly demanded in numerous industries. The offered machine is manufactured using optimum quality components and advanced technology at our hi-tech manufacturing unit. Available in different technical specifications, our offered Bauer Mcnett Fibre Classifier is available at industry leading prices. Features: Sturdy construction High performance Smooth operation Long service life
...more

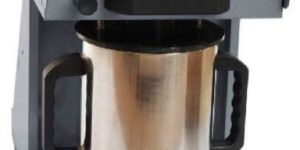

Pulp Disintegrator
This instrument is used for standardized disintegration of pulp to a homogeneous suspension required for preparation of laboratory hand sheet and other purpose. Pivoted drive unit with stainless steel propeller and shaft. The propeller is driven by electric motor via stepped timing belt, which ensures a direct drive without slippage. Option: Digital Preset impulse Counter on front panel for setting, desired number of revolution. Pulp Container with Heating Elements and Thermostat control.
...more

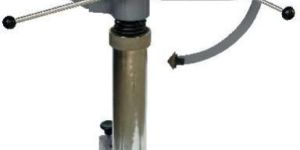

PUCNTURE RESISTENCE TESTER
Puncture Resistance: The puncture resistance of paperboard is measured as the energy required to force a puncture head of specified design through a test piece of the board under specified testing condition. A test piece is clamped between two horizontal plates in each of which is a triangular hole. A triangular pyramid puncture head, attached to a swinging pendulum, punctures the test piece and the energy required to force it through the test piece is measured. Measuring range 0-5, 0-10,0-20 & 0-36 Nm OR Measuring range 0-58.5, 0-200, 0-400, 0-800, 0-1600 kgf.
...more

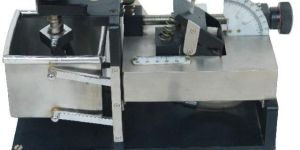

Paper Curl Tester
This instrument is used to measure the Degree of curl when the paper sample exposed to water. This method applies the principle of wetting one side of the paper and determining the maximum curvature developed or the time required to reach maximum curvature . The maximum Curvature is an indication of relative tendency of certain paper, especially, to curl under normal condition of usage. The time required to reach max. Curvature is measure of relative degree of sizing such as secured with rosin (3)
...more

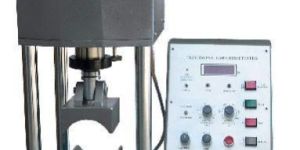

PAPER CORE CRUSH TESTER
DIGITAL MODEL: This instrument is used for testing the core collapsing strength and has adjustable testing area to accommodate specimen sizes and shapes. Motorized operated piston to apply uniform pressure to crush the test sample. The maximum peak crush value recorded on digital load indicator.
...more

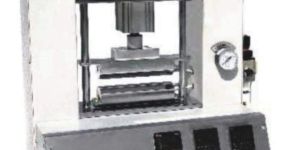

Oil Penetration Tester
This instrument is used fordetermining the penetration time of oil and other liquids through paper and other similar materials used for lamination purpose. Electronic self starting timer for time measurement of Penetration time in seconds. Measuring Range: Upto 99,999 seconds.
...more
LABORATORY WOOD CHIPPER
For preparation of chips from wood, bamboo and other similar material for laboratory cooking trial and educational purposes. Input tube diameter 80 mm set at and angle of about 500. Chipping disc: 350 mm diameter Speed : 700 rpm. Option: Extra knives
...more

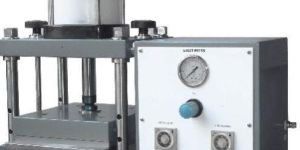

Laboratory Sheet Press
For KCL TYPE SHEET FORMER - Pneumatically operated sheet press suitable for de-watering of square sheets, provided with two adjustable timers i.e. 12 & 6 minutes pressing with adjustable timing for two sequential de-watering of sheets. Pressing force maximum 16 kN. Maximum sheet size 330 x 350 mm. Standard Model sheet size 165 x 165 mm Suitable for other sizes: 200 x 200, A4 size.
...more

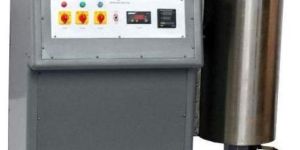

LABORATORY ROTATORY DIGESTOR
This instrument is used for producing pulp from various fibrous material under specified and controlled condition under pressure, temperature and time. Maximum pressure 15 kg/cm2. Electrically heating system provided with Microprocessor based temperature indicator cum controller with facility of more detailed pre-programming to control the boiling sequence. Temperature Range: 50 Co to 200 Co Standard Model: 15 liter capacity Other available capacities : 15/25/50/100 Liters
...more
Laboratory Pulping Unit
Pulping unit is used for laboratory production of chemical pulp. It is provided with pressure tested six autoclaves, of capacity 2.5 liters each suitable for 300/350 gm bone-dry samples, rotate in hot poly glycol bath. Microprocessor based temperature indicator cum controller with facility of more detailed pre-programming to control the boiling sequence. Two Heating elements of capacity 7.5 KW each. Digital temp Indicator-cum-controller precisely control the temperature range 50o-250oC. Maximum Working pressure 15 Kg./cm2.
...more

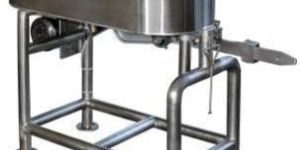

LABORATORY PULP VELLY BEATER
With great conceit, we set up ourselves as the foremost manufacturer and exporter of excellent quality Laboratory Valley Beater that is used to beat pulp in a uniform, standard and reproducible way. The offered product is available in various specifications to meet the diverse needs of the clients. Offered product is manufactured using highly durable components and innovative technology at our state-of-the-art manufacturing unit. High strength Sturdiness Anti corrosive nature Long working life
...more
