Pulp Testing Instruments Dealers in Saharanpur

• Model No: AI 9018
• Driven Type: Electric

Our company is one of the credible Manufacturers, Exporters and Suppliers of Pulp Disintegrator from Saharanpur, Uttar Pradesh. We are capable of customizing the Pulp Disintegrator according to the specifications provided by the customer. We can be relied upon for swiftly delivering the Pulp Disintegrator to domestic and international markets.Details : Pulp Disintegrator that is highly appreciated for its sturdy design and high performance among the clients. This Pulp Disintegrator is used for standardized disintegration of pulp to a homogeneous suspension required for preparation of laboratory hand sheet and another purpose. Pulp Disintegrator is driven by an electric motor via a stepped timing belt, which ensures a direct drive without slippage. Revolutions counter with digital display.Model :  AI 9018

We are backed by a modern transportation facility that ensures safe delivery of the orders at required destinations. Customers can provide their specifications to us in regards to the packaging of the products as we serve customized packaging requirements. We ensure damage-free products at customer's end.

• Voltage: 220 V
• Frequency: 50 Hz
• Brand Name: Advancetech
• Sample of pulp: 10.0 +/- 0.05 grams
• Agitators speed: 580 +/- 25 rpm
• Material: Stainless Steel
• Phase: 3 Phase

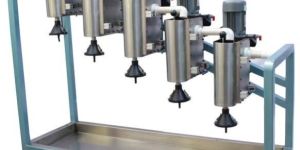

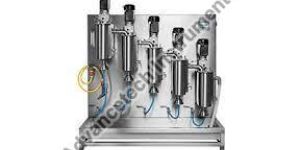

We Are prominent Manufacturer, Dealer, Supplier & Exporter of Fiber Classifier in Uttar pradesh, India. We Supply Fiber Classifier All Across india. These Fiber Classifier Are manufactured With High-quality Material. An agitated pulp suspension is fractionated by means of a screening process employing vertical screens with increasing wire sieve cloth numbers. The screens are mounted in tanks arranged in cascade.The mass of the fibres retained by each screen and of those passing all the screens in determined and expressed as a percentage of the oven-dry mass of the original sample.Fiber classifier consisting of five units mounted in cascade. Each units comprises a S.S. tank having the One of the flat sides has a rectangular aperture sealed by a detachable frame, which is clamped against a gasket. The frame is fitted with a slit plate and a wire sieve cloth, 335 cm2 (165mm x 23mm) in area and the lower edge of the frame is 50mm above the bottom of the tank .The slit plate, which equalizes the flow through the wire sieve cloth, can be removed from the frame. It has three vertical slots measuring the middle slot is located centrally with respect to the screen. The guide plate in the tank is mounted inside the screen and parallel and symmetrical with it. It has three vertical slots measuring 2mm x 190mm and set 41mm apart; the middle slot is located centrally with respect to the screen. The guide plate in the tank is mounted 14mm inside the screen and parallel and symmetrical with tank.

• Brand Name: STIPL
• Driven Type: Electric
• Application: Testing Use
• Voltage: 220V
• Type: Lab Testing Equipment
• Country of Origin: India
• Standards: TAPPI T200 , T205m, ISO5246-1, SCAN C25CPPA C.2
• Beater Roll: Made of Heat Treateable Stainless Steel
• Diameter: 193.8 mm & width 152.4 mm
• Beater Roll Flybar: Thickness of Each Flybar is 4.8 Mm and with a Brinell Hardness 350 - 400
• Beater roll drum speed: 500 rpm
• Width of the Bed Plate: 159 mm
• Number of Bed Plate Bars: 7 Bars, Each 3.2 mm Thick Set in Lead 2.4mm Apart with a Brinell Hardness 325-375
• Bed Plate Diaphgram: Thickness of 1.6 mm live rubber.
• Lever Arm: Casted with Dead Weight 5.5 Kgs.
• Power Supply: 380 V, AC 3 Phase, 1 HP.
