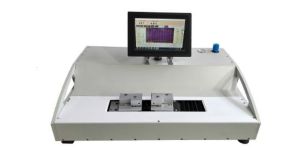

horizontal tensile tester
100,000 - 250,000 Per Pcs
1 piece (MOQ)
Tensile strength, the maximum tensile force developed in a test specimen before rupture on a tensile test carried to rupture under prescribed conditions. Tensile strength (as used here) is the force per unit width of test speciman. Stretch, the maximum tensile strain developed in the test specimen before rupture in a tensile test carried to rupture under prescribed conditions. The stretch (or percentage elongation) is expressed as a percentage, i.e., one hundred times the ratio of the increase in length of the test specimen to the original test span.Tensile energy absorption (TEA) the work done when a specimen is stressed to rupture in tension under prescribed conditions as measured by the integral of the tensile strength over the range of tensile strain from zero to maximum strain. The TEA is expressed as energy per unit area (test span x width) of test specimen.Tensile stiffness, the ratio of tensile force per unit width to tensile strain with in the elastic region of the tensile strain relationship. The elastic region of the tensile strain relationship is the linear portion of the load elongation relationship up to the elastic limit. The elastic limit is the maximum tensile force above, which the load elongation relationship departs from linearity. (Tensile stiffness is numerically equivalent To E Where E is the modulus of elasticity and is sample thickness).Breaking length, the calculated limiting length of a strip of uniform width, beyond which, if such a strip were suspended by one end, it would break of its own weight.Horizontal Tensile Strength Tester meets the requirements laid down in the testing standards as per TAPPI standardsTechnical Specifications : Mains Supply - 220 Volts ±10%, 50 cycles (if not otherwise specified in your order and acknowledge by us) Load Sensor - 50.0 kg. or depend on requirment Measuring Range - 499.9N Accuracy - Better than ± 1% of force reading, but not better than ± 1 . Display - lcd display Clamps - Tightening clamps for 15 mm wide strips by pneumatic Strip Dimension - 15 x 180 mm Clamping length - 100 150,180 mm Instrument Air - 300 kPa Computer Output - com port to transfer the data on pc Power Requirement - Capacity 300 Watt Deformation Speed - Selected/Variable Automatic return of platens after rapture Electronic overload protection at load cell capacity.
Electronic Tensile Tester
Get Price Quote
Electronic Tensile Tester (Horizontal) is available from us which are of superior quality. User-friendly software guides the operators through all steps of program selection. The parameter modification and sample test is also provided to minimize to human error during test to provide rapid and efficient determination of tensile strength, stretch, tensile energy absorption (TEA) and tensile stiffness of paper and paperboard with in-built printer, fitted with imported load cell & stepper motor from Japan. Standard model 0-50 Kg 500 N Applicable for Paper Packaging industries
Best Deals from Tensile Testing Machine
horizontal tensile tester
1 - 10,000 Per Piece
1 Unit (MOQ)
Tensile Strength Tester
185,000 - 225,000 Per piece
1 Piece (MOQ)

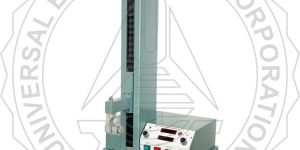

TENSILE STRENGTH TESTER (ELECTRONIC)
Get Price Quote
Electronic Tensile Tester (Vertical Model, Microprocessor Based) – for providing rapid and efficient determination of tensile strength stretch, breaking length and tensile energy absorption of paper and paperboard with in-built printer and imported load cell and imported DC Drive. Complete with memory for retaining peak value of load, automatic zero setting, overload and over travel protection facilities. Data can be transferred to PC through RS232 port. A dual screw unit testing frame to accommodate large size test piece with wide load ranges. Details : Standard Model Range - 0- 500 N. Available in other load range from 1000 N, 10000 N. Also available in higher Load Capacity
Paper Tensile Tester
50,000 Per Piece
1 Piece (MOQ)
Specified materials, such as paper towels or napkins, must conform to a certain contour and have a certain tensile stiffness. Printing paper, which is often manufactured in big sheets or rolls, must resist stresses encountered while passing through processing technologies. PREMIER ENTERPRISES as a Paper Tensile Tester Manufacturer, provides and sells the Paper Tensile Tester Machine, which is essential for testing the tensile properties of packaging-related produced goods and raw resources. The device has a single column vertical movement that is powered by low friction ball screws. The tool is made with strong steel specimens and operates on the CRT principle, ensuring validity and completeness. As Paper Tensile Tester Supplier in India, our machine is useful for determining a product's maximal tensile stress at which something constricts. The paper test piece is gripped between the upper and lower jaws and pushed in a reverse way. The top jaw remains immobile, while the bottom jaw swings at the specified speed with the assistance of a motor. As Paper Tensile Tester Exporter, our machine has a modular design and innovative features that are available in both digital and completely computerised models. The machine has an overload or travel safety device. The safety gadget includes an auto-stop feature. The device works efficiently, delivering accurate and dependable results to end-users.
