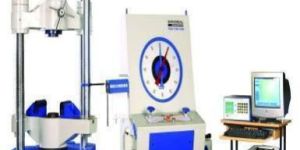

Computerized Testing Machine Dealers in Sangli

• Test Loads: 500,750,1000 & 3000 kgf
• Max test height: 380 mm (approx)
• Depth of throat: 200 mm
• Size of base: 380 x 740 mm (approx)
• Machine height: 1230 mm (approx)
• Drive Motor: 0.33 HP
• Power supply: AC (for machine) & 1 Phase 200-220 V, 50Hz, AC (for computer), 3 Phase 400-440 V
• Weight of the machine: 425 kg (approx)

computerized tensile testing machine, the most popular product of our offered range of products is embellished with following technicalities that help in apt functioning in various industrial applications. latest windows based, users friendly, accurate, menu driven softwarefully automatic, on screen calculations based on the delivered dataautomatic data capture, storage & graphic displayrecording, storage & retrieval of results & detailsbuild in facility for printing of test results and the graphload measurement by load cellover load & over travel safetyon line display of load, elongation & graphtare load & reset elongation facilities availableselectable units like n, kn, kgf, lbf, inch, mm, etcfully automatic on screen calculations like uts, ys, proof stress, etcelectronic extensometer (optional) is available for proof stress evaluationit is possible to use a number of load cells, say two or three, to cover much wider range of load, to suit the application. cost of one load cell is included in the price, but additional load cell will be at extra coststandard load resolution is with 10,000 counts. finer resolution (optional) with 20,000 counts can also be offered at extra cost. standard displacement resolution is 0.1 mmtypes of tests, testing materials, grips, attachments, fixtures, straining speed as like analogue version, model : tkgvarious models – maximum capacity from 200 n to 50 knloading accuracy well within ±1%, conforms to is:1828 / bs:1610

The machine is having 2 frames and one frame is used for Tensile Test and Compression and other frame is exclusively designed for bend test on insulators, Special window based software is provided to meet the special test conditions. The on-line graph, data acquisition, storage and calculations etc, We have supplied Special Computerized Spring Testing Machine for checking deflection of leaf springs to , We have developed Microprocessor based panels for Rockwell and Balancing Machines. We have developed Portable Dynamic Hardness Tester Model:DHT-6 which is lighter in weight, easy to operate, and the machine is first of its kind in India.
