Kale Texnique Vishrambag, Sangli, Maharashtra

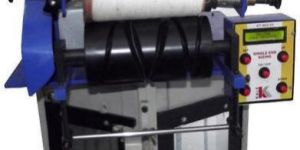

We are engaged in offering a huge array of Single End Sizing Machine to our customers. We offer these at market leading rates.   Single End Sizing machine the most selling machine. Sizes to a range of yarn with speed setting. The machine can also be attached with size humidity control unit which calculates wetness of size chemical. Single End Sizing machine can be attached in array in n number of the range. Each individual machine will have its own control for a variety of yarn on each machine.

Power : 1-3kw

Driven Type : Electric, Mechanical

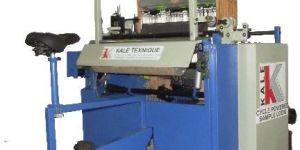

Known for our reasonable rates, we have come up with a world-class assortment of Manual Sample Loom Machine. The table top loom is manufactured in sturdy all metal frame. Standard width of fabric that can be woven is max. 12”(30CM), loom upto 30” fabric width can be supplied. The let off is negative. Take-up is hand operated ratchet driven. Weft insertion is with hand. The machine comes with a seating arrangement for the operator. The machine comes with the following accessories: One 100 mm diameter beam pipe with two 200mm diameters, adjustable beam flanges. Beam pipe ends will be suitable for our make ’Single end warping machine’. 16 heald frames suitable for 300mm long wire healds. 1000 heald wires. Takeup roller fixed with a gaiting cloth. One all metal reed of the density specified by you. Reed will come with a metal adaptor. The heald frame lifting is done manually through a suitable pedal. The selection of the dobby is done through electronic hardware. Touch Screen Panel provided. Touch Screen facility is provided for dobby design peg-plan entry. Alternatively, the design peg- the plan can be created in BMP format on a computer and, can be transferred to the control panel of the Table Loom, with the help of lan cable/ serial cable/ RS 485 cable/Pen Drive. All these facilities of data transfer through the cable are to be arranged by the customer at his cost. If the computer is remotely placed, a special data transfer card can be provided. The design can be made on a remotely placed computer. The design pegplan, on the computer, can be transferred and stored on this data card. The same can be transferred on to the control panel of the table loom. On all normal hand looms, the heald frame lifting lever is kept pressed till weft insertion is completed. This dobby has a special feature that while inserting the weft or making weft entry for butta etc, the weaver is not required to keep pressing the dobby paddle. The weft colour to be inserted for a particular pick is indicated on the display system and LED display. After completion of the pattern if required an alarm or indicator light can be operated for the weaver to perform any specific operation like pulling the cloth forward for the frill, or marking the cloth or cutting the piece or cutting the extra warp and tying it up to avoid warp waste. This indication can be given in between or multiple times in the design. Other Details: Colour: 8 Color Selection for Weft Weft Selection: LED display for correct Color Selection Rapier: Rigid Rapier

Salient Features:- Warp density can vary from 10 end /inch to 240 end / inch. Maximum warp length is 4.5 meters. User Friendly Touch Screen Display Touch Screen Display Tablet is connected using Wi-Fi so that machine can be controlled remotely Hand Held Tablet can be operated in range of 100 mt from machine Power required 1kw. Power required 1kw. Space required 3mtx3mts. Number of warp color is unlimited. Data of warp pattern is accepted in text form. Maximum speed of warping-120 mts/ min. Data can be transferred from other computer in text format. All messages and error signals are displayed on monitor. Warp end break is detected. The machine is stopped. The curser which feeds the warp end, remains in the same position.Thus there is no missing end or crack, in the warp. Leasing available

Color : Unlimited Color insertion

Condition : New

Warranty : 2 Years

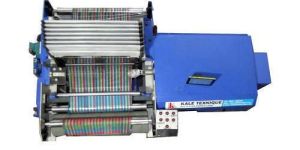

(SFL-02) S FL-02 a ‘HE MAN’ in Sample Loom with lowest cost Today Garment companies demands for full length and width (up to 30”) cloth to be woven for sample from same machine. Kale Texnique Company From India Designed and Developed Rigid and sturdy machine with high feature inbuilt so that user can use with full efficiency SFL 02 provides wide range of fabric with fully computer control (Touch Screen). Salient Features Rigid Machine Low Maintenance Wide range of weave 30” width (Rigid Rapier) Electronic Dobby User friendly software Just import design and make some settings and start weaving, Touch Screen Sturdy Design SFL also available without Electronic Dobby and with Electronic Dobby. Weaving width: 12”,20”,24”,30” Speed: 30-50 rpm Weft selector: 8 colours electronic weft selection device. Fabric take-up: Electronically controlled. Adopting step motor for rolling with the weft. Warp let-off: Negative electronically controlled. Constant warp tension could be maintained during weaving. Shedding: Computerized controlled, 16 heald frames driven Electro Mechanically Draw-in: Heald frames can be separated from the loom for healds and reeds draw-in Warping: Separate warp beam or manual warping could be used. Take up: Computerized Controlled with Stepper Motor Weft Insertion: Single rapier weft insertion Beat-up: Computerized controlled close

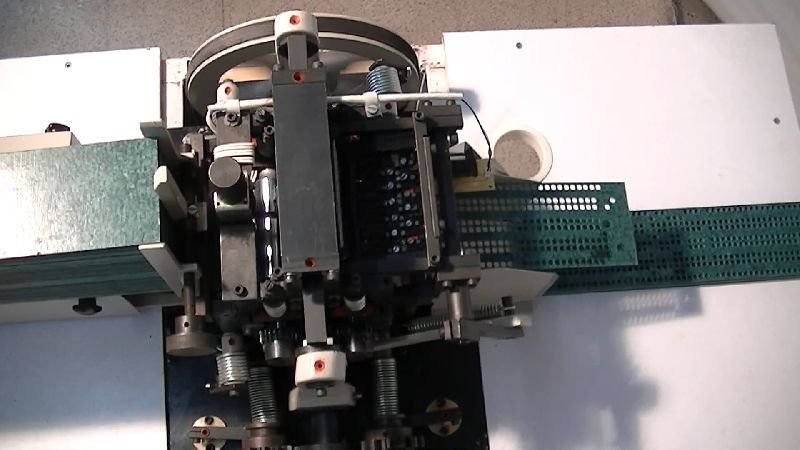

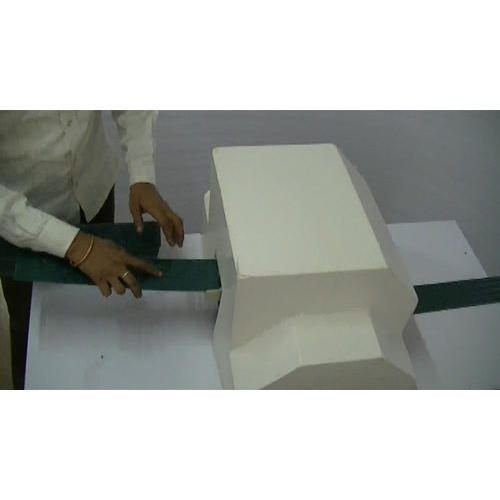

We offer jacquard card punching machine. An important step in modernising art of fabric manufacture. Most of us been, for last few years, using computer to develop complex and elaborate motives on fabric. But the card punching was still manual. Now the problem of unreliable, labour oriented, slow and error prone process of manual card punching is no more. The company has indigenously developed, manufactured and supplied card punching machines to various satisfied customers all over india. salient features : punching is done without mistakes. higher speed of punching. tired less working of machine. secrecy of design. no point paper printing required. ease of punching selected mending repairing cards. sturdy design renders very low maintenance and trouble free working.

Type : Jacquard Card Punching

Application : Punching

Weight : 100-1000kg

Automatic Grade : Automatic, Fully Automatic, Semi Automatic

Power : 1-5kw

Warranty : 1year

Detail: The table top loom is manufactured in sturdy all metal frame. Standard width of fabric that can be woven is max. 12”(30CM), loom upto 30” fabric width can be supplied. The let off is negative. Take-up is hand operated ratchet driven. Weft insertion is with hand. Machine comes with seating arrangement for the operator. Machine comes with following accessories, One 100 mm diameter beam pipe with two 200mm diameter, adjustable beam flanges. Beam pipe ends will be suitable for our make ’Single end warping machine’. 16 heald frames suitable for 300mm long wire healds. 1000 heald wires. Takeup roller fixed with gaiting cloth. One all metal reed of the density specified by you. Reed will come with metal adaptor. The heald frame lifting is done manually through suitable pedal. The selection of the dobby is done through electronic hardware. Touch Screen Panel provided. Touch Screen facility is provided for dobby design peg-plan entry. Alternatively, the design peg- plan can be created in BMP format on computer and, can be transferred to the control panel of the Table Loom, with the help of lan cable/ serial cable/ RS 485 cable/Pen Drive. All these facilities of data transfer through cable are to be arranged by customer at his cost. If the computer is remotely placed, a special data transfer card can be provided. The design can be made on remotely placed computer. The design pegplan, on the computer, can be transferred and stored on this data card. The same can be transferred on to the control panel of the table loom. On all normal hand looms, the heald frame lifting lever is kept pressed till weft insertion is completed. This dobby has a special feature that while inserting the weft or making weft entry for butta etc, the weaver is not required to keep pressing the dobby paddle. The weft colour to be inserted for a particular pick, is indicated on the display system and LED display. After completion of the pattern if required an alarm or indicator light can be operated for the weaver to perform any specific operation like pulling the cloth forward for frill, or marking the cloth or cutting the piece or cutting the extra warp and tying it up to avoid warp waste. This indication can be given in between or multiple times in the design.

Condition : New

Warranty : 2 Years

Color : 8 Color Selection for Weft

Material : Metal

Certification : CE

Application : Drape tester

Rated Power : 220V

Salient Features: Rigid Machine Low Maintenance Wide range of weave 30” width (Rigid Rapier) Electronic Dobby User friendly software Just import design and make some settings and start weaving, Touch Screen Sturdy Design

Brand Name : Kale Texnique

Application : Weaving Sample Fabric

Color : Black

Surface : Coated

Material : Polyester

Pattern : Plain

Feature : Shrink resistance
