Cyclo Instruments Pvt. Ltd. MIDC, Satara, Maharashtra

Making available the flawless, highly durable, cost effective range of Thread Measuring Wires, we are prominent Manufacturer and Supplier of the same. We are well-known for the Thread Measuring Wires that we fabricated using cutting edge technology and ultra modern machines. We make sure that the Thread Measuring Wires are as per the customers’ requirements and meet the International Standards.

Material : Metal

Shape : Round

Application : Industrial

Surface Treatment : Polished

Certificate : ISI Certified

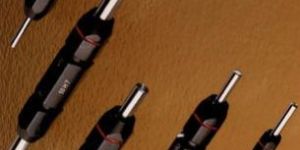

We have been catering to the ever-evolving demands of the customers by offering high grade and excellent Reversible Plain Plug Gauges. Highly appreciated for the durable, precisely constructed, flawless Reversible Plain Plug Gauges, we have established as a renowned Manufacturer and Supplier of the same. We are capable of making voluminous orders as we have excellent storage and transportation facilities.Details : We are offering reversible plain plug gauges. Cyclo Instruments manufactures plain plug gauges in the range of 0.5 to 12 mm; in reversible gauge element type design. The gauge elements are fastened by collet & nut mechanism to the opposite ends of a handle. When after use the gauge element wears off; the same could be unlocked & reversed in position (inside edge out) to put in use the unused intact inside edge. This enables the user to get double life from one single gauge thereby saving on the gauge costs. The gauge elements (pins) are 40mm in length below nominal diameter of 1.5mm & are in H.S.S. The gauge elements (pins) beyond 1.5mm are made from SAE 52100 steel & are of 50mm length. All pins are full cylinders over their entire length. 10mm of the length of the pin is sufficient for holding the gauge pin into the collet. Gauge manufacturing tolerances are as per i.s. 3455-1971. very suitable for deep hole inspection; & with the advantage of getting double life due to reversal of the pin end after wearing off; these type of gauges are in good demand from watch; electronic; hydraulic; jewellery; dash board instruments industry & general engineering industry.

We are listed among the most reliable and genuine names in the domain offering only qualitative and certified OD Setting Master. We are prominent Manufacturer and Supplier of OD Setting Master that are obtainable from us at market-leading prices. With our excellent testing facilities we make sure that the OD Setting Masters are flawless and meet the customers’ satisfaction level.Details : Cyclo instruments manufactures outside diameter setting masters in the range of 5 mm to 280 mm.; as per i.s. 4349-1987; to be used for setting the dials of comparators such as comparator stands; dial snaps, air snaps & alikes. Made from alloy steel; these masters are subzero treated @ -80oc after hardening to arrest dimensional growth in hardened steels. Form variation of the diameter is controlled within it0 grade of tolerance. Ground & lapped having hardness of 60± 2 hrc; these masters are calibrated under standards room conditions with reference standards traceable to national standards of length through NPL New Delhi. Each master is supplied with individual calibration certificate with actual size of the master marked on it by electro etching. There are many advantages of using outside diameter solid one piece masters instead of using slip gauge combinations. It does away with the use of costly precision slip gauge box; reduces the incidences of committing errors in building a slip combination leading to heavy losses in the production line; facilitates the measurement of outside diameters of splined shafts with the help of between center attachments. Salient features : For Setting External diameter measuring instruments Made of Alloy Steel and hardened to 60 HRC. Subzero treated for dimensional stability. Calibrated at +20oC under Standard’s Room Conditions. Dimensions traceable to NPL, New Delhi. Mfg. Reference - I.S. 4349-1987. Manufacturing Range:- From 5mm up to 330mm.

The Measuring Pin Set we deal in is highly appreciated among the customers owing to the durability, precise construction and affordable prices. We are renowned Manufacturer and Supplier of Measuring Pin Set that is obtainable from us at market-leading prices. The offered Measuring Pin Set is fabricated as per the requirements of the customers and is in compliance with the International Standards.Details : Cyclo instruments manufactures hardened; ground & lapped measuring pins made out of alloy steel; in steps of 0.01, 0.02 & 0.05 mm; in the range of 0.5 to 20mm. Having many useful usages such as; measuring small holes; checking locations; checking center distance between two holes; checking slot widths etc. The tolerance on the diameter is + 0.002 mm. material of the pins up to 1.5mm diameter is H.S.S. & that of pins above diameter 1.5mm; it is en31. Pins are wrapped in an anticorrosive wrap paper & are housed in holes carved out in eye pleasing instrument grade wooden box for handling & preservation. The size of the pin is etched chemically on the diameter for pins above 3mm nominal diameter. All the pins come in plastic capsules to prevent corrosion.  Salient Features : Made from Alloy Steel and Hardened to 60 HRC Mfg range 0.5mm to 20.00 mm Length- 40mm up to Ø 1.5mm and 50mm above Ø 1.5mm Material- Up to 1.5 mm H.S.S. & Above 1.5mm -SAE52100. Nicely packed in attractive Wooden Case for easy handling & preserving. In 0.01mm, 0.02mm & 0.05mm steps Manufacturing Tolerance +0.002mm on diameter or as per Customer's Requirement

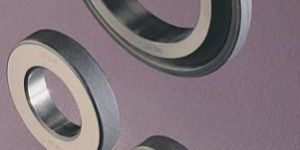

We are Maharashtra (India)-based Manufacturer and Supplier of Master Setting Rings. Our rich industry experience in this field helps us in presenting genuine and certified Master Setting Rings and that too at the most affordable price. The manufacturing of Setting Rings commences under the watchful supervision of experts; they use only qualitative raw material sourced from renowned vendors. We are capable of entertaining bulk requirements of the customers.Details : Cyclo instruments manufactures master setting rings in the range of 6 to 400 mm & plain gonogo ring gauges in the range of 6 to 250 mm. blank design for both the types is as per i.s.3485-1983. Manufacturing tolerance for master setting rings is as per i.s.3485-1983 & that for plain gonogo rings are as per i.s.3455-1971. Master setting rings are used to set internal diameter setting instruments such as, dial bore gauges; 3 point internal micrometers and dia-test plugs. Plain gonogo rings are plain limit gauges for checking shafts. Made from prime quality alloy steel; these rings are stabilized by subzero process @ -80oc; in a specially designed low temperature test chamber to arrest the dimensional growth. Calibration of these rings is done on carl ziess make horizontal metro scope; accuracy of which is traceable to national standards of length through NPL. Individual gauge is supplied with calibration report. Salient Features : For Setting Internal diameter measuring instruments and for use as GO/NOGO Ring Gauges. Made from Alloy Steel and hardened to 60 HRC Subzero treated for dimensional stability @ -80oC, in numerically controlled Test Chamber. Calibrated at +20oC on Horizontal Metro scope under standard Rooms Conditions. Dimensions traceable to NPL, New Delhi. BLANK DESIGN AS PER I.S. 3485-1983 and GAUGING PRACTICE AS PER I.S. 3455-1971 Manufacturing Range- 5 to 400 mm

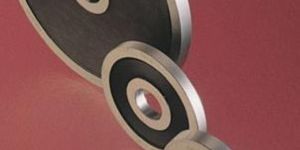

We have established as one of the sought-after names in the domain of manufacturing and supplying Base Circle Discs. The offered Base Circle Discs are highly durable, precisely manufactured using sophisticated technology. We test the Base Circle Discs on various quality parameters and make sure that it is in compliance with the International Quality Standards. Details : Cyclo instruments manufactures base circle discs; used for setting gear tooth profile testing equipment. Manufactured from SAE52100 alloy steel; these discs are hardened ground and lapped. To retain the dimensions once achieved in lapping; these are subzero treated @ -80oc. Manufactured strictly as per customer’s drawings; these discs are produced up to 330 mm outside diameter; with i.d.o.d. concentricity within 0.002 mm; face run out of the boss within 0.005 mm at 60 mm boss diameter; and individual bore closely tolerated to maintain i.d.o.d. concentricity. i.d. of the disc runs with a precision slide fit with the male locator of the profile testing equipment; whereas o.d. is base circle diameter of the particular gear of which the tooth profile is to be measured. Every disc is supplied with traceability certificate and is etched upon with all the data regarding the part number and basic dimensions of the disc. Salient Features : Made of High Alloy Tool Steel and hardened to 60HRC Subzero Treated for Dimensional Stability Calibrated at +20oC under Standard’s Room Conditions Design As per Customer’s requirements Manufacturing Range - 20mm to 330mm

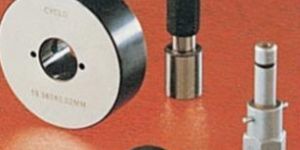

We are Maharashtra (India)-based Manufacturer and Supplier of Air Gauges. We have been catering to the requirements of the customers from all over the world by offering high grade and flawless range of Air Gauges at the most affordable prices. The offered Air Gauges are precisely manufactured and tested using sophisticated technology. The Air Gauges we deal in are in compliance with the International Standards and meet the customers’ satisfaction level. Details : Air plug & air rings Cyclo Instruments manufactures air plugs and air rings compatible to various air gauging systems used in the country. Air plugs in the range of 6 to 130mm diameter and air rings in the range of 10 to 60mm diameter; are designed to inspect internal and external diameters respectively; where the work tolerances are of the order of +- 0.030 mm or closer. Made of tool steel; their very fast response time; sensing accuracy and accessibility have made them favorite inspection tools in mass production; covering industries such as automobiles; refrigeration; textile; bearing and electric motor. Very useful inspection tools to determine form variations; they provide first hand information of the machine error & the error introduced in tool setting. Non contact gauging makes them very long lasting and thereby compensating for the initial costs.   Salient Features : Made from High Alloy Steel Tooling could be made to suit different measuring systems. Multijet Air plugs for simultaneous Measurements Mfg Range : For Air Plug : 8mm to 100mm For Air Rings : 8mm to 80mm
