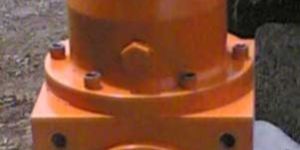

Bevel Gear Drive
Get Price Quote
The bevel gear drives manufactured, exported, and supplied by the company is sophisticatedly designed to cater specific requirements of the clients. Our bevel gear drive is highly demanded in various industries because it is highly durable in its performance. These bevel gear drives can be availed at market leading prices from us. We also manufacture straight, helical & spiral bevel gear & pinion set used in cone crusher and crusher industry up to 25 module and 1m od. known for rugged designlow torque to weight ratiogiving low noisehighly flexible design as per requirement technical specifications ratio : 1:1 to 1:5hp : 1 to 50mounting : casing mounted, face mounted, shaft mountedshaft compositionfree input & free outputhollow input & free outputhollow input & hollow output

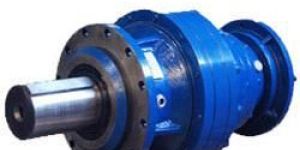

planetary gear drive
Get Price Quote
We are offering planetary geared motors with Output speed of 0.15 RPM to 410 RPM (Below 0.15 rpm can be given on request), solid Male Output Shaft, Hollow output shaft with shrink disc or Keyway, male or female spline shafts ,These geared motors, electric motors are built with squirrel cage induction TEFC motor of ICE Standard and have We can customize these planetary geared motors, on various parameters as per the requirements of our clients.
Best Deals from Gear Parts
Track Drives
Get Price Quote
We have specialized in Manufacturing, Exporting and Supplying of Track Drives that is highly demanded by clients for superior performance. Our range of Track Drives is tested on various parameters by our experts in order to offer the clients with the best. We offer the Track Drives at market leading rates to valued clients. Salient Features : Rigid in constructionsInbuilt hydraulic parking brakesHigh radial load capacity due to taper bearingsCompact sizeRatios available from 3.6 to 100Torque capacity up to 50000 NmRadial load capacity up to 100000 N Used For : Crawler applications in earth moving machines.
Planetary Gearheads
Get Price Quote
The Gear Reducer is the perfect solution for servomotor applications such as packaging machines, gantries, injection molding machines, pick and place and linear slides. Offered in concentric shaft, right angle solid shaft and right angle hollow shaft designs with modular adaptor flanges and keyless compressible bushings to easily mount to any manufacturer's servo motor.
Track Drive
Get Price Quote
These drives consist of a planetary gear unit. The constructive solution of this unit is based on the design of planetary gears with rotating housings. Robustness, compactness, economy, and versatility are the most significant features of this product. The compactly shaped, plug-in type hydraulic motor will be directly flanged to the unit. Applications Track Vehicles. Heavy duty tired machines. Road Roller, Compacters. Marine Capstans. Winches and Hoists Drive Information Diameter Range : 150 to 400 mmReduction Ratio : 10 approx.Torque rating : 5000 NM.Power Rating :037 kW to 37 kW Design Features All the parts are designed and manufactured to high quality standards to perform under intended service. Output housing is made from cast steel that conforms to IS standards.High torque capacity achieved by careful selection of materials, heat treatment and geometrical design of the gears calculated in accordance with ISO Standards. All standard parts such as bearings, seals,hardware are procured directly from reputed manufacturers for genuiness and cost effectiveness.The Planetary gears of these Track Drive units are also used in the Cypla Winches, the Slew Drives, so that the complete drives are of the same construction and have common parts.High Output torques indicated are peak torques permits for short-term operation only.

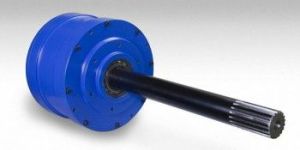

centrifuge drive
Get Price Quote
The decanter is a machine where the horizontal conical vessel rotates at very high speed and at the centre of the vessel there is a scroll which also rotates in the same direction at differential speed which allows separation of solid and liquid. The planetary drive used in the decanter machine is a high precision gearbox where all the gears have accuracy of DIN1 6 & are dynamically balanced to withstand high speed of maximum 4000 rpm. Generally input shaft is kept stationary or given speed to achieve variable speed between bowl & scroll. Depending on the design of the decanter output shaft is designed of hollow female spline construction or extra long male spline construction. The range of products offered by Top Gear is being used by various decanter machine manufacturers in India and abroad.
gear box spare parts
Get Price Quote
gear box spare parts
gear box part
Get Price Quote
gear box part
Track Drive
Get Price Quote
Track Drive, planetary drive, power transmission, right angle drive, Winch
