Ideal Gas Springs Pvt. Ltd. MIDC, Satara, Maharashtra

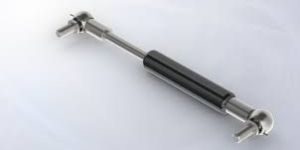

  The Gas Spring is a Hydro - Pneumatic Adjusting Element with Pressure Tube, Piston Rod and End Fittings. It Contains High Pressurized Nitrogen. As Compared to Conventional Coil Springs, Gas Spring has an Extremely Flat, Nearly Linear Characteristic Curve which Facilitates Uniform Comfortable Adjustment or Pivoting Movement. Also, it has Another Advantage Over Mechanical Springs is Damping. When Gas Spring is Installed Piston Rod Facing Downwards, During Extension it First Travels through Gas Portion and then through the Oil Portion. The Oil Dampens the Movement and Speed Reduces Considerably. The High Pressure Nitrogen Acts with Equal Pressure on Surfaces having Different Cross - Sectional Area of Piston. This Produces a Force in Extension Direction. The Force Depends Upon the Charging Pressure.

As compared to coil springs, gas spring has an extremely flat, nearly linear characteristic curve, which facilitates uniform comfortable adjustment or pivoting movement. Also, its another advantage over mechanical spring , is damping . When gas spring is installed piston rod facing downwards, during extension it first travels through gas portion & then through oil portion. The oil dampens the movement & reduces the speed considerably. However, the extension speed & damping characteristics can be adjustedas per applications requirement.

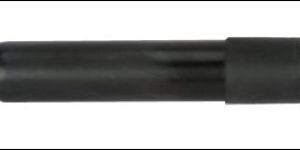

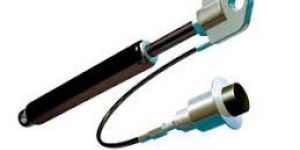

Lockable gas springs have the mechanism that enables the piston rod to be locked at any position in its stroke. This mechanism is triggered by a plunger that is linked with the rod. When this plunger is pressed the rod becomes free to operate as compression gas springs. When plunger is released at any point in the stroke, the rod is locked in that position. The Internal Design of the lockable gas springs consist of components such as piston rod, piston valve, cylinders, guides, seals etc. Inside Pressure is generated by gas(nitrogen) and oil inside the cylinder. These Gas Springs are applicable for Lockable Gas Springs, Gas Spring For Hospital Beds, Hospital Furniture, Dentist Chairs, Operation Tables, Labour Tables, Emergency Casualty Trolleys, Passenger Seats, Wheel Chairs.

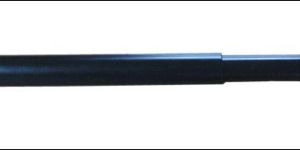

IDEAL Oil dampers consist oil for damping in both directions which controls the speed and ensure smooth operations Normally IDEAL oil dampers are widely used in are Solar tracking system, applications that need to move slowly in a certain direction. IDEAL oil dampers can be used for collision prevention and speed control.

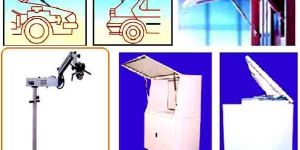

We Offer Ideal Lift. Function: the Gas Spring is a Hydro-pneumatic Adjusting Element with Pressure Tube, Piston Rod & End Fittings. It Contains High Pressure Nitrogen. the High Pressure Nitrogen Acts with Equal Pressure On Surfaces Having Different Cross-sectional Area of Piston. this Produces a Force in Extension Direction. the Force Depends Upon the Charging Pressure.advantages: as Compared to Coil Springs, Gas Spring Has An Extremely Flat, Nearly Linear Characteristic Curve, Which Facilitates Uniform Comfortable Adjustment or Pivoting Movement.also, Its Another Advantage Over Mechanical Spring, is Damping. When Gas Spring is Installed Piston Rod Facing Downwards, During Extension It First Travels Through Gas Portion & Then Through Oil Portion. the Oil Dampens the Movement & Reduces the Speed Considerably. However, the Extension Speed & Damping Characteristics Can Be Adjusted as per Applications Requirement. other Advantages & Benefits Are:automatic & Damped, Force Supported Openingsecure Holding in Placecompact Designeasy to Mountmaintenance Freemodern Technologyfatigue Freesingle Person Can Lift Heavy Doors Easily.applications: Now-a-days, Most of Cars are with Hatchback for Getting More Dickey Space & Compact Design. the Ideal Lift Can Be Used for Gentle Opening & Closing. Also, Ideal Lift is Used for Bonnet Lifting & also for Easier & Comfortable Top Swing Opening. Its Most Commonly Used Applications are :1. Luxury Buses:a) Luggage Compartment Doorsb) Safety Boxes C) Engine Hood D) Tool Kit Covers E) Emergency Door2. Construction and Agricultural Vehicles : (e.g. Fork Lifts, Bulldozers, Excavators, Earth Moving Equipments, Tractors):a) Engine Hood B) Front Window C) Side Window D) Rear Window E) Tool Box Covers F) Over Head Vent G) Cabin Door H) Battery Box Cover.benefits of Using Ideal Lift :automatic & Damped Force Supported Opening.secure Holding in Placeeasy Opening & Closing3compact Designeasy to Mountmaintenance Freemodern Technologyfatigue Freesingle Person Can Lift Heavy Doors Easily.home is the Place Where Every One Expects Superior Comfort, Relaxation for Greater Possible Efficiency to Perform His Duties in Day to Day Life. in Household Furniture, Ideal Lift is Used Where Top Hung Shutters Can Be Fitted Which Gives a House the Decent Look & also Reduces the Fatigue. Overhead Lofts are such a Place Where We Need to Store Some Occasionally Required Things. Comfortable Opening of These Lofts with Using Maximum Space is Feasible with Top Hung Shutter Along with Ideal - Lift. Simultaneously Microwave Ovens, Mixtures, Can Be Placed Behind the Panel in Kitchen Area. the Ideal - Lift is also Having Application in Double (box Type) Bed. Ideal-lift is Used to Lift the Bed Top Along with Coir/mattress & also It is Not Necessary to Hold It By Hand. One Can Comfortably Has the Access to Stored Material.now-a-days, Gas Springs Has Become a Standard Design Element for Lifting, Lowering, Counterbalancing or Moving Purpose. Ideal - Lift is Used Where Top Hung Opening is Required for Lifting Heavy Doors & Holding It At that Position Firmly. the Ideal - Lift Has Numerous Applications in Various Industries. We are Listing Some of the Applications from Few of the Industries.building Industry: Doors of Garbage Collection Chutes, Roof Windows, Top Hung Shutters, Exhaust Shutters.machine Tool Industry: Compressor Canopies, Generator Canopies, Doors of Oil Filtration Units, Doors of Control Panels, Doors of Dairy Equipments, Maintenance Covers, Counter Balances for Tapping, Soldering Attachments, Covers of Automatic Soldering Machines. Cover Panels of Textile Machines, Wind Mills, Sound Protective Booths, Vacuum Packing Machines, Lids of Various Testing Machines.medical Equipments : Counter Balances for Wiveling Arm of Surgical Microscope.

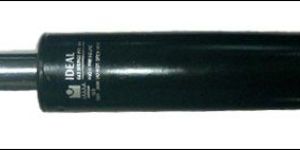

DEAL HEIGHT   This is the commonly used type in chairs with height adjustment. It freely rotates on it's own axis IDEAL HEIGHT gas spring can be locked in any intermediate position, IDEAL HEIGHT gas springs are specifically designed and manufactured for various applications where step-less height adjustments are required. It can be locked at any desired height for a comfortable seating position. It can only be used in a vertical position. The standard strokes are 80 mm, 100mm & 125 mm.

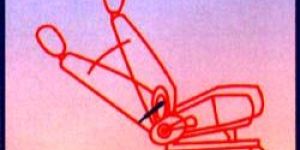

We Offer Ideal Block. Ideal Block is a Gas Spring Which Can Be Locked At Any Intermediate Position of the Stroke. It Has a Valve Assembly Internally, When One Operates (presses) the Actuator Pin, It Opens the Valve Simultaneously Applies Force On Body Then the Piston Rod Starts Going in & At a Moment When Force Applied On Actuator Pin Removed the Valve Gets Closed Which in Turn Stops the Movement of the Piston Rod. It Basically Has Two Versions :a) Spring Blocking : Here, Oil & Gas are in Mixed Condition. It Shows Some Deflection When Force is Applied Without Pressing the Actuator Pin. the Deflection Depends On the Force Applied. B) Rigid Blocking:here, Oil & Gas is Separated By a Separator & It Shows Very Little or Almost Nil Deflection When Force Applied with Out Pressing the Actuator Pin.applications: Ideal Block is Mainly Used Where Tilting is Required. It is Mainly Used in Seat Application. the Seats of Luxury Coaches are Equipped with the Gas Springs. Tilting of These Seats Gives Comfort to the Passenger & Reduces His Fatigue During Travelling. These are also Used in Office Chairs for Back Rest Tilting & Continuous Rocking of Back Rest. Ideal Block is also Used in Patient Care Equipment such as Hospital Beds, Operation Table, Bedside Trolley.

s in the case of any innovation and establishment, IDEAL GAS SPRINGS PVT LTD also have lot of dreams to fulfill with many miles to go. BUT UNLIKE others, we are with a vision to expand our activities not only to benefit our industry but also contribute to the nation's economy, by way of taxes, foreign exchange and above all employment potential to the youths and qualified with all those facilities, if not possible to better, at least within the government norms with all facilities like medical, insurance, provident fund and many more.

Machine Tool Covers - Doors of Oil Filtration Units, EDM Wire Cut Machine Flap, Blood Analyser, Flaps of Various Machines • Genset Compressor Canopies • Control Panels - Doors of Control Panels • Textile Machines - Opening Machine Doors • Generator Canopies - Canopy Flap Opening • Printing Machines • Packaging Machines • Dairy Equipments - Flaps of Bulk Milk Coolers • Defence Applications • Wind Mill Cover • Counter Balancer For Tapping Machine Arms, Inspection Arms, ENT Microscope, Overhead Hospital Lamps, CNC Machine Arms • Marine Application • Material Handling Equipments - For Standing Platform, For Handle • Garbage Chutes & Garbage Handling Collection System From Multi Story Building
