Eurotech Technologies Private Limited Marredpally, Secunderabad, Telangana

Bestnet network tracing tools can help us connect to the internet, and today as we are using mobile devices increasingly frequent, the network tracking tools is more and more important. High quality network traffic analysis tools can help you connect quickly and stably, thus enjoy the internet more freely. The network traffic monitoring tool in our shop are safe, no harmful radiation for human body, and the network traffic monitoring tools would not cause too much electricity.     Open circuit or short circuit testing function : » Push DIP switch on emitter to position of "TEST" , and long press function switchover button on emitter for2 seconds, "VERIFY" indicator will change "flash" to "lighting" insert the crystal plug with crocodile clamp into RJ11, clamp the two ends to be tested with crocodile clamps, in case of short circuit, "1 " -shape indicator of emitter will light up, otherwise it will not light up, resistance ofthe line can be indicated be brightness of status indicators: the lighter the indicator, the smaller the resistance; the darker the indicator, the bigger the resistance.     DC level testing function : » Push DIP switch on emitter to position of "SCAN " , and long press function switchover button on emitter for 2 seconds, "STATUS" indicator indicator flashes, insert the crystal plug with crocodile clamp into RJ11, clamp the two ends to be tested with crocodile clamps, in case that "STATUS" indicator lights up in red , it means the end clamped with red clamp is positive pole, in case that "STATUS" indicator lights up in green, it means the end clamped with red clamp is negative pole, electric level can be judged by brightness of the status indicators; the lighter the indicator, the smaller the resistance; the darker the indicator, the bigger the resistance.      Low voltage alarm function : » Push DIP switch on emitter to position of "SCAN " , in case that battery level is lower than 6.0V, "STATUS" and "VERIFY" indicators will light up at the same time, it means battery replacement is needed.       Earphone function : » ln noisy environment, earphone can be used to prevent interference from the outside.       Volume adjusting function : » While find the wire, volume knob can be rotated for moderate level of sound.      Spotlight function : » You can easily work as usual while putting on the light switch at night and in the dark.    Energy-saving : » lnching switch can automatically delay power-off. The continuous life span of battery is over 50 hours.

Bestnet offers ORIGINAL HANLONG TOOLS from Taiwan,  these hand tools include Telecommunication and Networking crimping tool, Precise Cutter, stripper, Terminal crimping tool, Assembling tool, Tool kit, Coaxial cable cutter & stripper and so on.

Bestnet UTP Surface Mount Box without IO, the 'perfect fit' connector holder design helps easy snapin and removal of the keystone jacks. It has flame retardant Plastic body 'UL-94V-0 rated'. The UTP Surface Mount Box with IO comes in 1 & 2 port designs. The Surface mount box provides protection of patch cord connection points & gives the installation an additional flexibility for locations as open office environments, warehouses, lobbies etc.    Features : » Works with standard Bestnet key stone jacks » Snap-on assembling cover design » UL safety verified. » Can be used in commercial or home cabling environments for use with data & voice. » ANSI/TIA /EIA -606 compliant. » UL94V -0 fire retardant plastic. » Removing the "knock-out" in the bottom of the box. » Helps to fit a non-Bestnet connector in the box.     Specifications : » ConstructionFire retardant thermoplastic » Keystone Module Mounting DimensionsStandard keystone footprint » Operating Temperature-14°F – 140°F (-10°C – +60°C)

Bestnet modular faceplates gives your network a facelift providing a fresh look to match today's technologies for a perfect blend into your home or office. The faceplates are designed to be used with a Bestnet Key Stone Jack or can mount any standard Keystone jack to meet your specific needs. Its durable finish masks minor scuffs that may occur during daily usage.    Features : » Faceplates are designed to provide optimal outlet separation to reduce alien cross talk. » Part of the Premium 5e cabling system & System 6 cabling system. » Slide-in designation labels allow users to easily identify connections at the outlet. » Bestnet faceplates available in Bright White colour. » Fits into most single gang boxes for wall mounting. » Built-In shutter to prevent dust. » Includes head screws to secure cover to base

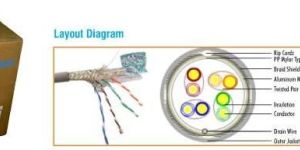

Bestnet CAT 5e Shielded Foiled twisted pair cable finds its application in the Horizontal Cabling (HC) System or in the Backbone Cabling System. In the horizontal system, it functions as a connecting medium between the horizontal cross - connect and the wall outlet. In the backbone cabling system, it functions as a connecting medium between horizontal cross connect and main cross connect and/or HC to intermediate cross connect. Bestnet SFTP cable is designed to exceed the performance requirements of EIA/TIA 568A/B, ISO/IEC 11801 and has obtained an independent UL approval for the same. It is supplied in convenient 305m box.    Cable Description : » Solid Cable: SFTP Cat.5e, 24 AWG, 4P, Horizontal Cable, Solid Copper     Type : » Straight-Thru RJ-45 Cat5e   Wire Color Code : » Pair 1 White/Blue & Blue » Pair 2 White/Orange & Orange » Pair 3 White/Green & Green » Pair 4 White/Brown & Brown     Standards : » Horizontal Cable (solid copper) » CSA-C22.2 No.214, Type CM TIA/EIA-568A

Bestnet enhanced CAT5 CCA Patch Cord feature a snagless molded strain-relief boot design. They exceed specified performance as stated in TIA/EIA 568A for connecting hardware, manufactured with 30µ" gold plated modular connectors and are offered in 5 colors for easy port or link identification.    Features : » Exceeds the performance requirement of Category 5e. » Perfect in conjunction with 10 and 100 Base-T networks. » 30-micron gold plated connectors to insure a clean and clear transmission . » Available in different lengths 1, 2, 3, 5 mts. and custom Size according to customer requirement. » The RJ45 Cat 5 CCA patch is perfect for use with 10/100 Base-T networks.     Ordering Info : » BNMC-ES-C5-01 » BNMC-ES-C5-02 » BNMC-ES-C5-03 » BNMC-ES-C5-05

Bestnet Floor Standing racks are a perfect match for your IT infrastructure that neatly and safely houses all your 19" networking equipments, Monitors, keyboards, CPU's, allowing total freedom & flexibility for the engineer to mount the equipment & dress the cable. Floor Standing cabinets are available from 18U to 42U sizes.

Bestnet carries a line of Network LAN tester provide you with an economical way to test Cables & Networks. These Ethernet Testers are specially designed to test the full range of the ever-expanding Ethernet, Lan Data and cable configurations. These ethernet Lan Testers is a must for anyone in the cabling industry.    Functions : » Can test correspondingly double-twisted cables1, 2, 3, 4, 5, 6, 7, 8 and G, meanwhile, can judge wrong connection, short circuit and open circuit. NS-468B tests BNC, RJH and RJ45; NS-468 tests RJ11 and RJ45; NS-468N tests RJ45 and BNC; ST-248 tests RJ45 and BNC      Test of double-twisted cables : » Switch on the power. (S is slow automatic grade, M is manual.) Put cables into both main tester and remote tester. The lights of the main tester will turn on sequentially from 1 to G.      Main Tester : » 1-2-3-4-5-6-7-8-G       Remote Tester : » 1-2-3-4-5-6-7-8-G RJ45 » 1-2-3-4-5-6-------- RJ12 » -2-3-4-5------------ RJ11      Following are erroneous connections : » If one cable, for example, cable No. 3 is open circuited, the two No. 3 lights of the main tester and remote tester will not turn on. » If several cables are not connected, several lights will not turn on respectively. If less than two cables are connected, none of the lights is on. » If two ends of the cable is disordered, for example No. 2 and No. 4, then displays on:Main Tester : 1-2-3-4-5-6-7-8-GRemote Tester : 1-2-3-4-5-6-7-8-G » If two cables are short circuited neither of the corresponding lights is on of the remote tester while main tester remains unchanged. If three cables, including three, are short circuited, none of the corresponding lights is on.   If test patch panels or wall plate outlets, two cables which can match each other (eg 110P4 and RJ45) will be connected to the tester. If test cables of the same axes, BNC turns on when the cable works.

Bestnet carries a line of Network LAN tester provide you with an economical way to test Cables & Networks. These Ethernet Testers are specially designed to test the full range of the ever-expanding Ethernet, Lan Data and cable configurations. These ethernet Lan Testers is a must for anyone in the cabling industry.    Features : » It can test correspondingly double-twisted cables 1,2,3,4,5,6,7,8 and G » Can judge wrong connection, short circuit and open circuit. » Switch ON shows the normal grade, S is slow automatic grade, M is manual.      Specifications : » Test of double-twisted cables: » Switch on the power, and put cables into both main tester and remote tester. » The lights of the main tester will turn on equently from 1 to G.      Main Tester : » 1-2-3-4-5-6-7-8-G       Remote Tester : » 1-2-3-4-5-6-7-8-G (Rj45) » 1-2-3-4-5-6 (Rj12) » 1-2-3-4 (Rj11)      Following are erroneous connections : » If one cable, for example cable No.3 is open circuited, the two No.3 lights of the main tester and remote tester will not turn on. » If several cables are not connected,several lights will not turn on respectively.If less than two cables are connected ,none of the lights is on. » If two ends of a cables is disordered,for exampal No.2 and No.4,then displays on. » If two cables are short circuited,neither of the corresponding lights is on of the remote tester while main tester remains unchanged.If three cables,including three,are short circuited,none of the corresponding lights is on.   If test patch panels or wall plate outlets,two cables which can match each other(eg 110P4 and RJ45) will be connected to the tester.If test cables of the same axes, BNC turns on when the cables works.:

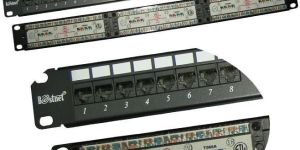

Bestnet offers modular patch panels for termination of horizontal and backbone cabling. It has a robust construction and excellent cable management. 110 IDC Termination, allowing wires between 22 – 26 AWG sizes it surpasses Enhanced Cat5 requirements of EIA/TIA. The RJ-45 module jacks and the Insulation Displacement Connectors (IDC) mounted on the Printed circuit board give the design an unmatched modularity and elegance.    Features : » Meet or Exceed TIA/EIA-568-B.2 CAT 5E connecting hardware specification. » Uses Snap-Type frames, eliminating screws on front side of the panel. » 110E & 110K type IDC termination, allowing connection with 22 to 26 AWG wires. » RJ45 (8P8C) T568A/T568B colour coding termination. » Lifecycle 200 Insertions.

Bestnet specializes in manufacturing fiber optic assemblies. We carry both single and multi mode to suit your needs. Connectorized on both ends, these Fiber Patch Cables are manufactured feature high-quality ceramic connectors. Combinations of SC, ST, LC, MTRJ, FC connector Patch Cords are available in both Multimode (62.5/125µm and 50/125µm) and single mode (9/125µm) cable-types, in Duplex and Simplex versions.

Bestnet specializes in manufacturing fiber optic assemblies. We carry both single and multi mode to suit your needs. Connectorized on both ends, these Fiber Patch Cables are manufactured feature high-quality ceramic connectors. Combinations of SC, ST, LC, MTRJ, FC connector Patch Cords are available in both Multimode (62.5/125µm and 50/125µm) and single mode (9/125µm) cable-types, in Duplex and Simplex versions.

Bestnet cables and cable assemblies maintain reliable electrical and mechanical integrity in demanding harsh environments. Our cables are engineered with the latest materials science to meet rigorous electrical, mechanical, and environmental requirements for the most challenging applications.

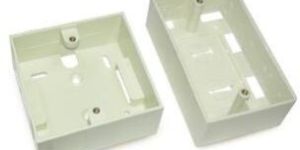

Bestnet Back Boxes are manufactured in bright white Acrylonitrile Butadiene strene (ABS). The ABS material allows the box to be less brittle than some electrical type back boxes, making installation easier. Also, providing ease of installation and full flexibility are the cable entry knockouts provided on all sides and in the base.    Features : » The back box is designed to mount to a wall, floor or other flat surface. » The total Box is made out of Acrylonitrile Butadiene strene (ABS). » Large Knock out's - open to required shape & size of entries. » Tailor made holes suitable for self tapping aluminum screw's for fixing. » Better strength is ensured because it is unbreakable. » Simple & Quick to install with the use of built in accessories.     Ordering Information : » BNBB-24 : Back Box Rectangle (2X4) » BNBB-33 : Back Box 3X3 (Imported)

Bestnet VGA Splitter products can simultaneously display the same signal source onto different display devices. Depending on the different number of Video Splitter, the number of displays that it supports varies. In addition, Bestnet also provides Splitter in DVI & HDMI also, it is very appropriate for education and entertainment applications.
