Elmeasure India Private Limited Yapral, Secunderabad, Telangana

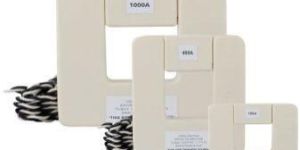

Salient Features  Split core CT allows installation without disconnecting cables or bus-bar circuits  Split core current transformer has a nominal rating from 5A to 1500A  Split core CT has an accuracy ±1% from 10% to 130% of full scale  Frequency Range of split core CT ranges 50 Hz to 400 Hz  Split core CT has shrouded core blades for protection during installation  Split core current transformers are ideal for retrofitting systems.     Applications  Split core CT are used for electrical load surveys & sub- metering  Split core CT are perfect solution for energy management, data logging & recording  Split core current transformer are designed for installation on branch circuits  Split core CT can be used in substation & Process industries for monitor & control.

Salient Features  Measures Unbalance, harmonics, inrush, transients, sag and swells  Lightweight, handheld, compact design with Magnetic Latch  High capacity rechargeable battery pack providing 24 hours backup  Auto recognition & integrated with 2/3/4 wire connection system  Micro SD card interface for data storage and subsequent analysis  Connect to PC via USB cable for real-time analysis Applications  Energy auditing  Higher accuracy of Power Quality Measurements  Continuously monitors & analyze electricity lines for disturbance  Allows reliable delivery of energy & protects equipment

Salient Features  Avoids the requirement of 2 different meters (energy and VAF in one)  Reduces the cost and simplify wiring  High resolution reading with auto scaling in LED  Energy consumption in counter even if CT is reversed Applications  Easy configuration of Gen-set Controllers  Monitor health & Readiness  Remote operation & control  Multiple alarms & notifications

Salient Features  Real time monitoring and reporting  Composite system with EMS and PEMS  Desired reports like, Doff wise, shift wise, count wise, production, energy, UKG  Speed Vs Kw curve, trends, bar graphs, comparisons  Alerts on higher UKG, lesser production, utilization & power fluctuations.  Maintenance alerts based on run hours production cost analysis - Cost Audits - Energy Audits Applications  Energy savings will bring down operational cost & increases the plant efficiency  Scheduling of preventive maintenance  Higher productivity- Lesser downtime  Effective utilization of manpower and resources

Salient Features  Inverse curve - Trip time to accomplish faster trip time for a higher leakage current.  High accuracy Earth Leakage Relay of class 2.0FS in industry  Programmable Earth Leakage Trip time from 100ms - 30s with password protection.  Continuous Display of Trip Leakage current (Programmable)  Wide selectable range of Earth leakage current from 30 mA – 30 A  Monitors and protects power systems from Earth Leakage Current Applications  Protects life and property against overflow of leakage current  Protects motors / transformers / feeders / DG etc.,ensures reliable measurement and maximum safety  Complete protection for oil refineries, pulp industries, mining industry, electrical distribution & control engineering  Protects control panels and switch boards from earth leakage current

Salient Features  Single meter measures multiple channels  Differential current input for all the current channels  Programmable shunt secondary 50mV to 75mV  Current full scale programmable independently Applications  DC Measurement  Equipment Monitoring  Genset, Solar and UPS applications  In control panel to measure different electrical loads

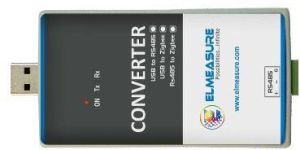

Salient Features  USB 2.0 Compatible & 2kV isolation between USB and RS485  Self powered, & zero dependency on external power source  RS485 supports two wire industrial multi-drop communication up to 800 meters distance and 100 nodes  Auto baud rate detection, No programming required Applications  Ideal for connecting serial RS485 devices to notebooks or PC’s through an available USB port  Data communication in Energy Management System / BMS  Perfect for controlling/diagnosing manufacturing machines(CNC, Process ControlEquipment, Barcode Scanners, Serial Printers)  Communicating with test and monitoring equipment.

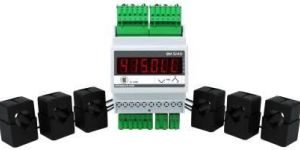

Salient Features  Multiple branches of load can be monitored together  Can group the device as 3 phase load and single phase load  Faster communication through RS485 port (Modbus protocol)  Simultaneous sampling of Volts and Amps  Accuracy Class 1.0 as per IEC 62053-21 & Class 0.5 as per IEC 62053-22 Standards  Displays more than 25 parameters Applications  Remote reading and control  Building management system  In control panel to measure different electrical loads  Ideal for billing in apartments/commercial complexes

Salient Features  Inbuilt Selector Switch  High resolution reading with autoscaling  Suitable for industrial panels, gen-sets, solar, pump control panels, etc.  Optional RS485 for data collection  Optional easy interface to PLC through modbus protocol Applications  AC & DC Measurement  Equipment Monitoring  Genset, Solar and UPS applications  In control panel to measure different electrical loads

Salient Features  Automatic start/stop operation of DG on mains failure  Overload tripping (optional) with inverse curve logic  Automatic transfer switch are provided with fire alarm / external fault trip feature  Inbuilt control switch for selecting auto/manual mode  Automatic transfer switch have high capacity to withstand short circuit  Optional RS485 communication and cloud Applications  Monitor real-time system voltage and frequency  Monitor source healthiness and output for both Source  Wide range of motor operating voltage from 150VAC – 285V AC  Automatic transfer switch for commercial centers, manufacturing, medical facilities,and data centers.
