Vila Emachwirken Private Limited Murarji Peth, Solapur, Maharashtra

SALIENT FEATURES Wide range of pumps for appropriate selection as per requirement. Options are available for high head or high discharge in each rating to fulfil various needs. Suitable in wide voltage variation with greater performance even in low voltage. Stampings are used of high quality electric grade for better efficiency. Winding wire with high quality insulation to avoid chance of winding burn even in low or high voltage working. Whole range is with EC grade Copper brazed rotor for years of trouble free operation. Fully Stainless steel shaft hence no chance of corrosion. Very low maintenance due to high quality carbon Vs steel combination of thrust bearing with leaded tin bronze made bush bearing. Shaft & bushes are having mirror surface finish achieved by auto burnishing machine for very long life. All rotating parts are dynamically balanced for low noise, vibration and long bush bearing life. Internal surfaces of all the parts are protected from rusting with special coating for longer life. All fasteners are used of stainless steel only for easy maintenance & very long life. Diffusers in SS 304 material investment casting (50Ft Models) Robust design ensuring durability of the pump set Superior polymer wrapped winding wires to withstand wide voltage fluctuation All the guide bushes are protected with sand guards Provision to withstand upper thrust is provided in each model All the pumps are provided with suction guide support Bearing sleeves protected with hard chrome platting for better life in sandy conditions Motors are designed for wide voltage range and available in 1 & 3 phase

Brand Name : Laxmi Vila

Automatic Grade : Fully Automatic, Automatic, Semi Automatic, Manual

Power : 1-3kw

Power Source : Pump Only

Pressure : High Pressure

Motor Horse Power : 3 to 10

Application : Industrial, Domestic, Agriculture, Submersible, Cryogenic, Farm Irrigation

Certification : ISO 9001:2008

Voltage : 220V

Discharge Outlet Size : Less Than 1 In

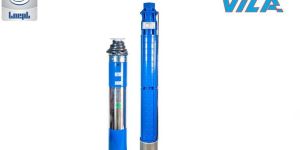

Type : Borewell Submersible Pumps

Fuel : Electric

Theory : Centrifugal Pump

Structure : Multistage Pump

Warranty : 12 Months

Country of Origin : India

Head : 15 To 50 M

Warrenty : 1 Year

Motor Phase : Single Phase

Number Of Stages : Single-stage Pump

Discharge Range : 200-500 LPM

I Deal In : New Only

Installation/After Sales Service : Yes

SALIENT FEATURES: Wide range of pumps available with various LPM series to cater to customer requirements. Options are available for high head or high discharge in each rating to fulfill various needs. Suitable in wide voltage variation with greater performance even in low voltage. Stampings are used of high-quality electric grade for better efficiency. Winding wire with high-quality insulation to avoid the chance of winding burn even in low or high voltage working. The whole range is with EC grade Copper brazed rotor for trouble-free operations. Fully Stainless steel shaft hence no chance of corrosion. Very low maintenance due to high-quality carbon vs.. steel combination of thrust bearing with leaded tin bronze made bush bearing. Shafts & bushes have mirror surface finish achieved by auto burnishing machine for very long life. Diffuser Bowls and impellers are made of glass-filled engineering polymer, virgin PPO material for best wear resistance & strength for long maintenance-free service and consistency in performance. All rotating parts are dynamically balanced for low noise, vibration, and longer life. Internal surfaces of all parts are protected from rusting with a special coating for longer life. All fasteners are made of stainless steel only for easy maintenance & very long life.

Brand Name : Laxmi Vila

Material : Sleek Aluminium Body

Automatic Grade : Fully Automatic, Automatic, Semi Automatic

Power : 1-3kw

Power Source : Pump Only

Pressure : Medium Pressure

Application : Industrial, Domestic, Agriculture, Submersible, Cryogenic, Farm Irrigation

Certification : ISO 9001:2008

Voltage : 220V

Discharge Outlet Size : Less Than 1 In

Type : V4 Submersible Pump

Fuel : Electric

Theory : Centrifugal Pump

Structure : Multistage Pump

Phase : Single Phase

Warranty : 12 Months

Country of Origin : India

Head : 15 To 50 M

Warrenty : 1 Year

Motor Phase : Single Phase

Number Of Stages : Single-stage Pump

Discharge Range : 200-500 LPM

I Deal In : New Only

Installation/After Sales Service : Yes

Features: Aluminium Motor Body Low Power Consumption TOP Fitted heavy duty Motor 2Ltrs Pressure tank Danfoss Pr. Switch SS 410 Shaft with Pr. Die Cast Rotor Brass forged Impellers Applications : Single Bathroom use in Multistoried buildings Villas & Apartments. Best for Shower heads Jacuzzi and other high-end bathroom fittings.

Brand Name : Laxmi Vila

Driven Type : Electric

Power : 1-3kw

Pressure : Low Pressure, Medium Pressure

Voltage : 220V

Type : Single Cylinder Pump

Structure : Single Stage Pump

Warranty : 1yr

Country of Origin : India

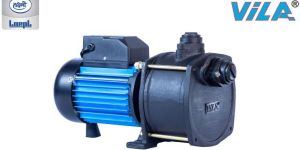

ViLA Shallow well Pumps are specifically designed and developed with superior manufacturing techniques adhering strictly to the quality standards resulting in a trouble-free and reliable operation with minimum maintenance cost.

Driven Type : Electric

Power : 1-3kw

Pressure : Medium Pressure

Automation Grade : Automatic, Manual, Semi Automatic

Application : Agriculture, Deep Well Pumping, Household, Industry

Certification : ISO 9001:2008

Feature : Centrifugal Pump

Voltage : 220V

Type : Shallow Well Pump

Structure : Single Stage Pump

Warranty : 1yr

Country of Origin : India

ViLA Self-Priming Pumps and Shallow well Pumps are specifically designed and developed with superior manufacturing techniques adhering strictly to the quality standards resulting in a trouble-free and reliable operation with minimum maintenance cost.

Brand Name : Laxmi Vila

Driven Type : Electric

Material  : Sleek Aluminium Body

Color : Blue

Condition : New

Automatic Grade : Manual

Power : 1hp

Application : Residential, Bungalows, Flats, Booster Application, Construction, Industrial Usage, Lawns, Gardening

Certification : ISO 9001:2008

Type : Self Priming Pumps

Weight : 10-20kg

Warranty : 1year, 1 Year

Country of Origin : India

Head : 4 to 44 Meters

Speed : 2880 RPM

ViLA Slow Speed Regenerative Self-Priming Pumps and V Type Self-Priming Monoblock Pumps are specifically designed and developed with superior manufacturing techniques strictly adhering to the quality standards resulting in a trouble-free and reliable operation with minimum maintenance cost. These Pumps are available with both CSR & CSCR Models. VSSP Series – Slow Speed Regenerative Self-Priming Pumps    Technical Specifications: Power: 0.37 kW / 0.5 HP to 0.75Kw / 1.0 HP  Head: 6 to 48 Meters Discharge: 3970 to 360 LPH Speed: 1440 RPM Type of Duty: S1 (Continuous)     Features: Rigid & High graded Cast iron Motor Body Self-priming capacity up to 6 Mtrs Fitted with TOP (Thermal overload Protector) SS Shaft with Pr. Die casted Rotors Wide Voltage Design – 160 to 240V

Brand Name : Laxmi Vila

Driven Type : Electric

Color : Green

Condition : New

Automatic Grade : Manual

Power : 1hp,0.37 Kw / 0.5 HP to 0.75Kw / 1.0 HP

Application : Residential, Bungalows, Flats, Booster application, Construction, Industrial Usage, Lawns, Gardening

Certification : ISO 9001:2008

Type : Self Priming Monoblock Pump

Weight : 10-20kg

Warranty : 1year

Country of Origin : India

Pump Type : Centrifugal

Motor Phase : 1

Discharge : 3970 to 360 LPH

Speed : 1440 RPM

SALIENT FEATURES : Suitable in wide voltage variation with high performance even in low voltage. Stampings are used of high-quality electric grade for better efficiency. Fully Stainless steel shaft hence no chance of corrosion. Copper rotors and aluminum rotors for long life and trouble-free operations. Very low maintenance due to high Gusiity carbon Vs steel combination of thrust paterisl of Constructionbearing with leaded tin bronze made bush bearing All rotating parts are dynamically balanced for low noise, vibration and long bush bearing life. Light weight hence easy to install. Under water operation hence no noise. Better outer aesthetics with durable paint protection. Pumpets are packed with adequate fitments to avoid damage while reaching to end user. All fastness are used of stainless steel only for easy maintenance & very long life.

Brand Name : Laxmi Vila

Material : Fully Stainless steel shaft hence no chance of corrosion. Copper rotors & Aluminium rotors

Shape : HORIZONATAL

Automatic Grade : Fully Automatic, Automatic, Semi Automatic, Manual

Power : 2.2 to 7.5 KW

Power Source : Electric

Pressure : High Pressure

Motor Horse Power : 3 to 10

Application : Industrial, Domestic, Agriculture, Submersible

Certification : ISO 9001:2008

Voltage : 110V

Discharge Outlet Size : 65 x 65 to 100 x 100

Type : Open Well Submersible Pump

Fuel : Electric

Theory : Centrifugal Pump

Structure : Multistage Pump

Warranty : 1 Year

Country of Origin : India

Head : 6 to 51

Max Flow Rate : 2400 LPH

Warrenty : 1 Year

Motor Phase : Three Phase

Rust Resistance : Yes

Maximum Rotational Speed : 2900 RPM

I Deal In : New Only

Available Type : Yes

Model Name : 3 Phase Horizontal Open well Submersible Pump Model VLHOSPC3.0/65-18/3A

SALIENT FEATURES : Suitable in wide voltage variation with high performance even in low voltage. Stampings are used of high-quality electric grade for better efficiency. Fully Stainless steel shaft hence no chance of corrosion. Copper and Aluminium rotors for long life and trouble free operations. All rotating parts are dynamically balanced for low noise and long bush bearing life. Light weight hence easy to install and under water operation hence no noise. Better outer aesthetics with durable paint protection. TOP Fitted water-filled motors.

Brand Name : Laxmi Vila

Material : Fully Stainless steel shaft hence no chance of corrosion. Copper and Aluminium rotors for long life

Shape : HORIZONATAL

Application : Applications : Domestic, Gardening, Fountains applications Small Farms.

Packaging Type : Box packing

Colour : Blue and steel colure

Usage/Application : Applications : Domestic, Gardening, Fountains applications Small Farms.

Brand : Laxmi Vila

Features: Noiseless Operation 10 Meter head per Stage Pressure tank Range from 24 Ltrs to 100 Ltrs Aluminium Motor Body Low Power Consumption TOP Fitted heavy duty Motor Danfoss Pr. Switch Impeller and Diffuser in SS 304 Brass forged NRV & 5 Way Connector SS410 Shaft with Pr. Die Cast Rotor

Driven Type : Electric

Condition : New

Power : 1hp, 2hp

Pressure : High Pressure

Application : Agrictulture, Automotive, Industrial, Marine, Power

Voltage : 110V, 220V

Type : High Pressure Booster Pump

Weight : 10-20kg

Warranty : 1year

Certifications : ISO 9001:2008

Country of Origin : India
