Intermediate Wire Drawing Machine Dealers in Sonipat

(1 products available)
All India Sonipat Delhi Ahmedabad Mumbai Ghaziabad
  • Intermediate Large Wire Drawing Machine With Annealer

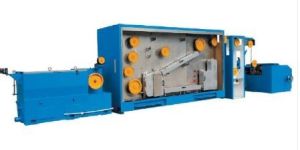

    Intermediate Large Wire Drawing Machine With Annealer

    Get Price Quote
    • Power Source: 415V/50Hz
    • Features: Drive and control by AC three-phase dual-inverter.High productivity, low power consumption.
    • MODEL: ZLT350/9
    • Control system: Digital
    • Power Control: Dual-Inverter
    • Wire Inlet Dia: 2.6-3.5mm
    • Wire Finished Dia: 1.0-2.76mm
    • Max Wire Speed: 1200M/min
    • Max No. of Dies: 9
    • Transmission Type: Gear drive
    • Mechanical Elongation: 25%+16.7%
    • Drawing Capstan: Tungsten Carbide
    • Construction of the Machine Body: Plate Welding and Annealing
    • Capston Dia: 350mm
    • Fix Speed Capston Dia: 350mm
    • Spool Bobbin Size: SN500, SN630 (optional )
    • Bobbin Loading & Unloading Type: Bi-shafts cone
    • Traversing Unit: AC Reducer Motor and Timing Belt
    • Main Motor: 55kw(6p)
    • Spooler Motor: AC11kw
    • Correction System: Automatic Digital Control of Take-up
    • Tension Control: Buffer Rod with Air Cylender and Rocket Arm
    • Max Loading Capacity: 250Kg(SN500) or 500kg(SN630)
    • Lubrication Type: Lubrication By Full Immersion<
    • Lubricant capacity: 100L/min
    • Brake: Disk Type Brake
    • Lubrication Type For Bearing: Pump Enforce Oil
    • Annealing Control: 3 Pole DC Current Output
    • Annealing capacity: 150Kva
    • Annealing Voltage: Max 65v
    • Annealing Current: 2500A
    • Connect Load: 77Kw+150kva
    • Steam Consumption: 2-0.3Mpa(with 9kw steam generator)
    • Cooling Water Consumption: 2-0.3Mpa
    • Air Consumption: 0.4-0.6Mpa
    • Machine Dimension: 14 x 3.5 x 4M
    • Gross Weight: 7000Kg
    more..
    Parovi Machines (A Unit Of Rons Technologies LLP)
    Sonipat
    0.0 View Profile
