Accurate Transheat Pvt. Ltd. Sachin, Surat, Gujarat

GENERAL DESCRIPTION AND MAIN FEATURES : One basket holding capacity 200 kgs of fabric Fabric loading capacity 400 kgs upto 800 kgs Vessel and all wet part machine made of stainless steel AISI 304 L / 316 L, highly corrosive resistance Specially designed the heat exchanger for quick heating and cooling Liquor ratio 1:4 Newly developed high flow nozzle for light and heavy fabric The fully folded nozzle and nozzle diameter upto 83mm upto 110mm High fabric speed 100-250m /min Weight reduction system -30 to 450 grams /mtr. sq. fabric All spare easily available Maximum working temperature 98°C Heavy duty low RPM pump which consume low power and high discharge of liquor Lifter reel driven by frequency inverter control motor, for fabric speed up to 100-250 meter, subject quality for material Out finish shot blasted Semi and fully automatic version with advanced microprocessor control Recovery tank capacity 4000 ltr "SOFTLINA" treatment by extracting polyester from the surface of the fiber to form micro cavities, causes reduction of fabric weight

SAFETY FEATURE TO INCREASE EFFICENCY Power Failure    :Diesel engine keeps thermic fluid moving to avoid overheating Low thermic fluid flow    :Differential Pressure Switch (DPS) across inlet and outlet headers cuts off the fans, slowing down combustion Coil choking    :DPS across orifice plate cuts off the fans slowing down combustion Thermic fluid temperature beyond set limit    :Temperature switch cuts off the fans Low thermic fluid level in expansion tank    :Level switch cuts off the fans Thermic fluid pump motor trip    :Electrical interlocks cuts off fans GENERAL DESCRIPTION AND MAIN FEATURES : The most suitable for coal, husk, lignite, agro-waste, bagasse etc... "ACCURATE" Thermo pack is optimum level output with some modification in combustion chamber. Radiant heat exchanger above the furnace keeps cooled. Hence, less excess air in required and which ultimately increases efficiency. Combustion air for F.D. fan passes through air preheater that absorbs the waste heat in the flue gases. It ultimately result into increase in effiency. Means reduction of infiltration unwanted air through fire gates of minimum level. It result into maximum heat recover from air preheater and assures greater efficiency. Diesel engine keeps thermic fluid moving to avoid over heating in case of power failure. Level switch cuts off fans low thermic fluid level in expansion tank. APPLICATION : Textile Industry Chemical Industry Pharmaceutical Industry Distilleries / Breweries POY Paper Industry Dairy Industry Food Processing Industry Playwood & Lamination Industry Solvent Extraction Plants

"ACCURATE" To meet the demands of clients and procure them the finest performing wares is our motto and this drives us to bring some of the finest machines for our clients. We are proudly presenting Relax Drum Machine especially developed shrinking process for bulkiness and gouge effect on synthetics fabric.Relax Drum Machine process like sizing, scouring & creasing, process can be done in high temperature high process. Fabric is loading from front door in side specially developed octagonal basket and that basket rotating forward & reserve direction with the help of inverter. Which has been designed specially to fulfill all the demands of modern industries. Relax Drum Machine offers new kind of technical advantages with regards to process time,energy consumption and fabric appearance. GENERAL DESCRIPTION AND MAIN FEATURES : Fabric Loading Capacity 200 Kgs up to 800 Kgs. Presure Vessel and all wet part of machine made of stainless steel AISI 304 L, highly Corrosive resistance. Specially Developed Octagonal, Perforated Basket. Also can drumming without bags. All spare easily available. Maximum working temperature 140°C. Maximum working pressure 4 kg. / cm2 All safety device required for a pressure vessel are incorporated with the machine. Heavy Duty Planetary gear box for basket rotating forward & reserve direction. Planetary Gear box direct couple for driven by frequency inverter control motor. Basket rotating forward & reserve direction with the help of double drive chain & chain wheel.(93 Teeth) Heavy duty base frame (Box type) for drum body. Water outlet double. Out finish shot blasted. Semi and fully automatic version with advanced microprocessor control.

GENERAL DESCRIPTION AND MAIN FEATURES : Loading capacity 300Kgs./(Single Tube Double Nozzle). Pressure vessel and all wet part of machine made of stainless steel AISI 316/316 L, highly corrosive resistance. The fully folded nozzle and nozzle diameter up to 83 to 110 mm. for manmade fabric. Newly developed high flow nozzle for light % heavy fabric. High fabric speed up to 300 m /min. Lifter reel driven by frequency inverter control motor, for fabric speed up to 200/300 meters, subject quality of material. Liquor Ratio 1 : 5 to 1 : 6. Dye - 30 to 450 grams / Mtr. Sq. Fabric (polyester, polyester blend, woven & knitted fabric). Specially designed the heat exchanger for quick heating and cooling. Maximum working temperature 135°C. All safety device required for a pressure vessel are incorporated with machine. Take off reel with direct couple geared motor and stainless steel structure. Heavy duty low rpm pump which consume low power & high discharge of liquor. Magnetic water level indicator with duly calibrated in terms of liter. All valves are made of investment casting and stainless steel 316. Semi and fully automatic version with advanced microprocessor control. Out finish shot blasted. Note: Especially those material sensitive to create mark such as polyester and micro fibre etc.

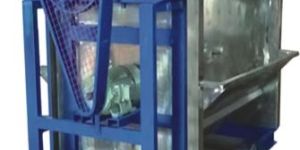

The Jigger machine is one of the most important machine for textile bleaching & dyeing . This machine use for fabric Desizing. Scouring. Bleaching. Dyeing & after treatment of fabrics. Today textile segment need low capital investment, low maintenance cost, low running cost machineries. We have develop the Jigger machine for consist result from batch to batch, month to month.Best quality material. The main rolls are made for stainless steel pipe for better life. Both side wall are made from stainless steel sheet. Tank is made from stainless steel 304 quality & 2.0 1.5 mm for low maintenance cost. The differential gear bevel in the gear box manufacturer special metal duly case hardened fitted with gun metal bush for long life. The floating device balanced with 2 SS guide roll running on Hylam-bush. Break drum specially metal ratchet brakes with proper brake liners control. Inverter drive for low running power saving. PLC Automation (Forward motion Reverse motion & Stop) - Optional

The Jigger machine is one of the most important machine for textile bleaching & dyeing . This machine use for fabric Desizing. Scouring. Bleaching. Dyeing & after treatment of fabrics. Today textile segment need low capital investment, low maintenance cost, low running cost machineries. We have develop the Jigger machine for consist result from batch to batch, month to month. MAIN FEATURES : Best quality material. The main rolls are made for stainless steel pipe for better life. Both side wall are made from stainless steel sheet. Tank is made from stainless steel 304 quality & 2.0 / 1.5 mm for low maintenance cost. The differential gear bevel in the gear box manufacturer special metal duly case hardened fitted with gun metal bush for long life. The floating device balanced with 2 SS guide roll running on Hylam-bush. Break drum specially metal ratchet brakes with proper brake liners control. Inverter drive for low running power saving. PLC Automation (Forward motion Reverse motion & Stop) - Optional

Fabric loading capacity 20 Kgs up to 500 Kgs. Pressure Vessel and all wet part machine made of stainless steel AISI 316316 L, highly corrosive resistance. The fully folded nozzle and nozzle diameter up to 60 to 95 mm. for manmade fabric. Newly developed high flow nozzle for light & heavy fabric. High fabric speed up to 400 m min. Liquor ratio 1:1.5 to 1:2. Dye - 30 to 450 Grams Mtr. Sq. Fabric (polyester. polyester blends, Woven & Knitted fabric). A mirror polished fabric transport perforated basket for easy trouble free movement of fabric from back to the front of machine. The perforated basket is fabricated in such that welded part does not come in contact with the fabric. Specially designed the heat exchanger for quick heating and cooling. Maximum working temperature 135°C. All safety device required for a pressure vessel are incorporated with machine. Take off reel with direct couple geared motor and stainless steel structure. Heavy duty low rpm & high rpm pump which consume low power & high discharge of liquor. All valves are made of investment casting and stainless steel 316. Semi and fully automatic version with advanced microprocessor control.

Capacity : 70,120,180,280,330,430,530

GENERAL DESCRIPTION AND MAIN FEATURES : One basket holding capacity 100 Kgs of fabric. Fabric loading capacity 100 Kgs up to 1000 Kgs. Pressure vessel and all wet part of machine made of stainless steel AISI 316 / 316 L, highly corrosive resistance. Specially designed the heat exchanger for quick heating and cooling. Liquor ratio 1:5 to 1:7. Newly developed high flow nozzle for light & heavy fabric. The fully folded nozzle and nozzle diameter up to 200 mm. High fabric speed up to 300 m /min. Dye - 30 to 450 Grams / Mtr. Sq. Fabric (polyester. polyester blends, Woven & Knitted fabric). All spare easily available. Maximum working temperature 140°C. Heavy duty low RPM pump which consume low power & high discharge of liquor. Lifter reel driven by frequency inverter control motor, for fabric speed up to 200/300 meters, subject quality of material. Out finish shot blasted. Semi and fully automatic version with advanced microprocessor control.

Our manufactured Hydro Extractor Machine is widely used for dewatering cloth fabrics loose fiber with the help of centrifugal force. The parts contact with wet fabrics are made by stainless steel AISI - 304, the size of machine range from 36" to 60" This machine is best suitable for chemical textile etc. MAIN FEATURES : Three leg and suspension structure the machine has good anti-vibration efficiency. Speed control with frequency Inverter System. The low center of gravity enable smooth running of the machine. Our manufactured Hydro Extractor machine super balancing technique. This size of machine ranges from 36" to 60".

GENERAL DESCRIPTION AND MAIN FEATURES : Fabric loading capacity 20 Kgs up to 500 Kgs. Pressure Vessel and all wet part machine made of stainless steel AISI 316/316 L, highly corrosive resistance. The fully folded nozzle and nozzle diameter up to 60 to 95 mm. for manmade fabric. Newly developed high flow nozzle for light & heavy fabric. High fabric speed up to 400 m /min. Liquor ratio 1:1.5 to 1:2. Dye - 30 to 450 Grams / Mtr. Sq. Fabric (polyester. polyester blends, Woven & Knitted fabric). A mirror polished fabric transport perforated basket for easy trouble free movement of fabric from back to the front of machine. The perforated basket is fabricated in such that welded part does not come in contact with the fabric. Specially designed the heat exchanger for quick heating and cooling. Maximum working temperature 135°C. All safety device required for a pressure vessel are incorporated with machine. Take off reel with direct couple geared motor and stainless steel structure. Heavy duty low rpm & high rpm pump which consume low power & high discharge of liquor. All valves are made of investment casting and stainless steel 316. Semi and fully automatic version with advanced microprocessor control.
