Greenhouse Dealers in Surat

• Greed size: 8 X 4 Mtr.
• Ridge Height: 5.5 Mtr.
• Gutter Height: 4.0 Mtr
• Reinforcement for wind load of: 90 km/hr.
• Reinforcement for Trellising load of: 25 kg/m2
• condition: New

Fan & Pad Greenhouse : Structure is made up of Top Quality Hot dipped galvanized round pipe and having wall thickness 2mm and covered with multilayer polyethylene.Features : Reinforcement for Trellising load of 25 kg/m2 Cross reinforcement for better strength Co-axial fan of GI Frame and aluminium louvers, 1.5 HP, 3 Phase, 500 RPM Cellulose pad of 100 mm thickness with anodized aluminium Frame. 2% Slope in foundation level All material used in structure like connectors, bracket & fasteners are of hot dipped galvanized.

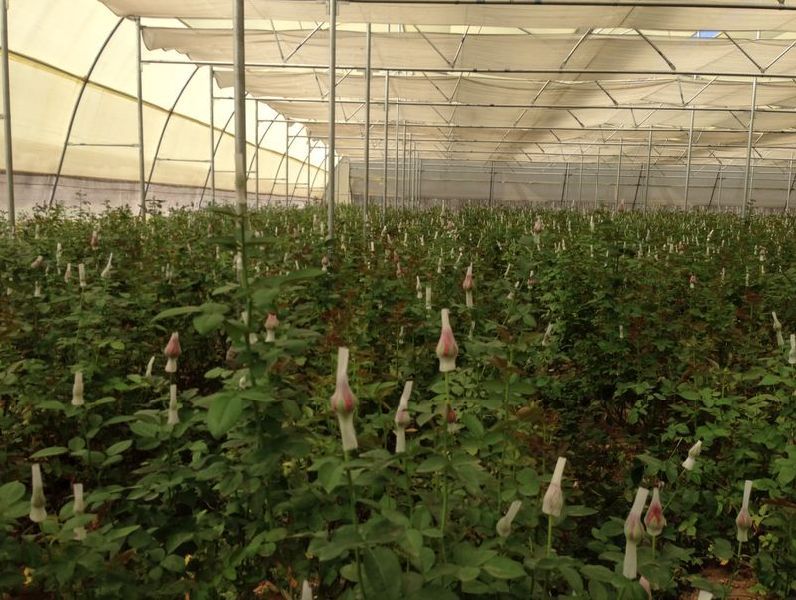

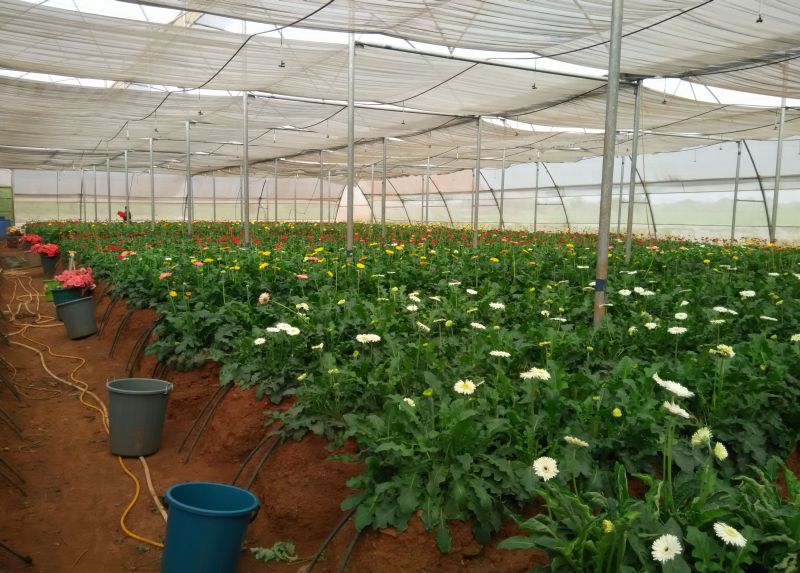

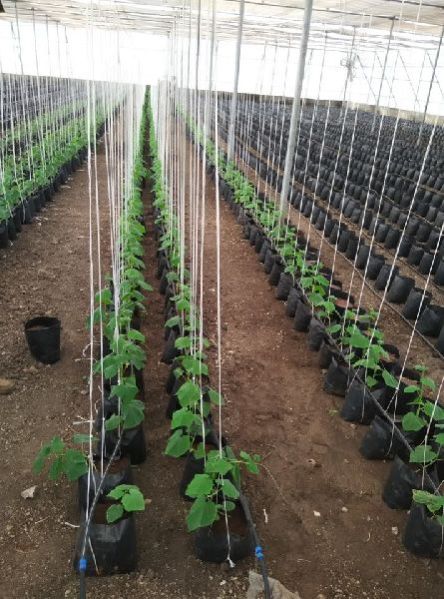

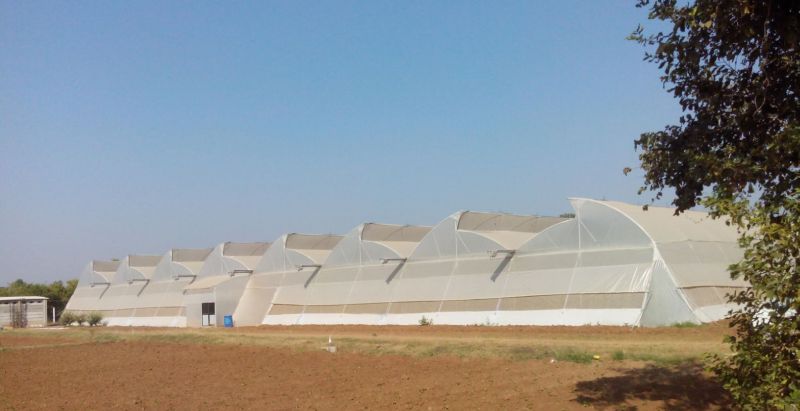

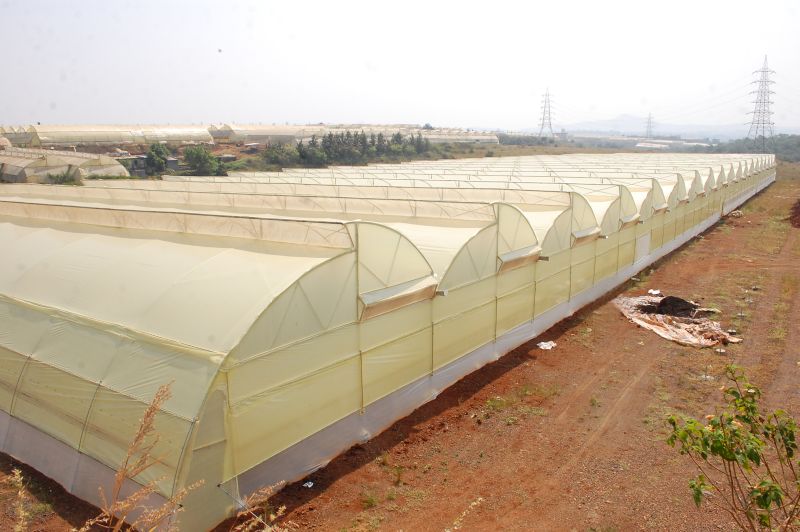

We are engaged in manufacturing, distributing and supplying excellent quality Naturally Ventilated Greenhouse to our valuable clients. Naturally Ventilated Greenhouse is having vents at top and at sides. Structure is fully hot dip galvanized and covered with 200 micron polyethylene film (wide range). All components are prefabricated and there is no welding at site. The modular system can be built in any multiple of the modular sizes. The open top roof vent allows a continuous air flow to rescue the inside temperature the optimum level. The open roof has wide anti-rain overlap, protecting our crop from in flowing in rain. The open roof can also be made fully insect proof by fixing an additional screen of insect netting. These types of greenhouses are those which have air exchange arising from the density difference of hot and cold air through air vents. Air exchange rates are very low and much dependent on the temperature difference between internal and ambient air. These Greenhouses are cheaper than the force ventilated ones. Structure Specification Product : Naturally Ventilated Greenhouse Bay Size : 8 Meter (Span) x 4 Meter (Bay) Ridge Height (Top Height) : 6.5 Meter Ridge Vent : 1.2 Meter Opening fixed with 40 mesh Insect net Gutter Height : 4 Meter From Floor Area Gutter Slope : 2% or as per requirement from Civil Foundation work\ Structure Gutter Frame : GI Sheet with 500 mm Width Hockey : 2.5 Meter

We are engaged in manufacturing, distributing and supplying excellent quality wire rope net house to our valuable clients. A wire rope net house is a structure made from hot dip galvanized steel pipe with quick couplings and enclosed by agro nets or anti insect net to allow required sunlight, moisture and air to pass through the gaps. It creates an appropriate micro climate conductive to the plant growth. It is also referred as wire rope house or net house. structure specifications product : wire rope net house structure size : 500 to 4000 sqm grid size : 6 meter (span) x 4 meter (bay) top height : 3 meter hockey : 2 meter gi pipe : is standard material wire rope : 4 mm gi wire rope shade net : 75% shading factor, 120 gsm dock clamp : high strength clamp uses of wire rope net house (1) lower cost high strength structure. (2) helps in cultivation of flower plants, foliage plants, medicinal plants, vegetables and spices. (3) used for fruit and vegetable nurseries as well as for raising of forest species etc. (4) helps in quality drying of various agro products. (5) used to protect against pest attack. (6) protects from natural weather disturbances such as wind, rain, hail and frost. (7) used in production of graft saplings and reducing its mortality during hot summer days. (8) used for hardening tissue culture planets.

• Structure: Tubular structure, Galvanized Structure
• Type: Agriculture Polyhouse, Polyhouse Ventilator, Net Polyhouse
• Country of Origin: Made in India
• Features: UV resistance, Easy to install , Superior finish
• Built Type: Prefab
• Usage/Application: Greenhouse
• Service Location/City: Surat

A Shade net house is a structure made from Hot dip galvanized Steel Pipe with quick couplings and enclosed by Agro nets or Anti Insect net to allow required sunlight, moisture and air to pass through the gaps. It creates an appropriate micro climate conductive to the plant growth. It is also referred as Shade house or Net House.

We offer fan greenhouse. Reed size 8 x 4 mtr. Ridge height 5.5 mtr. Gutter height 4.0 mtr reinforcement for wind load of 120 kmhr. Reinforcement for trellising load of 25 kgm2
