K. K. Engineers Hazira, Surat, Gujarat

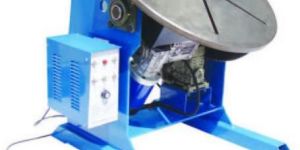

We are offering welding positioner machine. This machine is widely used as advanced welding positioner equipment, which is designed & manufactured viewing domestic & international advanced positioner equipment. the work table is tilted by motor, accurate & reliable positioning; hence it makes the work piece job in perfect position for welding. The work table adopts ac frequency conversion speed, so large range of variable speed & high precision, weld at need speed. The machine can give all kinds of welding or manual welding improving welding quality, lessening welding labor & improve productivity. this machine can be used at automatic welding or manual welding, such as pipe horizontal welding, tube end welding, axle, tray and barrel, it also can be widely used in the pressure vessels equipment, metallurgy, electric power, chemical machine etc industry. the main machine of positioner includes machine framework, tilting movement, rotation movement and conduct electricity device and control box. The machine framework adopts the steel plates & channel welding into one body, is the foundation of the equipment, all welding seam request to weld accord with one class of intensity. the tilting movement organization is to adopt the motor to drive the worm, & drive its worm wheel, which is fixed on the tilting framework acts through worm wheel to carry out its movement. The work-table can tilt or stop at any position within 0 – 135 degree. Driving motor with braking function, tilting angle high-point position has limit-switch. Worm & worm wheel unit transmission has self – lock mechanism, so work table will not tilt on its own under rated loading. the rotation organization is on the tilting body , the work table can revolve along its plane infinitely, functions as fwd, rev, can be realized by control switch on the control board. Transmission of worktable rotation: ac motor, worm gear reducer – worktable etc.

Thread tapping machine used for remove corrosion on studs as well as threading on studs with the help of threading dies.

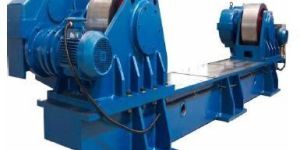

We manufacture the high quality rotators which are been used with various processes such as SAW TIG MIG ARC etc., capacities upto 500 Tons.. Steel rollers or polyurathene lined rollers are provided as per application. For higher capacity rotators forged rollers are provided. • Our standard Rotators consists of Drive Unit and Idler Unit. The frame and rollers brackets our fabricated rollers heavy section, stress relieved and precision machined. • Steplessely variable surface speed from 75 to 1500 mmm or higher ratio and controlled through AC Variable Frequency Drives. • Forward and Reserve rotation along with inching facility on panel. • Operator pendant or forward reserve inch or run speed variation and stop function. • Self Aligning, Self Centering, Manual Adjusting type (Coupling Shaft) with single motor and special custom based rotators other classifications suiting to different requirements and covers entire range upto 500 Ton Capacity. Application: Welding of Pipes, API pipes, Boilers, Heat exchangers, Pressure Vessels, Mounted vessels, LPG Bullets, Barrels, Tanks etc. Top Advantages: • An indispensable tool for shell fabrication shops • Attains exceptional Quality circumferential joints on shells. • Increased production with reduced labour skill. • Leads to minimum handling the shell Job. • Lesser usage of crane reduces idle time. • Improves plant efficiency. • Welding automation.

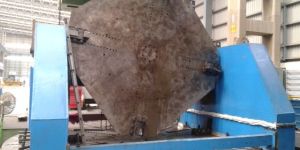

We are offering rotary and tilting table for indexing hemispherical job on vtc for machining purpose. Rotary and tilting table is manufactured on l & t forging and special steel division requirement. Capacity for this table is 45 mt. For more details mail us on

We offer right angle head. Salient features: - 1. housing is made of aluminium alloy casting. 2. input & output spindle is made from 20mncr5 case carburized & hardened to 52 to 55hrc & finished ground within run-out accuracy of 5 micron. 3. the assemble accuracy of the head is max 10 micron 4. bevel gear is manufactured from 20mncr5 hardened & ground. 5. stopper is provided for right angle head to suit the machine.

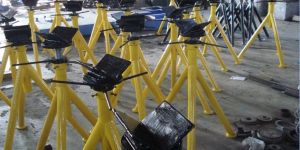

We manufacture custom built light and heavy duty pipe stands. technical specification: - a) “v” head type pipe stand. B) load carrying capacity 600-1000kg.(depends on customer requirement) c) c. I. Nut provided in stand. D) min job dia: - 2” (depends on customer requirement) e) max job dia: - 12” (depends on customer requirement) f) 125mm stroke provided for height adjustment. (depends on customer requirement)

Pipe Beveling Machine is custom built machine and is used for chamfering the pipe edges. Pipe beveling done for Welding of Tubes. This is the Prior arrangement for welding tubes that are used in Power Generation, Petroleum, Boiler and other high temperature services. Pneumatic clamp was provided for clamping of tubes. All Pneumatic accessories used are of SMC Make. Weight of machine is hardly 500 Kg so you can take the machine onsite and work, which reduces material handling. Facing, boring and bevelling operation are to be carried on this machine. RPM range of machine 30 to 300 RPM. Hardened Gears are used for better life cycle of machine. Worm and worm wheel arrangement provided for Feed.

We are offering multi spindle heads. Multi spindle drilling and tapping heads: we custom fabricate a wide array of special purpose multi-spindle tapping heads from bets parts and components procured from branded or reliable makes. The tapping heads available are ideal for handling high pressure and are offered with seven quick change speed modules. The machine can be adjusted to desired speed and torque for each threading type. Available as per client’s specifications, our range is known for: high performance durability corrosion resistance high efficiency all multi-spindle tapping heads offered by us can be used for tapping with suitable tooling.

Brand Name : Dixit

Certification : Na

Voltage : Na

Condition : New

Power : NA

After-Sales Service Provided : Yes

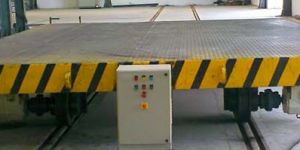

We are offering material transfer wagon. Motorized material transfer wagon is meant for transferring material from one bay (shop) to another. Wagon moves on indian standard rail section grouted in ground. Salient features of the transfer wagon are as follows: transfer wagon has two drive wheels and two idler wheels. Power through both drive wheels has separate gear boxes and motors. Both motors are synchronized through variable frequency drive. Depending upon the load bearing capacity of transfer wagon, number of drive wheels and idler wheels are provided. Hand pendant is provided to move wagon to and fro. Spring buffers and limit switches are given as safety measures. Material transfer wagons are manufactured with load carrying capacities from 15mt to 500 mt capacities as per customer's requirement. Roller conveyor roller conveyor is used to transfer raw material or finished goods from one end to another. The specifications like distance and load carrying capacity are supplied by the client. monorail trolley the monorail trolley is used where there is shortage of space and material movement upto 5mt capacity is required.

We manufacturers a very wide range of hydraulically operated machines which mainly include hydraulic presses •hydraulic presses are manufacture up to 3000t capacity, primarily used for plate pre-pinching, straightening, bending, dish end manufacturing. we manufacture hydraulic presses as per costumer’s specifications. we also manufacture hot press for rubber molding and cold molding press for teflon moulding. application: hydraulic presses are commonly used for forging, clinching, molding, blanking, punching, deep drawing, and metal forming operations.

K. K. Engineers make hydraulic power pack consists of a oil tank, whose base frame carries a vertical or horizontal flange mounted, electrical motor couple through a love-joy gear bush pin coupling to vane pump, gear pump or a piston pump, depend on pressure and capacity. The suction side of the pump is fitted with a suction strainer capable of straining particles of micron size while the discharge side of pump is connected to a manifold block directional control valves are mounted. The controls valves are suitably interred connected in the manifold block through drill passages to eliminate inter connecting piping. There by achieving compaction, reduce noise level, easy accessibility for maintenance just by removing the bolts. For showing oil level in the tank, oil level in the tank, oil level indicator with temperature control gauge is fitted in front of the tank at topside. The drainage system is given in side of the tank at the bottom. For filling oil in the tank air breather is provided at the cover plate. Return line filter is fitted behind the mani fold block to purify the used oil & return to the tank. The critical high pressure pump valves and other hydraulic elements will be one of the famous bosch-rexroth vickers, yuken, autos, suffon, polyhydron, hydroline and stuff from india and worldwide companies. We use the electrical switch gear components will be one of the reputed make such as siemens or l & t only.

Diamond cutting machine is custom built machine and is manufactured on customers requirement. Specification x-axis:- 1) stroke length: - 0 to 260mm. Y-axis:- 1) stroke length: - 0 to 400 mm. 2) servo motor:- hf-ke73(b)w1-s100, 750w, 3000 rpm to 4500 rpm. Z-axis:- 1) stroke length: - 0 to 70mm. Longitudinal, vertical and transverse travel based on customer requirements.

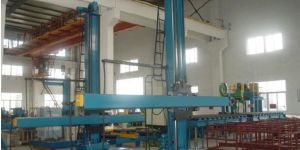

We manufacture a complete line of column and boom welding manipulators which maximize both safety and production. Column and boom are a versatile and rugged solution to obtain high lift and reach to duplicate the function of a highly skilled welder. Many variations in speeds, controls and welding equipment can be fitted to a column and boom welding manipulator. Specially engineered column and boom welding manipulators are available like; fixed base ã�â¢ã¯â¿â½ã¯â¿â½ column base is fixed to the ground rotating base ã�â¢ã¯â¿â½ã¯â¿â½ column base rotates up to 180ã��ã�â° movable base ã�â¢ã¯â¿â½ã¯â¿â½ the entire column and boom can travel on a rail track from one place to other giving 3-axis movement features: heavy duty structure made out of fabrication steel. Extremely robust and vibration free. Stress relieved and precision machined. Highly stable and accurate motion even at low speeds. Back-lash free gear box for vertical and horizontal movement. Lead screw mechanism in light duty models. Rack & pinion mechanism in medium and heavy duty models. Fail - safe, anti-fall mechanism with counter weight arrangement. Sealed roller ball bearings for long service life without maintenance. Optional moving base with track with manual or motorized motion, for 3 - axis operation. Optional rotating base arrangement with manual or motorized motion, for 4 - axis operation. Suitable for interfacing with nc or cnc controllers. Heavy duty motors of 100% duty cycle. Heavy duty vfd (variable frequency drive) for continuous operation without overheating and tripping. Supply input 380 - 415 vac 3-phase 50-60 hz. Applications: suitable for tig, mig, mag, plasma welding. Also for saw, strip cladding and pta welding

We are offering multi spindle drilling machines multi spindle drilling machines are used for simultaneous drilling of number of holes. This greatly reduces the operation time and also improves the center distance accuracy. Multi-spindle heads can be of fixed center construction for mass and large batch production. For batch production, adjustable center type designs are also offered. Multi-spindle heads can be of geared construction or gear-less construction. Number of drill spindles and hole diameters are no constraints to design. We have supplied several machines of different designs and construction, custom designed and manufactured to specific requirements of customers.
