Miniature Circuit Breaker Dealers in Surat

• Frequency: 50/60 Hz
• Material: Plastic copper
• Installation: 35MM DIN RAIL
• current (A): 80
• Number of poles: 1 P
• Rated operational AC voltage: 240V /415V
• Breaking Capacity: 10KA
• Standard: IEC/EN60947
• Packaging: 1P DC MCB 120pcs/ctn, 2P DC MCB 60pcs/ctn
• Poles Number: 1P,2P,3P,4P
• Rated frequency: 50Hz

• Rated current: Any
• Poles Number: 2 Pole, 3 Pole+N, 3 Pole, 1 Pole, 1pole+N
• Power: Any
• Classification: Type B, Type C, Type D
• Rated short circuit breaking capacity: Any

This compact and reliable range of MINI MCBs is available with two unique mounting choices-modular and flush mounted (Screw mounted), ensuring operational safety of precious appliances is the foremost objective of UNO MlNl-MCB range. It thus offers undeterred protection from overload and short-circuit, securing the precious appliances by increasing their operational longevity. Applicable Standard IS/IEC 60898-1:2002 Standard Rated Current(In) 6A to 32A Tripping Characteristics "C" Curve No.of Poles SP& DP Rated short-circuiting capacity(Icn) 3000A(3kA) Rated Voltage(Ue) 240V AC Rated Frequency (f) 50Hz Wattage Loss As per IS/IEC standards Mounting Snap fit/Screw mounted(on board) Protection class IP20 Suitable for Protection Per point protection Design Registration certificate Design Registration Number : 252904

• Number of pole: I, I+N, 2, 3, 3+N & 4
• Energy Limitation Class: Class 3 as per EN 60898-2003
• Rated Voltages: 240 / 415 V AC
• Insulation Voltage: 500V
• Rated Frequency: 50 ,60 Hz

  Introduction : The 7star mini MCB is a safety devices that protects electrical installations from overloads ands short circuits. This is superior replacements for the rewirable fuse. The mini MCB can be used in homes, officers and commercial. establishments, in fact anywhere where electricity is   used   7STAR Miniature Circuit Breaker is an automatic current controlling device. It is widely used as a safety device on all main power distribution sources to protect electric motors, household wiring, long distance power lines & other electrical distribution lines against damage inherited by current overloads flowing through the circuit as a result of fault in circuit or may be of an outside event such as lightning.   At MOTI Enterprise, we thrive to produce zero defect products. All our 7STAR MCB’s are subject to qualify rigorous quality control tests for maximum specified mechanical and electrical operations. We take so much  care  to  ensure that  we  make  best  quality  products that have   longer life as well as offer quality protection to the electric circuit. All the parts and raw materials used in the manufacturing process of MCB’s are of the best quality as per the specified standards   Unique Features: High rating of up to 3KA. Compounded with hammer -tripping mechanism that ensure low let through energy.. Excellent discrimination with upstream and downstream breakers and fuses. Compact and modular. Wide range of switches and distribution boards to suit a variety of application. Maintenance free, based on a fuse-less technology. Performance & Safety Reliability & Continuity of service Suitable for both DESB and switch board Short Circuit breaking capacity, 3kA (MCBs) Protection against overload & Short Circuit in switch board itself by MCB     Mini MCB – Technical Specifications Specification : IS 8828: 1996, IEC898: 1995. Number of poles : SP, SP+N ,DP& TP.(Total 4 pole configuration ) Rated voltage : 240/415 volts Ac. Frequency : 50/60 Hz. Rated Standard Current (IN) : series B & C 6A TO 32A amps Tripping Characteristic : ‘B’ Characteristic (Green knob). Identification ‘C’ Characteristic (Blue knob). Rated breaking capacity (Icn) : Up to 3000 Amp (3 kA). Housing materials : Fire retardant glass fiber reinforce polyester (PBT)/Nylon 66 in RAL 7035 Grey colour. Mechanical life : Min.30000 switching cycles. Electrical service life : Min. 20000 makes / break operations. Terminal block capacity : 1 to 4-mm2 wire. Dimension (WxHxD) : 25*72.5*52.5mm1 spacing Unit = 25mm.

Schneider MCB, Schneider Power Contactors

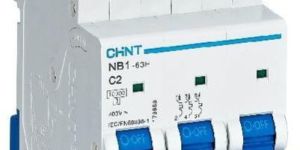

Chint MCB, Chint Electrical products
