Pump Casting Dealers in Surat

• Country of Origin: India
• Size: 100-150mm
• Material: Aluminum,Stainless Steel
• Application: Industrial
• Feature: Good Quality
• Use in: Pump Set
• Thickness: 3mm

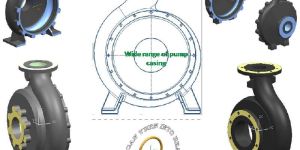

we are developing and supplying special requirements of pump parts like casing, impeller, stuffing box, bearing housing from gujarat, india. satisfied projects and industrial needs through supplying borehole pumps, chemical process pumps, corrosive media pumps, centrifugal pumps, dewatering pumps, drainage pumps, industrial water pumps, jet pumps, mud pumps, multistage pumps, split case pumps, selfpriming pumps, submersible pumps, sea water pumps, slurry pumps, sewage pumps, liquid ring vacuume pumps etc. (please find attached files for few of our products) since 2001 we are also engaged in: - engineering manufacturing services - developments of molds for castings - industrial engineering equipment developments - redesign and conversion of pumps parts etc. we would like to explore supplying opportunity of our products to your esteemed organization. please let us know your specific requirements as a trial basis, we assure you that we can be a long term supplying vendor to you based on our quality tailor made products and business ethics.

• Max. Capacity: 750 m3/hrs.
• Max. Head.: 160 mtrs
• Max. Pressure: 25 bars.
• Max. Temperatur: 210º C
• Speed: 1450 – 2900 RPM
• Standard Material: SS 316, SS 304, Nobles Alloys C.S., Nod CI
• Shaft: SS 304, SS 316, SS 410, SS 420
• Shaft Sleeve: Stainless Steel

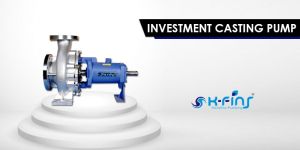

DESIGNS : The Investment Casting Pump – ICP series pumps are designed with Din 24256/ISO2858 is an end suction, horizontal, back pull out the pump. The dynamically balanced closed impeller in radially split, top discharge volute provides a smooth flow of liquor. SEALING ARRANGEMENTS: World’s best quality gland packing and also provision of jacketed stuffing box for high-temperature applications. Generous seal cavity permits easy fitment of a maximum range of seals in internal, external, cartridges types with API sealing plans. FEATURES: The Investment Casting process pumps are manufactured to meet customers specific requirements within the models Investment Casting it requires minimum assembly time and minimum inventory of spares. Investment Casting is very high-class technology zero-defect investment casting pump offer higher efficiency & smoothly hydrodynamic flow. BEARING ARRANGEMENTS: Our heavy duty bearing housing and bearing bracket is designed in a single piece so that alignment will not get disturbed even after at-site maintenance. Highly accurate oversized shaft and multiple selections of ball bearing, angular contact and cylindrical bearings, as per application to withstand radial & axial thrust and assure continuous extended service life. Oil bath either grease lubricating system assembly has chosen as per application resulting combination are completely interchangeable. Maximum interchangeability gives minimum spares parts inventory. Greater quality control and accuracy in production of every unit with modern machining operation. Back-pull out design permits quick inspection of repairs of rotating elements without disturbing piping connection. Company loaded with ISI & ISO standard testing facilities to provide best out of it. Experienced, talented and educated staff is capable to give best to customers and to the country
