Tile Making Machine Dealers in Surat

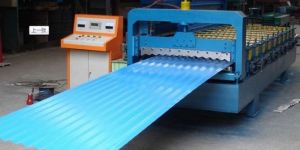

  • Lowest price • Best service • Easy operation • Beasutiful outlook   Profile • Feeding width:1000mm • Effective width:840mm • Material thickness: 0.4-0.8mm   Process flow • Decoiling • feeding • forming • cutting • production   Manual Decoiler • Material coil inner diameter: 450mm-700mm • Max coil width: 1000mm • Carrying capacity: 5T   Forming Device • Number of forming steps: 18 steps • Shaft material: 45 steel with harden treatment, outer diameter 85mm • Roller material: 45steel • Main motor power: 15kw • Forming speed: 8-10m/min • Voltage: 220V/50Hz/3 phrase   Cutting Device • hydraulic cutter • blade, puncher and mold material: Cr12 steel with quenched treated 60-62C • cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.   Controlling Device • screen: 5.7 inch Delta screen from Taiwan • PLC: Delta DVP14ES from Taiwan • coder: Delta   Hydraulic • Advanced hydraulic system from Taiwan • Power: 11kw   Simple output frame • simple frame weld bu 8 U bar, 1 pcs of 3m   Packing • Container packing of the line suitable for overseas shipping • The subject can be loaded in one 40’ GP container. • Packing style: Naked and covered by plastic film, spare parts and some small parts packed in wooden box.   Assemble, train the machine • It is free to assemble and train the machine, but the buyer must pay for the round-trip airplane ticket, and arrange accommodation during that time   Maintain It is free to maintain the machine the first year after you buying, include changing the main components. The first year hence, you will pay for our technician $50/day to maintain the machine. And its component is not free, if you need to get it from us. (The buyer should supply airplane ticket and accommodation, if he need maintain).   Component and Function: • Sheet guiding equipment: Using guiding equipment of leader sliding block style. The width and the left or right position can be adjusted only by adjusting the leader, then the sliding block can realize left or right movement. • Mainframe Transmission: Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet. • Roll forming system: The main frame of machine is welded separately and the outside wall is connected by screw after being roto-blasted on the surface. The rollers are surface-chrome plated after being machined by the exact machine tool.

We are offering glaze tile roll forming machine.

• Type: Sizing Machine
• Weight: 100-1000kg, 1000-2000kg, 2000-3000kg, 3000-4000kg, 4000-5000kg
• Color: Black, Brown, Green, Grey
• Voltage: 110V, 220V, 380V, 440V
• Condition: New, Used
• Driven Type: Electric, Hydraulic
• Power: 1-5kw, 15-20kw, 20-25kw, 5-10kw
• Machine Type: Automatic,Semi Automatic,Manual

• Capacity: 5HPx2
• Weight: 7.5-8 ton
• Brand Name: Standard Ceramics
• Application: Textile Industry
• Power Consumption: 415V
• Machine Type: Automatic

• Power: 10 hp
• Color: Red
• Max Sheet Width: 400-600 mm, 200-400 mm
• Grade: Automatic
• Material: Stainless steel

We are the exporter and supplier of this products.

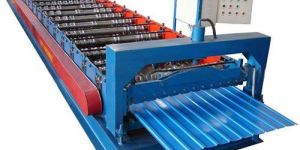

The line includes: Manual decoiler, Main  forming machine , Hydraulic press forming unit, Hydraulic system, Electrical control system, Hydraulic cutter, Normal receiving stand.Technical specifications of  Glazed Tile Forming Machine : Manual decoiler Coil inner diameter: 450mm-650mm Coil outer diameter: 1100mm Maximum width of coiling: 1250mm Maximum weight of loading: 5000kg   Glazed Tile Forming Machine   Number of forming rollers: 10 groups Material of shaft: 45# steel adjustable treatment. Outer diameter 70mm Material of roller: 45#steel, plating hard chrome on the surface, rigidity HR55°-57° Main motor power: 5.5kw Speed of forming: 3m/min Stand: 300# steel welding The plating chromium of rollers’ surface: 0.05mm Thickness of the steel: 0.4-0.6mm Chains: 1 inch Thickness of wall plate: 12mm Dimension of the machine: About 7.5m*1.5m*1.5m Weight of the machine: 5500KG Hydraulic Cutter Material of blade: Cr12 mold steel with quenched treatment 60-62°C Cutting system: adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting high safe factor. Function and structure: cutting the forming sheet. Hydraulic Drive:Function: press the mark on the steel plate, make it look like steel tile.Electrical control system: The Brand of display: 5.7 inch The main computer (PLC): Tai Da DVP14ES Function and operation: Control the starting ,operation and stopping of the whole line, including distribution section, operation table, counting instrument. Use PLC to control, set and adjust the length. Hydraulic system: Adopting advanced hydraulic system of Tai Wan Power: 3KW Function: apply power for cutting machine

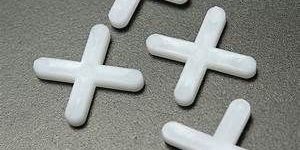

Tile spacers for various thicknesses between the tiles. We also deal in TENNAX range of products for different types of Marble. We have also tile protection tapes , films and protection sheets.

Swastik Paver Block, Zig Zag Unipaver Tile

tiles machinery

828 Glazed Tile Forming Machine, Crimping Roll Forming Machine, Green Coconut

tiles spacer, PVC Main Whole Cover, cast iron cover, Toilet Jet Spray
